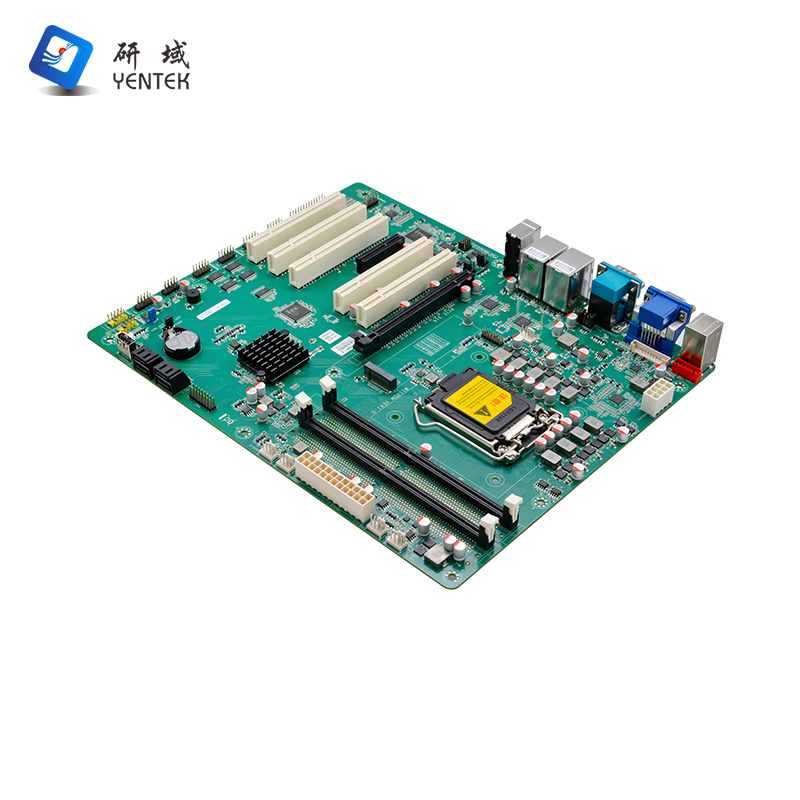

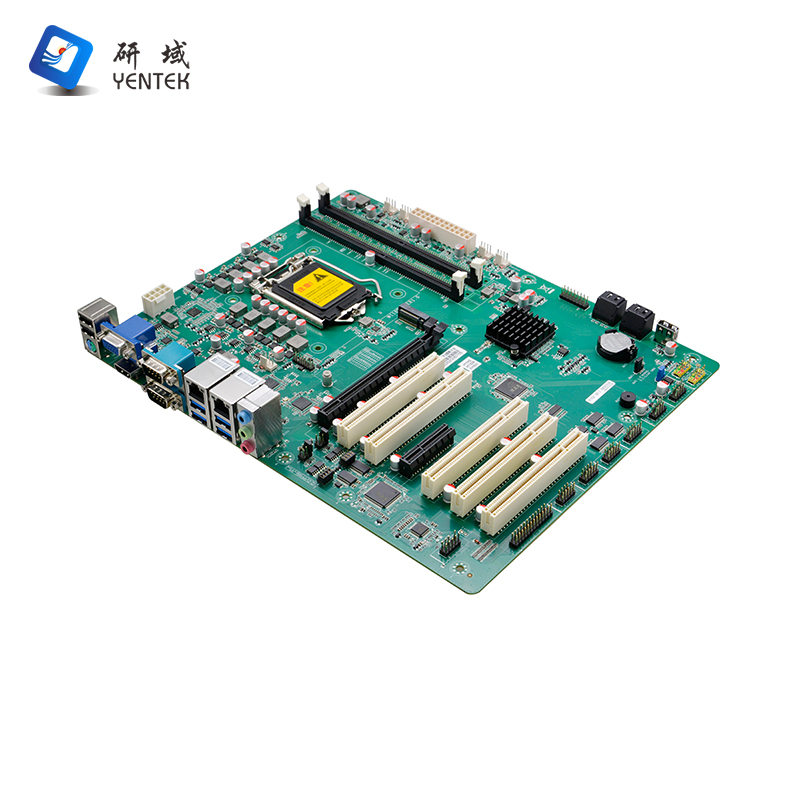

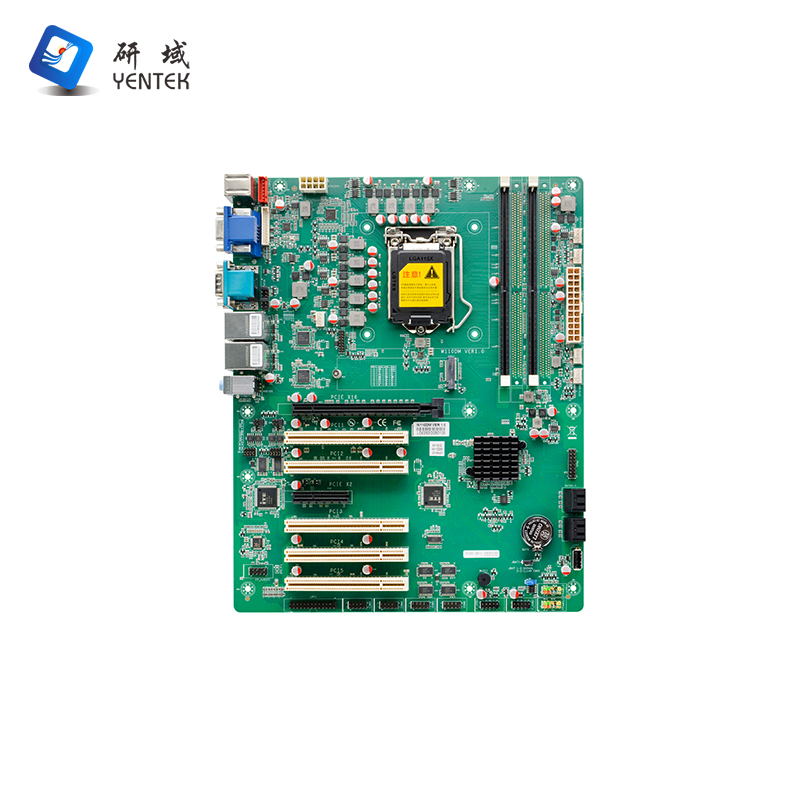

W110DM

Processor

Supports 6th/7th/8th/9th generation   Intel® Celeron/Pentium/Core™ i3/i5/i7 processors with LGA1151 socket

Chipset

Features Intel H110 high-speed chipset

Memory

2x DDR4 DIMM   memory slots, supporting dual-channel 2133/1866MHz memory, maximum capacity   64GB

Display

Integrated   Intel® HD Graphics controller, supporting DirectX 12, OpenGL 4.4, and 4K/60Hz   display

1x VGA port,   supporting maximum resolution 1920x1200@60Hz

2x HDMI 1.4   ports, supporting maximum resolution 4096x2304 @24Hz

Network

2x Intel® WGI210AT Gigabit Ethernet   controllers, supporting Wake-on-LAN and PXE functionality

Storage

4x SATA 3.0   hard drive interfaces, with SATA transfer speeds up to 6Gbps

1x M.2 slot,   supporting M.2 2280 NVMe PCIe x1 SSD

Audio

Integrated ALC897 7.1-channel   high-fidelity audio controller, supporting MIC, Line_out, Line_in

Expansion Slots

1x PCIe x16 slot

1x PCIe x4 slot (functionally equivalent   to x2 signal)

5x PCI expansion slots

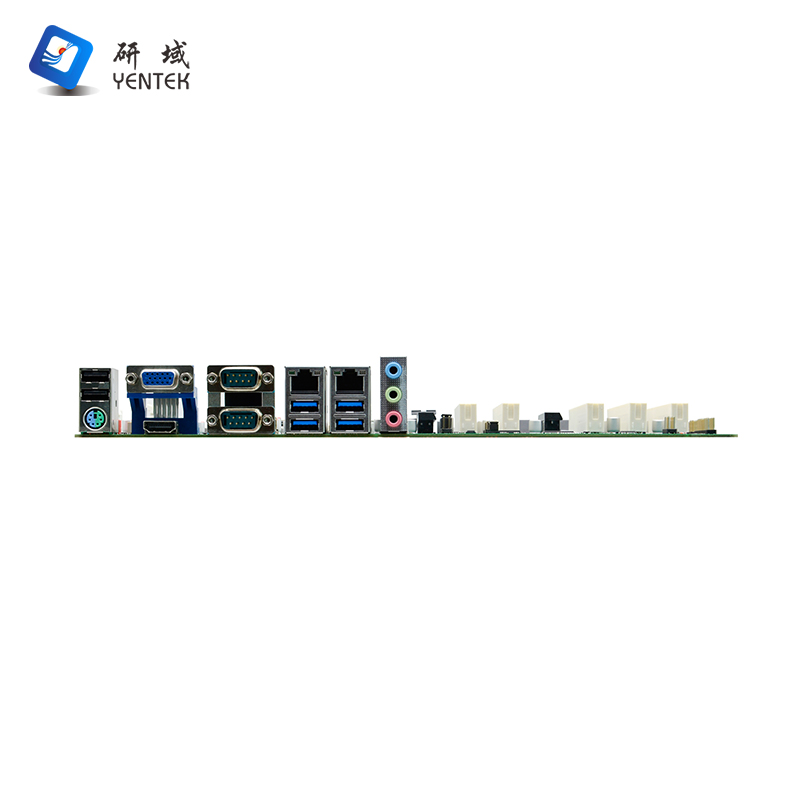

Rear Panel I/O Ports

1x PS/2 keyboard/mouse port

1x VGA display port

1x HDMI display port

2x DB9 RS232 serial ports (COM1/2   support 5V/12V power supply, COM1/2 support RS485/422 functionality)

2* RJ45 Gigabit Ethernet ports

4* USB 3.0 ports, supporting 2A current   per port

2* USB 2.0 ports

1* Line out port (green), 1* Line in   port (blue), 1* MIC port (red)

Integrated I/O Ports

1* JVGA1 display port 1*12-pin (same signal as   DB15)

1* PS/2 keyboard/mouse port 1*6-pin   (same signal as UK1)

1* HDMI display interface 2*8-pin

4* RS232 serial interfaces, 2*5-pin

1* LPT printer port 2*13-pin

1* Front audio interface 2*5-pin

4* USB 2.0 ports 2*5-pin

1* Vertical USB 2.0 port

2x Front Panel Function Button and   Indicator Interface 2x5-pin

1x 24-pin ATX Power Input Interface

1x 8-pin ATX Power Input Interface

1x TPM Interface 2x8-pin

Fan Connectors

1x 4-pin CPU Intelligent Fan Interface,   4x 4-pin System Intelligent Fan Interfaces

GPIO

Supports 4-channel Input/Output GPIO   Functionality

BIOS

AMI 128Mb Flash ROM

Watchdog

Supports hardware reset function   (256 levels, 0–255 seconds)

Operating System

Windows 7/Windows 10/11/Linux

Power Supply Type

Powered via 24-pin ATX connector

Operating Temperature

-10°C to 60°C

Storage Temperature

-20°C to 70°C

Operating Humidity

5–90% relative humidity,   non-condensing

Dimensions

305mm x 245mm

1

W110DM   VER:1.0

LGA1151

H110

2*DDR4

1

2

/

/

2*I210AT

11

6

COM1/2

ATX
