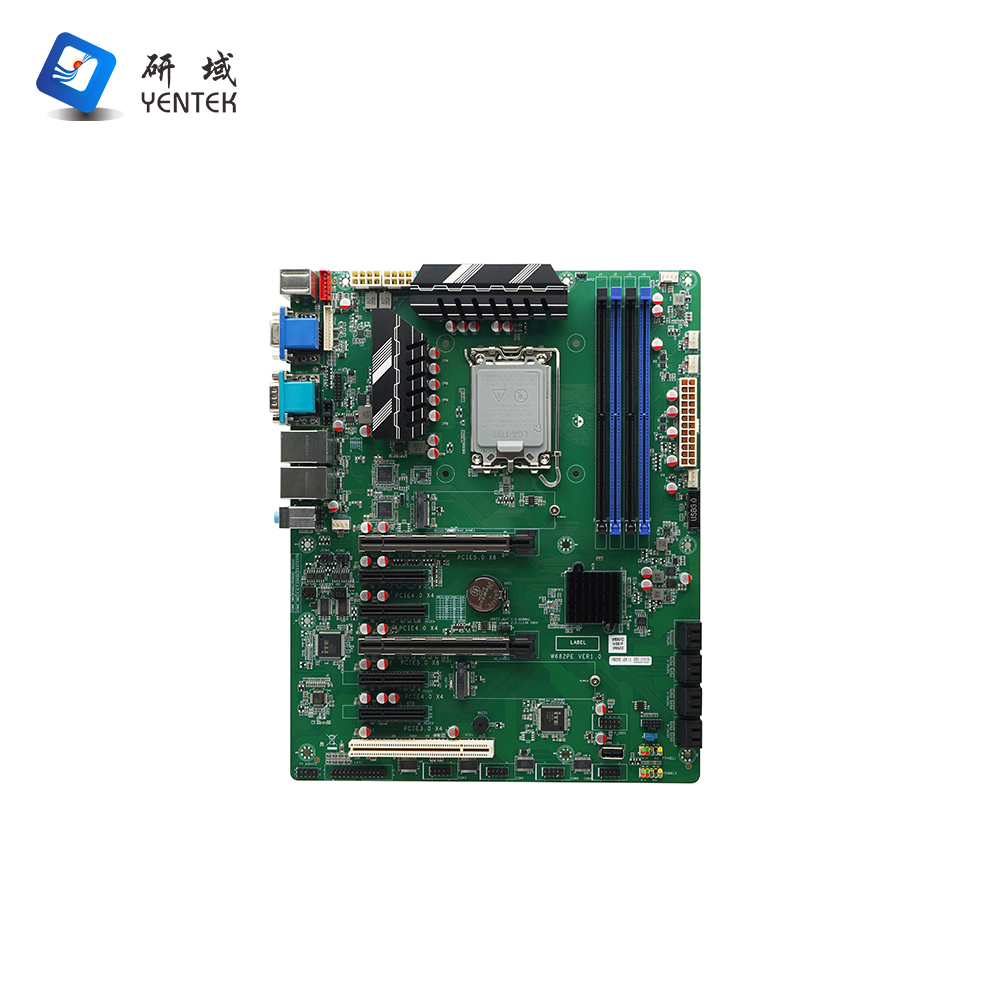

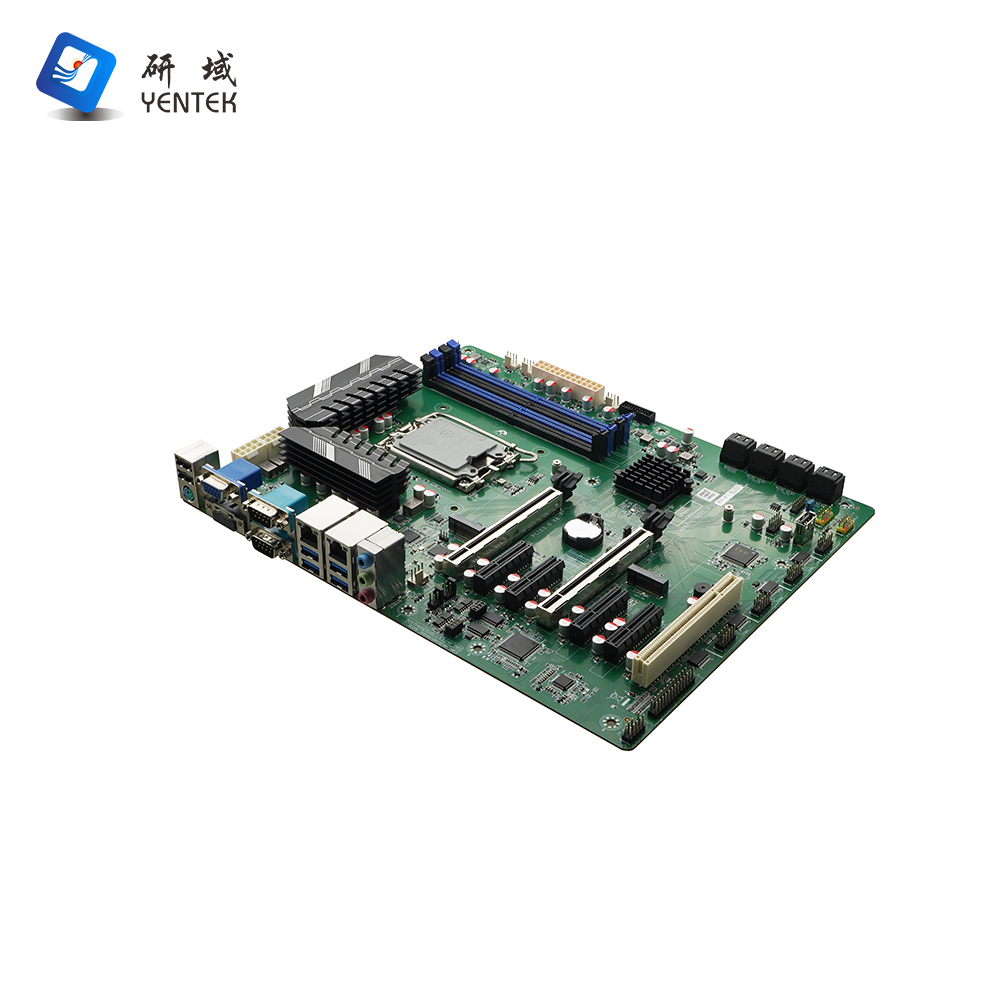

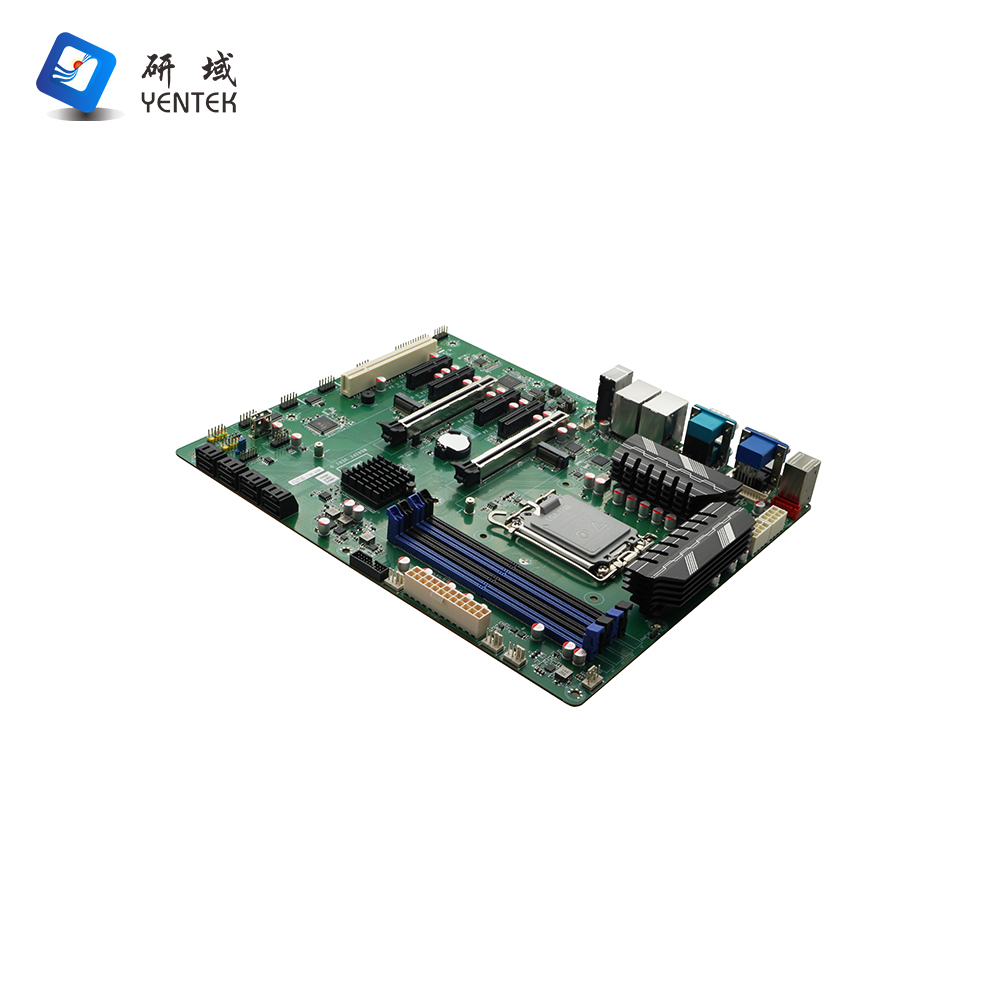

W682PE

CPU

Support LGA1700 12th/13th/14th Intel ® Core I3/i5/i7/i9   processors

Chipset

Adopting Intel ®    W680 chipset,

Memory

4 * DDR5 DIMM memory slot, supports dual channel up   to 5600MHz memory, supports up to 128GB, and supports ECC memory

Display

Integrated with Intel ® HD Graphics core graphics   card supports DirectX12.1, OpenGL 4.5, and 4K display

1 * VGA interface, supporting a maximum resolution   of 1920X1200@60Hz

2 * HDM1.4 interface, supporting a maximum   resolution of 4096x2160 @ 24Hz

Network

2 * I210AT Gigabit Ethernet card chip, supporting   network wake-up/PXE function

Storage

8 * SATA3.0 hard drive interface, with a transfer   speed of up to 6Gbps, supporting RAID 0, 1, 5, 10

1 * M.2 slot, supports M.2 Key M 2280 NVME PCIE4.0   X1 standard SSD (M2_SVME1)

1 * M.2 slot, supports M.2 Key M 2280 NVME PCIE4.0   X4 standard SSD (M2_SVME2)

Audio

Onboard ALC897 7.1+2-channel high fidelity audio controller,   supporting MIC/Line out/Line in

Expansion slots

2 * PCIE5.0 X16 slot (actually X8 signal)

1 * PCIE 3.0X4 slot

3 * PCIE 4.0 X4 slot

1 * PCI slot

Rear IO ports

1 * PS/2 interface (expandable keyboard and mouse)

1 * VGA interface

1 * HDMI 1.4 interface

2 * DB9 RS232 serial port, supports 9th pin live   function, supports RS485/422 function

4 * USB 3.0 interface (5Gbps), supports single port   2A current

2 * USB 2.0 interface

2 * RJ45 Gigabit Network Interface

1 * Three layer audio interface, supporting Line   out, MICK, Line in

Built-in IO ports

2 * USB 2.0 interface 2 * 5pin,

1 * Vertical USB 2.0 interface

2 * USB 3.0 interface 2 * 10pin

1 * Front panel audio interface (2 * 5pin)

2 * Front panel function buttons and indicator light   interface (2 * 5pin)

1 * 24 pin ATX power socket 2 * 8 pin ATX power   socket

1 * PS/2 keyboard and mouse interface 1 * 6pin

1 * JVGA interface 1 * 12pin, same signal as DB15

1 * JHDMI interface 2 * 8pin

1 * TPM interface 2 * 6-pin

4 * RS232 serial port, 2 * 5pin

1 * LPT interface 2 * 13 pins

Fan   interface

2 * 4pin CPU fan interface; 3 * 4pin system fan   interface

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0-255   seconds)

OS

Windows 10/Windows 11/Linux

Power supply

Powered by ATX 24pin and 8pin power supplies

Operating temp

-20℃～60℃

Storage temo

-20℃～70℃

Working humidity

5% -95% relative humidity, no condensation

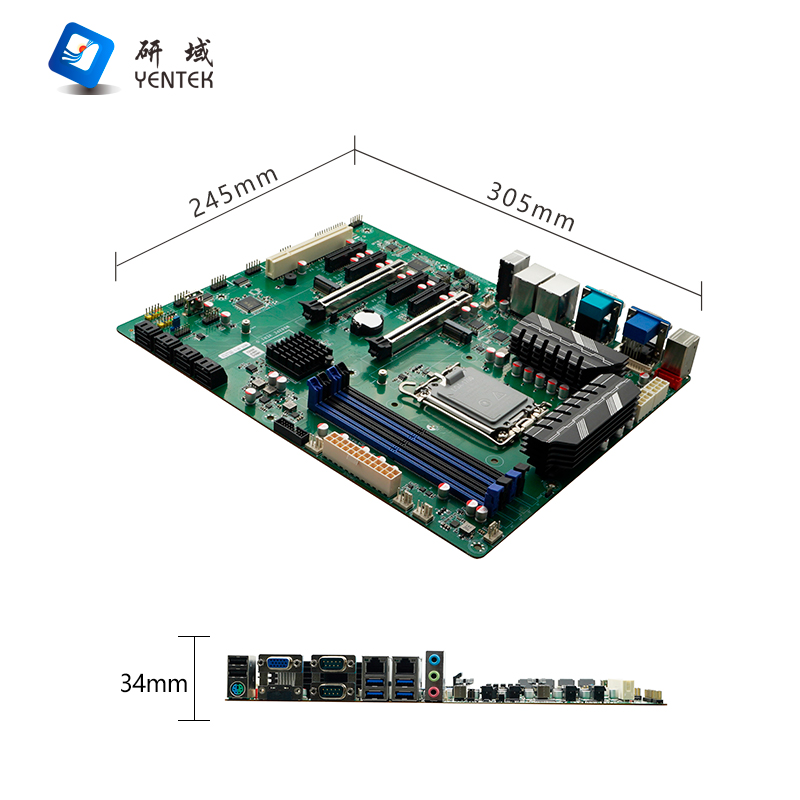

Dimensions

305mm x 245mm
