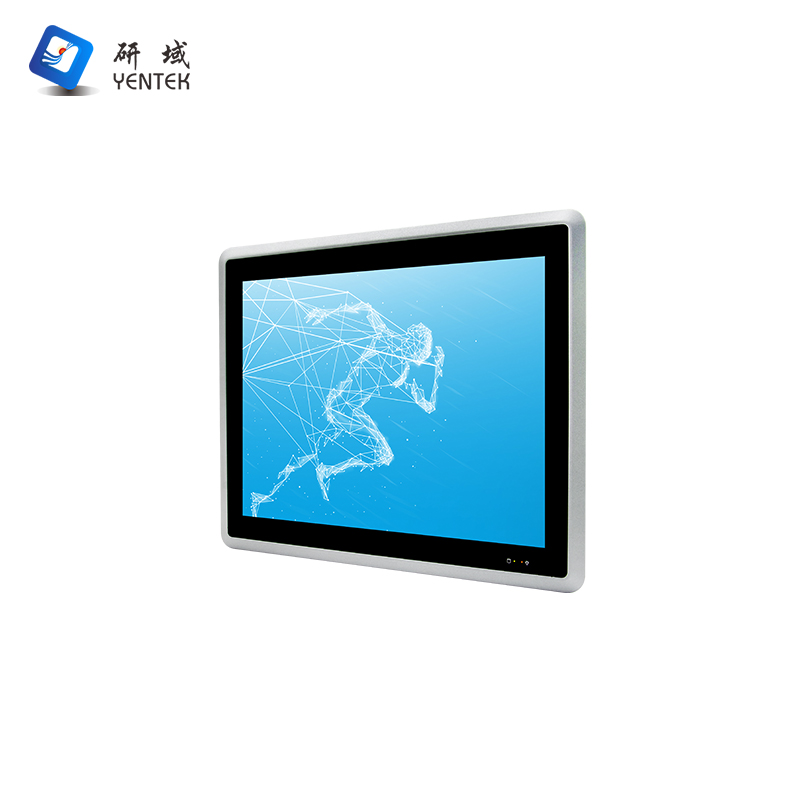

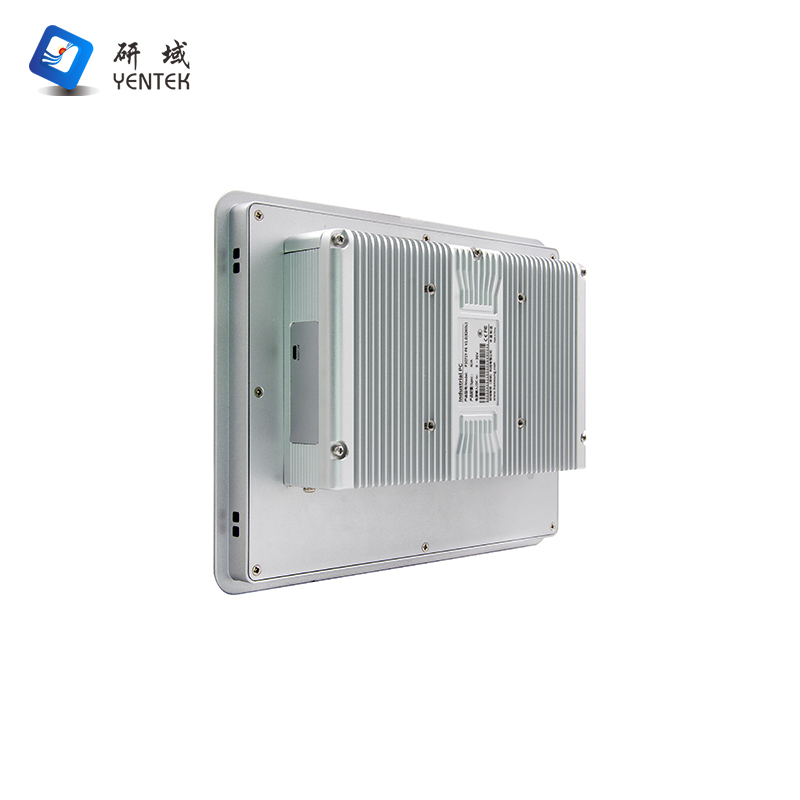

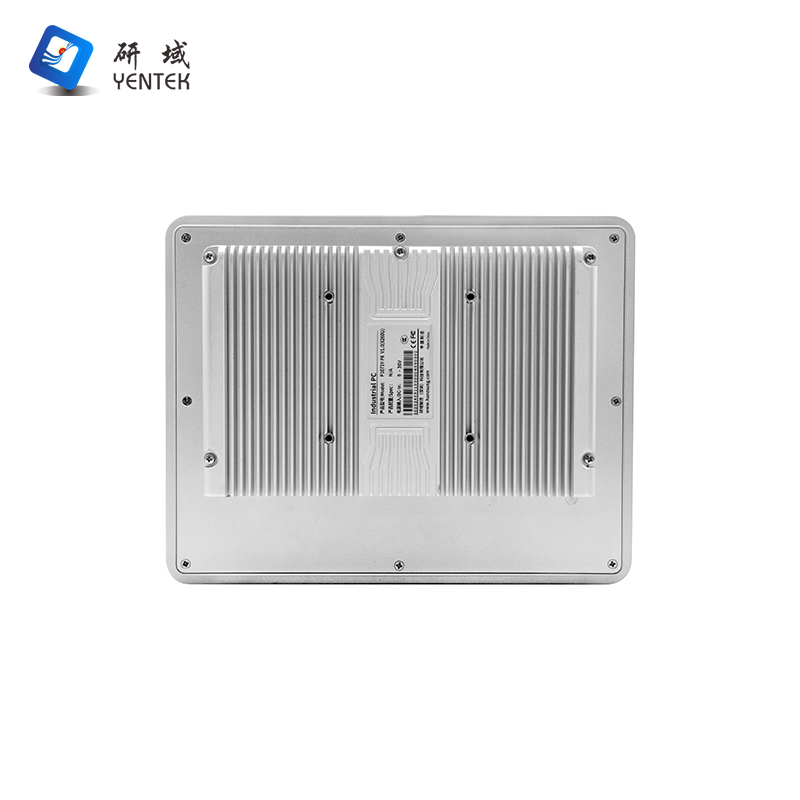

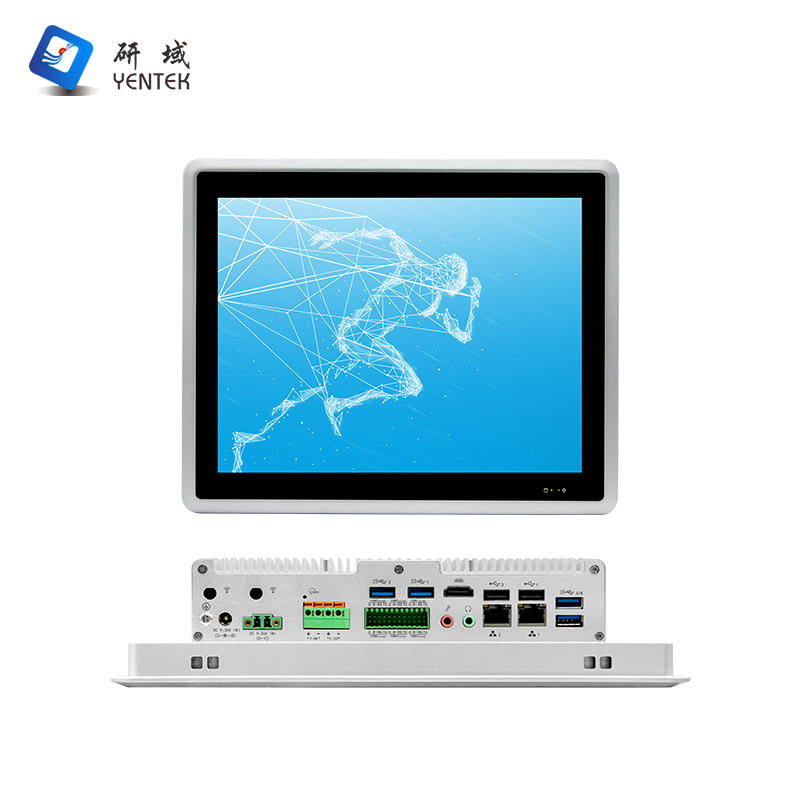

P1071Y-F6 (Embedded)

Chassis

Material/Construction

Aluminum alloy

Color

Bright silver

Dimensions (L x W x H)

L x W x H (mm)

Weight (Net weight without   accessories)

2.3 kg

Installation

Supports VESA (75 mm) / panel   mounting

LCD Screen

Type

10.4-inch LCD, portrait   orientation, 4:3

Resolution

800 x 600

Brightness

350 cd/m²

Touchscreen

Type

Capacitive, 10-point touch

Transmittance

Over 80%

Motherboard

CPU

Integrated Intel® i5-8260U/1.60   GHz quad-core, eight-thread processor, 10W TDP

Display

Integrated Intel® UHD Graphics

Memory

2x SODDR4 2666 MHz memory,   supports up to 64GB

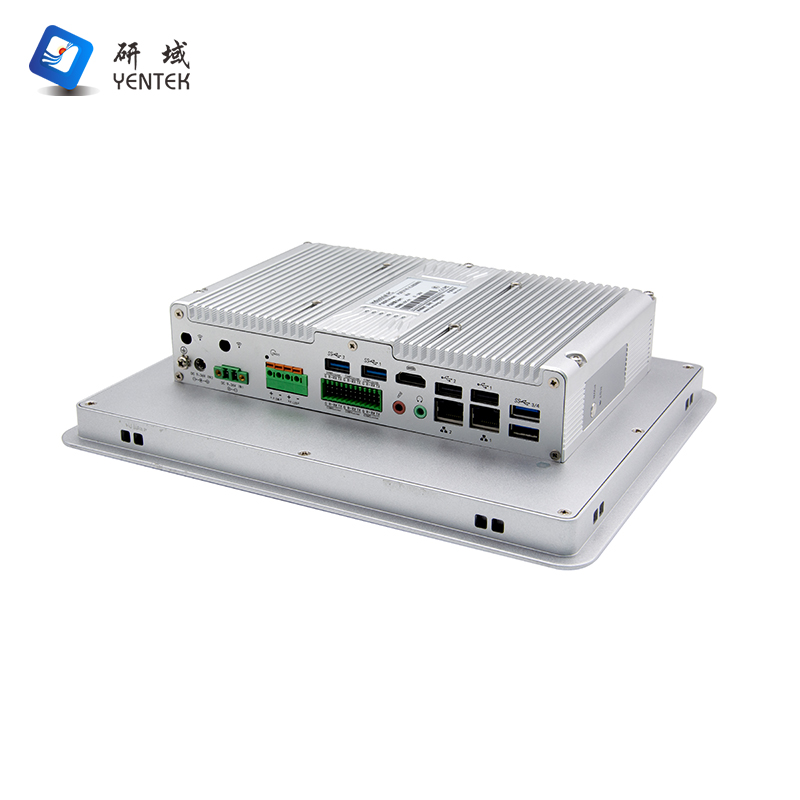

I/O Ports

Power

1x Power button, 1x One-Touch   Restore, 1x ACLOSS (power-on DIP switch), 1x CMOS reset switch

LED

1 x Power LED, 1 x HDD LED

Display Ports

1 x HDMI 1.4

LAN

2 x Intel I210AT Gigabit   Ethernet ports, supporting Wake-on-LAN/PXE

USB

4 x USB 3.0, 2 x USB 2.0

COM

6 x RS232/485 (located on 2 x   12-pin Phoenix connectors)

Remote Switch

1*Power Switch Signal, 1*Power   Indicator Signal (located on 1*4-pin remote switch)

Audio

1*Line Out, 1*Mic

Power Supply

1*DC (5.5*2.5) or 1*2-pin   (P=5.08mm) Phoenix connector, supports 9–36V wide-voltage input

Storage

mSATA

1× MSATA

SSD

1× M.2, supports Key-M,   2260/2280, NVMe PCIe x4 SSD (PCIe speed depends on CPU)

SSD

1× M.2, supports Key-M, 2280,   SATA SSD (on I/O board)

5G

1× M.2, supports Key-B,   3042/3052, 5G module

WiFi

1x M.2, supports Key-E, 2230,   Wi-Fi module

Expansion

Windows

Windows 10

Linux

Ubuntu

System Compatibility

Power Supply Type

DC 9–36V wide-range input

Power Output

AC to DC 60W or higher   (depending on specific device)

Power Requirements

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Relative Humidity

5%–95% relative humidity,   non-condensing

Vibration

0.5g rms/5-500HZ/random

1

P1071Y-F6 V1.0(J6412)

J6412/2.0G

2*SODDR4

P641

P1071-LED/P1041-F6

MSATA+M.2(SATA)+M.2(NVMEx2)

2*I210

6

1

4

2

9~36V

2

P1071Y-F6 V1.0(7300U)

i5-7300U/2.6G

2*SODDR4

P67

P1071-LED/P1041-F6

MSATA+M.2(SATA)+M.2(NVMEx4)

2*I210

6

1

4

2

9~36V

3

P1071Y-F6 V1.0(8260U)

i5-8260U/1.6G

2*SODDR4

P81

P1071-LED/P1041-F6

MSATA+M.2(SATA)+M.2(NVMEx4)

2*I210

6

1

4

2

9~36V

4

P1071Y-F6 V1.0(10210U)

i5-10210U/1.6G

2*SODDR4

P102

P1071-LED/P1042-F6

MSATA+M.2(SATA)+M.2(NVMEx4)

2*I210

6

1

4

2

9~36V

5

P1071Y-F6 V1.0(5205U)

5205U/1.9G

2*SODDR4

P102

P1071-LED/P1042-F6

MSATA+M.2(SATA)+M.2(NVMEx4)

2*I210

6

1

4

2

9~36V
