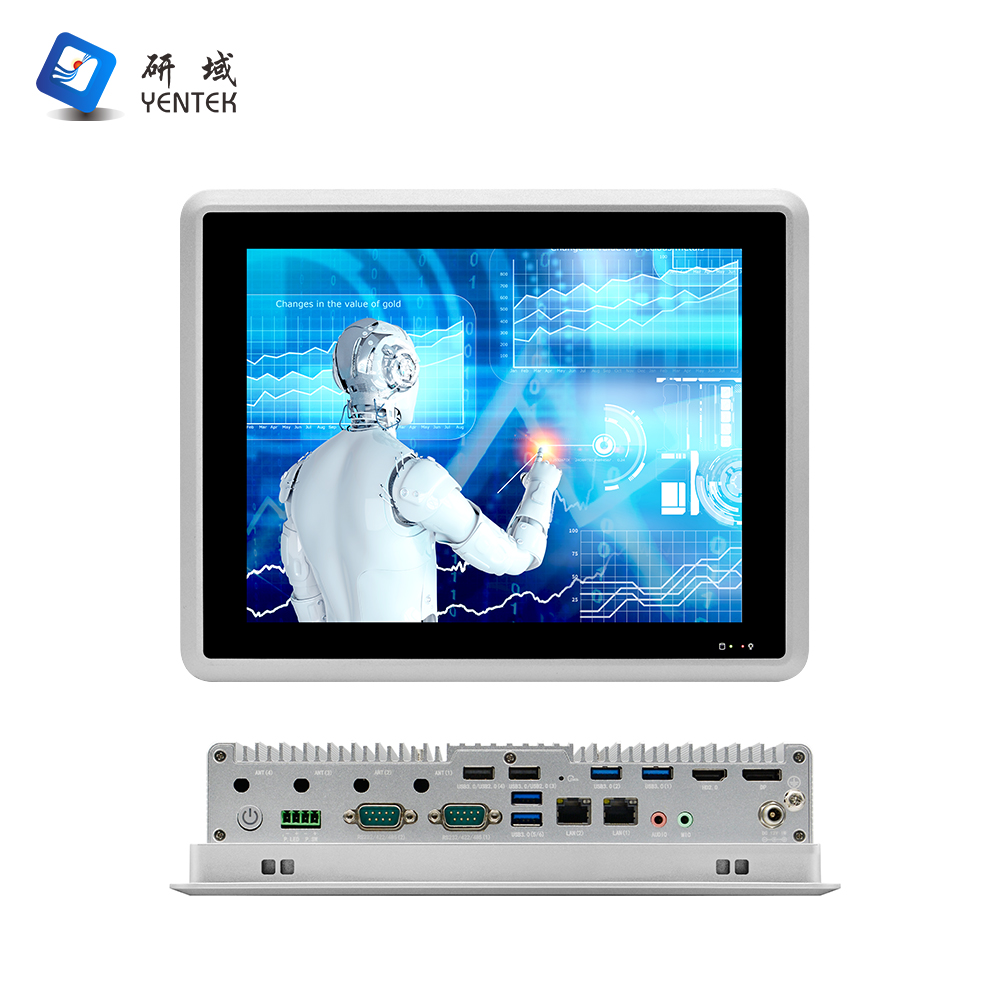

Model | P1071Y-D2 V2.0(J6412) |

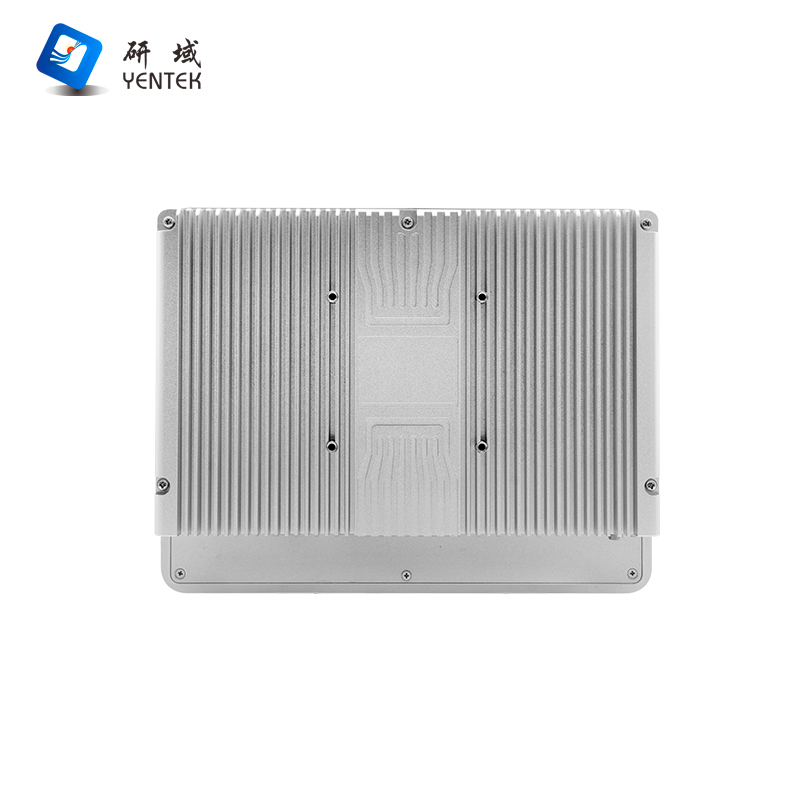

Chassis | Material/Structure | Aluminum alloy construction, fanless cooling design |
Color | Silver |
Dimensions (LxWxH) | L272*W214*H64.5mm |
Weight (Net Weight) | 2.7KG |
Mounting | Supports VESA (75*75) / flush-mount panel installation |

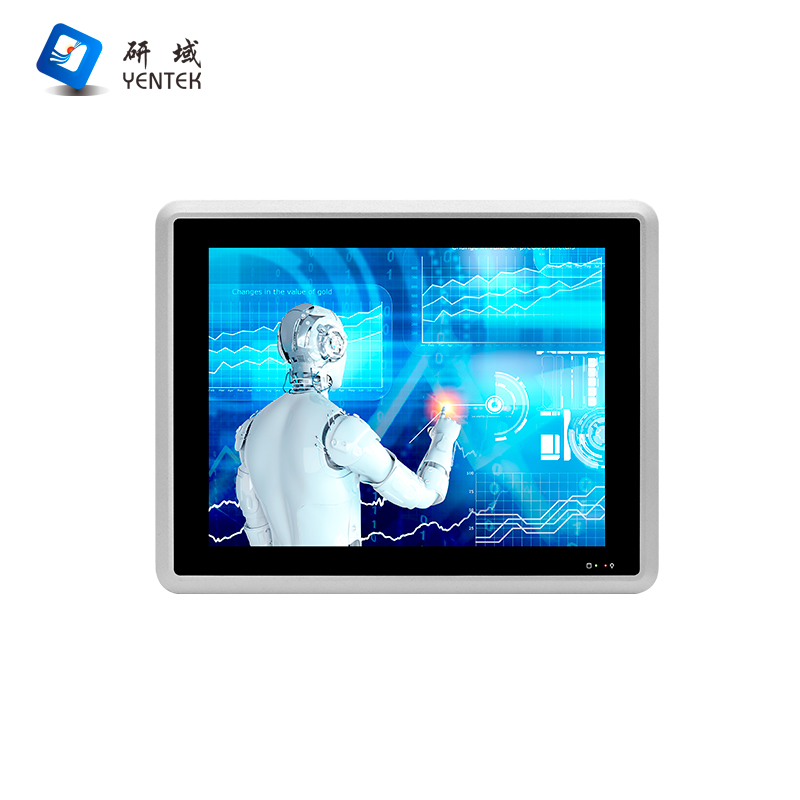

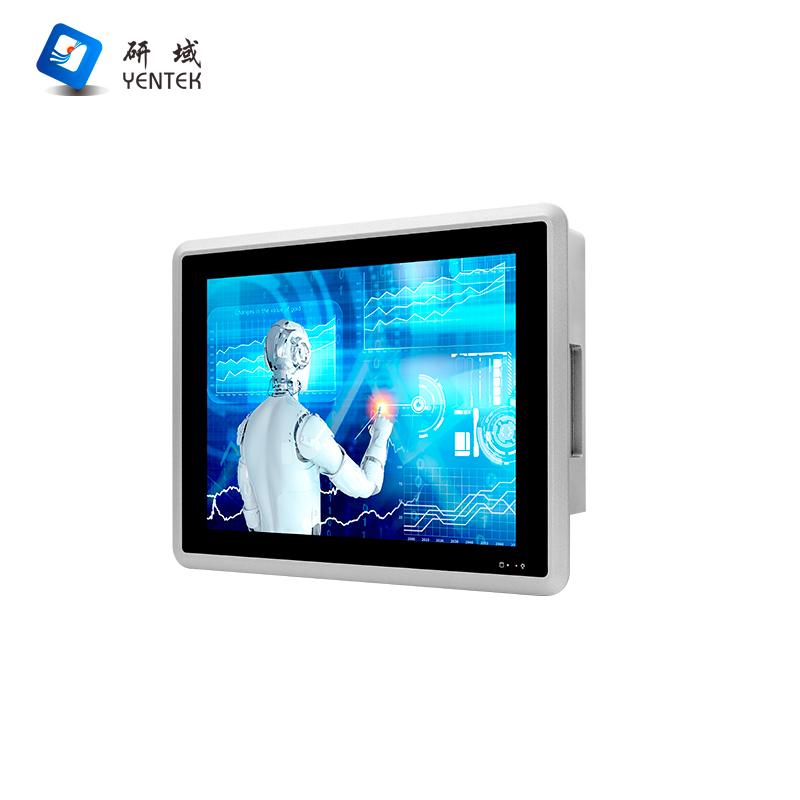

LCD Display | Type | 10.4-inch LCD, 4:3 aspect ratio, front-facing display |
Resolution | 800 * 600 resolution |
Brightness | 350 cd/m² brightness |
Touchscreen | Type | Capacitive touchscreen, 10-point touch |
Transmittance | 85%+ screen-to-body ratio |
Motherboard | CPU | Integrated Intel® Celeron J6412/2.00GHz quad-core quad-thread processor, TDP 10W |
Display | Integrated Intel® UHD Graphics |
Memory | 2x DDR4 3200MHz, supports up to 16GB |

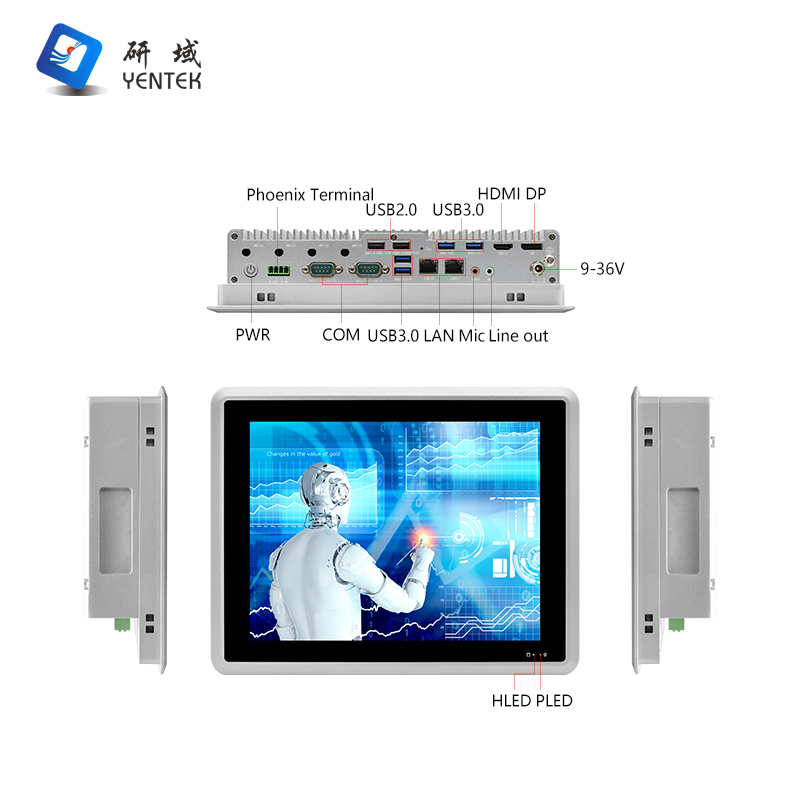

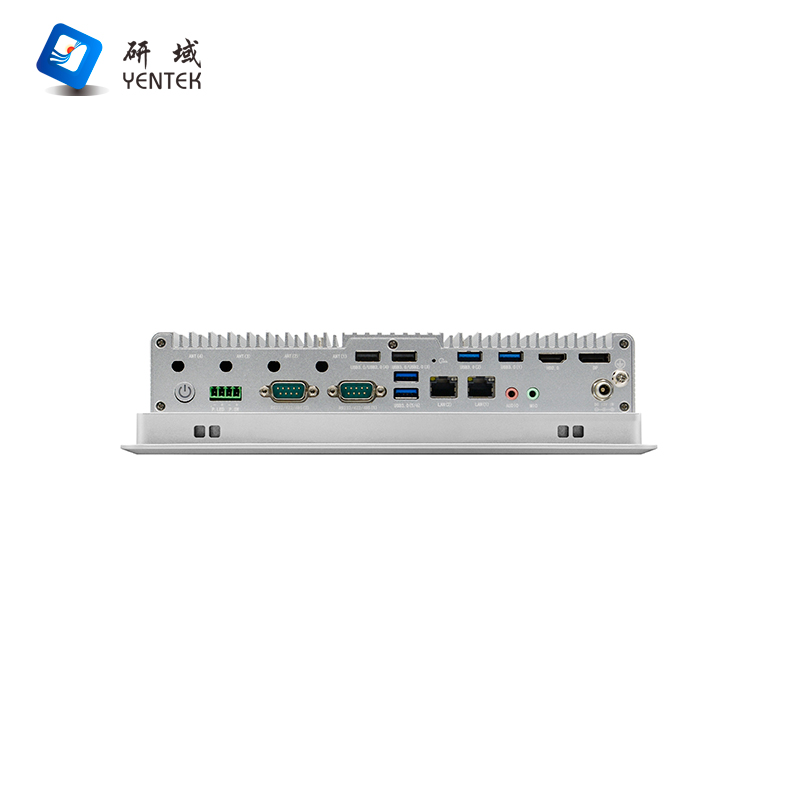

I/O Ports | POWER | 1x Power button with indicator light, 1x Power button, 1x One-touch reset, 1x CMOS reset switch |
LED | 1*Power indicator, 1*Hard drive activity indicator |
Display Interface | 1*HDMI 1.4 (4096*2304@60Hz), 1*DisplayPort (4096*2304@60Hz) |
LAN | 2*RTL8111H Gigabit Ethernet ports, supporting Wake-on-LAN and PXE boot |
USB | 4x USB 3.0, 2x USB 2.0 (USB 3.0/2.0 data based on CPU) |
COM | 2x RS232 DB9 serial ports, one supporting RS422/485, 2x CAN-capable (requires CAN module) |
Audio | 1x Line Out, 1x MIC |
Remote Switch | 1x Power Switch, 1x Power Indicator (on 1x 4P Phoenix Connector) |
Power Supply | 1x DC 12V aviation connector |
Storage | SATA | 1x 2.5-inch HDD bay |
mSATA | 1x mSATA |
SSD | 1x M.2, supports Key-M, 2280, NVMe PCIe x2/SATA adaptive SSD |
Expansion | WiFi | 1x M.2, Key-E, 2230, supports Wi-Fi 6 + BT module |
4G | 1x MiniPCIe, supports 4G modules |
System Support | Windows | Windows 10 |
Linux | Ubuntu |
Watchdog | Supports hardware reset function (256 levels, 0~255 seconds) |
Power Requirements | Power Supply Type | DC 12V input |
Power Output | AC to DC 60W (depending on specific device) |
Environment | Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 70°C |
Relative Humidity | 5%-95% relative humidity, non-condensing |
Vibration | 0.5g rms/5-500HZ/random |
