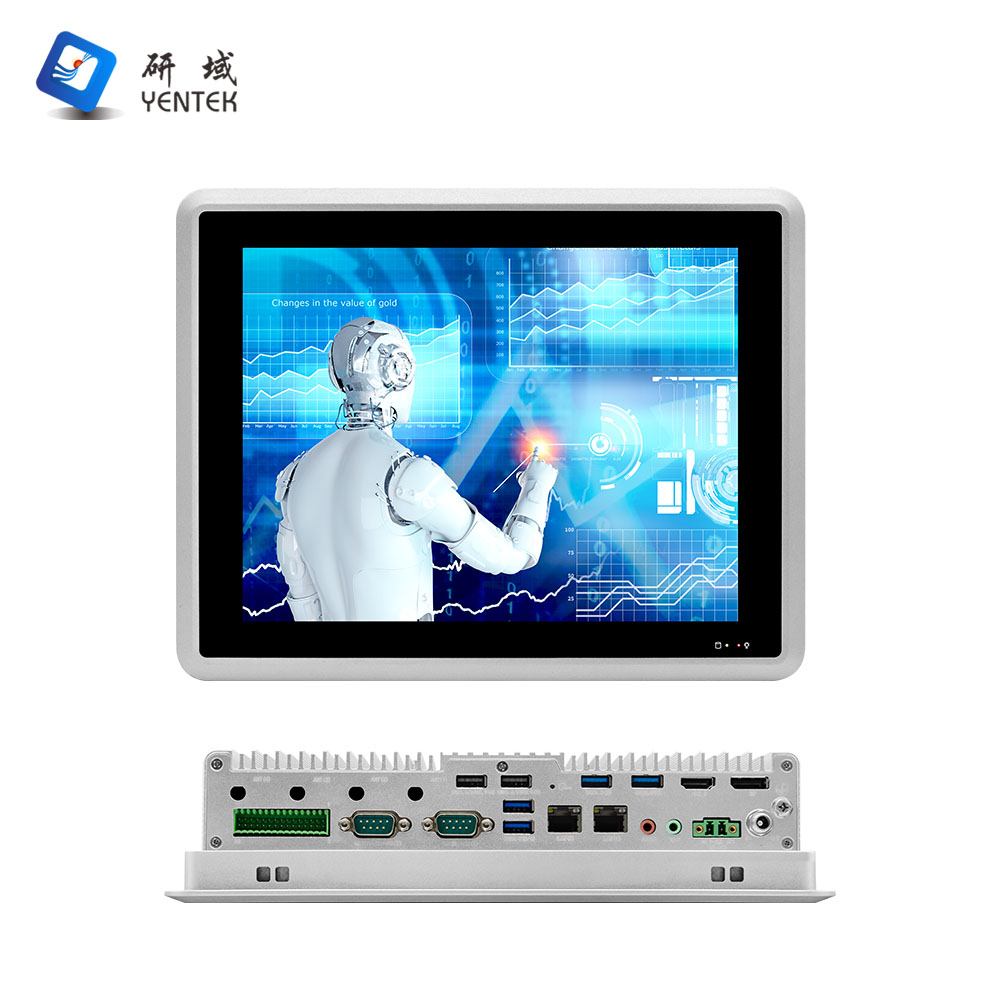

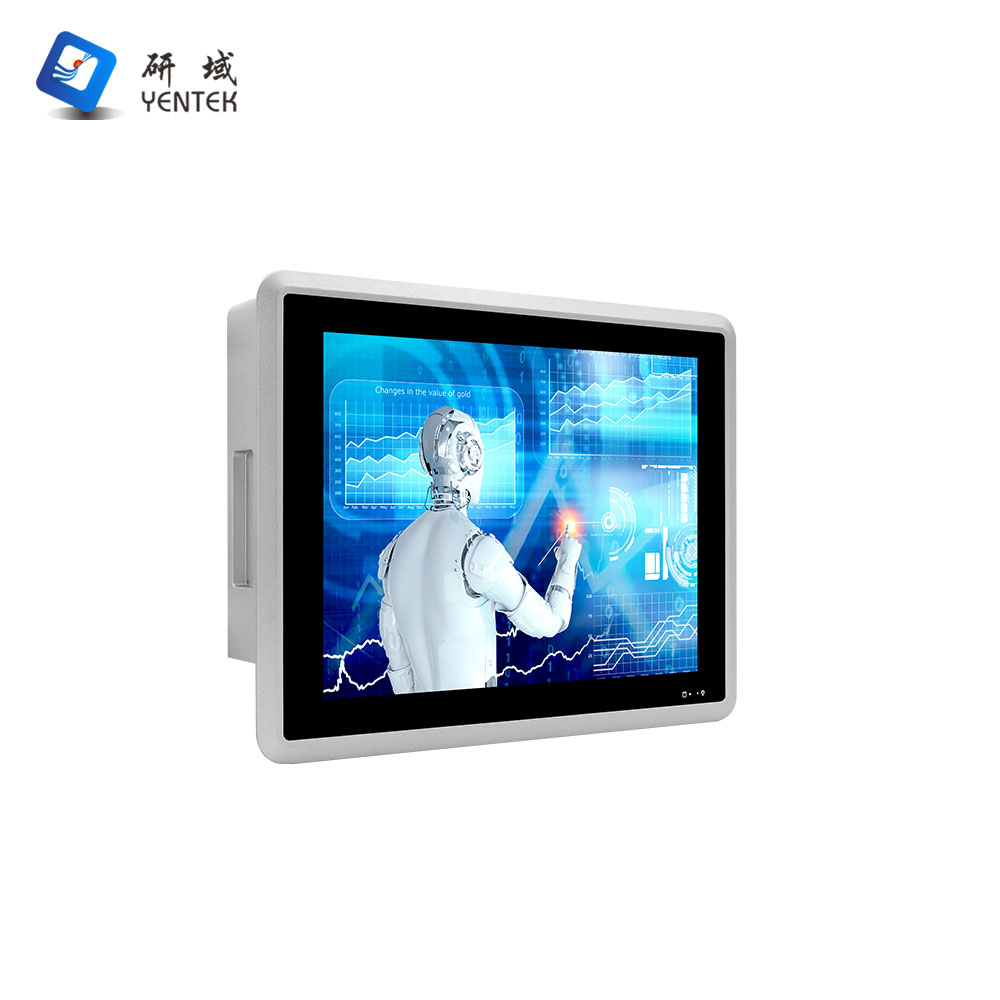

P1071Y-C6 V2.0 (Embedded)

Chassis

Material/Construction

Aluminium alloy construction, fanless cooling design

Colour

Silver

Dimensions (L x W x H)

L272 × W214 × H64.5 mm

Weight (net weight without packaging)

2.7 kg

Installation

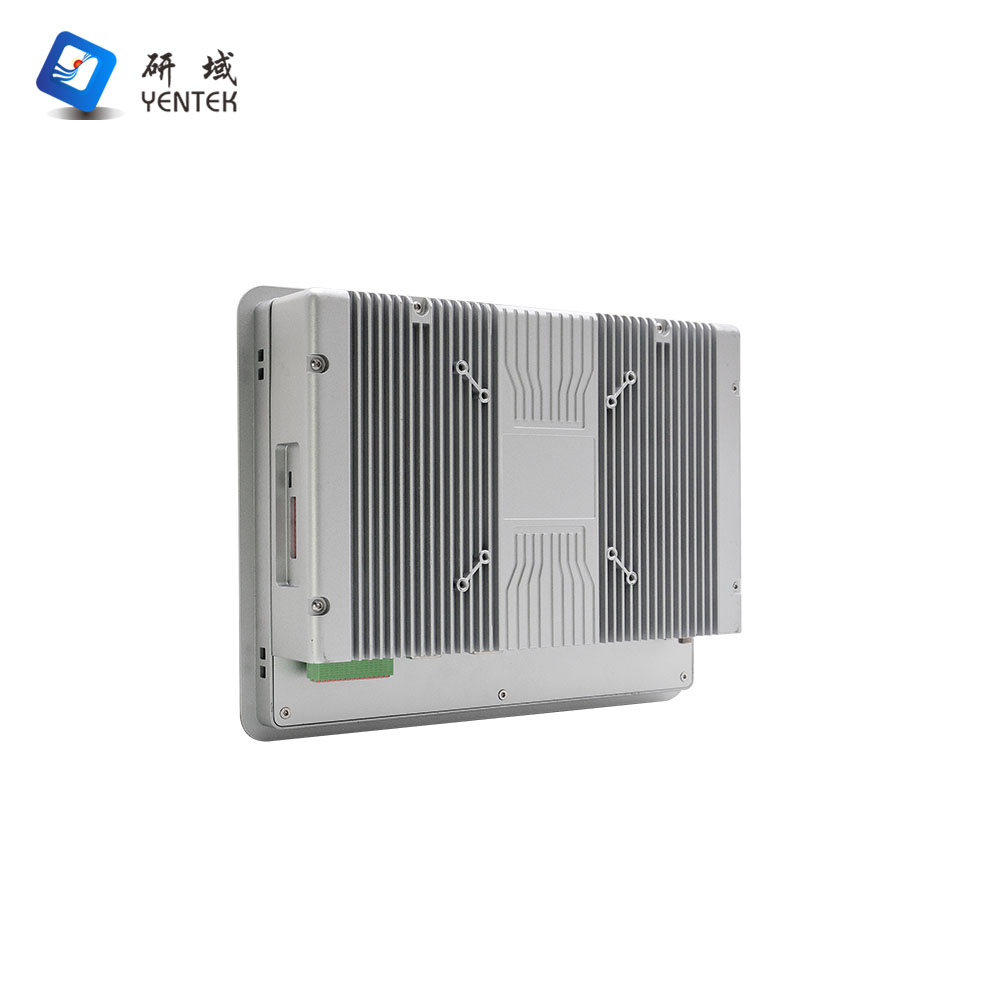

Supports VESA (75 × 75) / flush-mounted panel installation

LCD screen

Type

10.4-inch LCD

Resolution

800 × 600

Brightness

350 cd/m²

Touchscreen

Type

Capacitive touchscreen, 10-point touch

Transmittance

Over 85%

Motherboard

CPU

Integrated Intel® Celeron J6412/2.00GHz quad-core, quad-thread processor, TDP 10W

Display

Integrated Intel® UHD Graphics

Memory

2 x SODDR4 3200MHz, supports up to 16GB

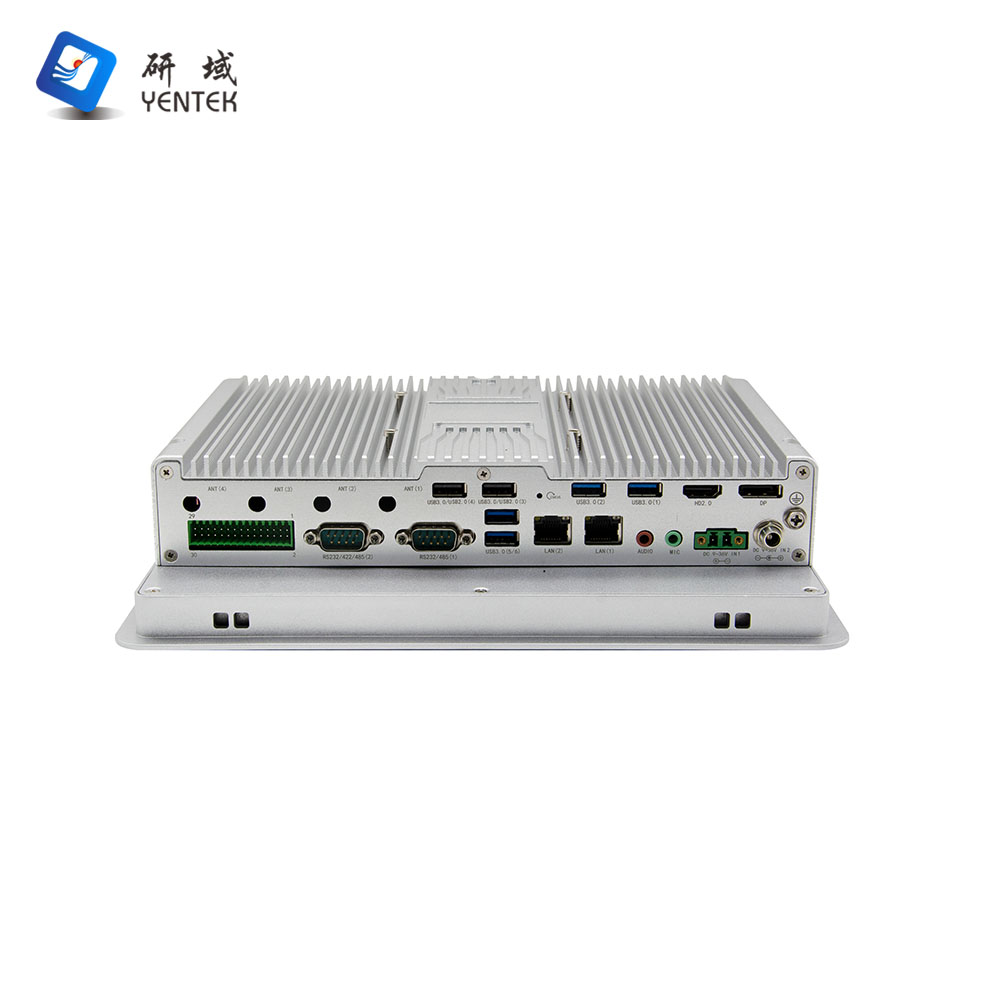

I/O ports

POWER

1 x Power button, 1 x One-touch restore, 1 x ACLOSS (power-on DIP switch), 1 x CMOS reset switch

LED

1 x Power indicator, 1 x Hard drive indicator

Display Interface

1 x HDMI 1.4 (4096 x 2304 @ 60Hz), 1 x DP (4096 x 2304 @ 60Hz)

LAN

2 x Intel I210AT Gigabit Ethernet ports, supporting Wake-on-LAN and PXE

USB

4 x USB 3.0, 2 x USB 2.0 (number of USB 3.0/2.0 ports depends on the CPU)

COM

6 x RS232 serial ports: COM1–2 are RS232 DB9 ports, with COM2 supporting RS485/422; COM3–6 RS232 on 2×15-pin Phoenix connectors, with COM3 supporting RS485 and COM1–2 supporting pin 9 power supply

DI/DO

4×DI, 4×DO (located on 2×15-pin Phoenix connectors)

DIP Switch

10-position DIP switch for COM2–3 RS232/485 selection; COM2 RS422 is enabled via the COM2_SW1 jumper cap

Audio

1 × Line out, 1 × MIC

Power Supply

1 × DC (5.5 × 2.5 mm) aviation connector or 1 × 2-pin Phoenix connector, supporting

9–36V wide-range input

Storage

SATA

1 × 2.5-inch hard drive bay

mSATA

1 x mSATA

SSD

1 x M.2, supports Key-M, 2280, NVMe PCIe x4 SSD

Expansion

WiFi

1 x M.2, Key-E, 2230, supports Wi-Fi 6 + Bluetooth module

5G

1 x M.2, Key-B, 3042/3052, supports 5G module

System requirements

Windows

Windows 10

Linux

Ubuntu

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Power requirements

Power Supply Type

DC 9V–36V wide voltage range

Power Output

AC to DC 60W (depending on specific device)

Environment

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Relative Humidity

5%–95% relative humidity, non-condensing

Vibration

0.5g rms/5-500HZ/random

1

P1071Y-C6 V2.0(J6412)

J6412/2.00G

2*SODDR4

Q642HD1

P1082-C6

4/4

2

6

1

2

4

9~36V

2

P1071Y-C6 V2.0(7300U)

I5-7300U/2.6G

2*SODDR4

Q68HD1

P1082-C6

4/4

2

6

1

2

4

9~36V

3

P1071Y-C6 V2.0(8260U)

I5-8260U/1.6G

2*SODDR4

Q82HD1

P1081-C6

4/4

2

6

1

2

4

9~36V

4

P1071Y-C6 V2.0(10210U)

I5-10210U/1.6G

2*SODDR4

Q102HD1

P1082-C6

4/4

2

6

1

/

6

9~36V

5

P1071Y-C6 V2.0(1135G7)

I5-1135G7/2.4G

2*SODDR4

Q112HD1

P1082-C6

4/4

2

6

1

/

6

9~36V

6

P1071Y-C6 V2.0(N97)

N97/Turbo 3.6G

1*SODDR4

Q305HD1

P1082-C6

4/4

2

6

1

/

6

9~36V

7

P1071Y-C6 V2.0(N305)

I3-N305/Turbo 3.8G

1*SODDR4

Q305HD1

P1082-C6

4/4

2

6

1

/

6

9~36V

8

P1071Y-C6 V2.0(1235U)

I5-1235U/1.3G

2*SODDR4

Q122HD1

P1082-C6

4/4

2

6

1

/

6

9~36V
