Model | P1071Y-P4 V2.0(N97) |

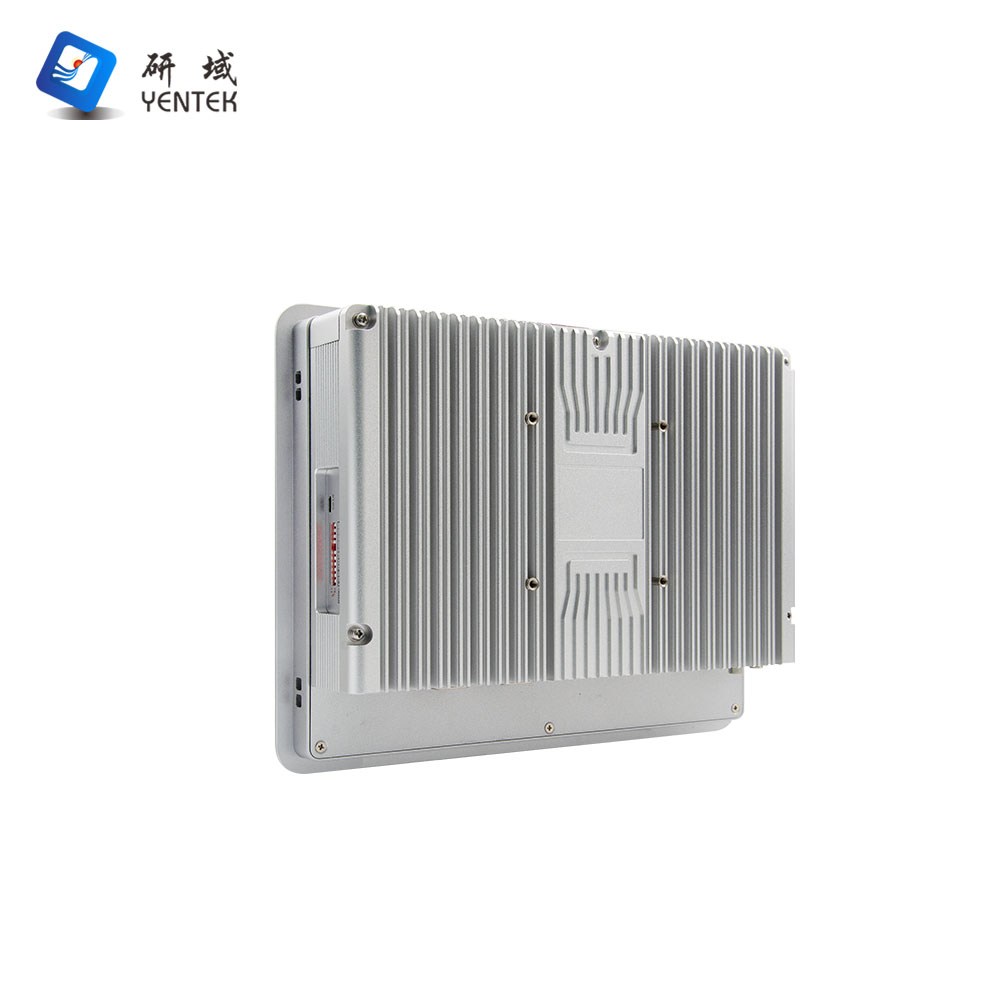

Chassis | Material/Construction | Aluminium alloy construction, fanless cooling design |
Colour | Silver |
Dimensions (L x W x H) | L272 × W214 × H64.5 mm |
Weight (net weight without packaging) | 2.7 kg |
Installation | Supports VESA (75 × 75) / flush-mounted installation |

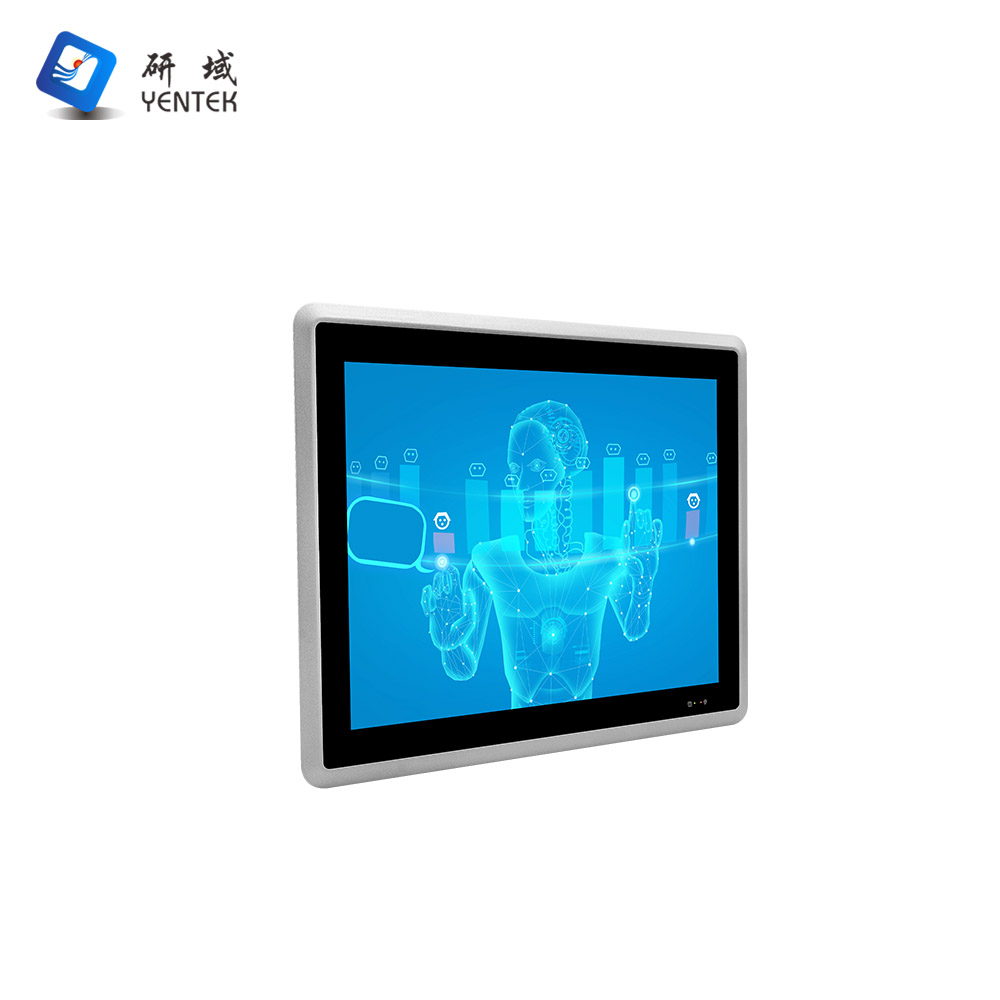

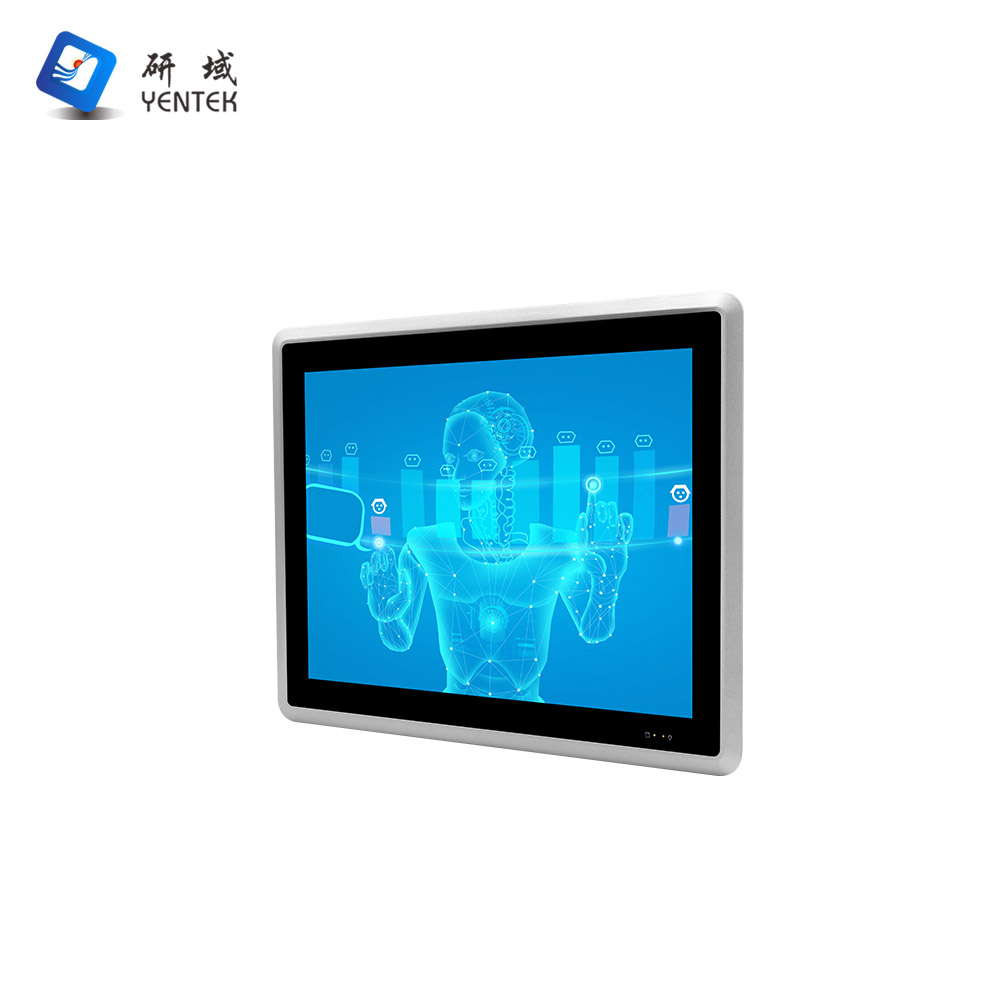

LCD screen | Type | 10.4-inch LCD |
Resolution | 800 × 600 |
Brightness | 350 cd/m² |
Touchscreen | Type | Capacitive touchscreen, 10-point touch |
Transmittance | Over 85% |
Motherboard | CPU | Integrated Intel® Alder Lake-N N97 3.6GHz quad-core processor, TDP 12W |
Display | Integrated Intel® Iris Xe Graphics |
Memory | 1 x SODDR4 3200MHz, supports up to 32GB |

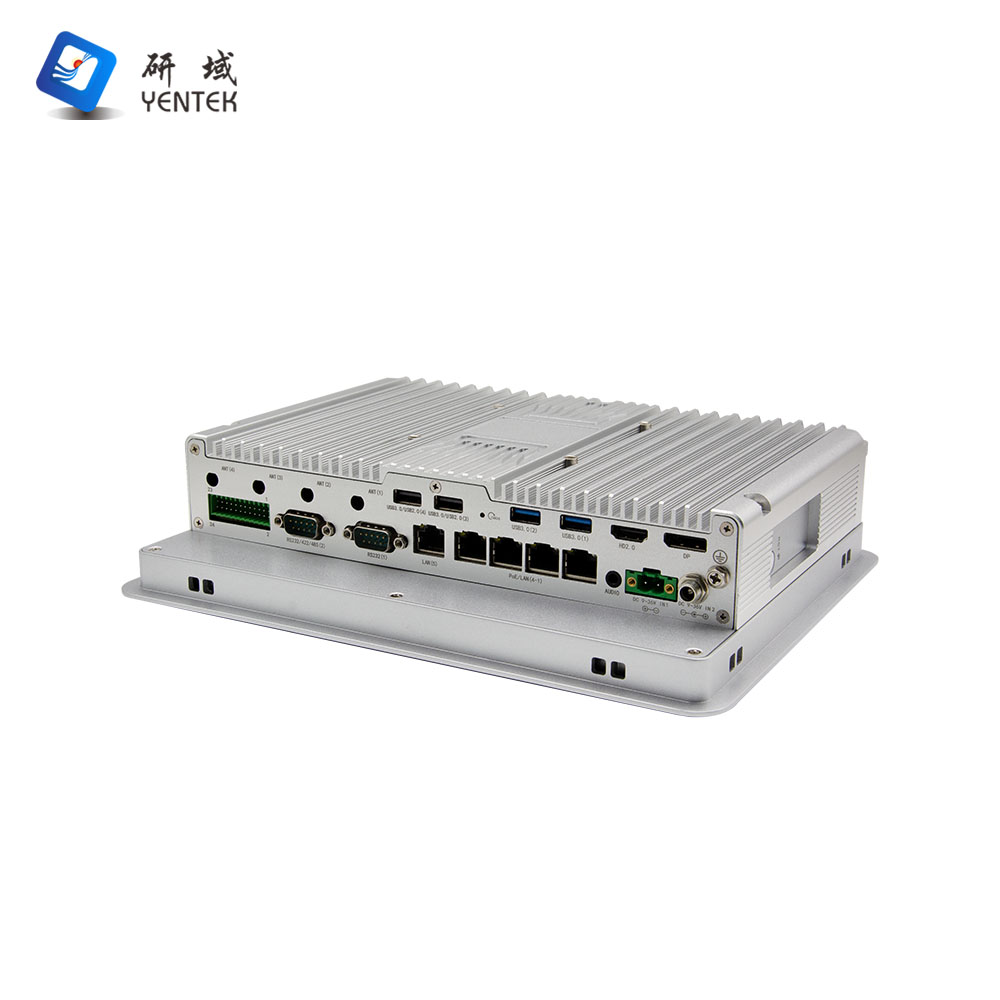

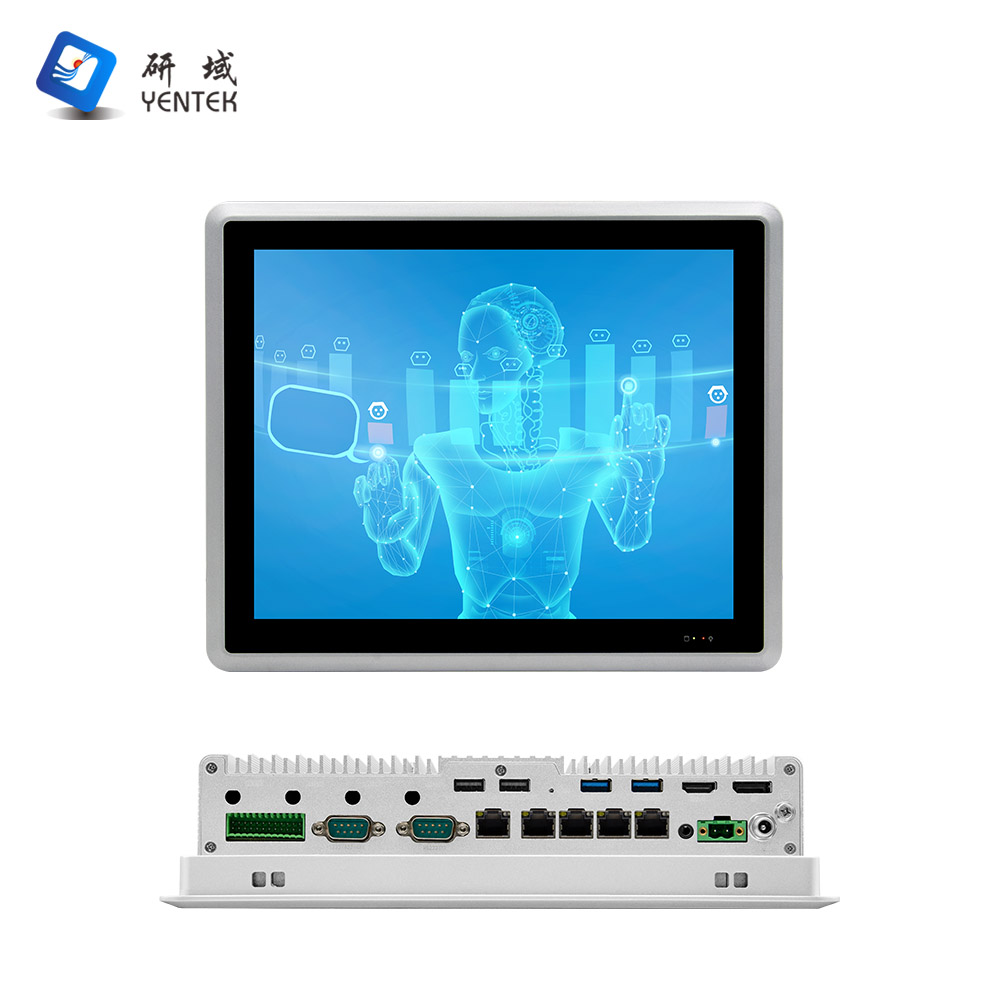

I/O ports | POWER | 1 x Power button, 1 x One-touch reset, 1 x ACLOSS (power-on DIP switch), 1 x CMOS reset switch |
LED | 1 x Power indicator, 1 x Hard drive indicator |
Display Interface | 1 x HDMI 1.4 (4096 x 2304 @ 60Hz), 1 x DP (4096 x 2304 @ 60Hz) |
LAN | 5 x Intel I210AT Gigabit Ethernet ports, 4 of which support POE/15W |
USB | 2 x USB 3.0, 2 x USB 2.0 (number of USB 3.0/2.0 ports depends on the CPU) |
COM | 4 x RS232 serial ports, COM1–2 RS232 DB9 ports, of which COM2 supports RS485/422, COM3–4 RS232 on 2×12-pin Phoenix connectors, of which COM3 supports RS485, and COM1–2 support pin 9 power supply |
DI/DO | 4×DI, 4×DO (located on 2×12-pin Phoenix connectors) |
DIP Switch | 10-position DIP switch for COM2–3 RS232/485 selection; COM2 RS422 is enabled via the COM2_SW1 jumper cap |
Audio | 1 x Line out, 1 x MIC |
Power Supply | 1 x DC (5.5 x 2.5 mm) aviation connector or 1 x 2-pin Phoenix connector, supporting 9–36V wide-range input |
Storage | SATA | 1 x 2.5-inch hard drive bay |
mSATA | 1 x mSATA |
SSD | 1 x M.2, supports Key-M, 2280, NVMe PCIe x4 SSD |
Expansion | WiFi | 1 x M.2, Key-E, 2230, supports Wi-Fi 6 + Bluetooth module |
5G | 1 x M.2, Key-B, 3042/3052, supports 5G module |
System requirements | Windows | Windows 10 |
Linux | Ubuntu |
Watchdog | Supports hardware reset function (256 levels, 0–255 seconds) |
Power requirements | Power Supply Type | DC 9V–36V wide voltage range |
Power Output | AC to DC 60W (depending on specific device) |
Environment | Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 70°C |
Relative Humidity | 5%–95% relative humidity, non-condensing |
Vibration | 0.5g rms/5-500HZ/random |
