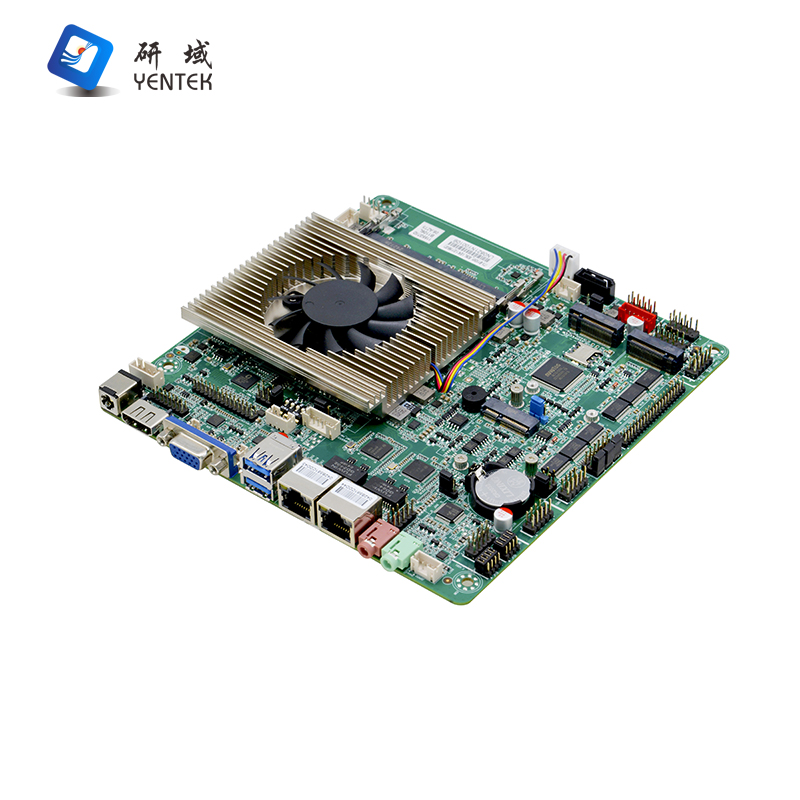

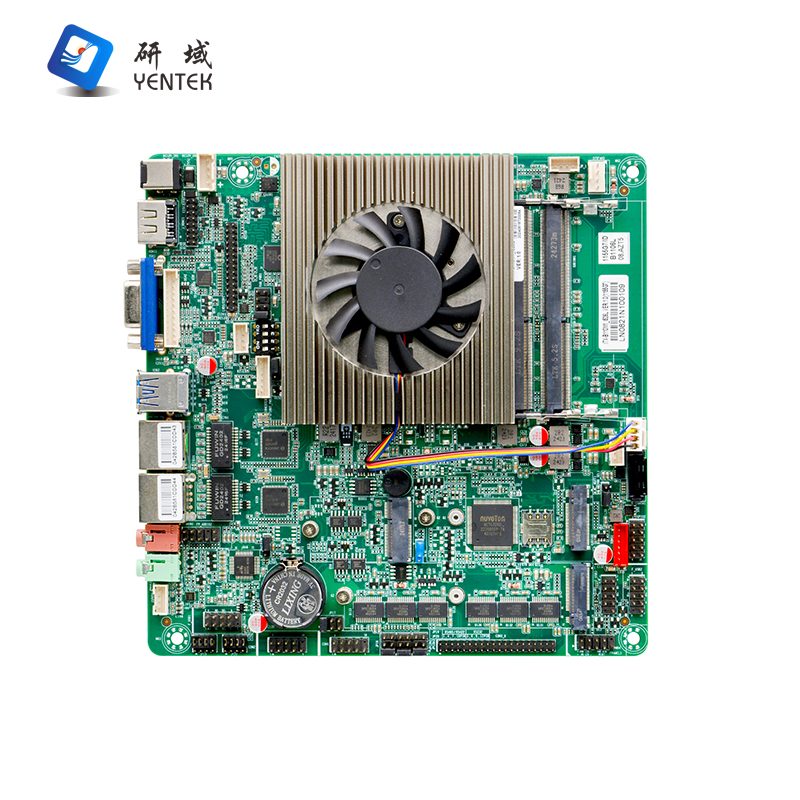

ITX-B110M1_I526L

Processor

Integrated Intel® Tiger Lake 11th Core I5-1155G7 2.5GHz Quad-Core   8-Thread Processor with 28W TDP

Compatible with Intel® Tiger Lake-U Celeron Pentium Core   I3/I5/I7 Processors

Chipset

SOC

Memory

2*   DDR4 SODIMM memory slots supporting 3200MHz memory up to 64GB

Display

Integrated Intel® UHD   Graphics core graphics card, support DirectX12.1, OpenGL4.6, support for   4K/60Hz display

1* VGA, 1* HDMI2.0, 1*   HDMI1.4, 1* LVDS interface, support for dual channel 24BIT

Network

2* Intel I210AT Gigabit NIC   chip, support Wake-on-LAN/PXE function.

Storage

1*   7pin SATA3.0 hard drive interface, transfer rate up to 6Gbps

1* M.2 slot,   support M.22260/2280 PCIE X1 /SATA SSD Adaptive Standard SSD

Audio

Onboard ALC897   7.1+2-channel hi-fi audio controller, supports MIC/Line-out.

Amplifier recommended   to use 4Ω3W speakers

Expansion

1*   M.2 Supports M.2 Key E WIFI6 module.

1*   M.2 support M.2 Key B 5G module

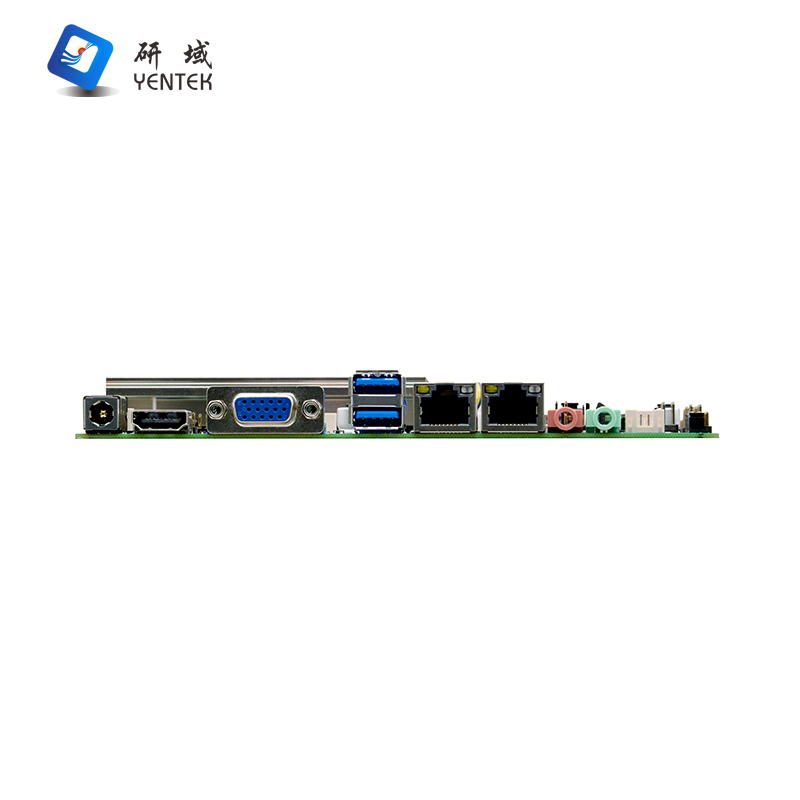

Backplane I/O Ports

1* HDMI2.0 display   interface

1*   VGA display interface

2*   USB3.0 interface, 2* RJ-45 Gigabit interface, 2* RJ-45 Gigabit interface

2*   RJ-45 Gigabit network interface

1*   Line out connector (green), 1* MIC connector (red)

1*   12V DC power input

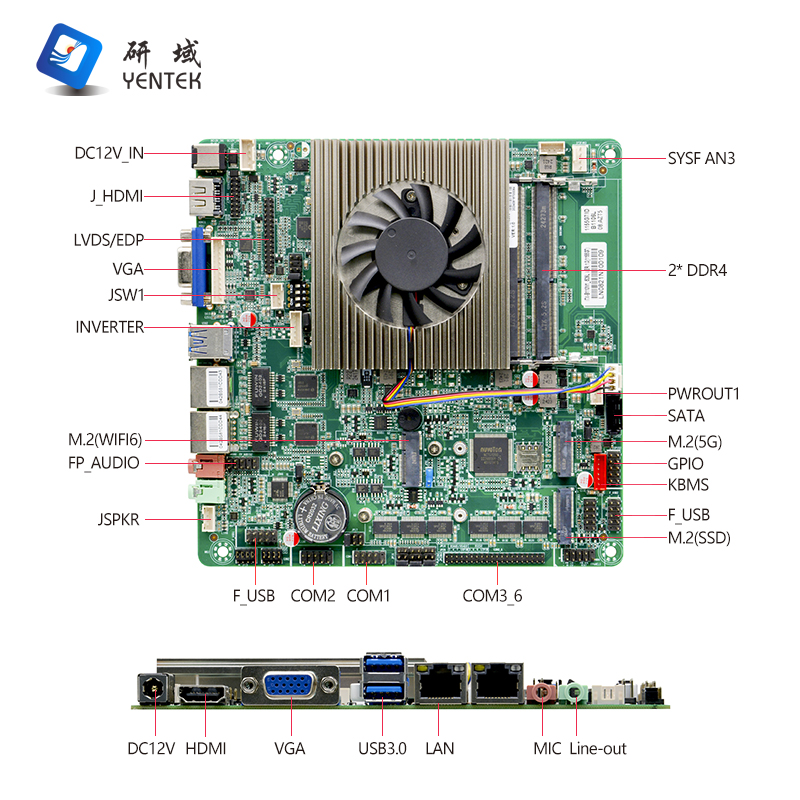

Built-in I/O Ports

1*   4pin power connector (can be 12V input/output power connector)

1*   LVDS interface 2*15pin, support dual-channel 24BIT, can support EDP, and LVDS   for the common row of pins, need to change the material

1*   Screen backlight power supply interface 1*6pin

1*   Screen brightness adjustment interface 1*4pin

6*   USB 2.0 interface 2*5Pin

1* J_HDMI   connector 2*8Pin

1* JVGA   connector 1*12Pin (same signal as DB15)

6*   RS232 serial interface, COM1 support the 9th pin charged, COM2/3 support   RS485/422 function

1*   PS/2 keyboard and mouse interface 1*6pin

1*   Front audio interface 2*5pin

1*   Front Panel Switch Button and Indicator Light Interface 2*5Pin

1* Hard disc power supply   interface 1*4pin

1* Amplifier connector   1*4pin

1*   SIM card holder

Fan Interface

1*4pin   CPU fan interface, 1*4pin system fan interface

GPIO

Support 4 input/output   GPIO

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset   function (256 levels, 0~255 seconds)

Operating System

Windows 10/Linux

Power Supply Type

DC 12V   power supply

Operating Temperature

-10℃～60℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95% relative   humidity, non-condensing

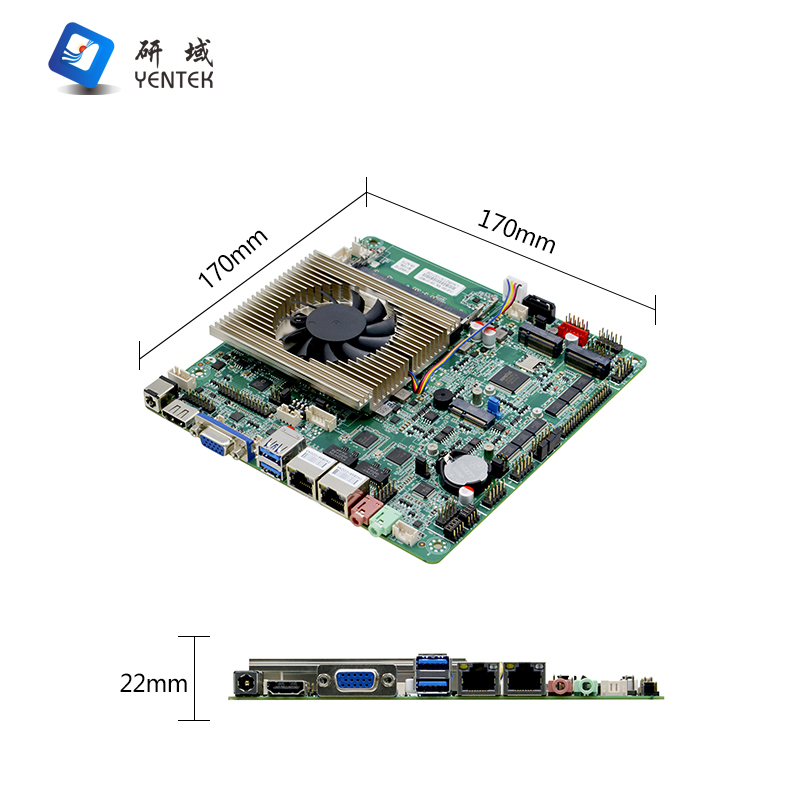

Dimension

170mm x 170mm

1

ITX-B110M1_I526L VER:1.0(1135G7)

I5-1135G7

2.4G

2*SODDR4

1

2

t

/

2*I210

8

6

COM2/3

DC12V

2

ITX-B110M1_I526L VER:1.0(1155G7)

I5-1155G7

2.5G

2*SODDR4

1

2

1

/

2*I210

8

6

COM2/3

DC12V
