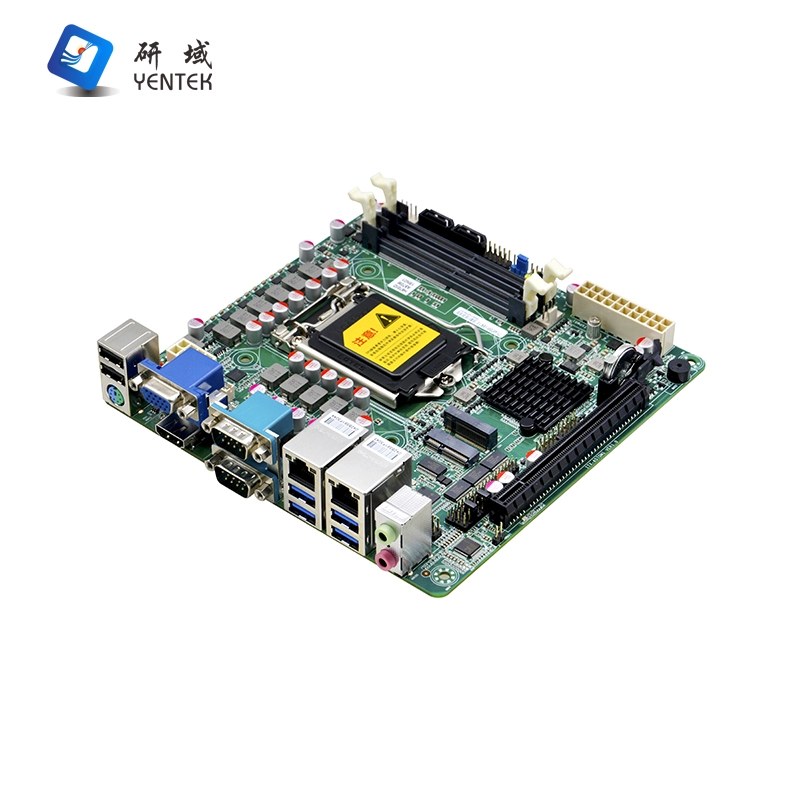

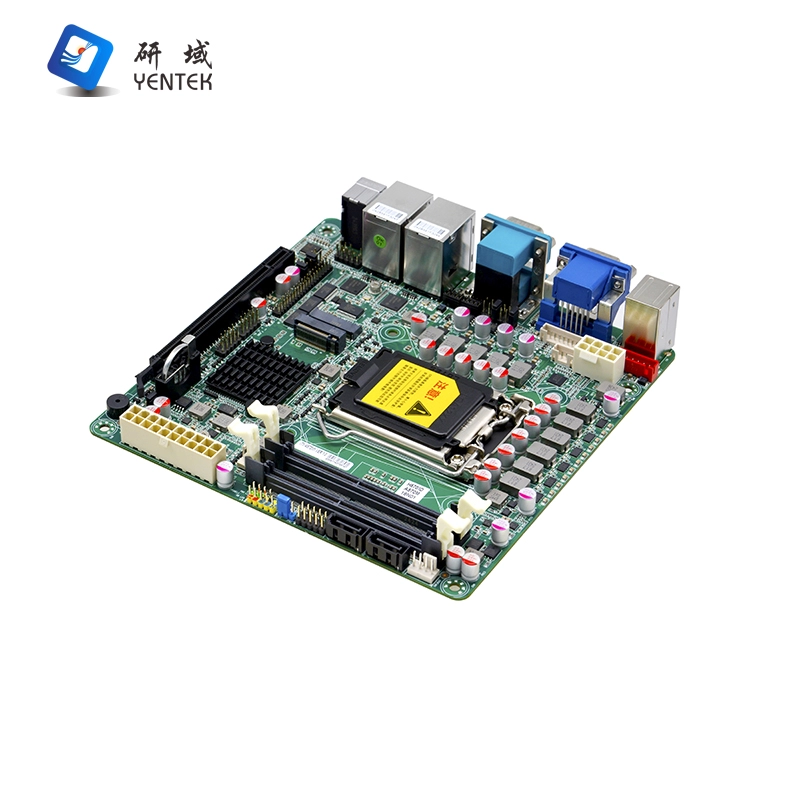

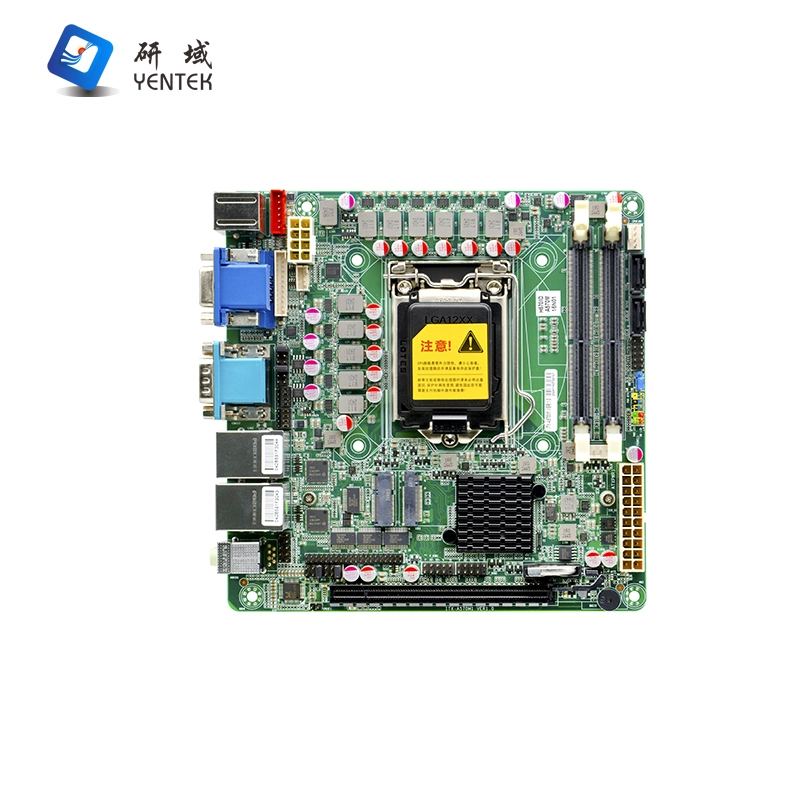

ITX-A570M1

Processor

Supports LGA1200 10th/11th Intel®   Celeron/Pentium/Core™ i3/i5/i7/i9 processors

Note:Supports 10th/11th   generation 125W CPU

Chipset

Adopts Intel® H570 chipset

Memory

2* DDR4 SODIMM memory slot, support dual-channel up to 3200MHz memory,   maximum support for 64GB

Display

Integrated Intel® HD Graphics core graphics card support DirectX12.1,   OpenGL4.5, support for 4K display

1* VGA interface, support for up to 1920X1200@60Hz

1* HDMI1.4 interface, support for up to 4096x2304 @24Hz

Network

2* Intel ® I210AT Gigabit NIC chip, support for Wake-on-LAN/PXE

Storage

2* SATA3.0 hard drive interfaces, transfer speeds of up to 6Gbps

1* M.2 slot, support for M.2 2280 NVME PCIE X4/SATA Adaptive SSD

Audio

Onboard ALC897 7.1+2-channel Hi-Fi Audio Controller, support MIC/Line-out

Expansion Slots

1* PCIE3.0 X16 slot

1* M.2, support M.2 2230 WIFI Module

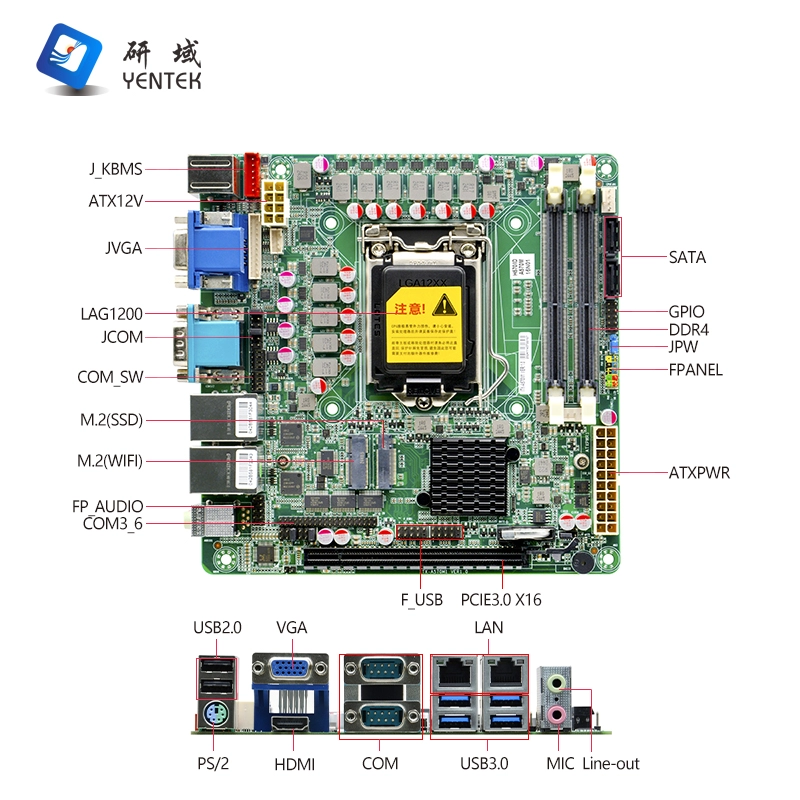

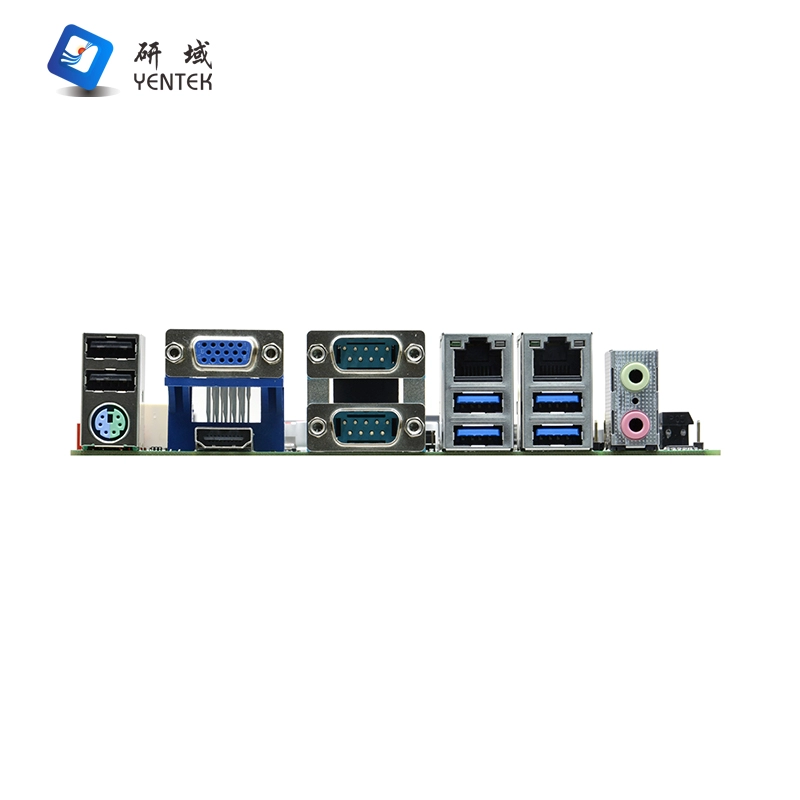

Backplane I/O Ports

1* PS/2 interface (can be extended with keyboard and mouse)

1* DB15 VGA interface

1* HDMI1.4 interface

2* DB9 RS232 serial port, support the 9th pin with power function,   support RS485/422

2* USB2.0 interface

4* USB3.0 interface

2* RJ-45 Gigabit network interface

1* Dual-layer audio interface (sound output and MIC input)

Built-in I/O Ports

3* USB2.0 interface 2*5pin, F_USB2 only support 1 USB2.0

1* Front Panel Audio Interface(2*5pin)

1* Front Panel Function Button and Indicator Interface(2*5pin)

1* 24pin ATX Power Socket 1* 8pin ATX Power Socket

1* PS/2 Keyboard and Mouse Interface 1*6pin

1* JVGA Interface 1*12pin,same signal as DB15

4* RS232 Serial Port,2*20pin

Fan Ports

1*4pin CPU Fan interface;1*4pin system fan interface

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Operating System

Windows 10/Windows 11/Linux

Power Supply Type

Powered by ATX 20Pin and 8pin power supply

Operating Temperature

0℃~60℃

Storage Temperature

-20℃~70℃

Operating Humidity

5%-95% relative humidity, no condensation

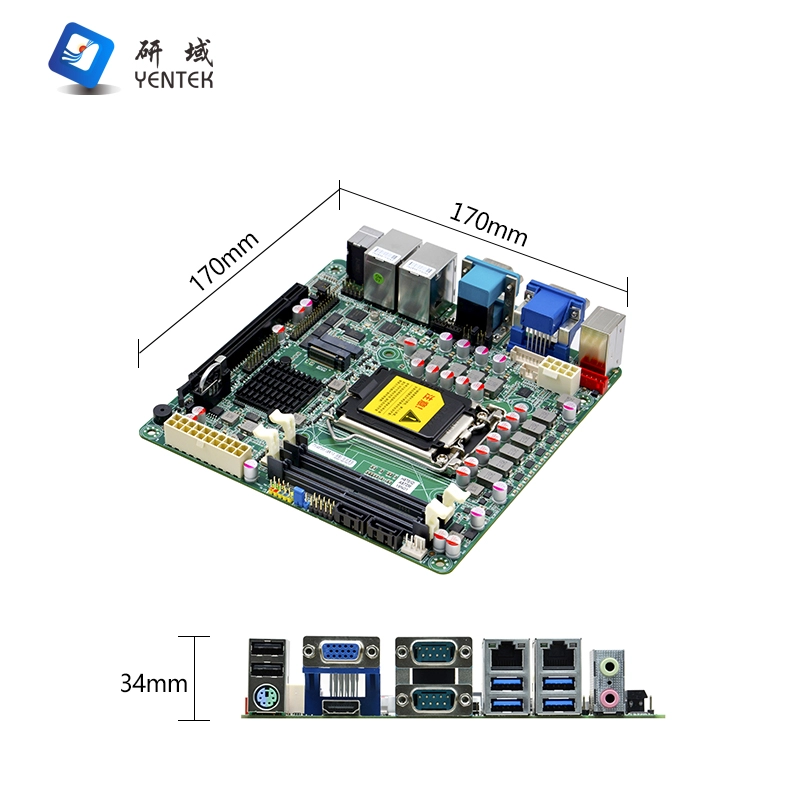

Dimensions

170mm x 170mm

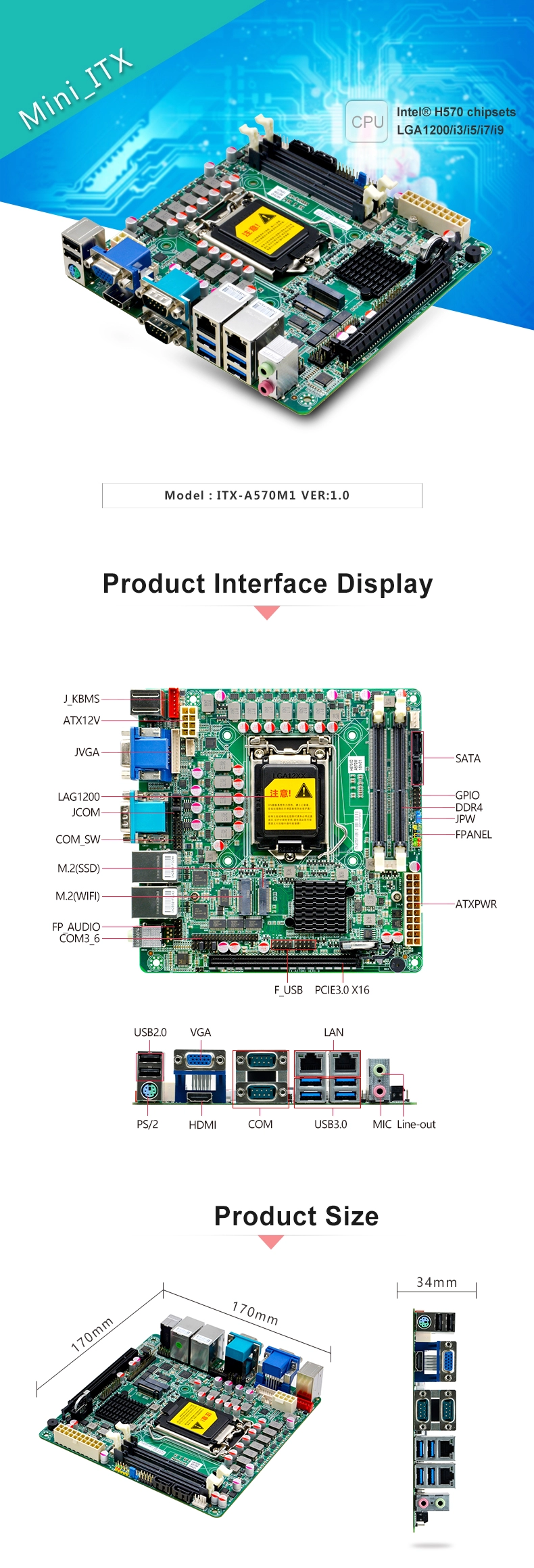

1

ITX-A570M1 VER:1.0

LGA1200

/

H570

2*DDR4

1

1

/

2*I210AT

9

6

COM1/2

ATX
