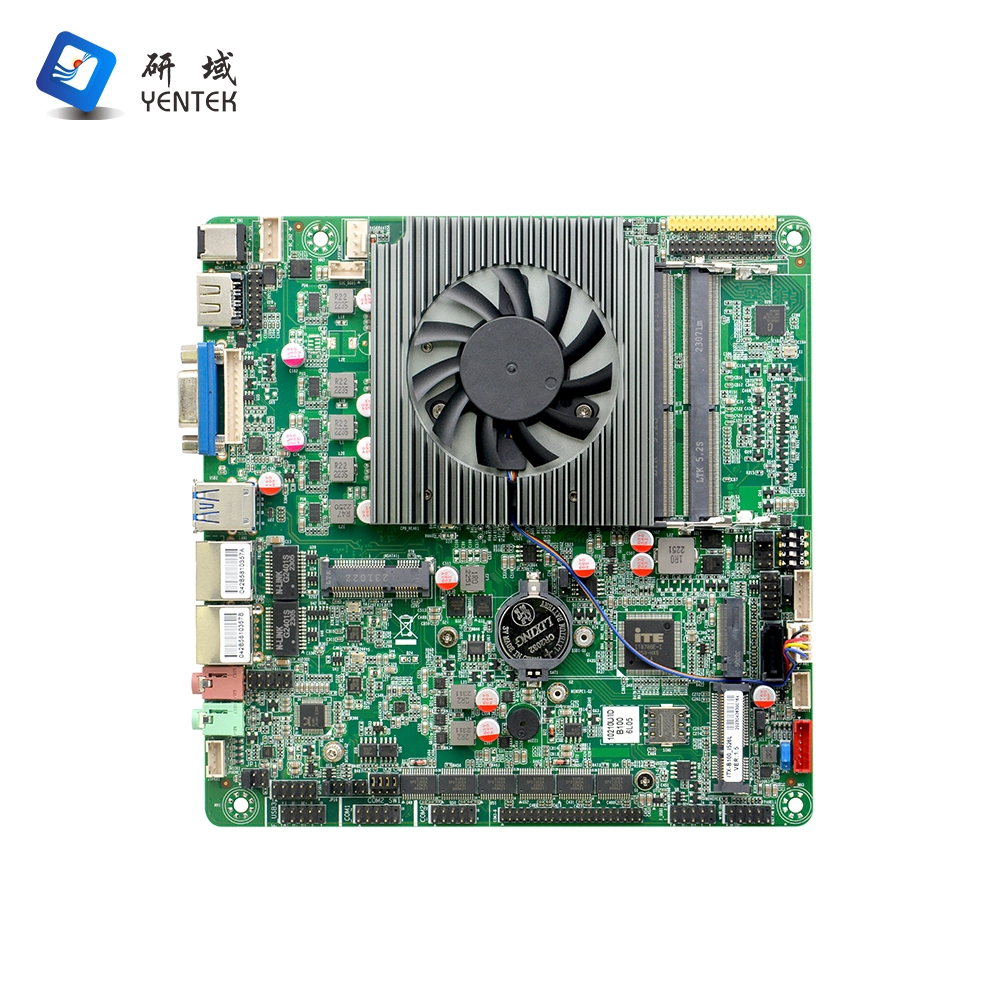

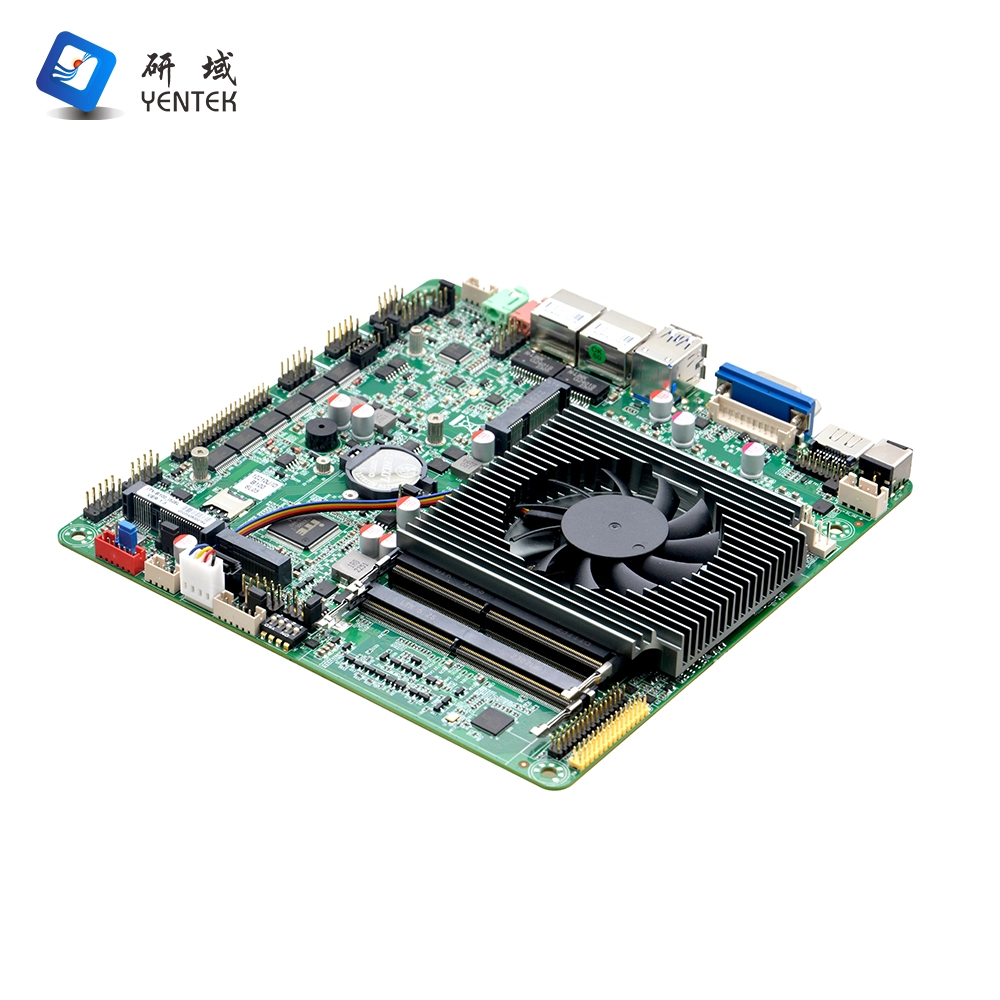

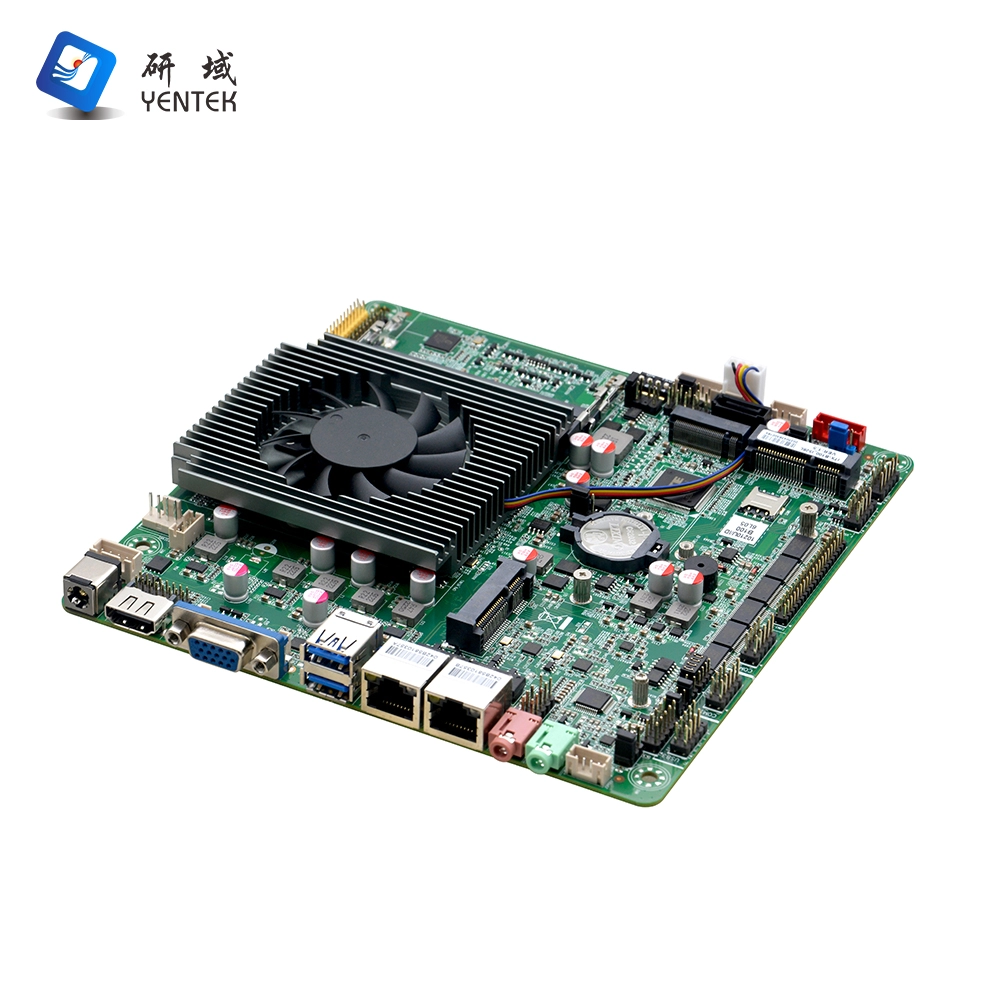

ITX-B100_I512L

Processor

Integrated 10th generation Intel®I5-10210U   1.6GHz quad-core eight-thread processor, TDP 15W

Compatible with Intel® Comet Lake-U   Celeron/Pentium/I3/I5/I7 low-power processors

Chipset

SOC

RAM

2*DDR4 SODIMM memory slot, support 2666MHz   memory, maximum support 64GB

Display

Integrated Intel® UHD Graphics, support DirectX   12 OpenGL 4.5, support 4K

1*VGA interface,   the highest resolution supported is: 1920X1200@60Hz

1*HDMI1.4   interface, the highest resolution supported is: 4096x2304@24Hz

1*Support dual   channel 24bit LVDS interface, choose one of two with EDP, default LVDS

Internet

2* RTL8111H  Gigabit network card, support Wake on LAN,   PXE function

Store

1* SATA3.0 hard disk interface,   transmission speed can reach 6Gbps

1* MSATA slot,   SSD solid state drive supporting Intel protocol, transmission speed up to 6Gbps

1* M.2 slot,   support M.2 2260/2280 NVME PCIE x4/SATA adaptive standard SSD

Audio

Integrated ALC662 6-channel high-fidelity   audio controller, support MIC, Line_out, power amplifier

Support power   amplifier 2Ω5W speaker

Expansion slot

1* Mini-PCIE slot, support WIFI/4G module

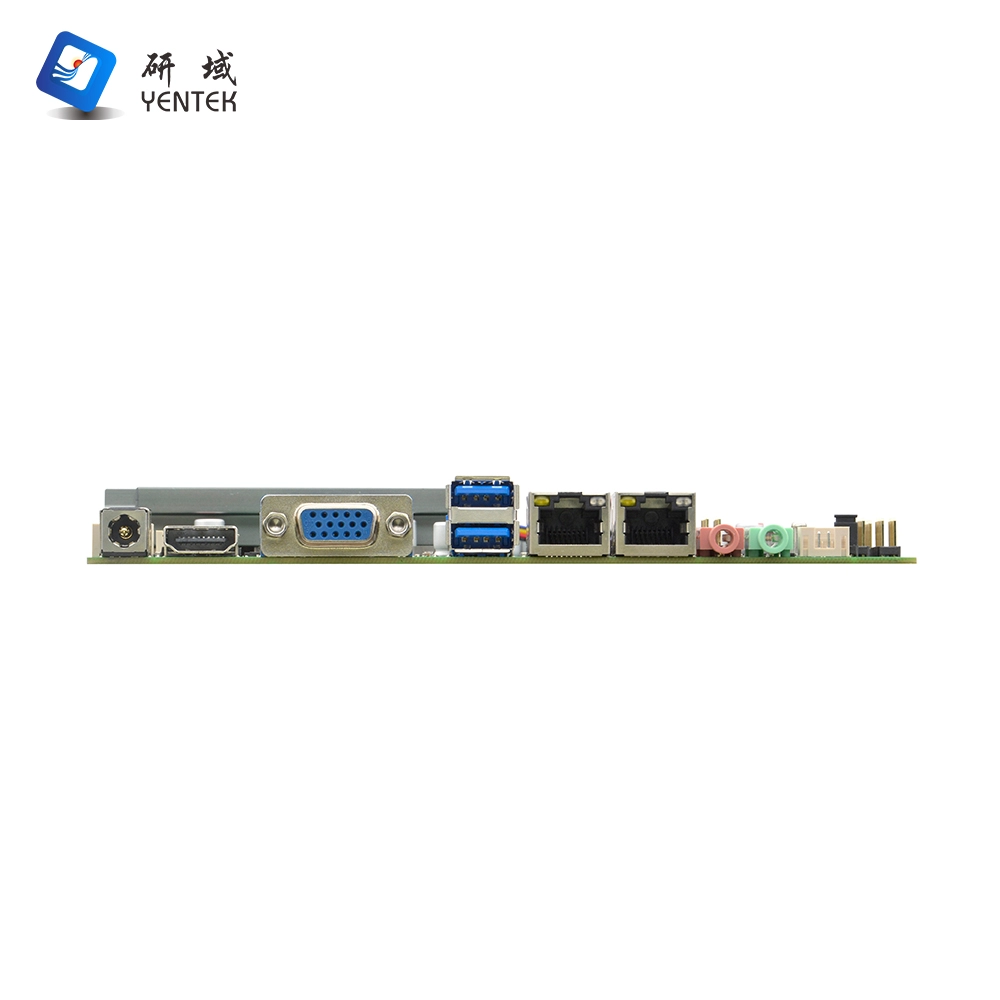

Backplane I/O interface

2*USB3.0 interface, 2*USB2.0 interface

1* HDMI port

1* DB15 VGA   interface

1* RJ45 Gigabit   network interface

1* Line-out   (green), 1*MIC (red)

1* DC12V power   interface, support 12V power input

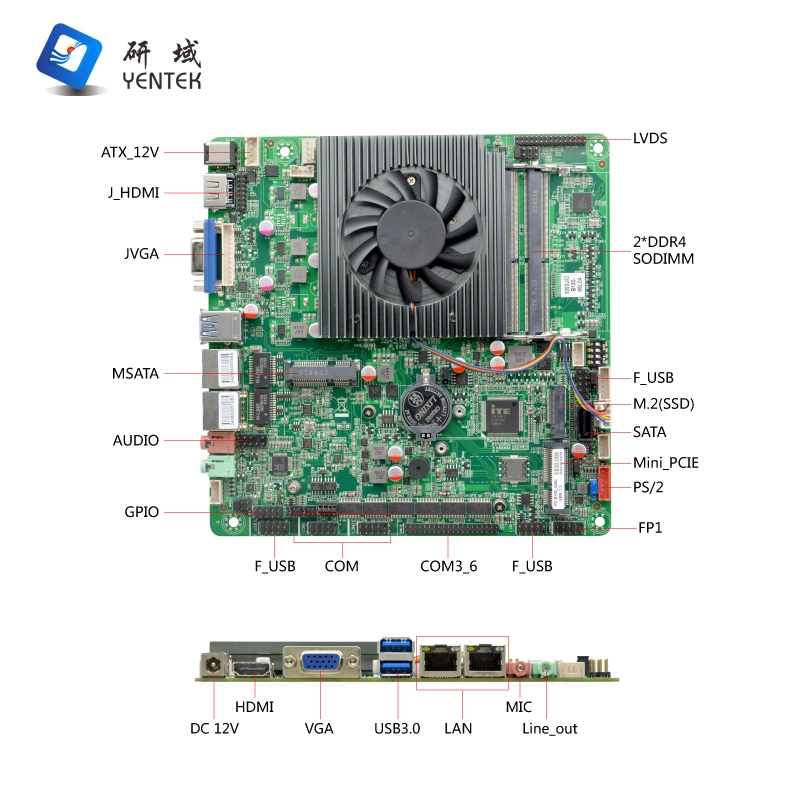

Built-in I/O interface

1* JVGA1 interface 1*12pin (same signal   with DB15)

1* JHDMI   interface 2*10pin, same signal as HDMI interface

1* LVDS interface   2*15pin, support dual channel 24bit,

1* LVDS backlight   power supply interface 1*6pin

1* Screen brightness   adjustment interface 1*4pin

6* RS232 serial   interface, COM1/2 supports the 9th pin charged function, COM2 supports RS485/422   function,

1* PS/2 keyboard   and mouse interface (red) 1*6Pin

4* USB2.0   interface 2*5pin,

1* Front audio   interface 2*5pin

1* Front panel   switch button and indicator light interface 2*5Pin

1* Hard disk   power supply interface 1*4pin

1* power   amplifier interface 1*4pin

1* 4pin ATX power   interface (can be used as 12V input power interface)

1* SIM card   holder

Fan interface

1*4pin CPU smart fan interface, 1* 4pin   system fan interface

GPIO

Support 4 input and output GPIO function

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset function (256   levels, 0~255 seconds)

Power type

Powered by DC 12V power supply

operating system

Windows 10 ,/Linux

Operating temperature

-10℃～60℃

Storage temperature

-20℃～70℃

Working humidity

5%-95% relative humidity, non-condensing

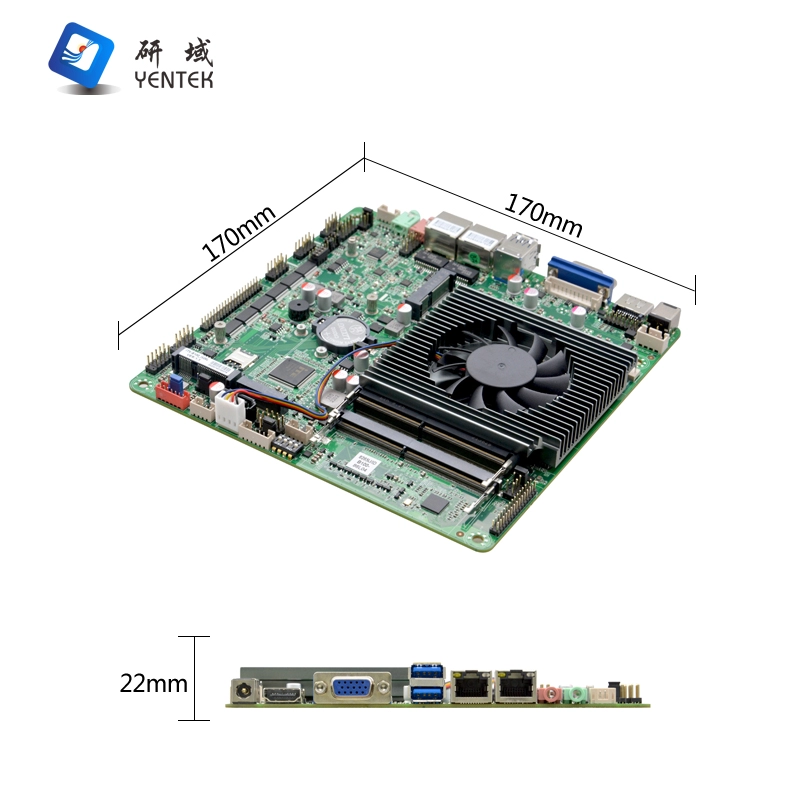

Size

170mm x 170mm

1

ITX-B100_I716L VER:1.5(10710U)

I7-10710U

1.1G

2*SODDR4

1

1

2ch/24Bit

1

1*8111H

8

6

COM2

DC12V

2

ITX-B100_I516L VER:1.5(10210U)

I5-10210U

1.6G

2*SODDR4

1

1

2ch/24Bit

1

1*8111H

8

6

COM2

DC12V

3

ITX-B100_I316L VER:1.5(10110U)

I3-10110U

2.1G

2*SODDR4

1

1

2ch/24Bit

1

1*8111H

8

6

COM2

DC12V

4

ITX-B100_I526L VER:1.5(10210U)

I5-10210U

1.6G

2*SODDR4

1

1

2ch/24Bit

1

2*8111H

8

6

COM2

DC12V
