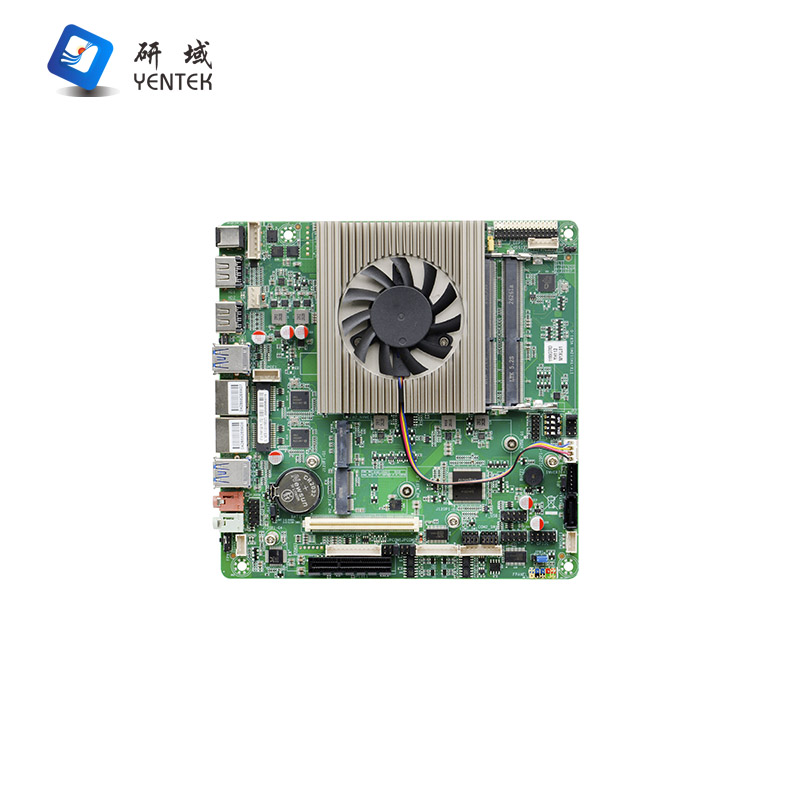

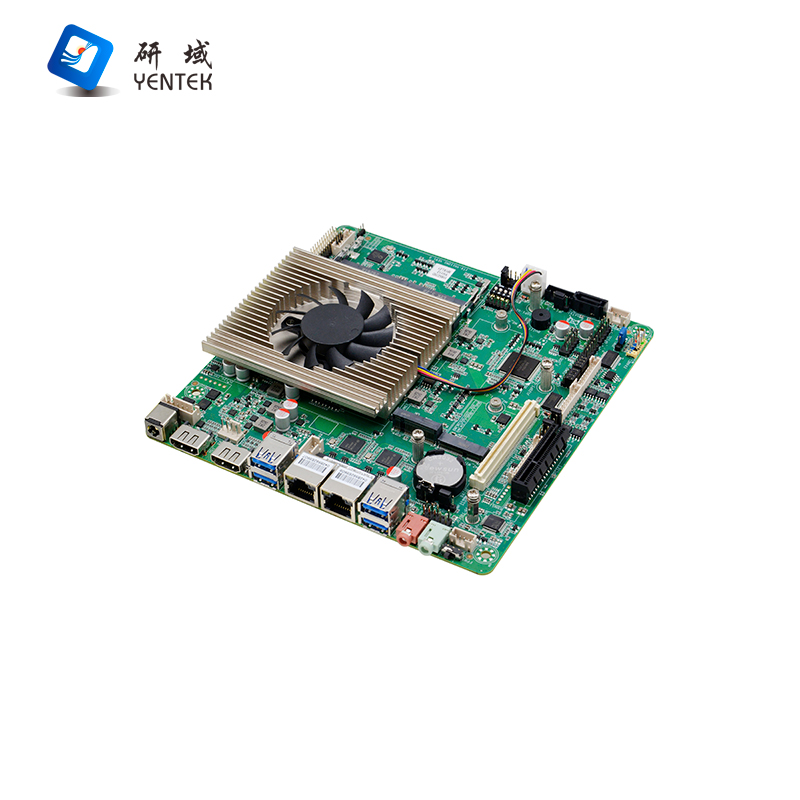

ITX-YH112M1_I723L VER:1.0

Processor

Features an integrated Intel® Tiger Lake 11th Gen Core i7-1195G7 2.9GHz quad-core, eight-thread processor with a TDP of 28W

Compatible with Intel® Tiger Lake-U Celeron, Pentium, Core i3, i5 and i7 processors

Chipset

SoC

Memory

2 × DDR4 SODIMM memory slots, supporting memory speeds up to 3200MHz and a maximum capacity of 64GB

Display

Integrated Intel® Iris® Xe Graphics, supporting DirectX 12.1, OpenGL 4.6 and 4K display

1 × VGA port, supporting a maximum resolution of 1920×1200 at 60 Hz

2 × HDMI 1.4 ports, supporting a maximum resolution of 4096×2160 at 24 Hz

1 × dual-channel 24-bit LVDS interface,

1 × EDP interface; either LVDS or EDP can be selected via a jumper

Supports four independent displays via VGA, HDMI, LVDS or EDP

Network

2 × I210AT 1GbE network cards, supporting Wake-on-LAN and PXE functionality

Note: Can be connected to the YH112-L2 daughterboard to support PoE functionality

Storage

1 × 7-pin SATA 3.0 hard drive interface, with transfer speeds up to 6 Gbps

1 × M.2 slot, supporting M.2 Key M 2280 NVMe PCIe 4.0 x4 standard SSDs

Audio

Integrated ALC897 7.1+2-channel high-fidelity audio controller, supporting MIC, Line Out and power amplifier

Supports 4Ω 3W speakers via the power amplifier

Expansion Slots

1 × M.2 slot, supporting M.2 Key E 2230 Wi-Fi/Bluetooth modules

1 × 120-pin high-speed header, including 4 × TTL, 2 × PCIe, 1 × SATA and 1 × DisplayPort (for use with VG390 series mini-boards and YH112-L2 mini-boards)

1 × PCIe 3.0 x4 slot (actual signal is x1)

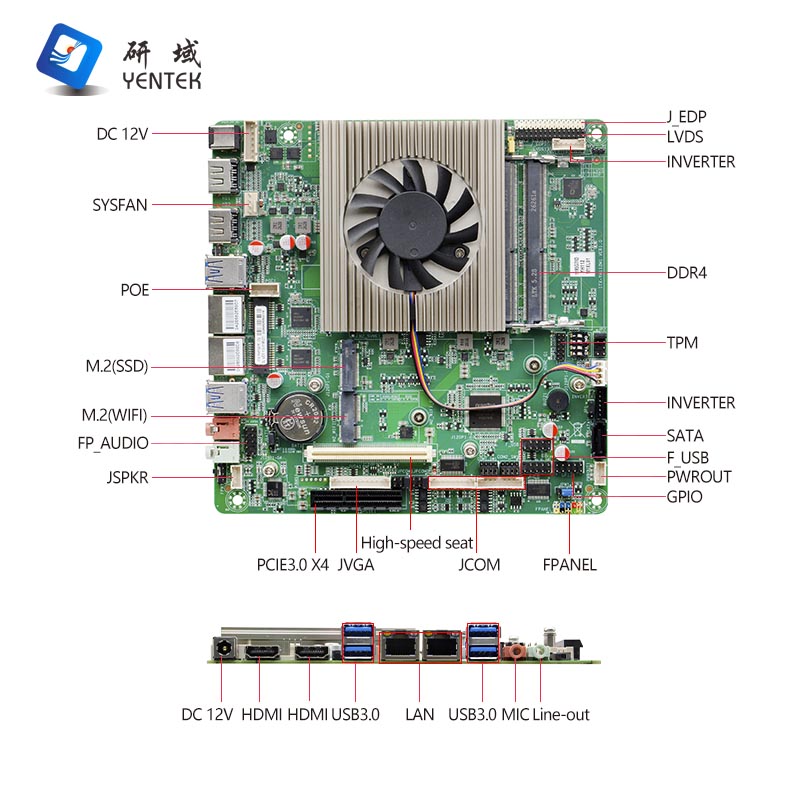

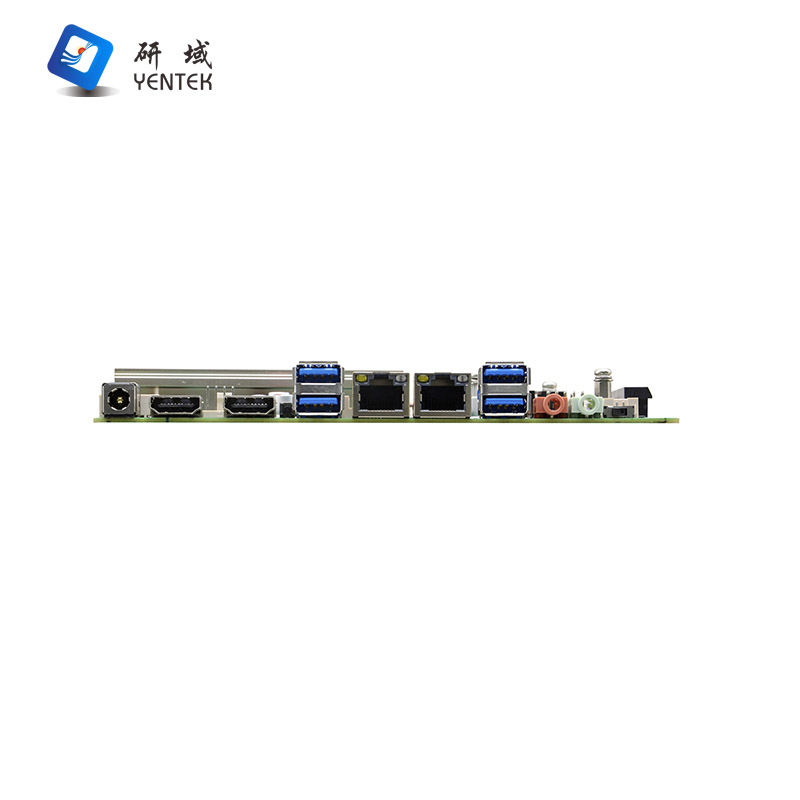

Rear Panel I/O Ports

4 × USB 3.0 Type-A ports (5 Gbps), supporting 2 A per port

2 × HDMI 1.4 ports

2 × RJ45 Gigabit Ethernet ports

1 × Line-out (green), 1 × MIC (red)

1 × DC power connector (5.5 × 2.5), supporting 12 V power supply

1 × Clear CMO button

1 × Power-on DIP switch

On-board I/O Ports

1 × LVDS interface (black), 2 × 15-pin, PH = 2.0 mm, supports dual-channel 24-bit

1 × LVDS backlight power supply interface (black), 1 × 6-pin, PH = 2.0 mm

1 × EDP interface (white), 2 × 15-pin, PH = 2.0 mm; selectable via jumper between EDP and LVDS

1 × EDP display backlight power supply interface (white), 1 × 6-pin, PH = 2.0 mm

1 × JVGA header, 1 × 12-pin, PH = 2.0 mm

2 × RS232 serial interfaces, 1 × 9-pin, pitch = 2.0 mm, supporting RS485/422 functionality, configurable via jumper settings

1 × PS/2 keyboard and mouse interface (red), 1 × 6-pin, pitch = 2.0 mm (not fitted by default)

4 × USB 2.0 interfaces, 2 × 5-pin, pitch = 2.54 mm

1 × front audio port, 2 × 5-pin, pitch = 2.54 mm

1 × front panel switch and indicator light port, 2 × 5-pin, pitch = 2.54 mm

1 × hard drive power supply port, 1 × 4-pin, pitch = 2.0 mm

1 × power amplifier port, 1 × 4-pin, pitch = 2.0 mm

1 × DC power connector: 1 × 6-pin, pitch = 2.54 mm (white); either this or the 2 × 2-pin ATX power connector may be used; a wide-voltage board supports DC 12–24 V power input

1 × TPM connector: 2 × 6-pin, ESPI specification, pitch = 2.0 mm

1 × PoE power connector: 1 × 4-pin, pitch = 2.5 mm

Fan Connectors

1 × 4-pin CPU smart fan connector, 1 × 4-pin system fan connector

GPIO

Supports 4-channel GPIO input/output functionality

BIOS

128 Mb Flash ROM

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Power Supply Type

Powered by 12 V DC; a wide-voltage board can be used to support 12–24 V DC power supply

Operating System

Windows 10 /11/Linux

Operating Temperature

-10℃～60℃

Storage Temperature

-20℃～70℃

Operating Humidity

5%–95% relative humidity, non-condensing

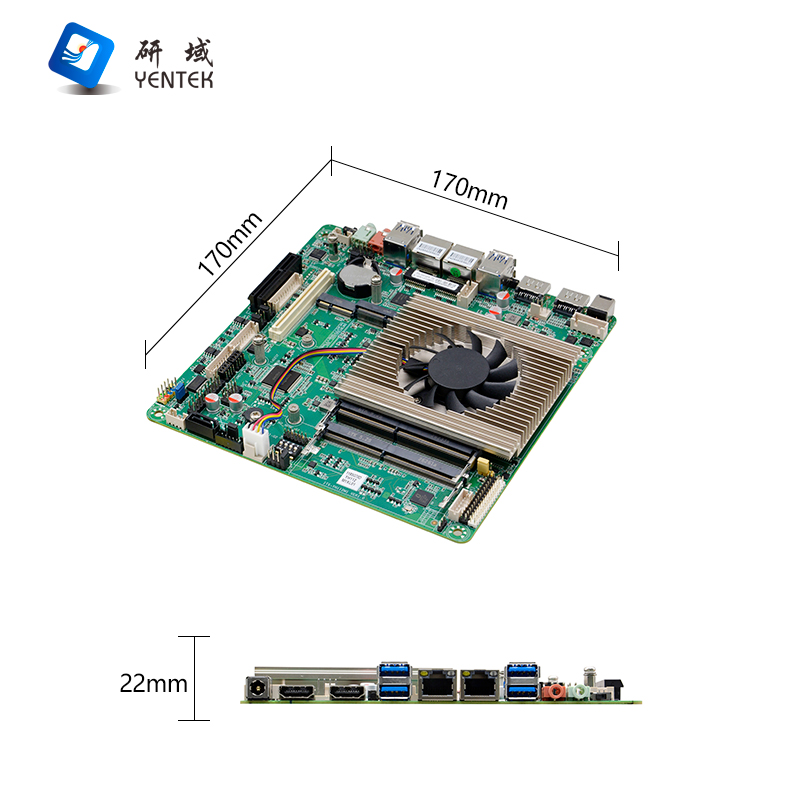

Dimensions

170mm x 170mm
