10th/11th generation U/S series

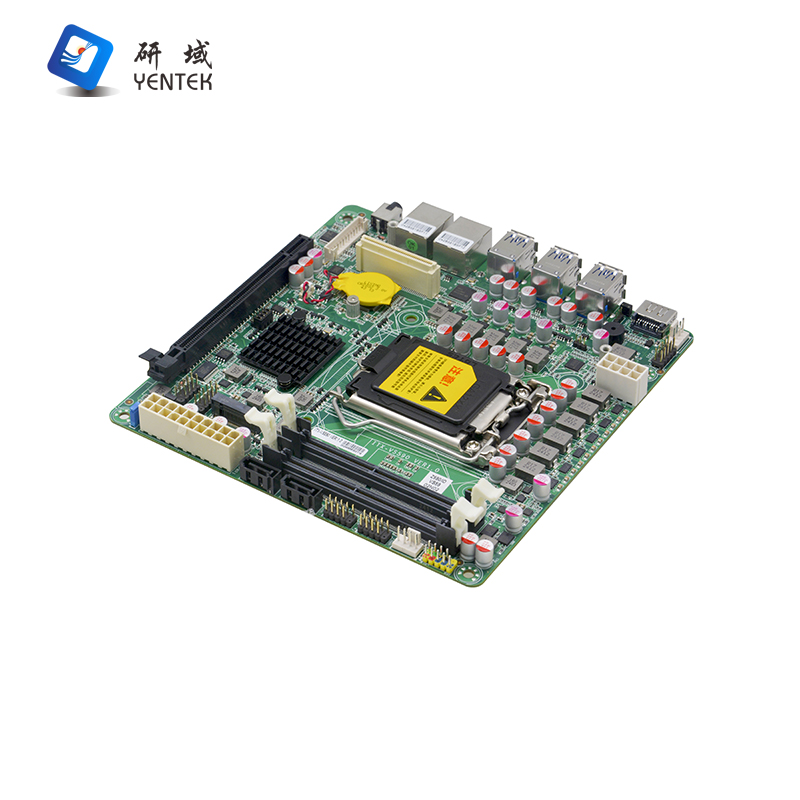

ITX-VS590

FEATURES

Support LGA1200 10th/11th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors

Product description

Model

ITX-VS590 VER:1.0

Processor

Support LGA1200 10th/11th Intel®   Celeron/Pentium/Core™ i3/i5/i7/i9 processors

Chipset

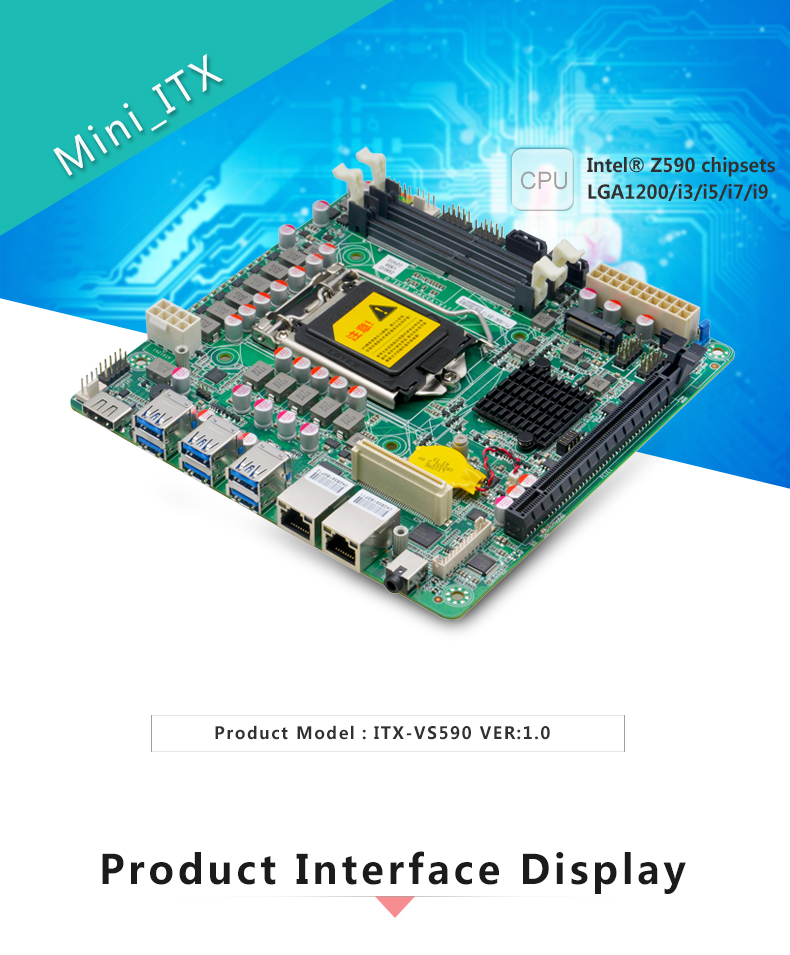

Adopting Intel® Z590 chipset

Memory

2* DDR4 SODIMM memory slots, support dual-channel up to 3200MHz memory,   maximum support for 128GB

Display



Integrated Intel®HD Graphics core graphics card support DirectX12.1,   OpenGL4.5, support for 4K display

1* VGA interface, support for the highest resolution: 1920x1080 @60Hz

1* HDMI1.4 interface, support for the highest resolution of 4096x2304   @24Hz

Network

2* Intel ® I210AT Gigabit LAN chip, support for Wake-on-LAN/PXN. Support   Wake-on-LAN/PXE function

Storage

2* SATA3.0 HDD interface, transfer speed up to 6Gbps,

1* M.2 slot, support M.2 2280 NVME PCIE X4 standard SSD

Audio frequency

Onboard ALC897 7.1+2-channel hi-fi audio controller, support MIC/Line-out

Expansion Slot

1* PCIE3.0 X16 slot

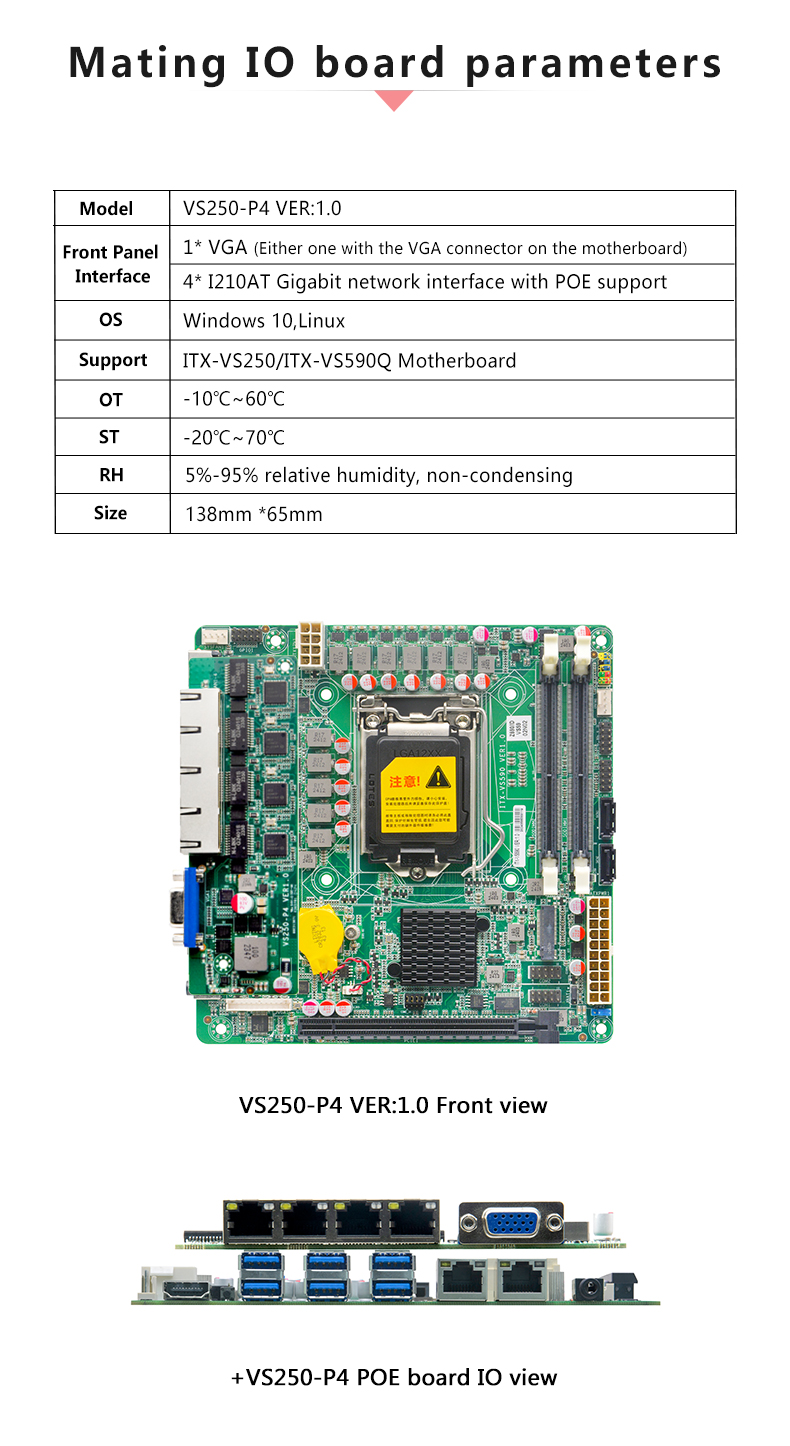

1* 80pin High-speed docking station, including 4*PCIE signal, 1*VGA   signal (with VS250-P4 small board)

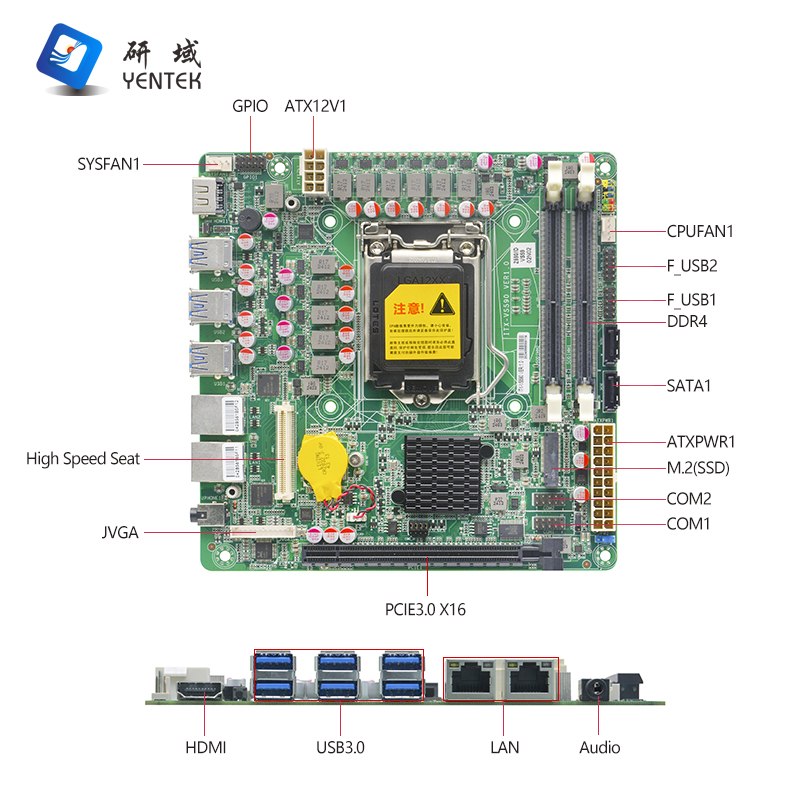

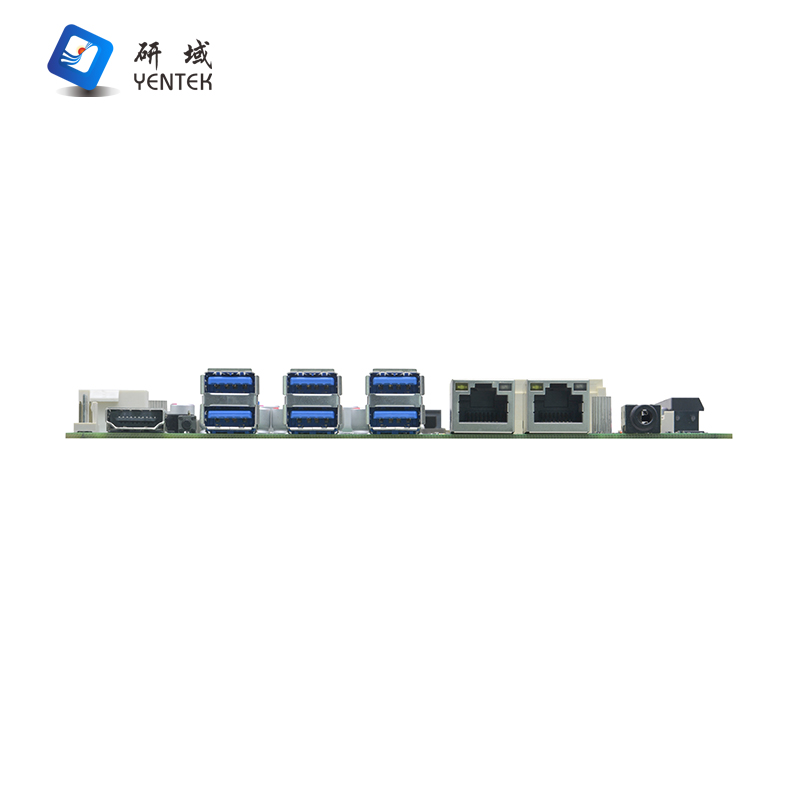

Backplane I/O Ports



1* HDMI interface

6* USB3.0 interface (5Gbps)

2* RJ45 Gigabit network interface

1* audio two and one interface (support Line-out/MICK)

Built-in I/O Interface



1* VGA pin connector, and 80pin high-speed in the VGA for the two options

4* USB2.0 interface 2*5pin

1* Front Panel Function Button and Indicator Interface 2*5pin

2* RS232 Serial Interface 2*5pin,COM2 support RS485 function

1* 2*4pin ATX power supply interface

1* 20pin ATX power supply interface

Fan Interface

1*4pin CPU fan interface;1*4pin system fan interface

GPIO

Support four-in-four GPIOs Functions

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Operating System

Windows10/Windows11/Linux

Power Supply Type

Powered by ATX 20Pin and 8pin power supply

Operating Temperature

0℃~60℃

Storage Temperature

-20℃~70℃

Operating Humidity

5%-95% relative humidity, non-condensing

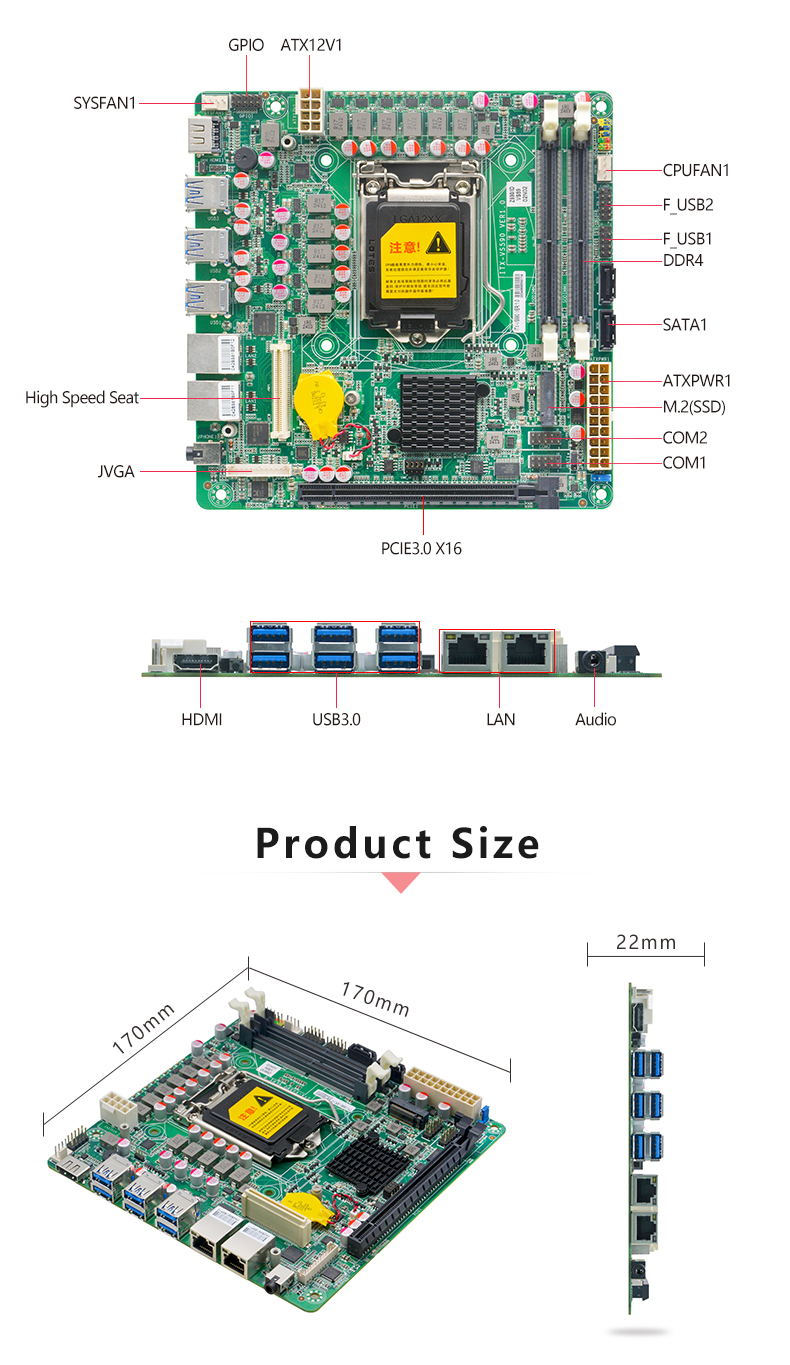

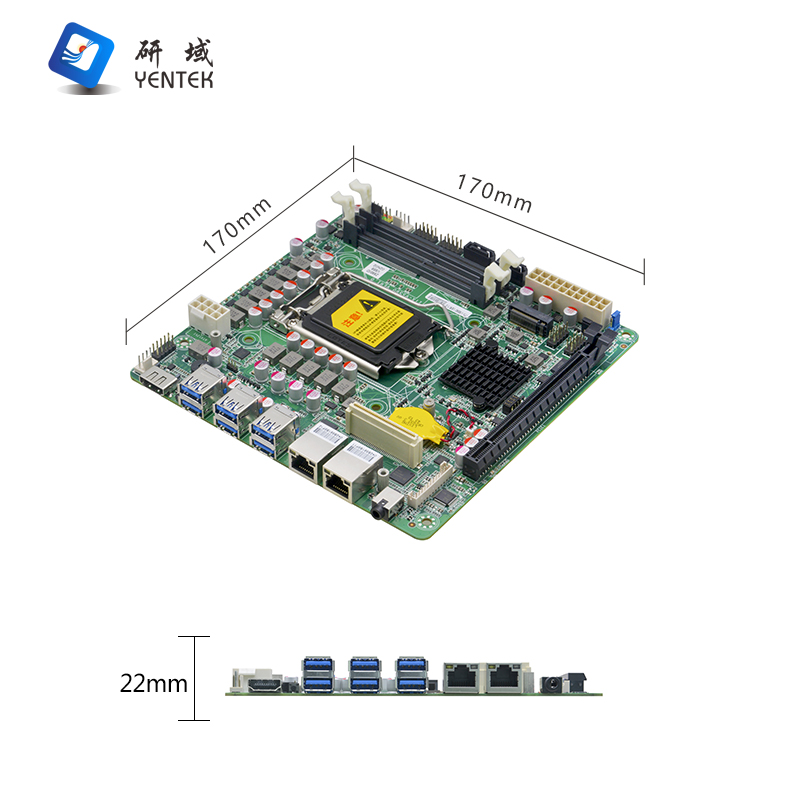

Size

170mm x 170mm

Order Information

No.

Model

Processor

Frequency

Southbridge

Memory

VGA

HDMI

DP

LAN

USB

COM

RS485/422

Power

1

ITX-VS590 VER:0.1

LGA1200

/

Z590

2*SODDR4

1

1

1

2*I210AT

10

2

/

ATX
