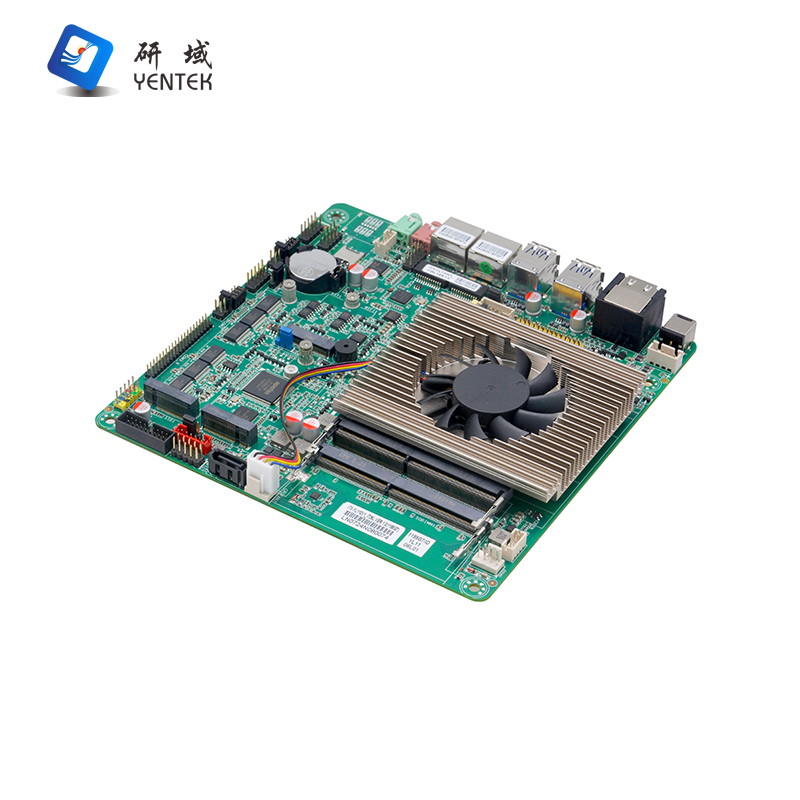

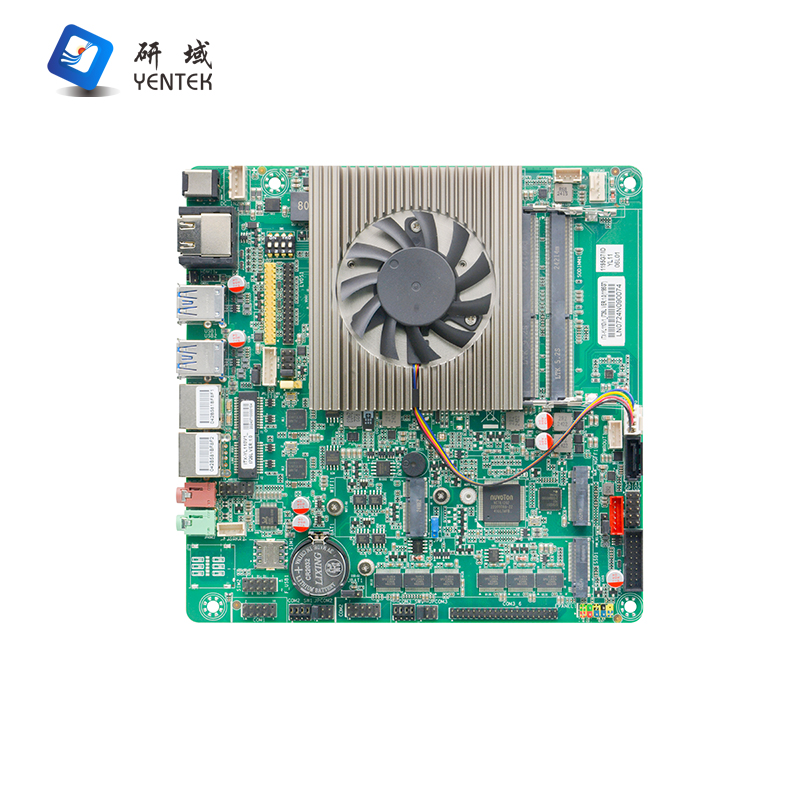

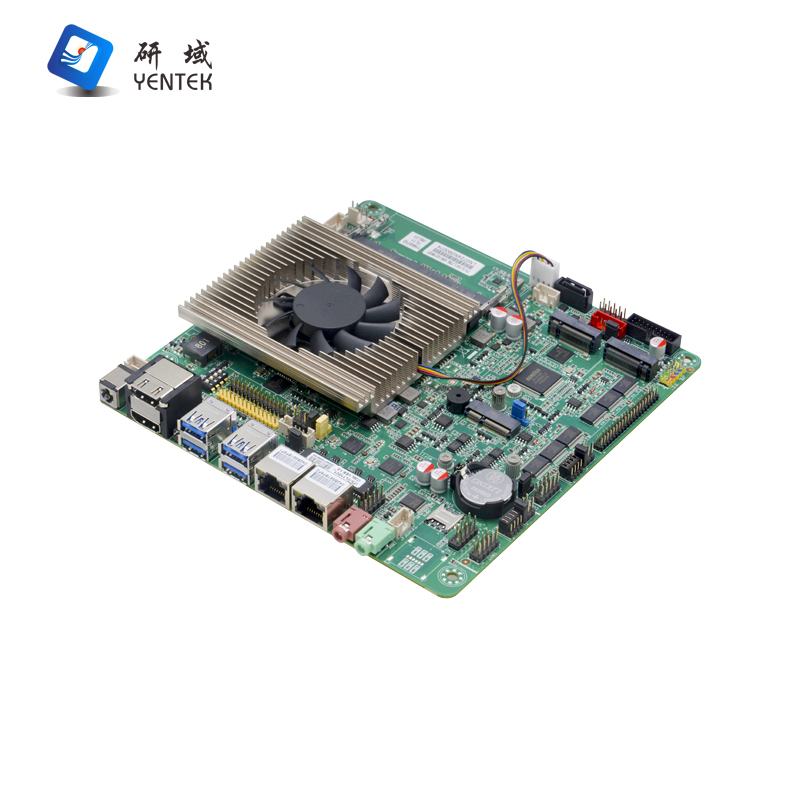

Integrated Intel® Tiger Lake 11th Core I7-1195G7 2.9GHz Quad-Core 8-Thread Processor, TDP28W

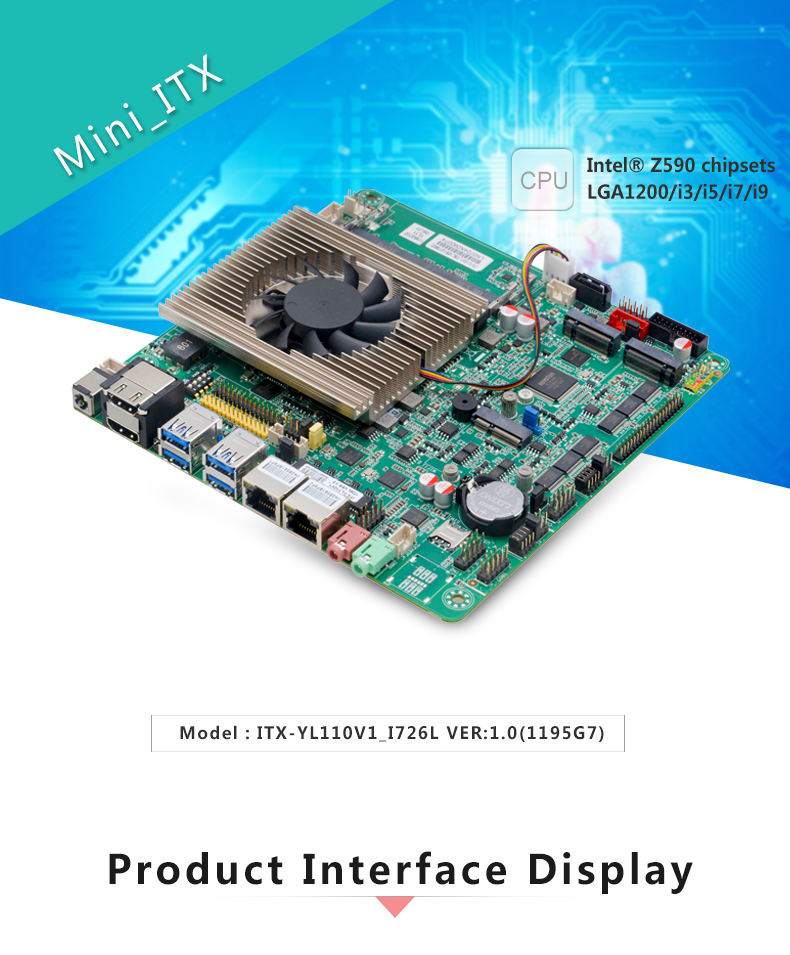

Model | ITX-YL110V1_I726L VER:1.0(1195G7) |
Processor | Integrated Intel® Tiger Lake 11th Core I7-1195G7 2.9GHz Quad-Core 8-Thread Processor, TDP28W |
Compatible with Intel® Tiger Lake-U Celeron Penium Core I3/I5/I7 processors | |
Chipset | SOC |
Memory | 2* DDR4 SODIMM memory slot, support 3200MHz memory, maximum support 64GB 3200MHz memory, support up to 64GB |
Display
| Integrated Intel® UHD Graphics ,support DirectX 12 OpenGL 4.5, support 4K |
2* HDMI1.4 interface, support for the highest resolution: 4096x2304@24Hz | |
1* support for dual-channel 24bit LVDS interface | |
1* EDP interface, with LVDS Select one by hopping | |
Network | 2* Intel I226 Gigabit LAN card, support Wake-on-LAN, PXE function (LAN2 and USB2.0 co-listed) |
Storage
| 1* SATA3.0 HDD interface, transfer speed up to 6Gbps |
1* M.2 slot, support M.2 2280 NVME PCIE x1/SATA Adaptive Standard SSD | |
Audio
| integrated ALC897 7.1+2 channel Hi-Fi audio controller, support MIC, Line_out, amplifier |
support amplifier 4Ω 3W speakers | |
Expansion Slots | 1* M.2 slot, support M.2 Key E 2230 WIFI module |
1* M.2 slot, support M.2 Key B 2242/4452 5G module | |

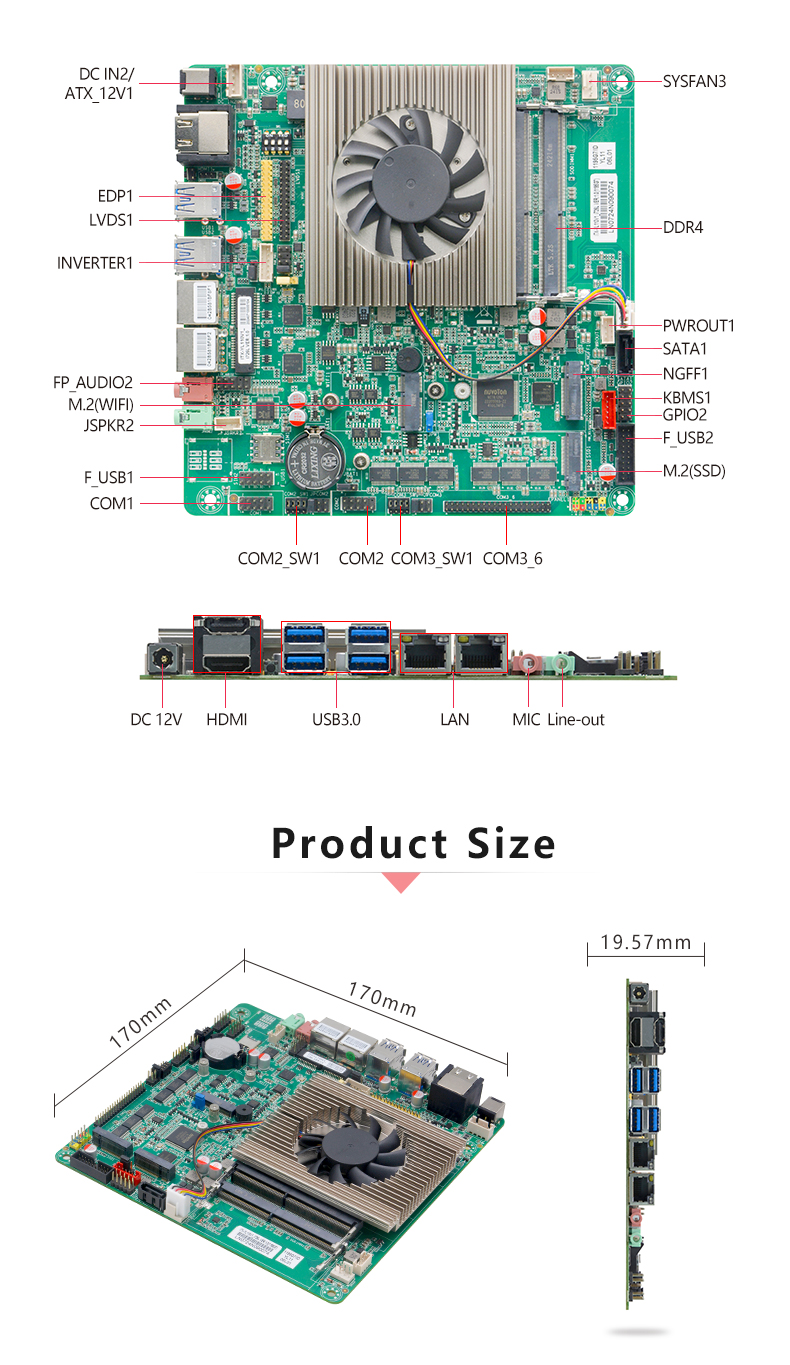

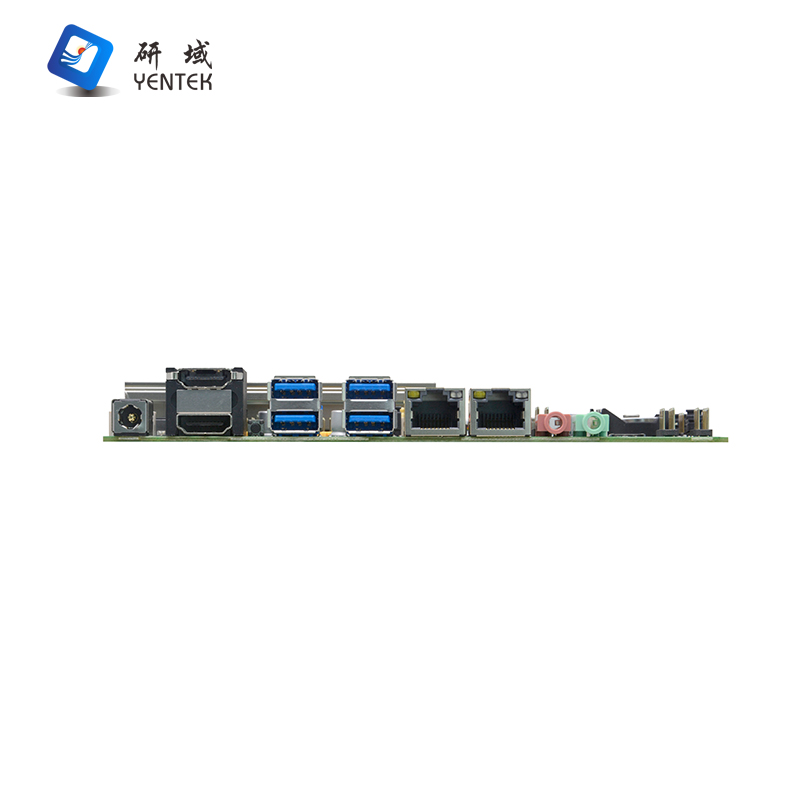

Backplane I/O Ports
| 4* USB3.0 interface |
2* HDMI1.4 | |
2* RJ45 Gigabit network interface (one of them) network port and USB2.0 co-located) | |
1* Line-out (green), 1*MIC (red) | |
1* DC12V power interface, support 12V power input | |
1* SIM card slot | |

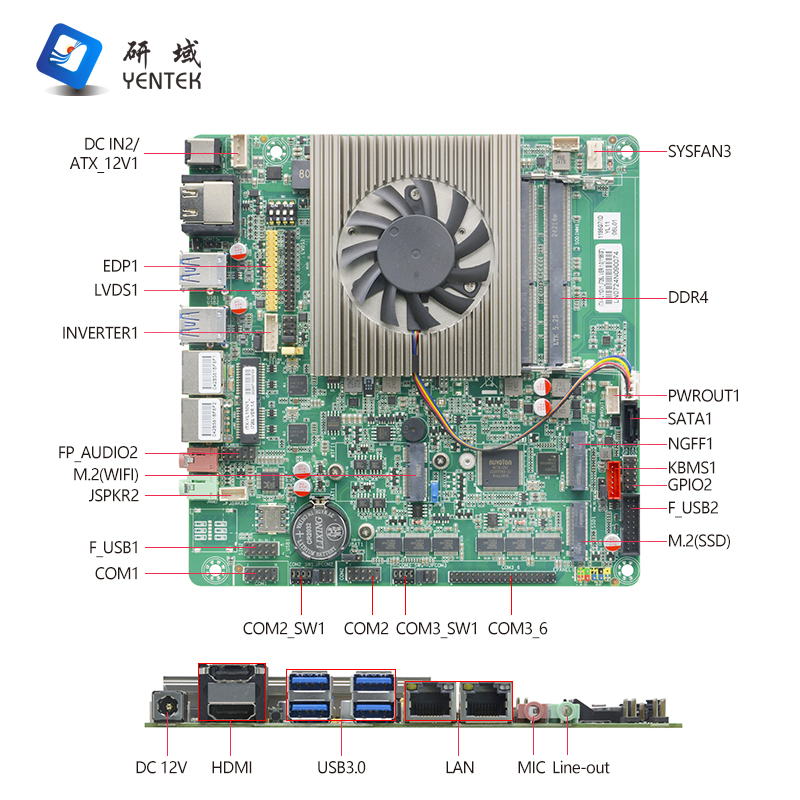

Built-in I/O Interface
| 1* LVDS interface 2*15pin, support dual-channel 24bit |
1* LVDS backlighting power supply interface 1*6pin | |
1* EDP interface 2*15pin,and LVDS Either one via jumper | |
6* RS232 serial interface, COM2/3 support RS485/422 function | |
1* PS/2 keyboard and mouse interface (red) 1*6Pin | |
2* USB2.0 interface 2*5pin | |
2* USB3.0 interface 2*10pin | |
1* front audio interface 2*5pin | |
1* front panel switch buttons and indicators interface 2*5Pin | |
1 * HDD power supply interface 1*4pin | |
1* Amplifier interface 1*4pin | |
1* DC power supply interface 1*4pin (can be used as 12V input power supply interface) | |
Fan Interface | 1*4pin CPU smart fan interface, 1* 4pin system fan interface |
GPIO | Support 4-channel input/output GPIO function |
BIOS | 128Mb Flash ROM |
Watchdog | Support Hardware Reset Function (256 levels, 0~255 seconds) |
Power Type | Adopts DC 12V power supply |
Operating System | Windows 10/Linux |
Operating Temperature | -10℃~60℃ |
Storage Temperature | -20℃~70℃ |
Operating Humidity
| 5%-95% relative humidity, non-condensing |

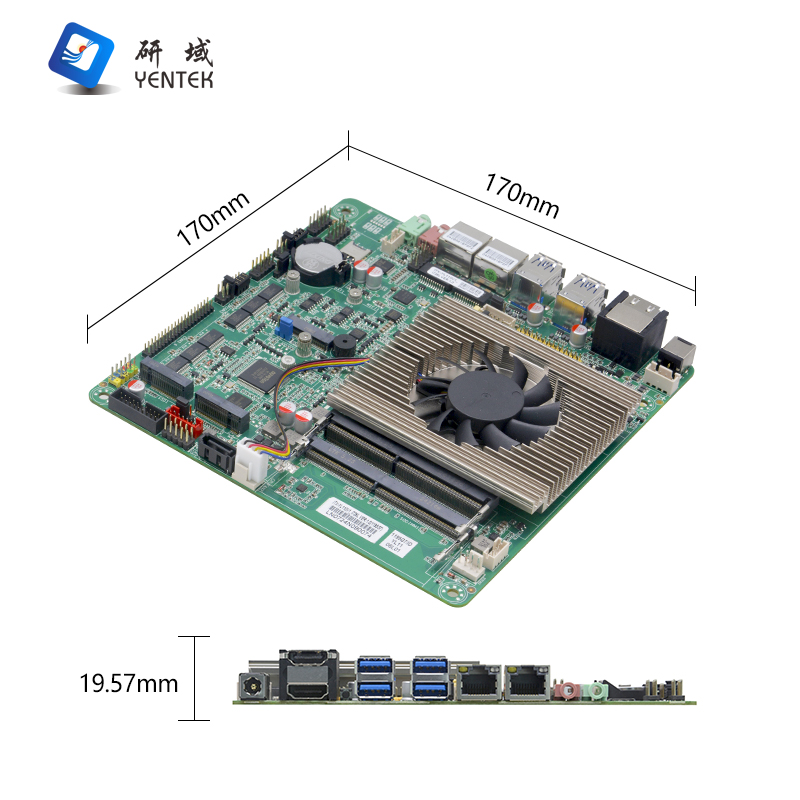

Size | 170mm x 170mm |
Order information
NO. | Model | Processor | Frequency | Memory | VGA | HDMI | LVDS | EDP | LAN | USB | COM | 485/422 | Power |
1 | ITX-YL110V1_I726L VER:1.0 | I7-1195G7 | 2.9G | 2*SODDR4 | / | 2 | 2ch/24Bit | 1 | 2*I226V | 8 | 6 | COM2/3 | DC12V
|
