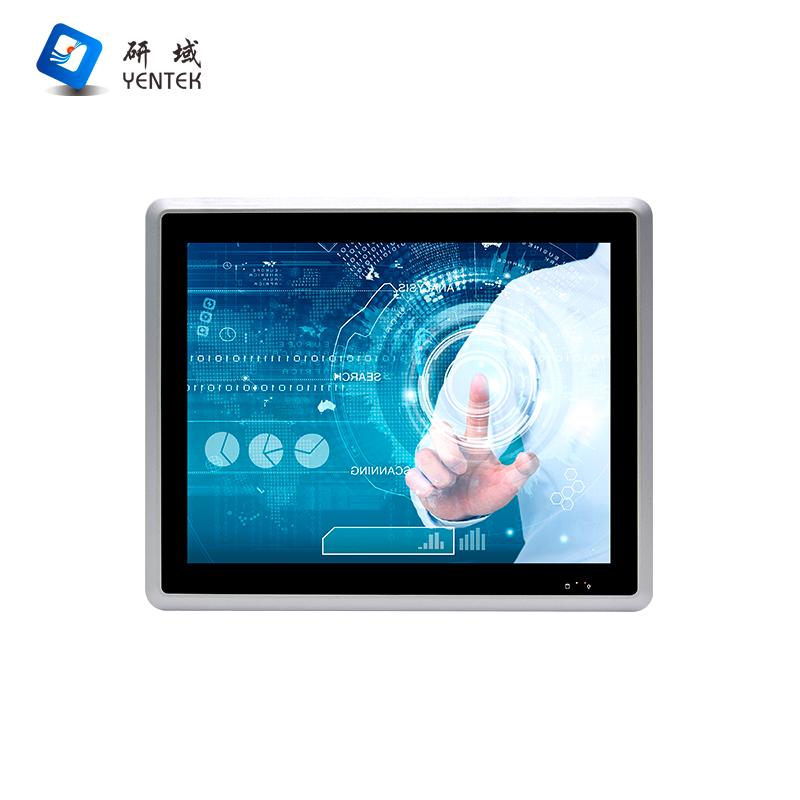

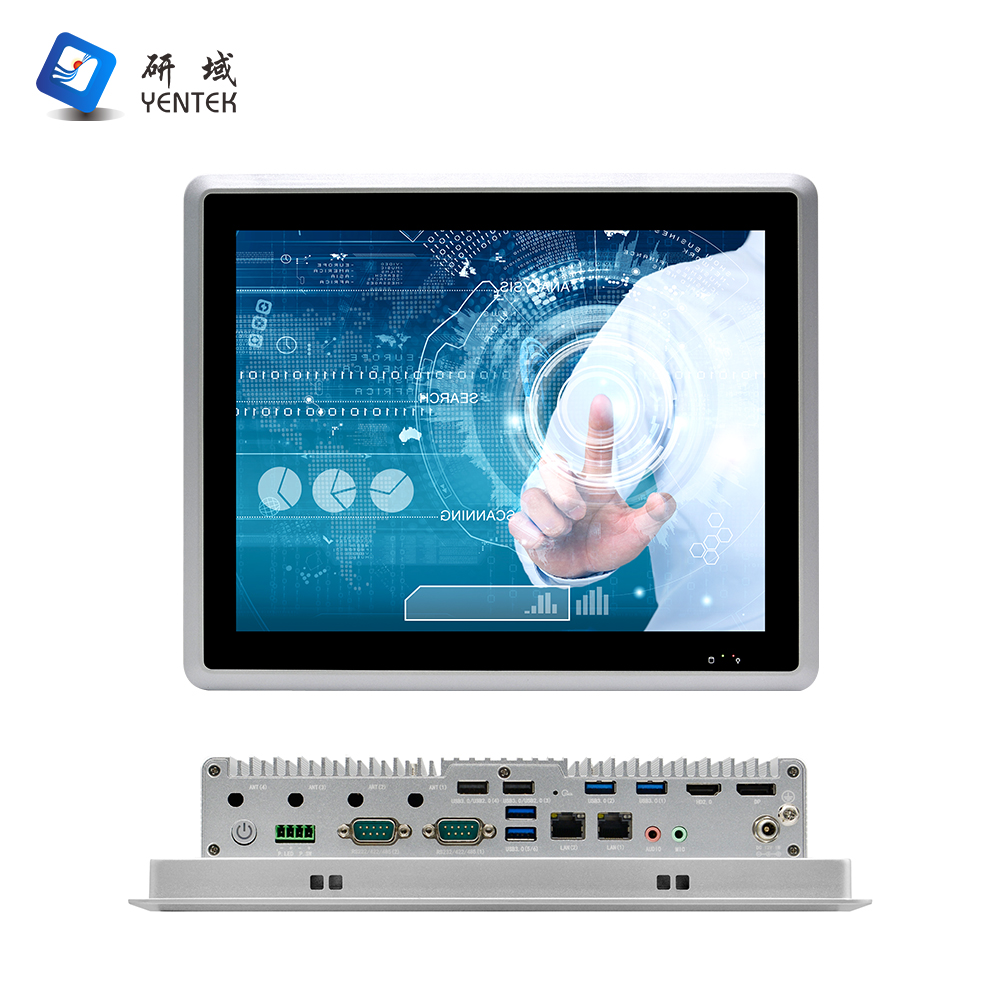

Model | P1271Y-D2 V2.0(J6412) |
Chassis | Material/Construction | Aluminium alloy construction, fanless cooling design |
Colour | Silver |
Dimensions (L x W x H) | L298*W243*H64.4mm |
Weight | 3.1kg |
Mounting | Supports VESA/embedded panel mounting |

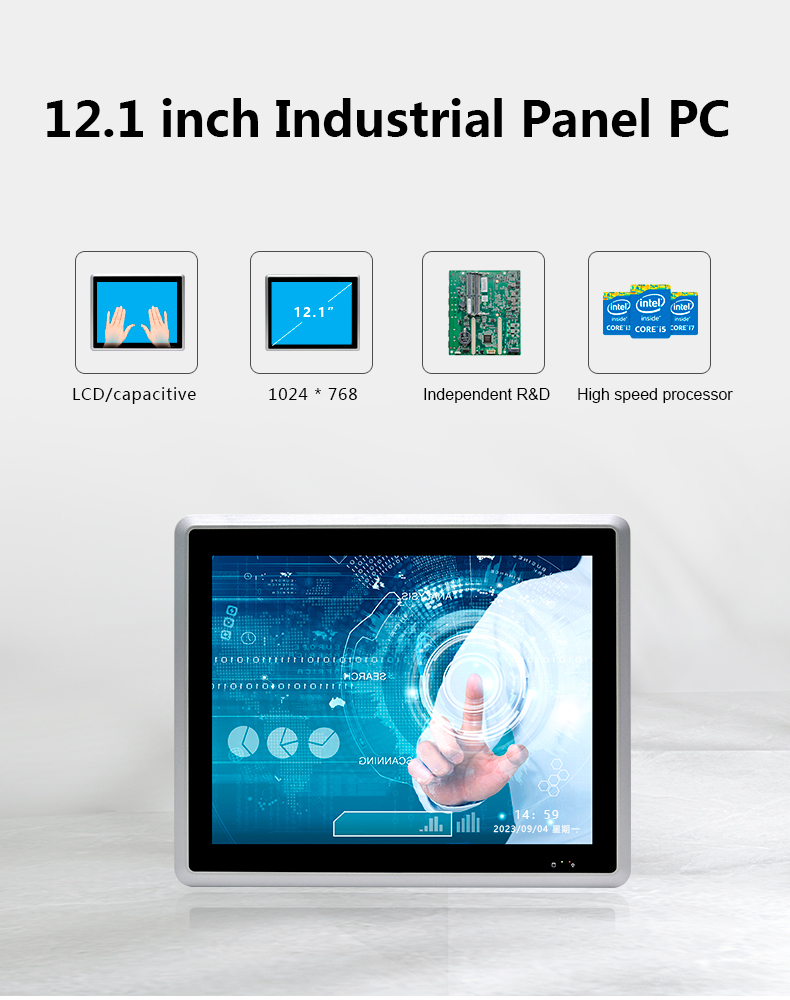

LCD Display | Type | 12.1-inch LCD |
Resolution | 1024 × 768 |
Brightness | 500 cd/m² |

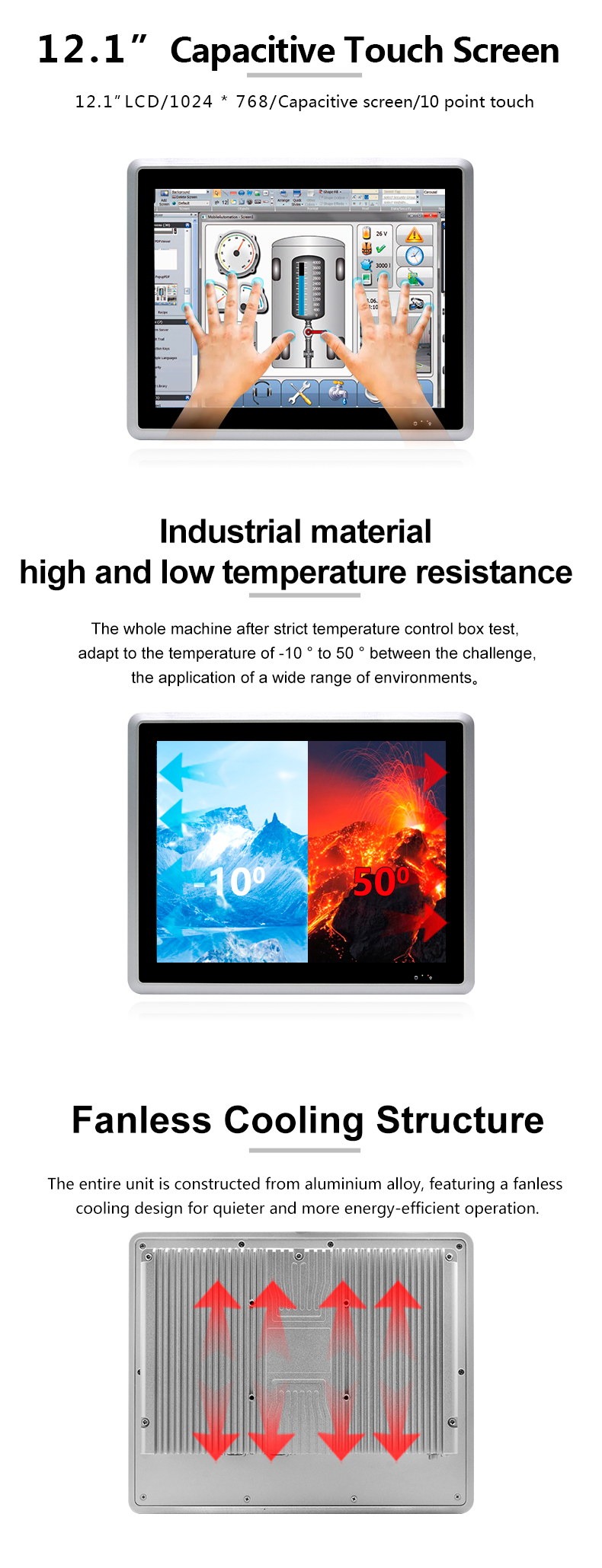

Touchscreen | Type | Capacitive touchscreen, 10-point touch |
Transmittance | 86%+ screen-to-body ratio |
Motherboard | CPU | Integrated Intel® Celeron J6412/2.00GHz quad-core quad-thread processor, TDP 10W |
Display | Integrated Intel® UHD Graphics |
Memory | 2x DDR4 3200MHz, supports up to 16GB |

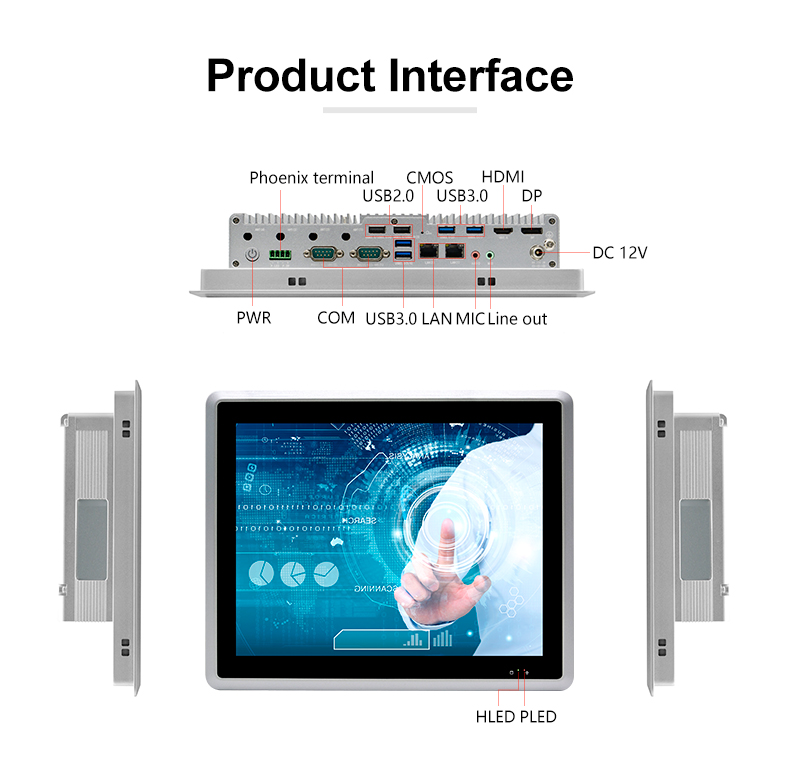

I/O Ports | POWER | 1x Power button, 1x One-touch reset, 1x CMOS reset switch |
LED | 1x Power indicator, 1x Hard drive indicator |
Display Interface | 1x HDMI 1.4 (4096×2304@60Hz), 1x DisplayPort (4096×2304@60Hz) |
LAN | 2x RTL8111H Gigabit Ethernet ports, supporting Wake-on-LAN and PXE functionality |
USB | 4x USB 3.0, 2x USB 2.0 (USB 2.0/3.0 count depends on CPU) |
COM | 2x RS232/422/485 DB9 serial ports |
Audio | 1x Line out, 1x MIC |
Remote Switch | 1x Power switch, 1x Power indicator (located on 1x 4P Phoenix connector) |
Speaker | Built-in 2x 4Ω 2W speakers |
Power Supply | 1x DC 12V aviation connector |

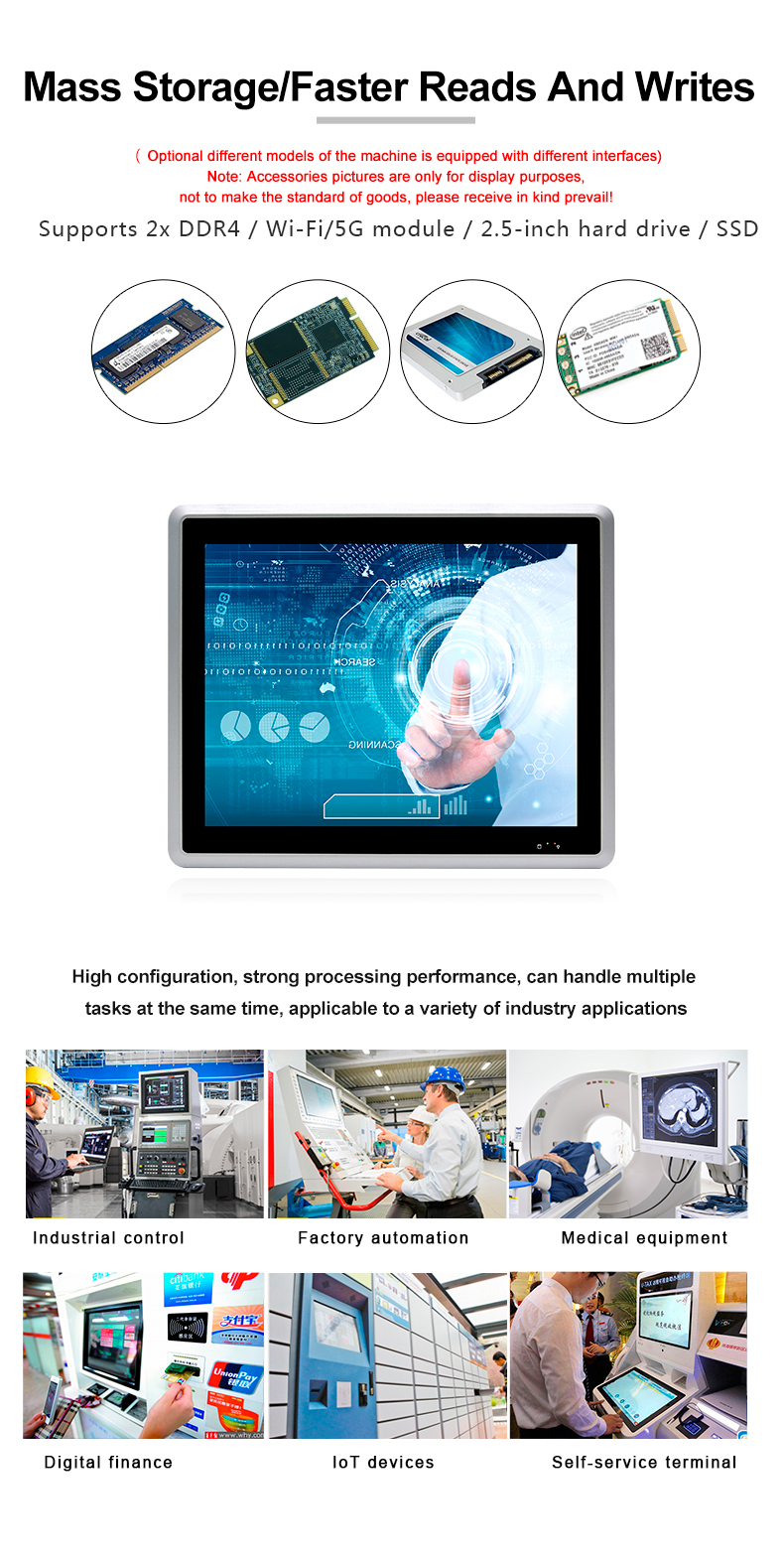

Storage | SATA | 1x 2.5-inch hard drive bay |
MSATA | 1x MSATA |
SSD | 1x M.2, supporting Key-M, 2280, NVMe PCIe x2/SATA adaptive SSD |
Expansion | WiFi | 1x M.2, Key-E, 2230, supporting Wi-Fi 6 + BT module |
5G | 1x M.2, Key-B, 3042/3052, supporting 5G module |
System Support | Windows | Windows 10 / 11 |
Linux | Ubuntu |
Watch Dog | Supports hardware reset function (256 levels, 0–255 seconds) |
Power Requirements | Power Supply Type | DC 12V input |
Power Output | AC to DC 60W (depending on specific device) |
Environment | Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 70°C |
Relative Humidity | 5%–95% relative humidity, non-condensing |
Vibration | 0.5g rms/5-500HZ/random |
