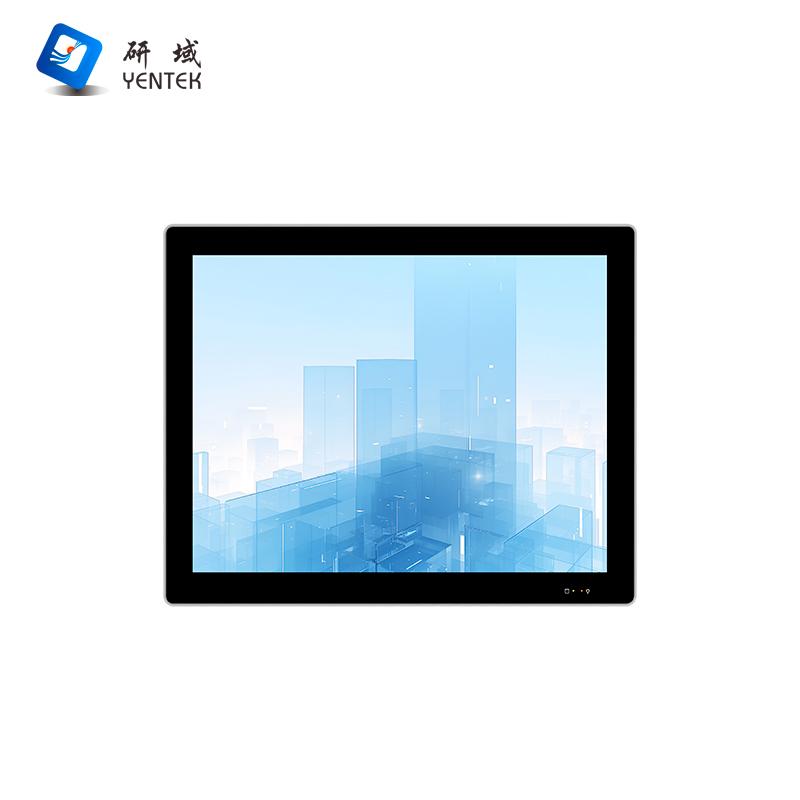

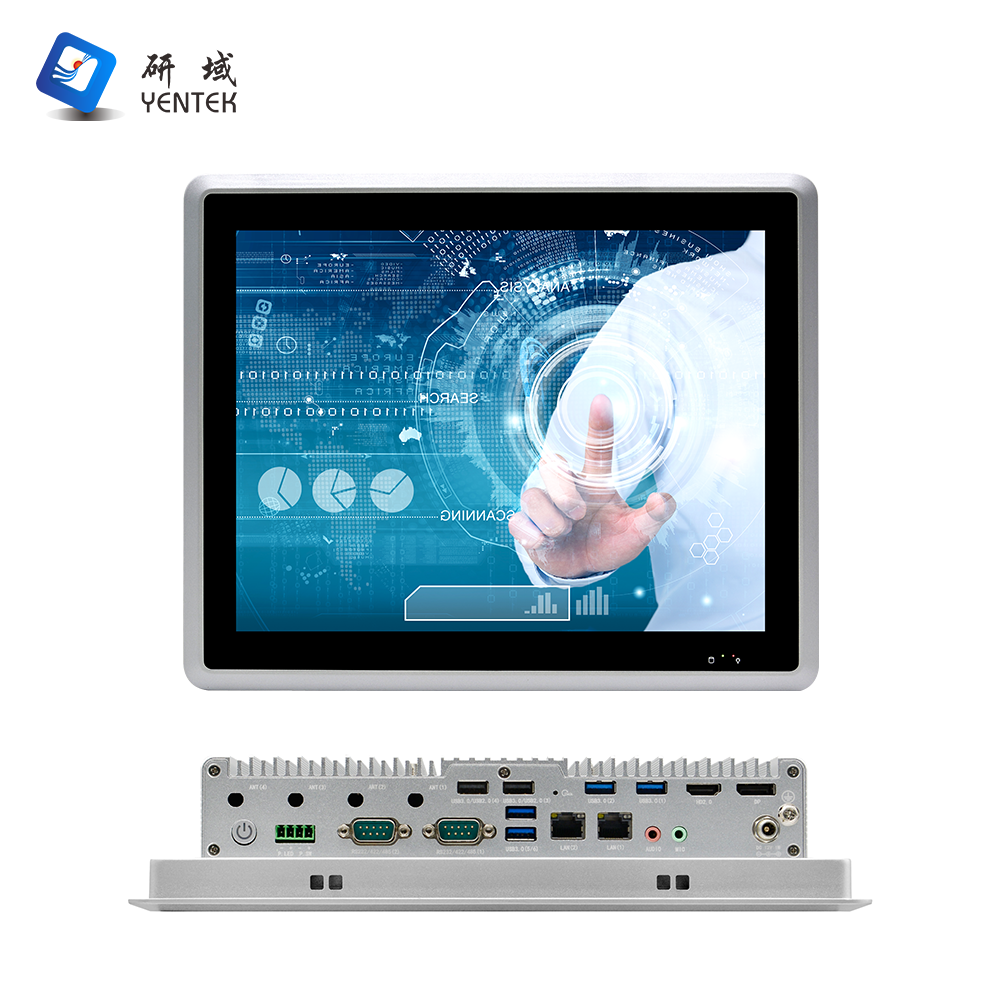

P1272X-F6

Chassis

Material/structure

Aluminium   alloy

Color

Bright   silver color

Size (LWH)

l281*w226.2*h61.2mm

Weight (bare   net)

KG

Installation

Support   VESA(75mm)/Wall Mount Panel Installation

LCD Screen

Type

12.1’ LCD,   Positive, 4:3

Resolution

1024 * 768

Brightness

500 cd/m2

Touch Screen

Type

Capacitive,   10-point touch

Transmittance

80% or more

Motherboard

CPU

Integrated   Intel® J6412/2.00GHz Quad-Core Quad-Thread Processor, 10W TDP power   consumption

Display

Integrated   Intel® UHD Graphics

Memory

2*SODIMM   DDR4 2666MHz memory, support up to 32GB

IO Interface

POWER

1*Power   Switch, 1*One-Key Restore, 1*ACLOSS (Power-on DIP Switch), 1*CMOS Reset Switch

LED

1*Power   Indicator, 1*Hard Drive Indicator

Display   Interface

1*HDMI1.4

LAN

2*Intel   I210AT Gigabit power port, support Wake on LAN/PXE

USB

4*USB3.0,   2*USB2.0

COM

6*RS232 /485   (on 2*12P Phoenix terminals)

Audio

1*Line out,   1*Mic

Phoenix   terminal

1*4P   (1*PWR/1*P.LED)

2*12P   (6*RS232/485)

POWER

1*DC or 1*2P   Phoenix terminal, support 9~36V wide voltage input

Storage

MSATA

1*MSATA

M.2

1*M.2,   support Key-M, 2260/2280, NVME PCIEx2 SSD (motherboard side)

1*M.2, support   Key-M, 2280, SATA SSD (IO board side)

Expansion

M.2

1*M.2, Key-B   support, 3042/3052, 5G module

1*M.2,   Support Key-E, 2230, WIFI Module

System Support

Windows

Windows 10

Linux

Ubuntu

Power Requirements

Power supply   type

External Power   Adapter

Voltage   Input

DC 9~36V   wide voltage input

Power Output

AC to DC 60W   or more (depending on specific equipment)

Environments

Operating   Temperature

-10℃～50℃

Storage   Temperature

-20℃～70℃

Relative   Humidity

5%-95%   relative humidity, non-condensing

Operating   Vibration

0.5g   rms/5-500HZ/random/operating

1

P1272X-F6 V1.0(J6412)

J6412/2.0G

2*SODDR4

P641

P1071-LED/P1041-F6

MSATA+M.2(SATA)+M.2(NVME)

2*I210

6

1

4

2

9~36V

2

P1272X-F6 V1.0(7300U)

I5-7300U/2.6G

2*SODDR4

P67

P1071-LED/P1041-F6

MSATA+M.2(SATA)+M.2(NVME)

2*I210

6

1

4

2

9~36V

3

P1272X-F6 V1.0(8260U)

I5-8260U/1.6G

2*SODDR4

P81

P1071-LED/P1041-F6

MSATA+M.2(SATA)+M.2(NVME)

2*I210

6

1

4

2

9~36V

4

P1272X-F6 V1.0(10210U)

I5-10210U/1.6G

2*SODDR4

P102

P1071-LED/P1042-F6

MSATA+M.2(SATA)+M.2(NVME)

2*I210

6

1

4

2

9~36V

5

P1272X-F6 V1.0(5205U)

5205U/1.9G

2*SODDR4

P102

P1071-LED/P1042-F6

MSATA+M.2(SATA)+M.2(NVME)

2*I210

6

1

4

2

9~36V
