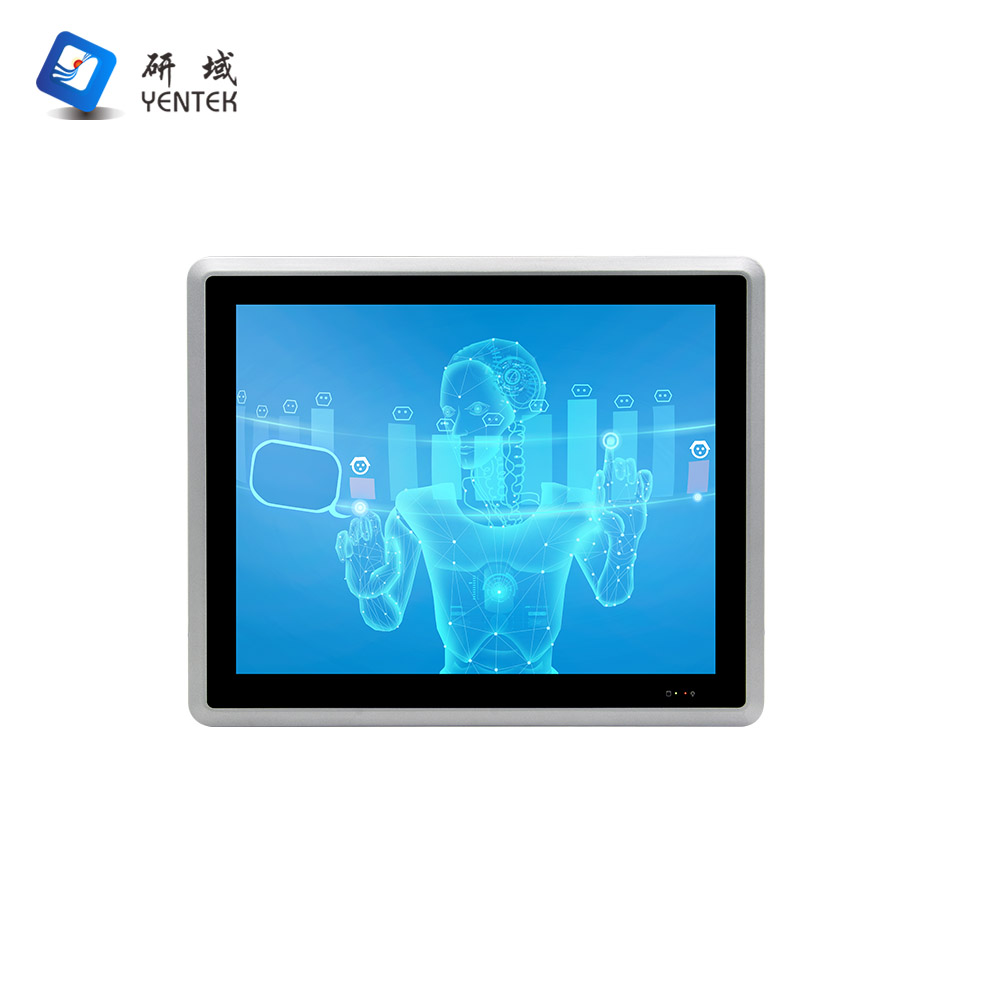

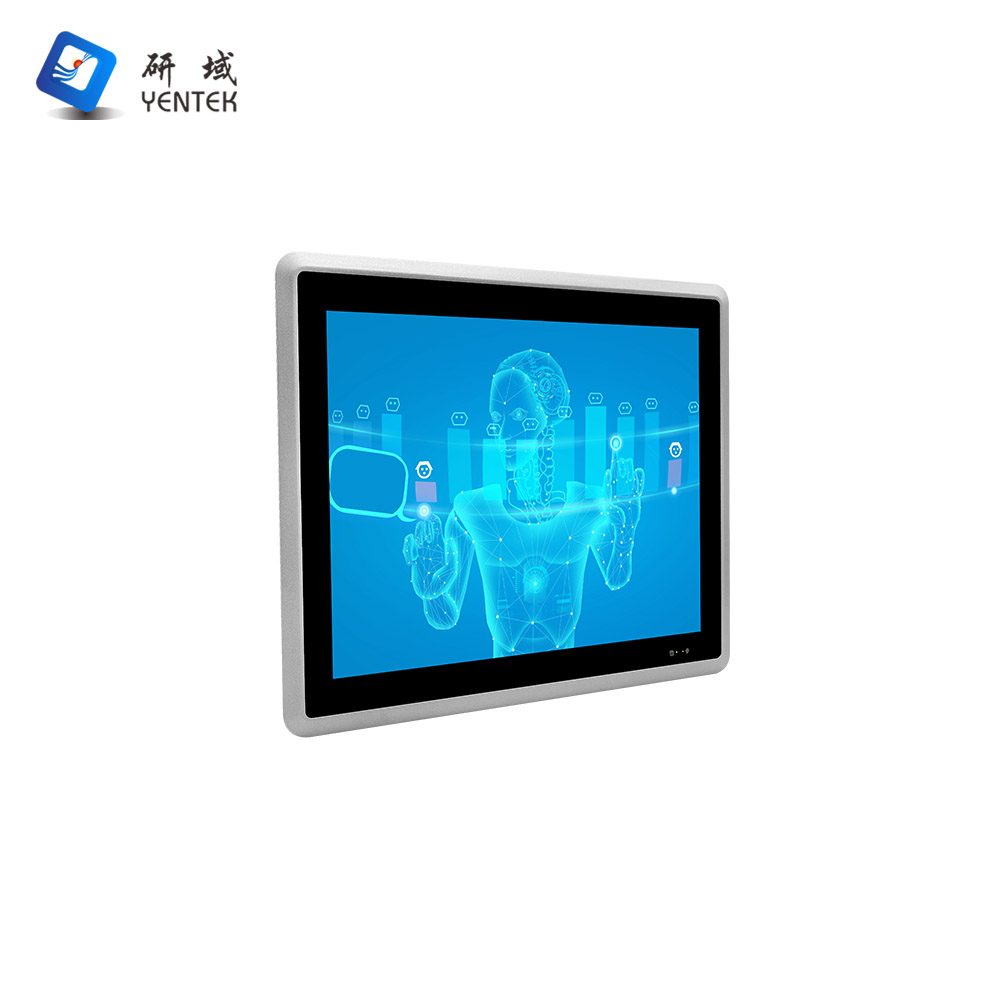

P1271Y-P4 V2.0 (Embedded)

Chassis

Material/Construction

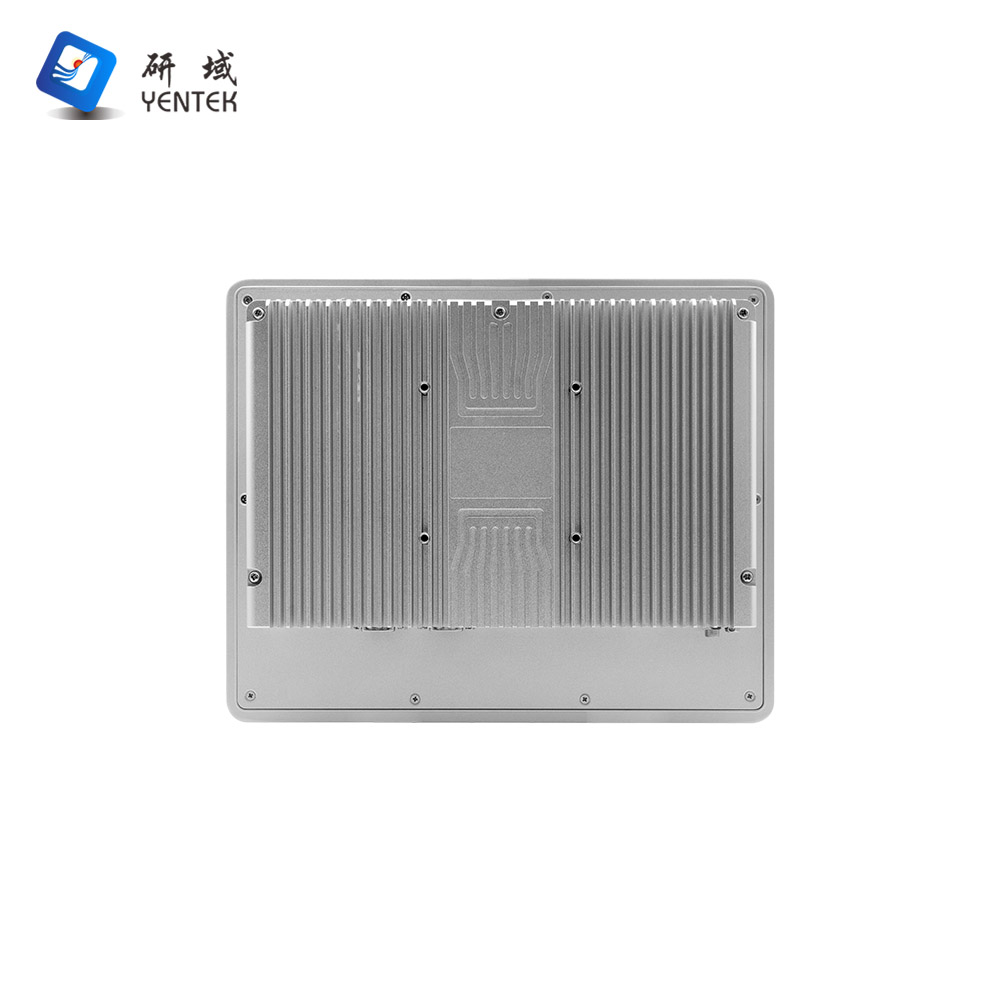

Aluminum alloy construction, fanless cooling design

Color

Silver

Dimensions (L x W x H)

L298 x W243 x H64.4 mm

Weight (Net weight without packaging)

3.2 kg

Installation

Supports VESA (75x75) and panel mounting

LCD Screen

Type

12.1-inch LCD, 4:3 aspect ratio, portrait orientation

Resolution

1024 x 768

Brightness

500 cd/m²

Touchscreen

Type

Capacitive touchscreen, 10-point touch (can be modified to resistive touchscreen)

Transmittance

Over 86%

Motherboard

CPU

Integrated Intel® Alder Lake-N N97 3.6GHz quad-core processor, TDP 12W

Memory

1x SODDR4 3200MHz, supports up to 32GB

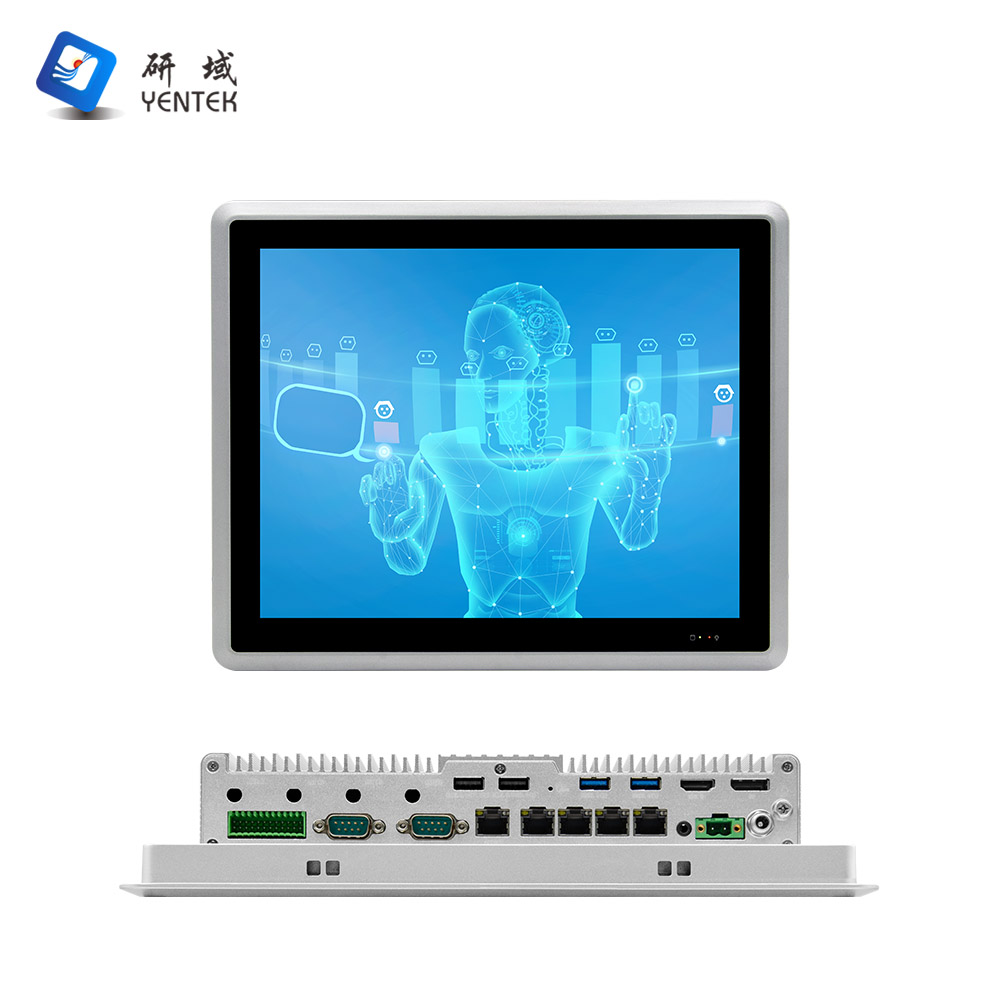

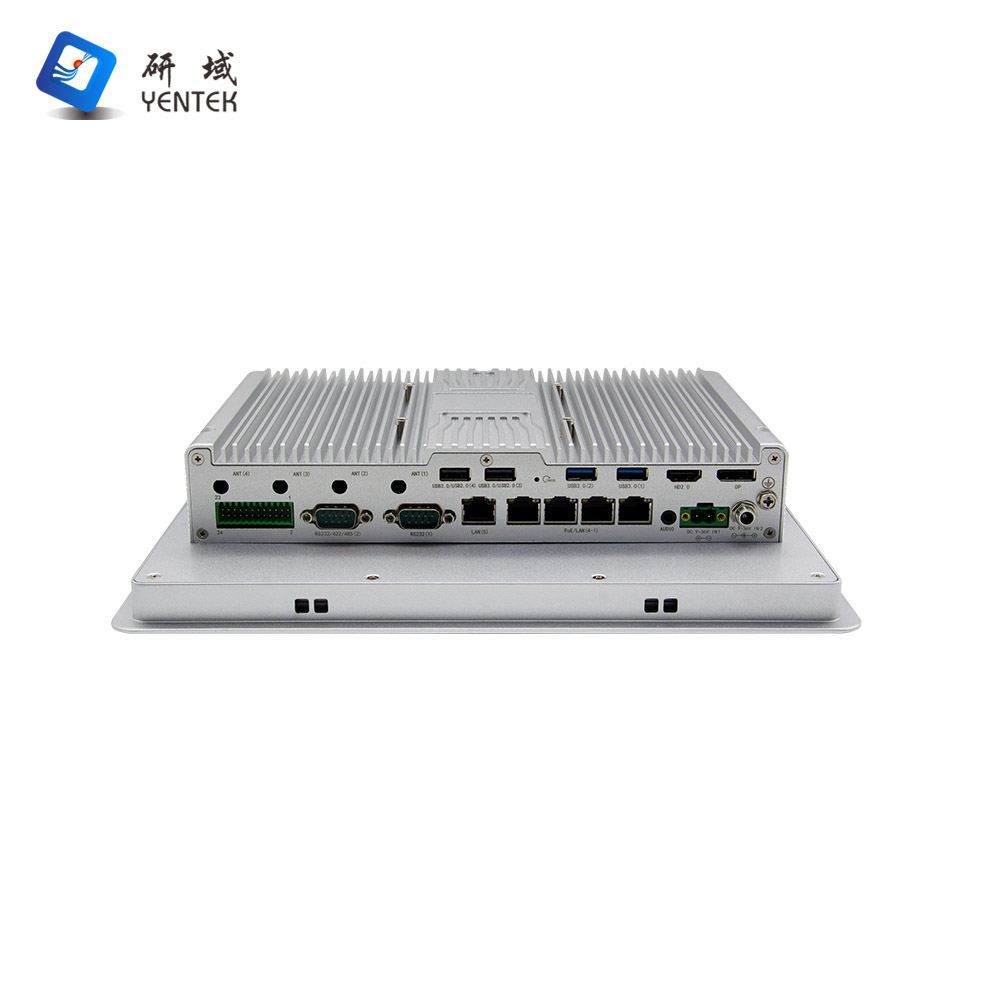

I/O Ports

Power

1 x Power Button, 1 x One-Touch Recovery (either this or a reset switch), 1 x ACLOSS (Power-On DIP Switch), 1 x CMOS Reset Switch

Display Interface

1 x HDMI 1.4 (4096 x 2304 @ 60Hz), 1 x DisplayPort (4096 x 2304 @ 60Hz)

LAN

5*Intel I210AT Gigabit Ethernet ports, 4 of which support POE/15W

USB

2*USB 3.0, 2*USB 2.0 (number of USB 2.0/3.0 ports depends on CPU)

COM

4*RS232 serial ports, COM1–2 RS232 DB9 ports, with COM2 supporting RS485/422, COM3–4 RS232 on 2×12-pin Phoenix connectors, where COM3 supports RS485, and COM1–2 support pin 9 power-on functionality

DI/DO

4×DI, 4×DO (located on 2×12-pin Phoenix connectors)

Remote Switch

1×Power Switch, 1×Power Indicator (located on 2×15-pin Phoenix connectors)

DIP Switch

10-position DIP switch for COM2–3 RS232/485 selection; COM2 RS422 is enabled via the combination of COM2_SW1 and BIOS settings

Audio

1 x AUDIO (combined Line Out and MIC)

Power Supply

1 x DC (5.5 x 2.5 mm) aviation connector or 1 x 2-pin (P = 5.08 mm) Phoenix connector, supporting 9V–36V wide-voltage input

Storage

SATA

1 x 2.5-inch HDD bay

mSATA

1 x mSATA

SSD

1 x M.2, supports Key-M, 2280, supports NVMe PCIe x4 SSD

Expansion

WiFi

1 x M.2, supports Key-E, 2230, WiFi 6 + Bluetooth module

5G

1 x M.2, supports Key-B, 304230/52, supports 5G module

System Support

Windows

Windows 10

Linux

Ubuntu

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Power Requirements

Input Voltage

DC 9V–36V wide voltage range

Output Power

AC to DC 60W (depending on specific device)

Environment

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Relative Humidity

5%–95% relative humidity, non-condensing

Vibration

0.5g rms/5-500HZ/random
