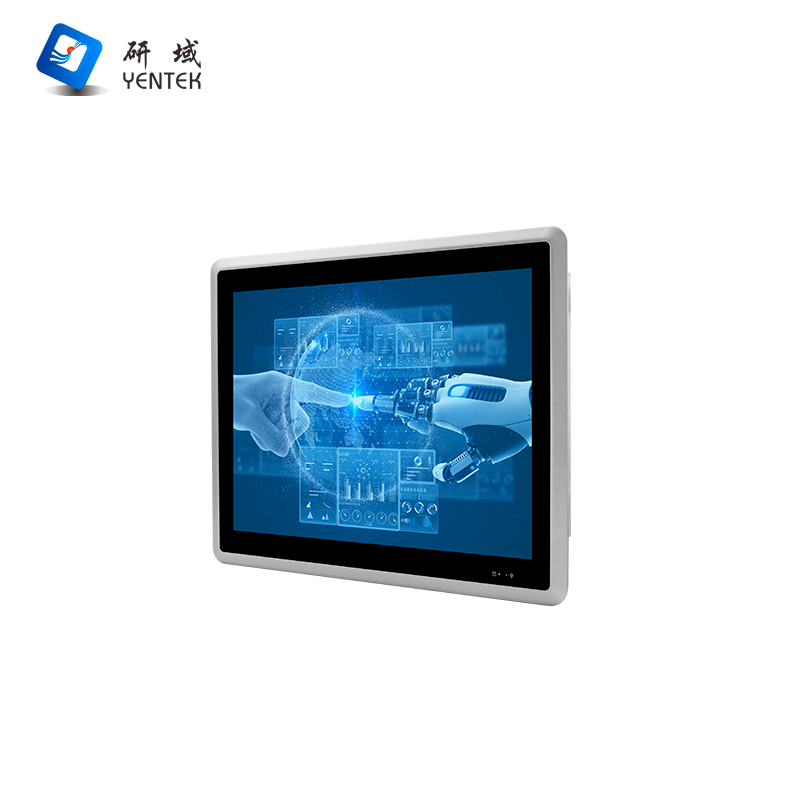

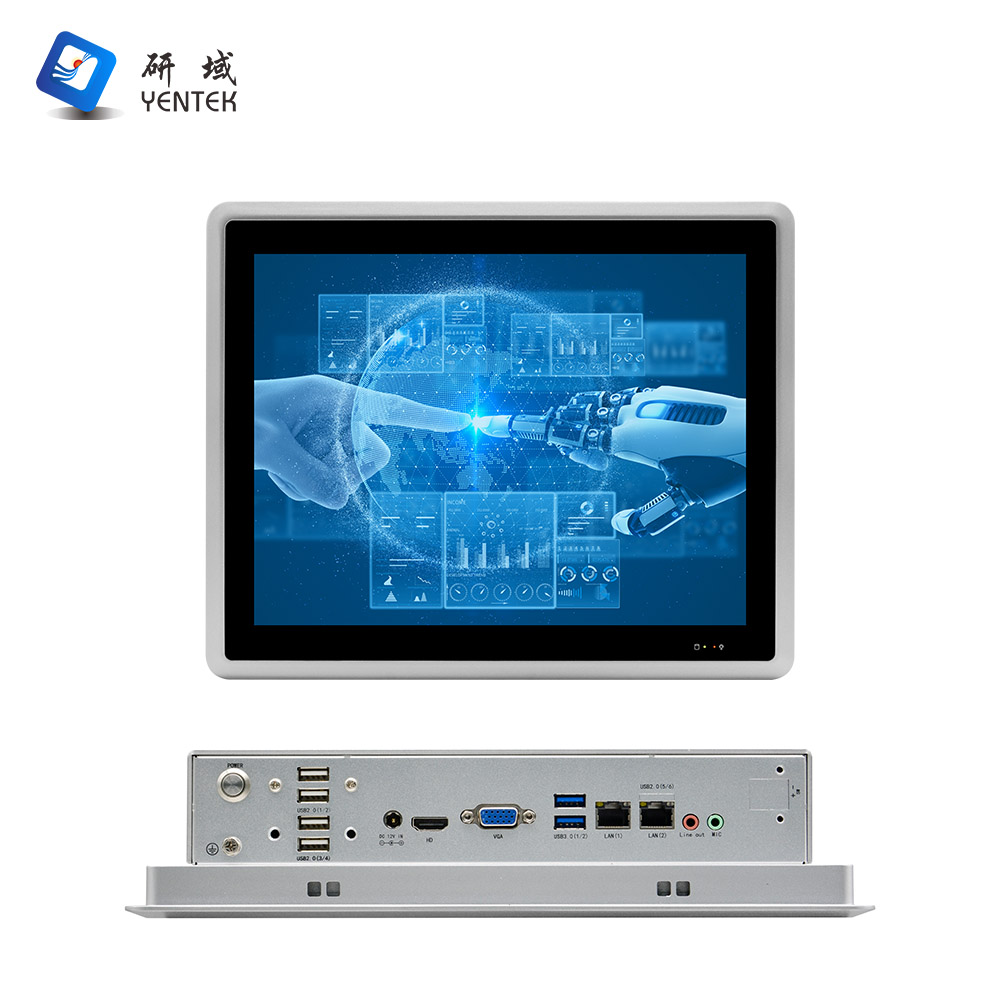

P1231Y-R6 (VESA)

Chassis

Material/Construction

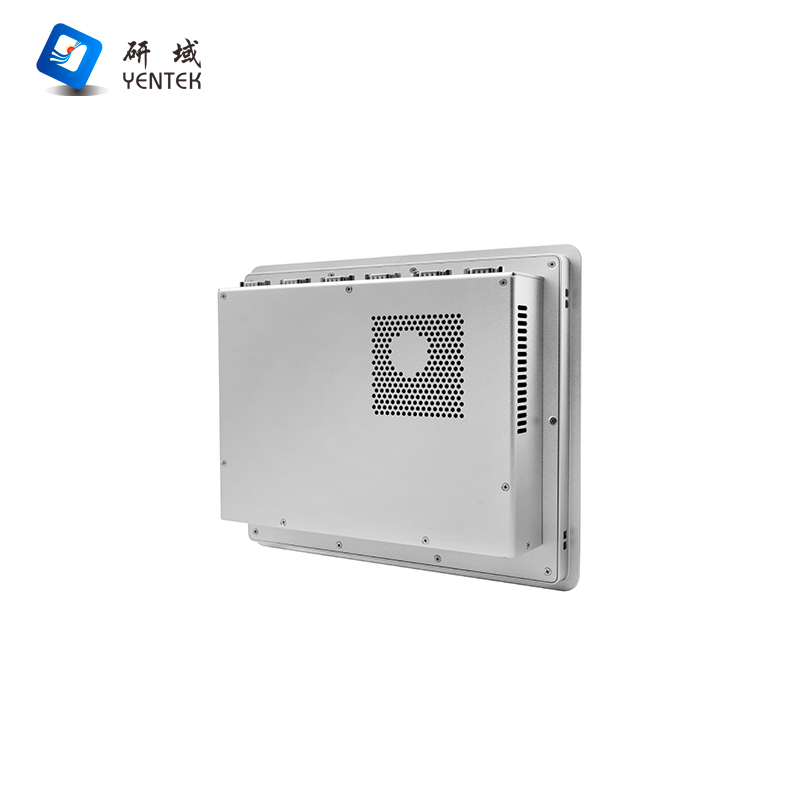

Aluminium alloy construction with fan cooling

Colour

Silver

Dimensions (LWH)

L298 × W243 × H68 mm

Weight

3.1 kg

Installation

Supports VESA (100 × 100) / flush-mounted panel installation

LCD screen

Type

12.1-inch LCD

Resolution

1024 × 768

Brightness

500 cd/m²

Touchscreen

Type

Resistive touchscreen, 10-point touch

Transmittance

Over 86%

Motherboard

CPU

Integrated Intel i5-4300U / 1.90 GHz, dual-core, quad-thread processor, TDP 15 W

Display

Integrated Intel UHD Graphics

Memory

1 × SODDR3L 1600 MHz, supports up to 8 GB

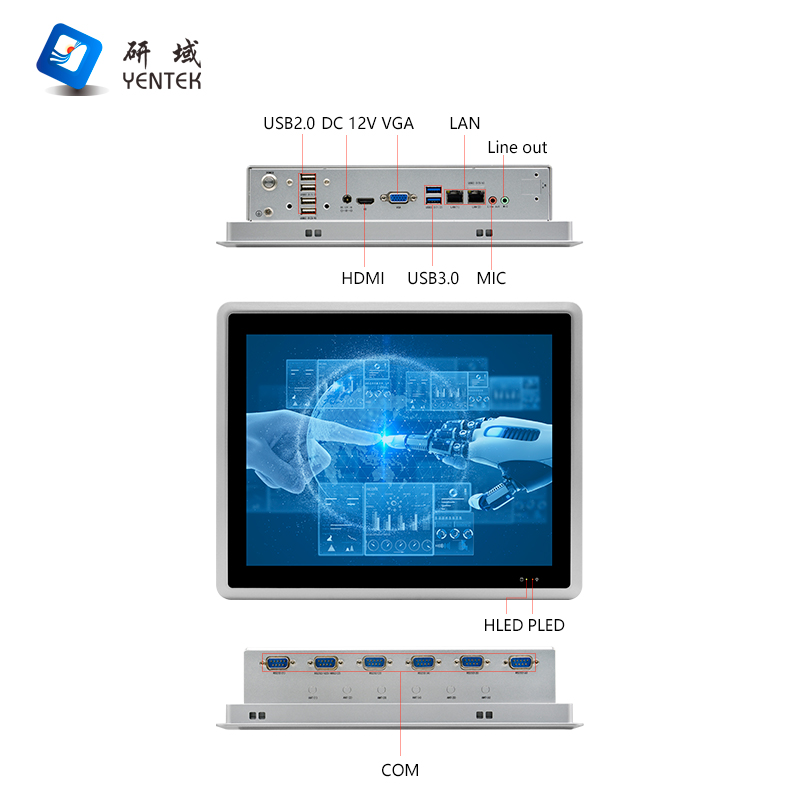

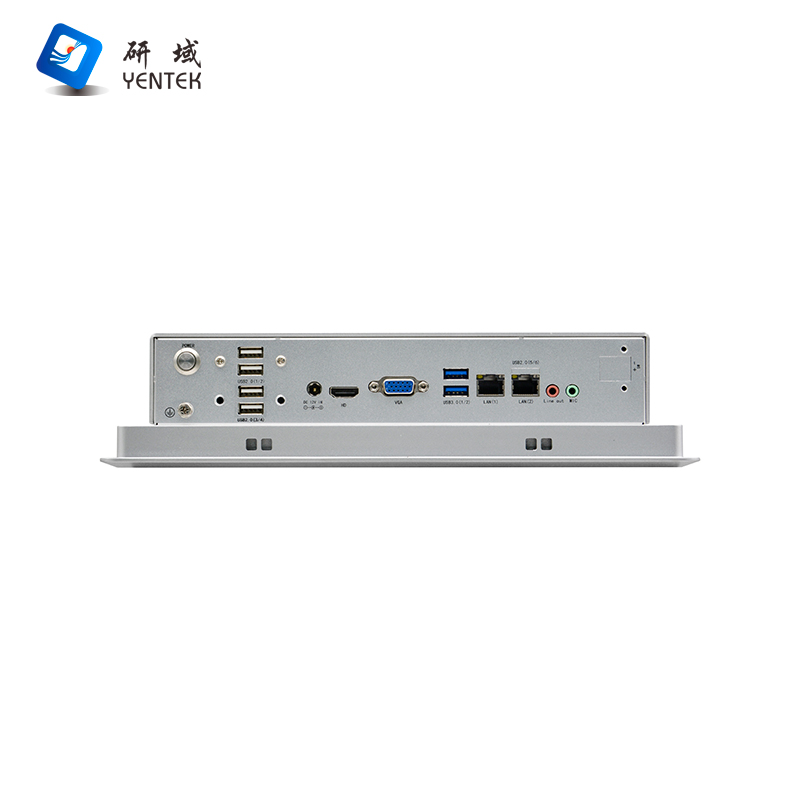

I/O ports

POWER

1 × Power button

LED

1 × Power indicator light, 1 × Hard drive indicator light

Display Interfaces

1 × HDMI, 1 × VGA (1920 × 1080 @ 60 Hz)

LAN

2 × RTL8111H Gigabit Ethernet ports, supporting Wake-on-LAN and PXE

USB

2 × USB 3.0, 4 × USB 2.0

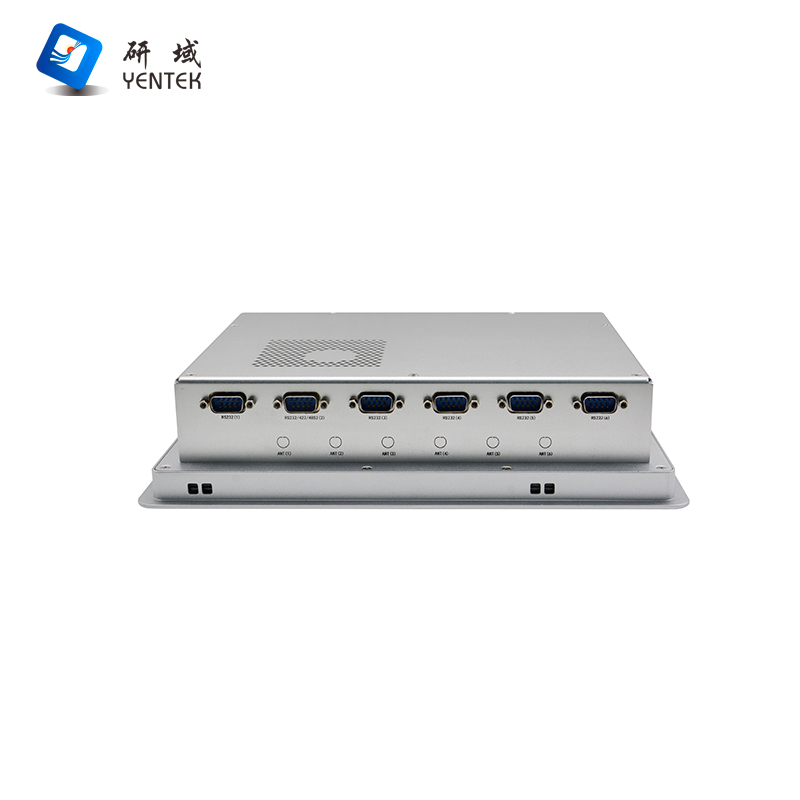

COM

6 × RS232 DB9 serial ports, of which COM2 supports RS422/485

Remote Switch

1 × Power-on signal (located on 1 × 2-pin Phoenix connector)

Audio

1 × Line out, 1 × MIC

Speakers

2 built-in 4-ohm 2W speakers

Power Supply

1 × DC (5.5 × 2.5) connector, supports 12V input

Storage

SATA

1 × 2.5-inch hard drive bay

mSATA

1 × mSATA

M.2

1 × M.2 slot, supports M.2 2260/2280 NVMe PCIe x4/SATA adaptive standard SSDs (This interface is available on the B100 motherboard)

Expansion

Wi-Fi

1 × Mini-PCIe, supports Wi-Fi

System

Windows

Windows

Linux

Ubuntu

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Power requirements

Power Supply Type

DC 12V input

Power Output

AC to DC

Environmental

Operating Temperature

–10°C to 50°C

Storage Temperature

–20°C to 70°C

Relative Humidity

5%–95% relative humidity, non-condensing

Vibration

0.5g rms/5-500HZ/random
