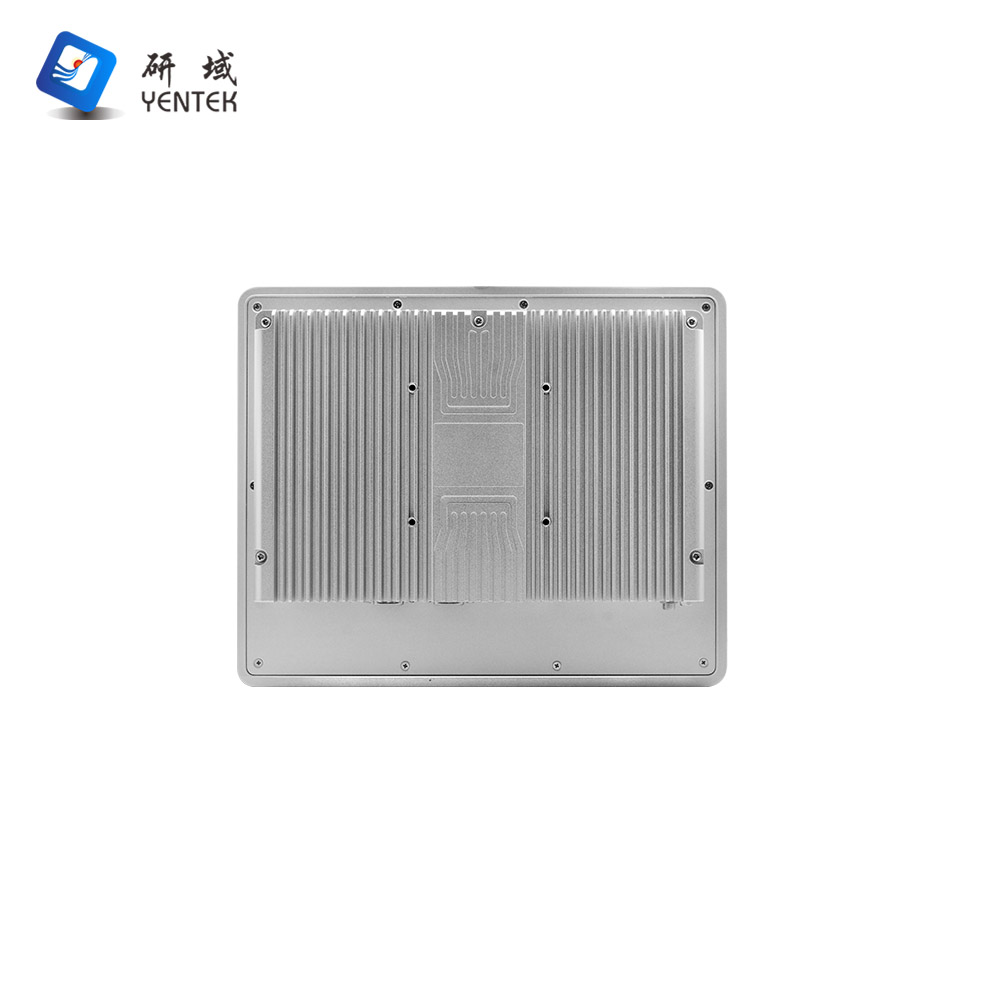

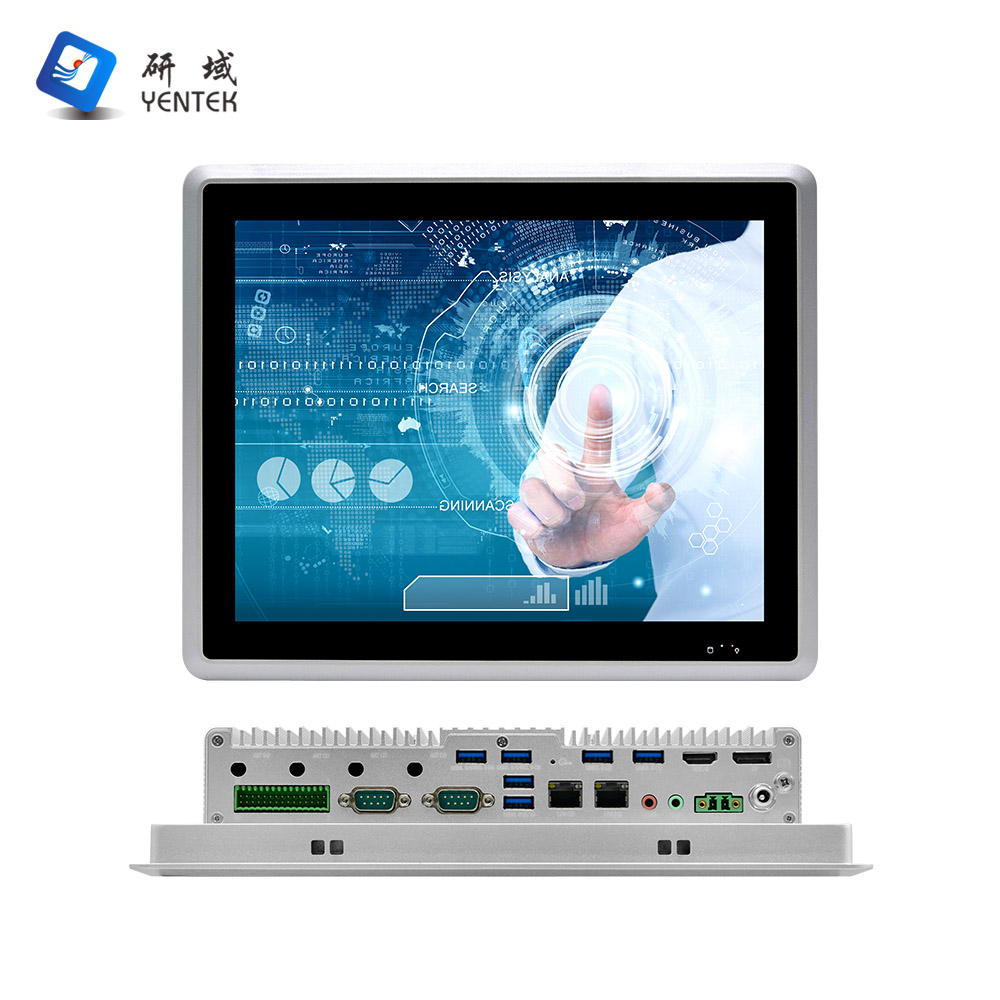

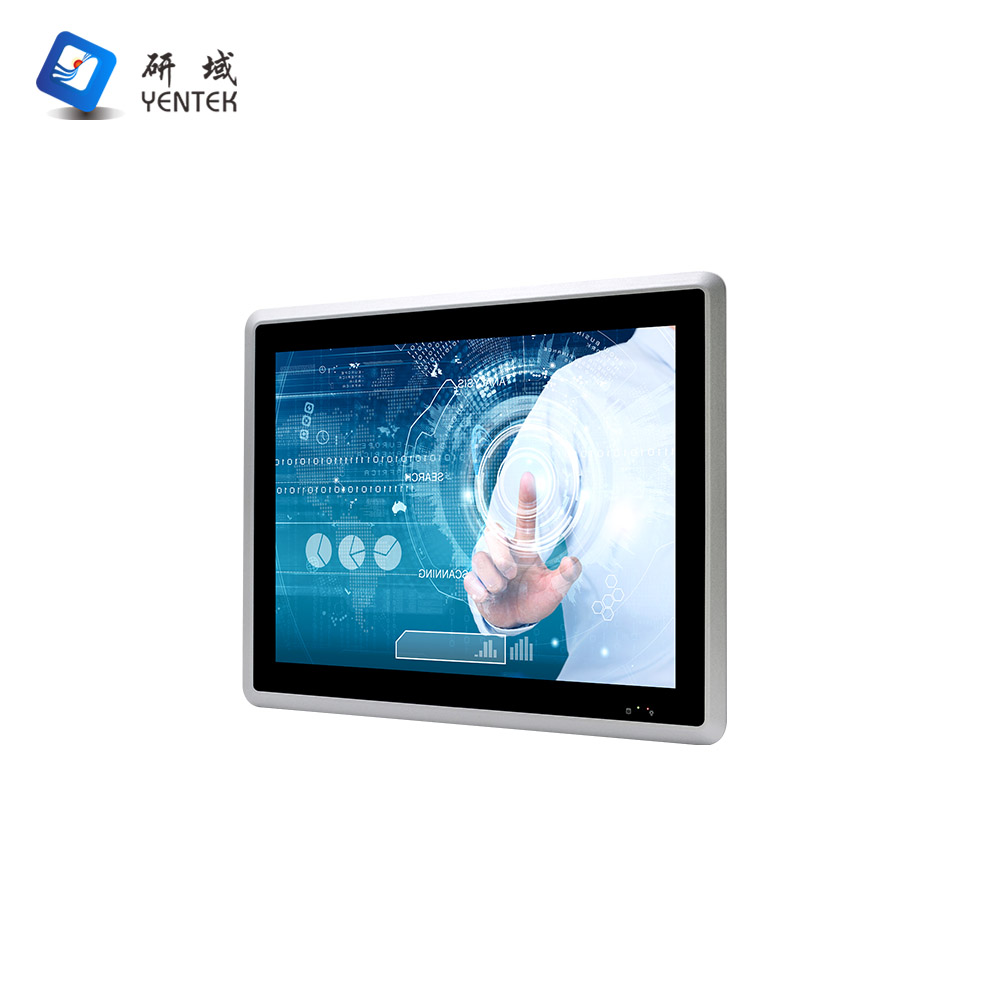

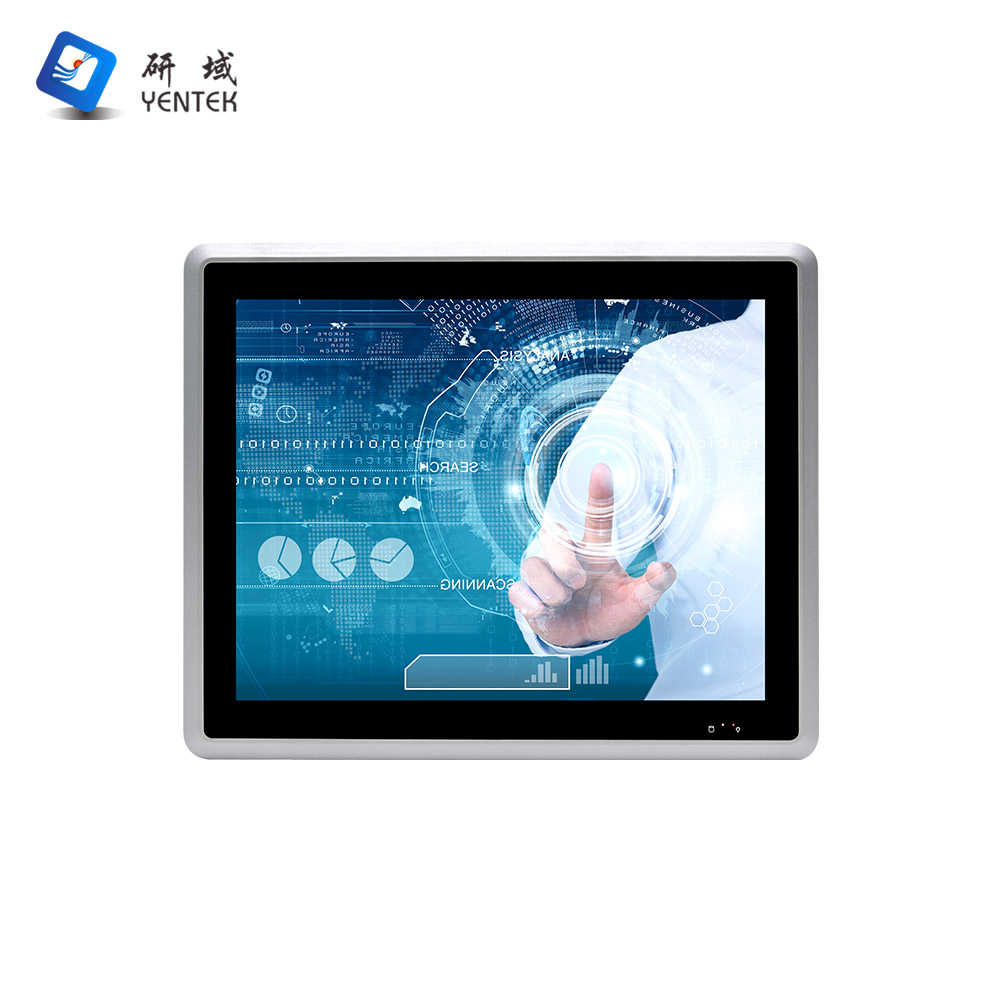

P1271Y-C6 V2.0 (Embedded)

Chassis

Material/Construction

Aluminium alloy construction, fanless cooling design

Colour

Silver

Dimensions

L298 × W243 × H64.4 mm

Weight

3.1 kg

Mounting

Supports VESA/panel mounting

LCD screen

Type

12.1-inch LCD

Resolution

1024 × 768

Brightness

500 cd/m²

Touchscreen

Type

Capacitive touchscreen, 10-point touch

Transmittance

Over 86%

Motherboard

CPU

Integrated Intel® Meteor Lake Core™ Ultra 5 125H 4.5GHz, 14-core 18-thread processor, TDP 28W

Display

Integrated Intel® UHD Graphics

Memory

2 x DDR5 SODIMM memory slots, supports 5600MHz memory, maximum support 64GB

I/O ports

POWER

1 x Power button, 1 x One-touch reset, 1 x ACLOSS (power-on DIP switch), 1 x CMOS reset switch

LED

1 x Power indicator, 1 x Hard drive indicator

Display Interface

1 x HDMI, 1 x DP

LAN

2 x Intel I210AT Gigabit Ethernet ports, supporting Wake-on-LAN and PXE

USB

6 x USB 3.0 (number of USB 2.0/3.0 ports depends on CPU)

COM

6 x RS232 serial ports, COM1–2: RS232 DB9 ports; COM2 supports RS485/422; COM3–6: RS232 on 2 x 15-pin Phoenix connectors, with COM3 supporting RS485

DI/DO

4 x DI, 4 x DO (located on 2 x 15-pin Phoenix connectors)

Audio

1 x Line out, 1 x MIC

Speakers

2 x built-in 4-ohm 2W speakers

Power Supply

1 x DC aviation connector or 1 x 2-pin Phoenix connector, supporting 9V–36V input

Storage

SATA

1 x 2.5-inch hard drive bay

SSD

1 x M.2 slot, supporting M.2 2280 NVMe PCIe x4/SATA adaptive standard SSD

mSATA

1 x mSATA (some motherboards have no signal on this interface)

Expansion

Wi-Fi

1 x M.2, Key-E, 2230, supporting Wi-Fi 6 + Bluetooth modules

5G

1 x M.2, Key-B, 3042/3052, supporting 5G modules

System requirements

Windows

Windows 10 / 11

Linux

Ubuntu

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Power requirements

Power Supply Type

DC 9V–36V wide voltage range

Power Output

AC to DC 60W (depending on specific device)

Environment

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Relative Humidity

5%–95% relative humidity, non-condensing

Vibration

0.5g rms/5-500HZ/random

1

P1271Y-C6 V2.0(J6412)

J6412/2.0G

2*SODDR4

Q642HD1

P1082-C6/P1071-LED

MSATA+M.2+2.5

4/4

2*I210

6

1

2

4

9~36V

2

P1271Y-C6 V2.0(8260U)

I5-8260U/1.6G

2*SODDR4

Q82HD1

P1082-C6/P1071-LED

MSATA+M.2+2.5

4/4

2*I210

6

1

/

6

9~36V

3

P1271Y-C6 V2.0(7360U)

I5-7360U/2.6G

2*SODDR4

Q68HD1

P1082-C6/P1071-LED

MSATA+M.2+2.5

4/4

2*I210

6

1

/

6

9~36V

4

P1271Y-C6 V2.0(N97)

N97/Turbo 3.6G

1*SODDR4

Q305HD1

P1082-C6/P1071-LED

M.2+2.5

4/4

2*I210

6

1

2

4

9~36V

5

P1271Y-C6 V2.0(N305)

I3-N305/Tubor 3.8.0G

1*SODDR4

Q305HD1

P1082-C6/P1071-LED

M.2+2.5

4/4

2*I210

6

1

2

4

9~36V

6

P1271Y-C6 V2.0(1135G7)

I5-1135G7/2.4G

2*SODDR4

Q112HD1

P1082-C6/P1071-LED

MSATA+M.2+2.5

4/4

2*I210

6

1

/

6

9~36V

7

P1271Y-C6 V2.0(1235U)

I5-1235U/1.3G

2*SODDR4

Q122HD1

P1082-C6/P1071-LED

MSATA+M.2+2.5

4/4

2*I210

6

1

/

6

9~36V

8

P1271Y-C6 V2.0(125H)

I5-125H/4.5G

2*SODDR5

Q143HD1

P1082-C6/P1071-LED

MSATA+M.2+2.5

4/4

2*I210

6

1

/

6

9~36V
