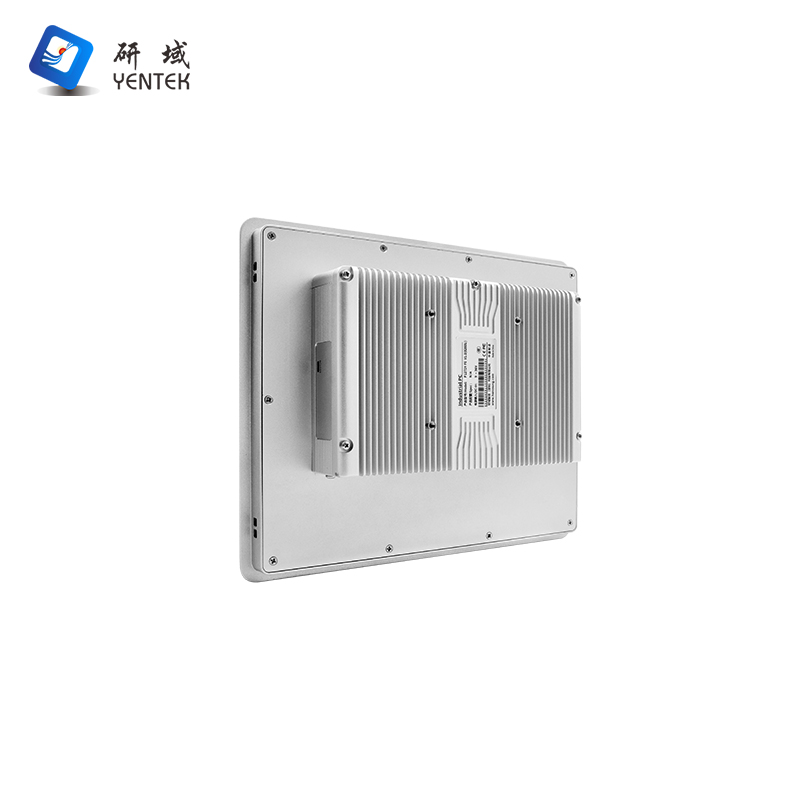

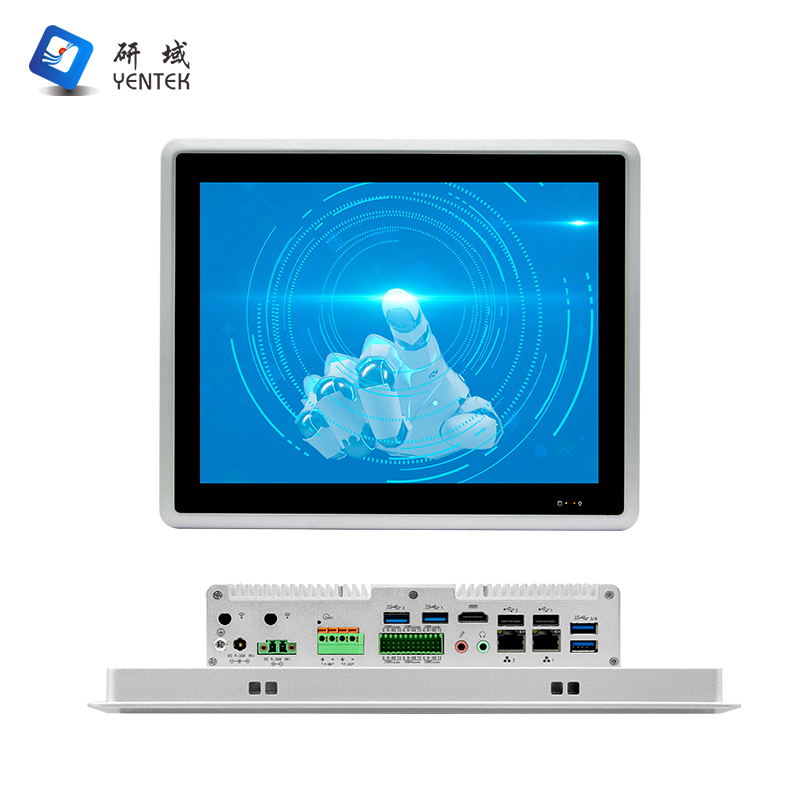

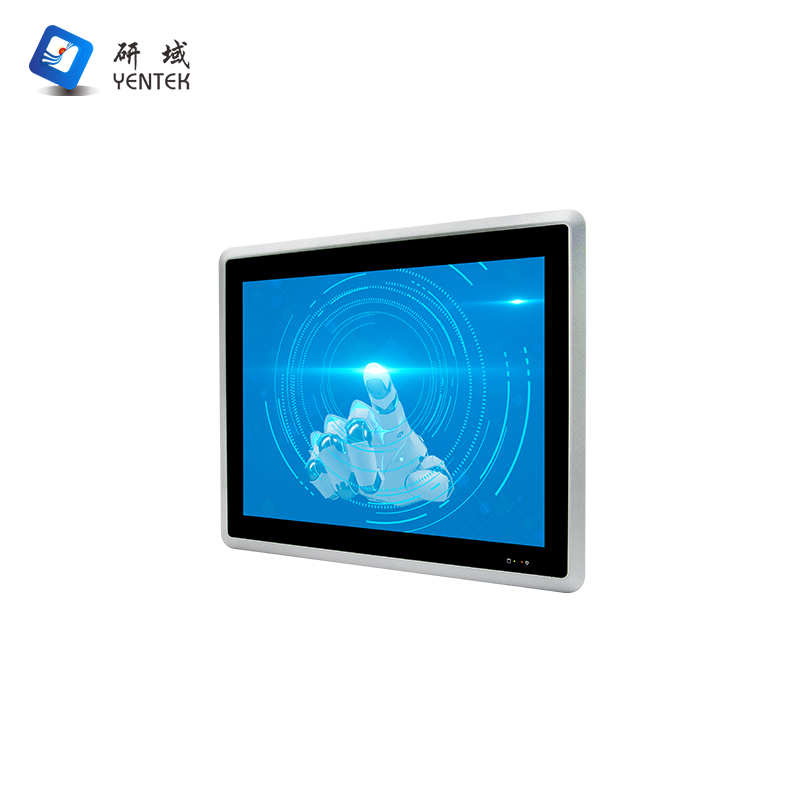

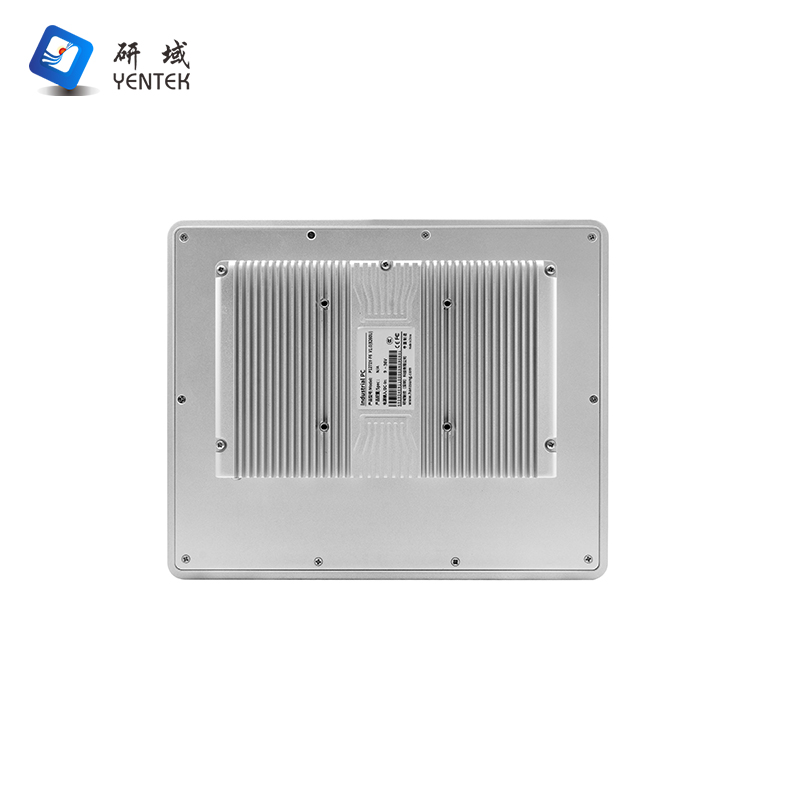

P1271Y-F6 (Embedded)

Chassis

Material/Construction

Aluminum alloy

Color

Bright silver

Dimensions (L x W x H)

L x W x H (mm)

Weight (Net Weight)

2.75 kg

Mounting

Supports VESA (75 mm) /   flush-mount installation

LCD Screen

Type

12.1-inch LCD, portrait   orientation, 4:3

Resolution

1024 x 768

Brightness

500 cd/m²

Touchscreen

Type

Capacitive, 10-point touch

Transmittance

Over 80%

Motherboard

CPU

Integrated Intel® Core i5-8260U   processor (1.60 GHz, quad-core, 8-thread), TDP 10W

Display

Integrated Intel® UHD Graphics

Memory

2 x SODDR4 2666 MHz memory   slots, supports up to 64GB

I/O Ports

Power

1 x Power Switch, 1 x One-Touch   Restore, 1 x ACLOSS (Power-On DIP Switch), 1 x CMOS Reset Switch

LED

1 x Power Indicator, 1 x Hard   Drive Indicator

Display Ports

1 x HDMI 1.4

LAN

2 x Intel I210AT Gigabit   Ethernet Ports, supports Wake-on-LAN/PXE

USB

4 x USB 3.0, 2 x USB 2.0

COM

6x RS232/485 (located on 2x   12-pin Phoenix connectors)

Remote Switch

1x Power Switch Signal, 1x Power   Indicator Signal (located on 1x 4-pin remote switch)

Audio

1x Line Out, 1x Mic

Power Supply

1x DC (5.5x2.5) or 1x 2-pin   (P=5.08mm) Phoenix connector, supports 9–36V wide-voltage input

Storage

mSATA

1*MSATA

SSD

1*M.2, supports Key-M,   2260/2280, NVMe PCIe x2 SSD (PCIe speed depends on CPU)

SSD

1*M.2, supports Key-M, 2280,   SATA SSD (on I/O board)

5G

1*M.2, supports Key-B,   3042/3052, 5G module

WiFi

1x M.2, supports Key-E, 2230,   Wi-Fi module

Expansion

Windows

Windows 10

Linux

Ubuntu

System Support

Power Supply Type

DC 9–36V wide-range input

Power Output

AC to DC 60W or higher   (depending on specific device)

Power Requirements

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Relative Humidity

5%–95% relative humidity,   non-condensing

Vibration

0.5g rms/5-500HZ/random
