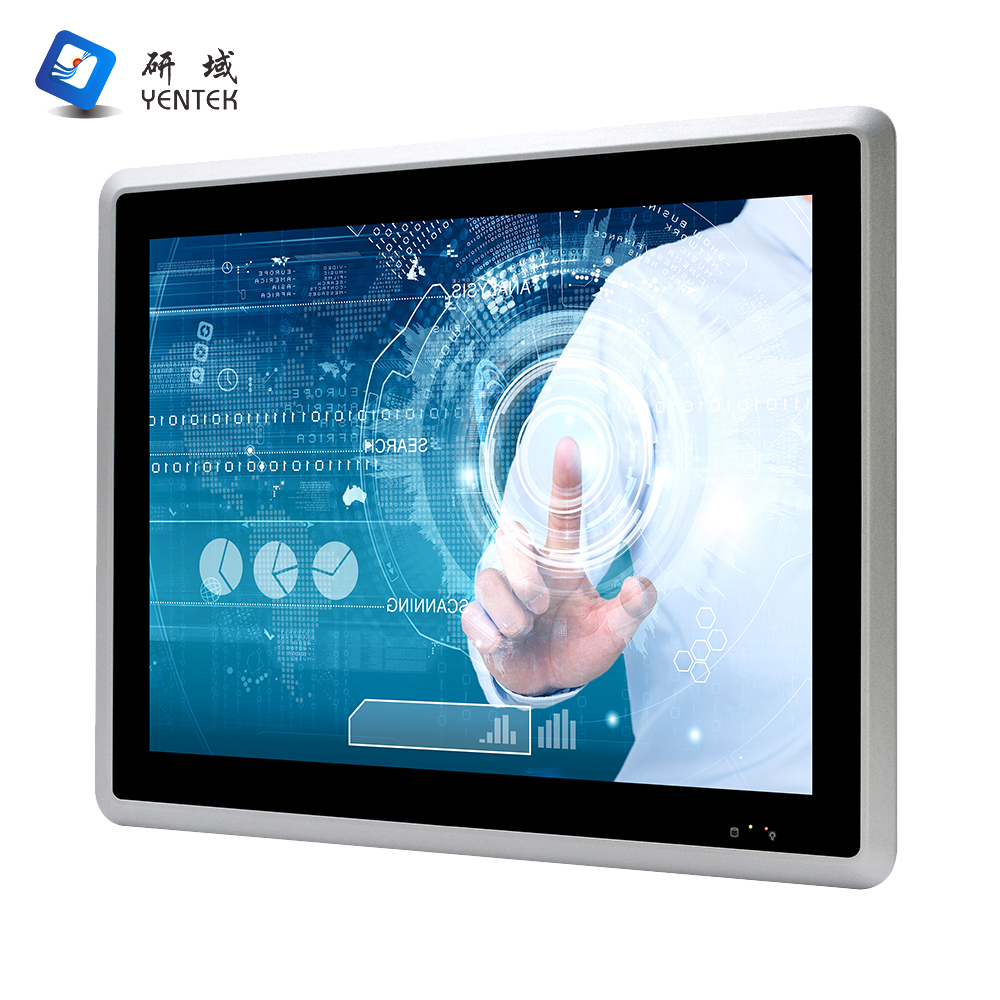

P1271Y-C6 (Embedded)

chassis

Material/Structure

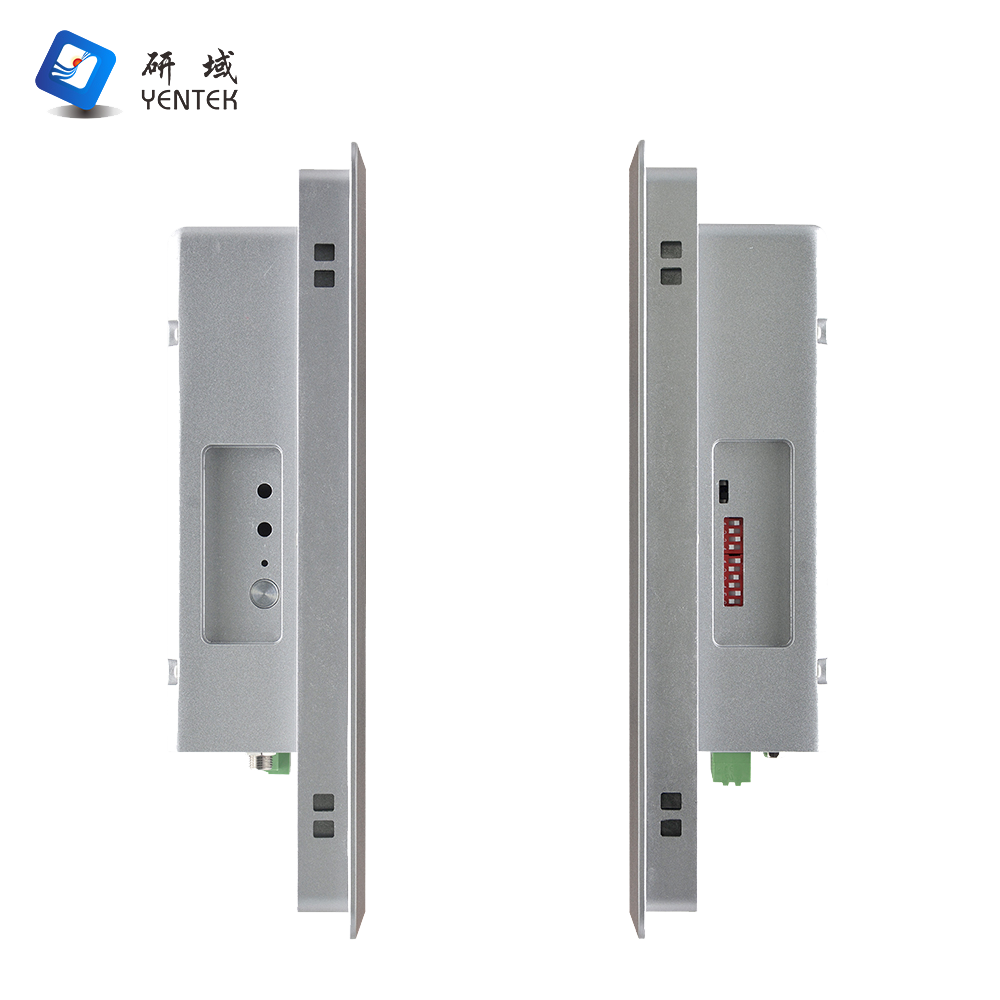

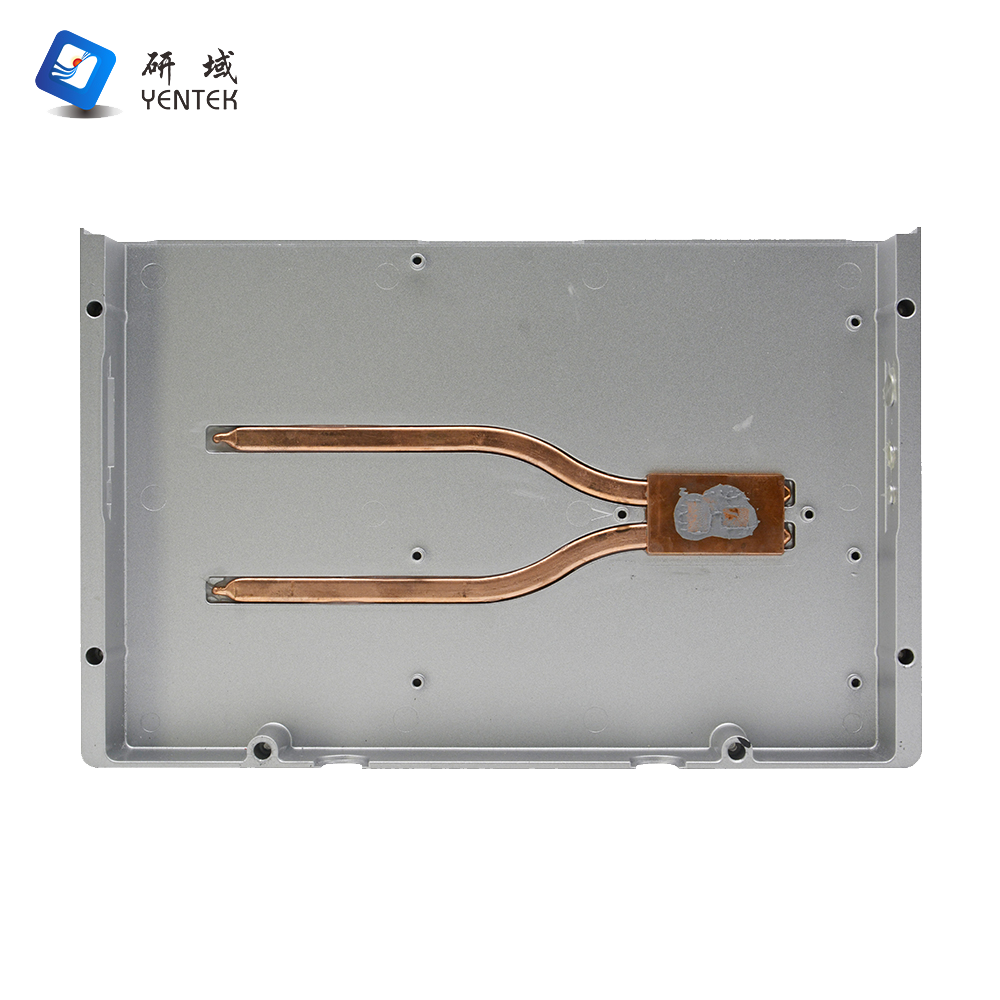

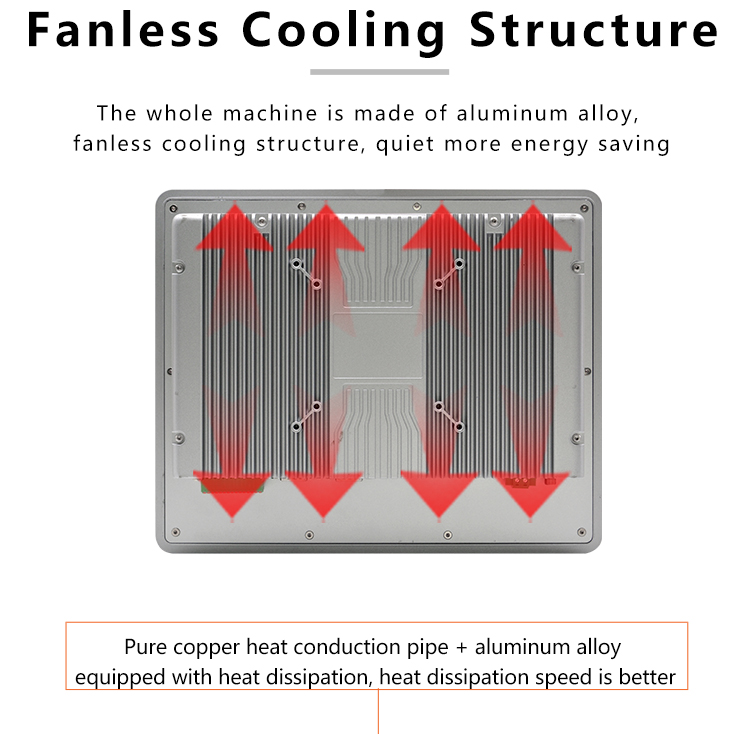

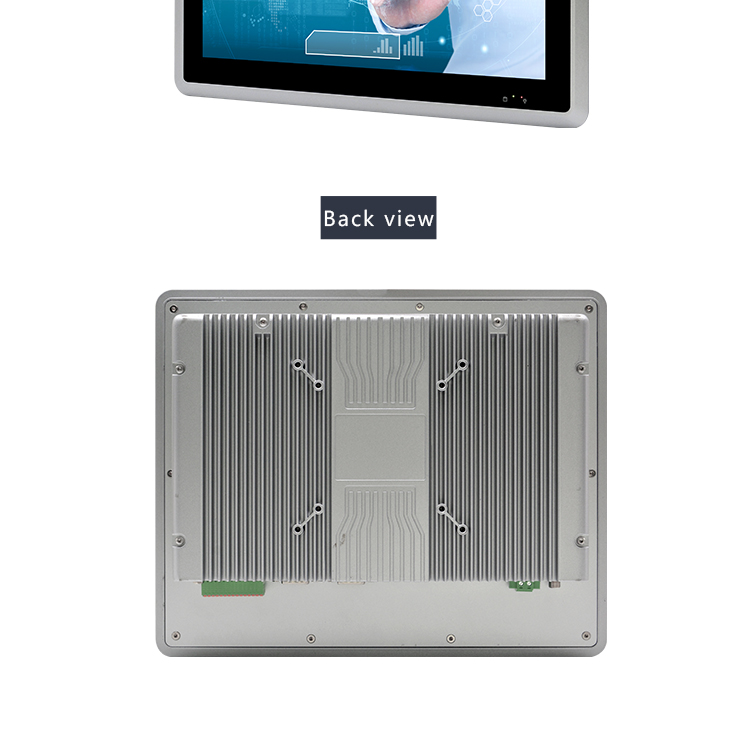

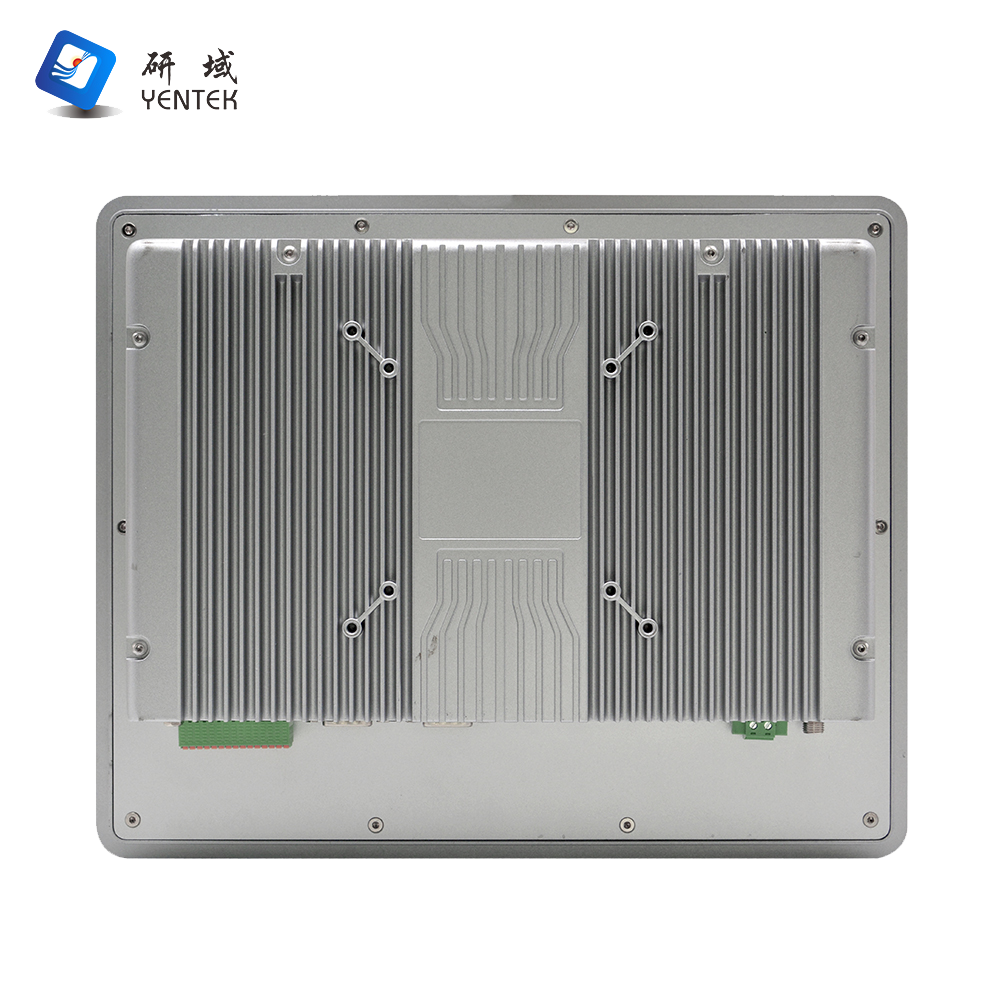

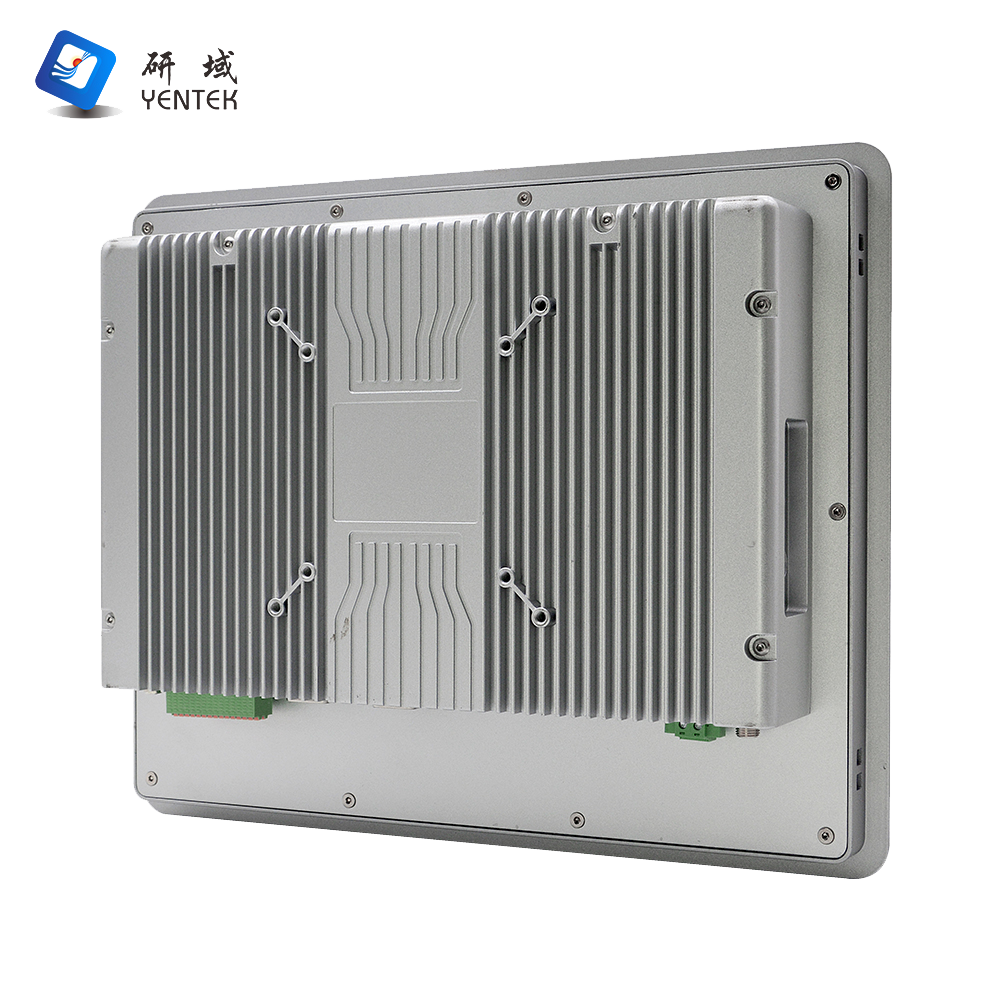

Aluminum alloy material, fanless cooling structure

colour

silver

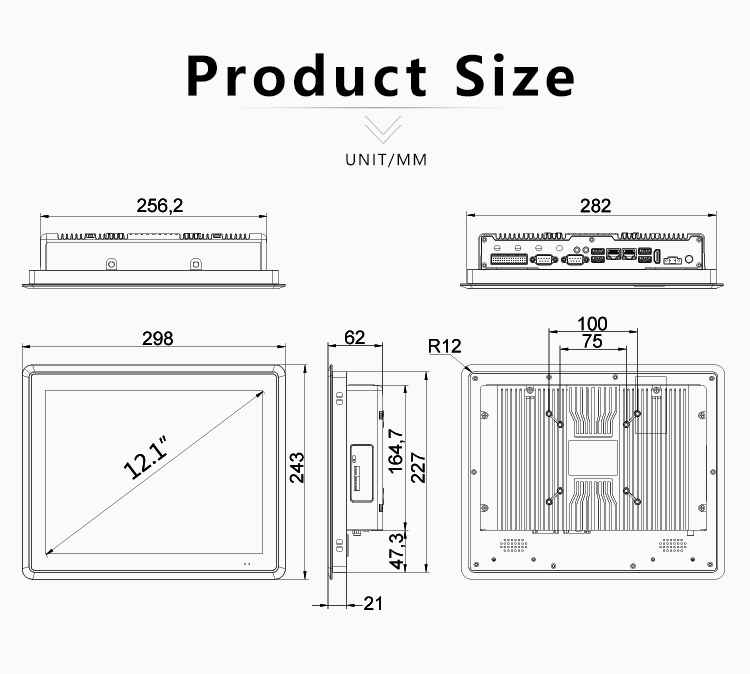

Dimensions (length, width and height)

L298*W243*H62mm

Weight (bare weight)

2.97 KG

Install

Support VESA/ embedded panel installation

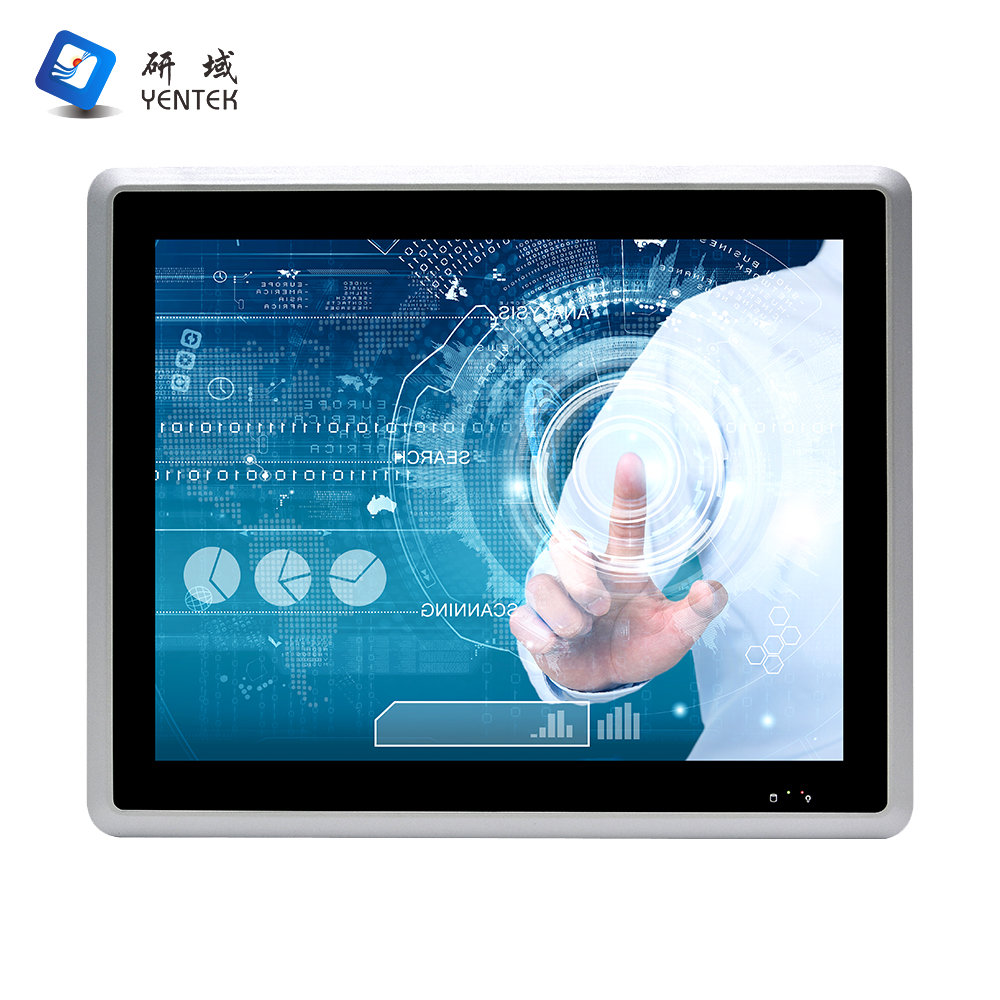

LCD screen

type

12.1 inch LCD

Resolution

1024 * 768

luminance

500 cd/m2

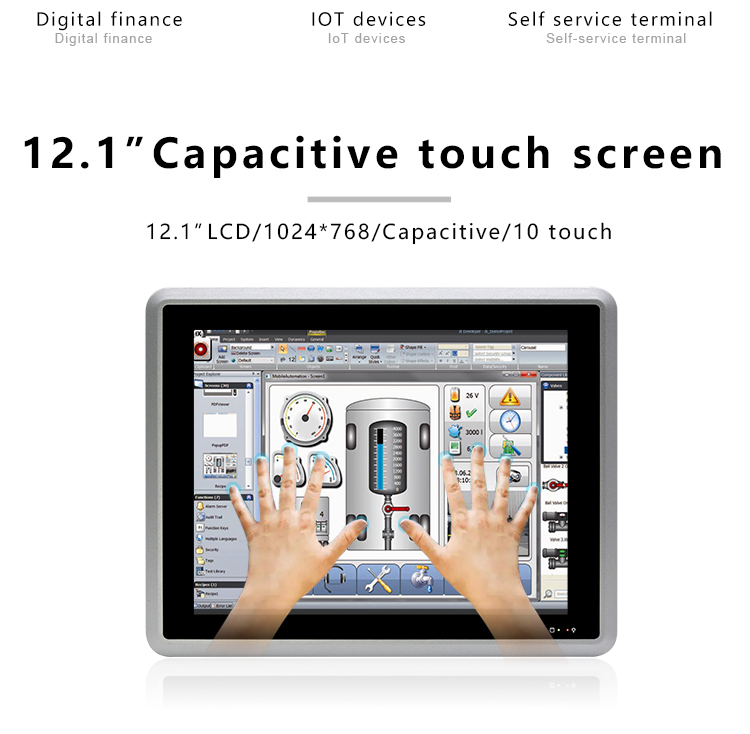

Touch screen

type

Capacitive screen, 10 touch (adjustable resistance screen)

Light transmittance

More than 86%

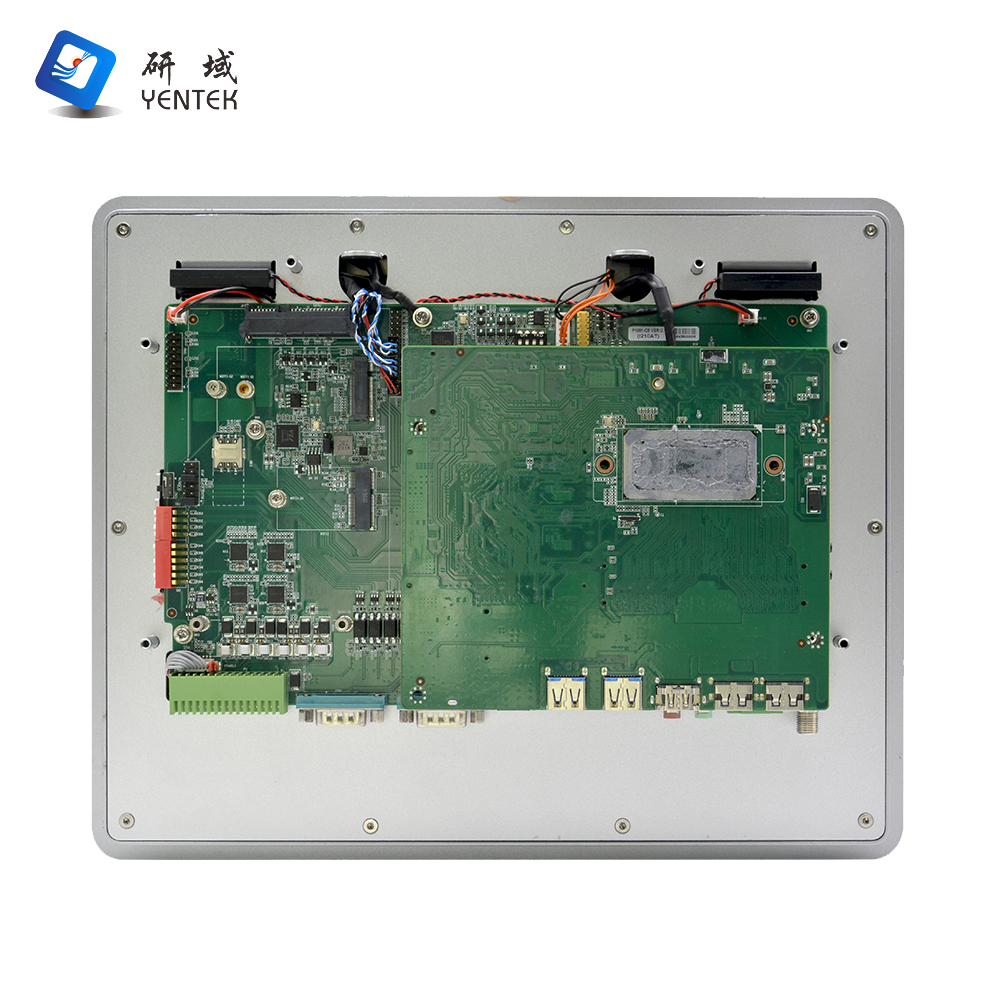

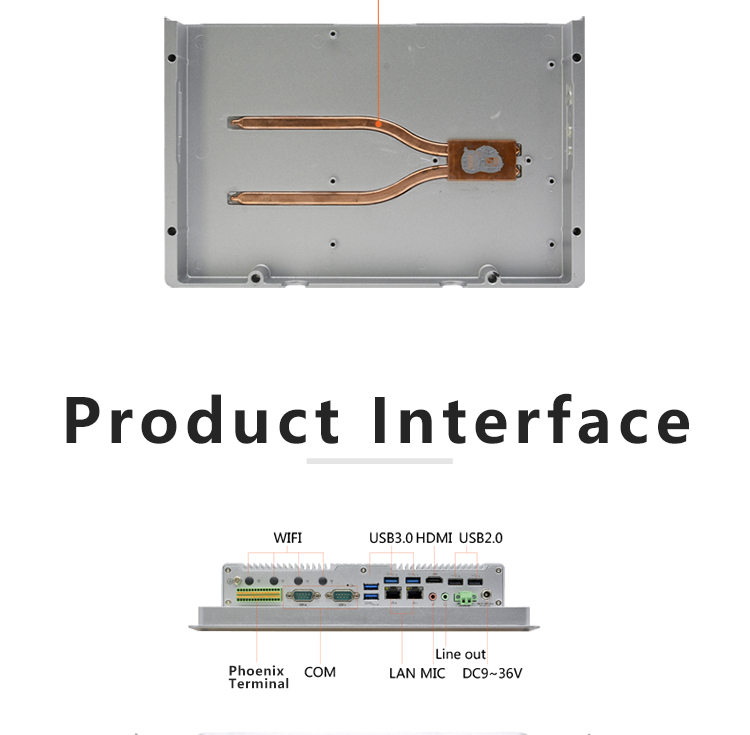

IO interface

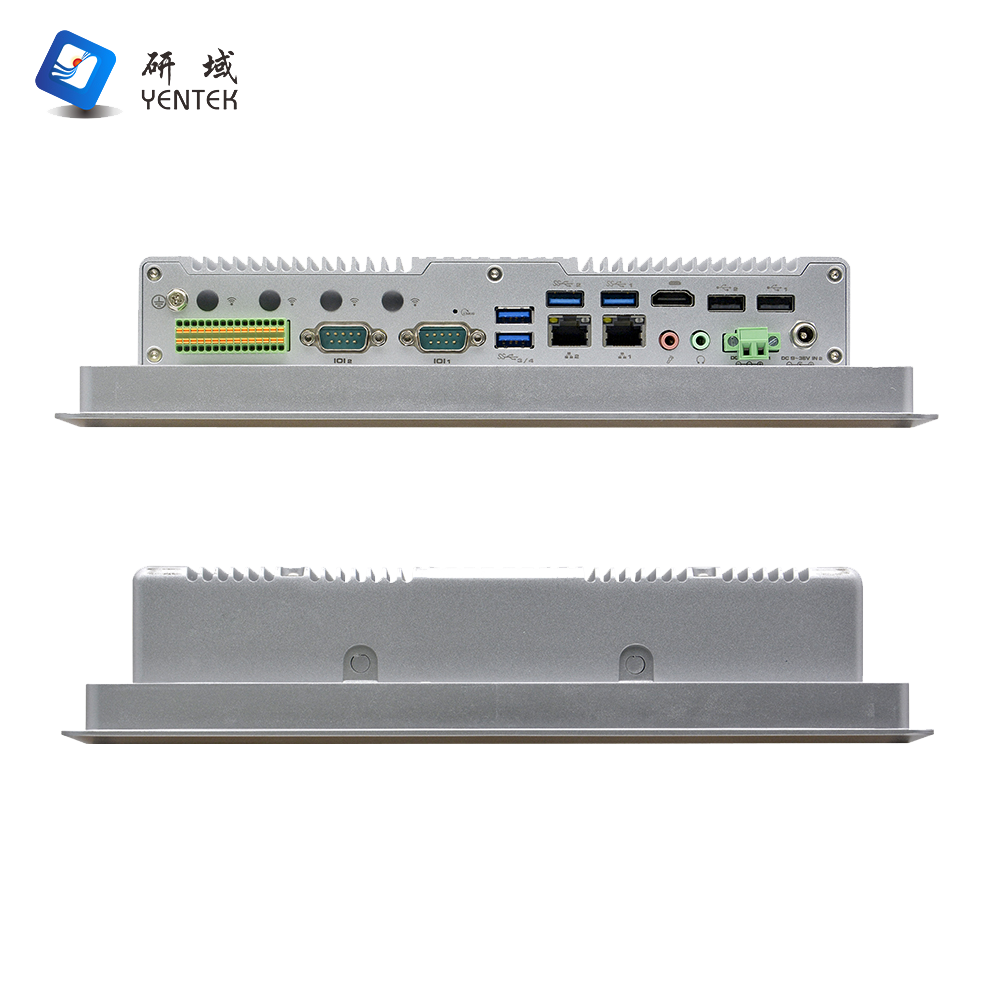

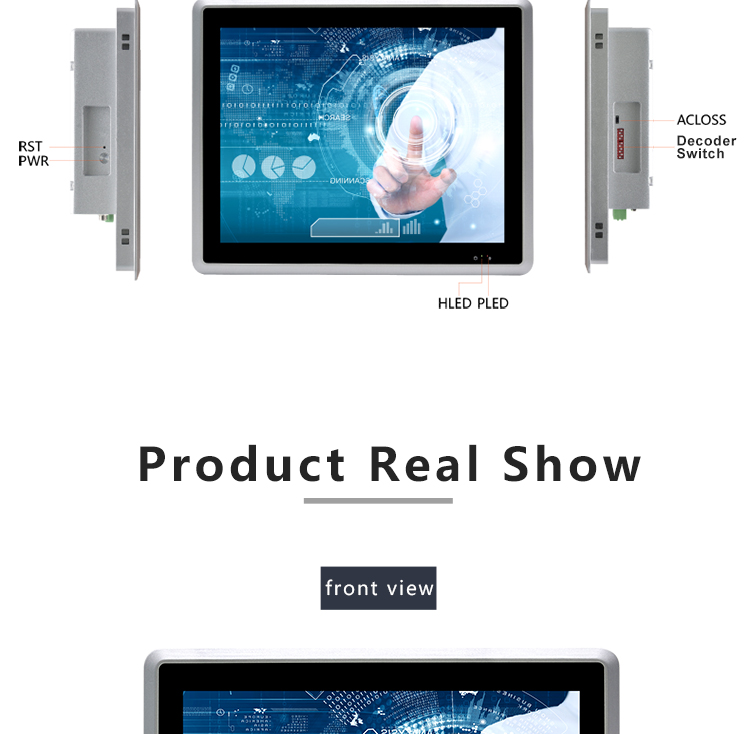

POWER

1* Power button, 1* one key restore (and reset switch to choose one), 1*ACLOSS (power on DIP switch), 1*CMOS reset switch

Display interface

1*HD OUTPUT

LAN

2*Intel I210AT Gigabit network adapter, supporting network wake up and PXE functions

USB

4 * USB3.0, 2 * USB2.0

COM

6*RS232 serial port, COM1 ~2 RS232 DB9 serial port, of which COM2 supports RS485/422, COM3-6 RS232 on the 2*15pin Phoenix terminal, of which COM3 supports RS485, COM1-2 supports the 9pin live function

Phoenix terminal

2*15Pin(4 in 4 out GPIO, switching signal, COM3~COM6, 5V VCC and GND)

Dip switch

10-bit dip switch, COM2 to 3 RS232/485 switch, COM2 RS422 through the COM2_SW1 jumper

Audio frequency

1*Line out, 1*MIC

Power source

1*DC aviation interface or 1*2Pin Phoenix terminal, support 9V~36V wide voltage input

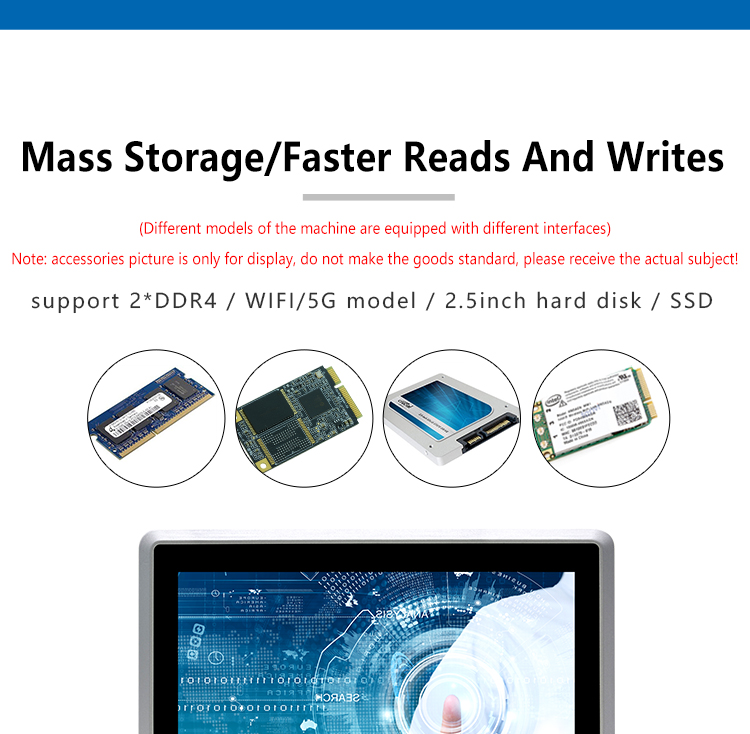

store

SATA

1 x 2.5-inch hard disk

MSATA

1*MSATA

M.2

1*M.2/SSD, Key-M, 2280, supports NVME PCIEX4

extend

M.2

1*M.2/WiFi, Key-E, 2230, supports the WiFi module

Power demand

Power supply type

1*M.2/5G, Key-B, 2242/52, supports the 5G module

Voltage input

External power adapter

Power output

9V~36V wide voltage

environment

Operating temperature

AC TO DC more than 60W (depending on the specific equipment)

Storage temperature

-10℃ to 50℃

Relative humidity

-20℃ to 70℃

Working vibration

0.5g rms/5-500HZ/random/operating

1

P1271Y-C6 V1.0(J6412)

J6412/2.0G

2*SODDR4

P642

P1082-C6/P1071-LED

4 in

 4 out

2

6

1

2

4

9~36V

2

P1271Y-C6 V1.0(8260U)

I5-8260U/1.6G

2*SODDR4

P82

P1082-C6/P1071-LED

4 in

4 out

2

6

1

2

4

9~36V

3

P1271Y-C6 V1.0(7300U)

I5-7300U/2.6G

2*SODDR4

P68

P1082-C6/P1071-LED

4 in

4 out

2

6

1

2

4

9~36V

4

P1271Y-C6 V1.0(10210U)

I5-10210U/1.6G

2*SODDR4

P102

P1082-C6/P1071-IO/P1071-LED

4 in

4 out

2

6

1

2

4

9~36V

5

P1271Y-C6 V1.0(1135G7)

I5-1135G7/2.4G

2*SODDR4

P112

P1082-C6/P1071-IO/P1071-LED

4 in

 4 out

2

6

1

2

4

9~36V

6

P1271Y-P4 V1.0(J6412)

J6412/2.0G

2*SODDR4

P642

P1082-P4/P1071-LED

4 in

4 out

5

4

1

2

2

9~36V

7

P1271Y-P4 V1.0(8260U)

I5-8260U/1.6G

2*SODDR4

P82

P1082-P4/P1071-LED

4 in

4 out

5

4

1

2

2

9~36V

8

P1271Y-P4 V1.0(7300U)

I5-7300U/2.6G

2*SODDR4

P68

P1082-P4/P1071-LED

4 in

4 out

5

4

1

2

2

9~36V

9

P1271Y-P4 V1.0(10210U)

I5-10210U/1.6G

2*SODDR4

P102

P1082-P4/P1071-LED

4 in

4 out

5

4

1

2

2

9~36V

10

P1271Y-P4 V1.0(1135G7)

I5-1135G7/2.4G

2*SODDR4

P112

P1082-P4/P1071-LED

4 in

4 out

5

4

1

2

2

9~36V
