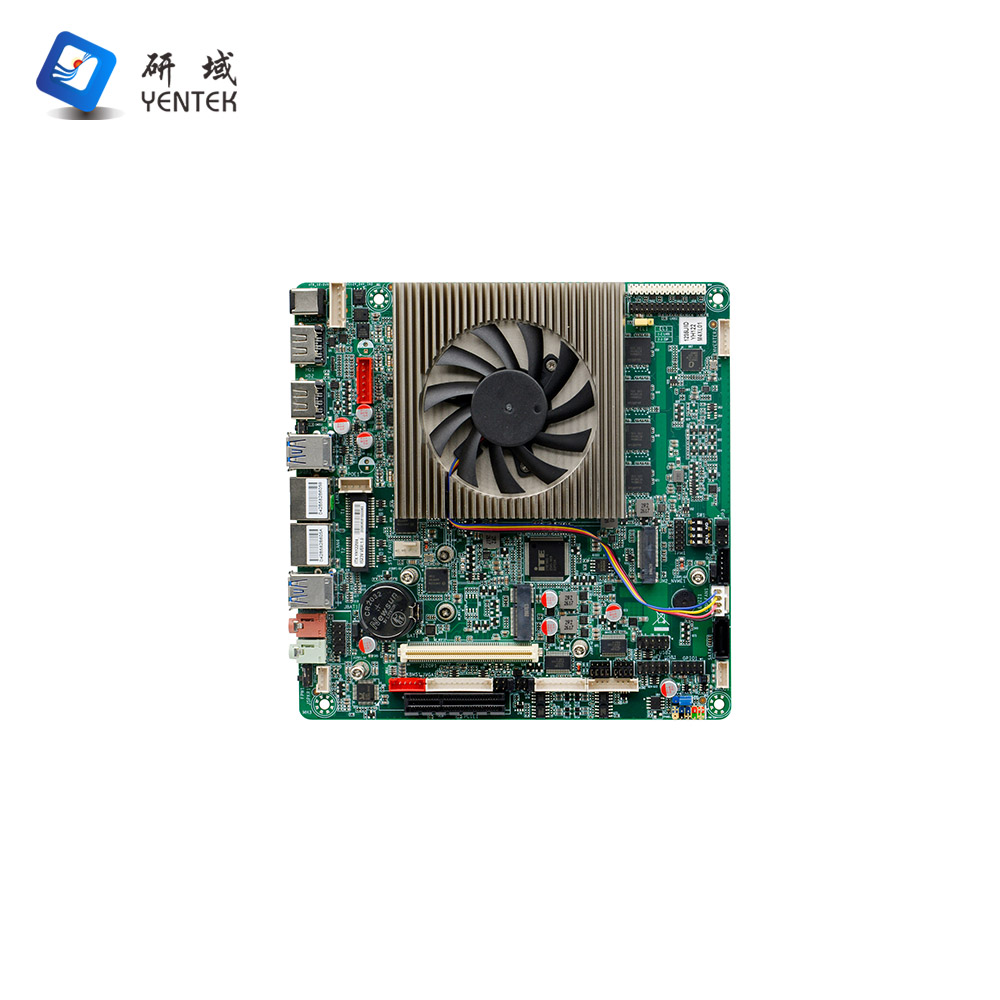

ITX-YH122M4_I523V

Processor

Features an integrated Intel® Alder Lake 12th Gen Core i5-1235U processor with 10 cores and 12 threads, TDP 15W

Compatible with Intel® Alder Lake/Raptor Lake-U/P Celeron, Pentium and Core i3/i5/i7 processors

Chipset

SOC

Memory

On-board LPDDR4x 16G memory, 200FBGA

Display

Integrated Intel® Iris® Xe Graphics, supporting DirectX 12 and OpenGL 4.5, with 4K support

1 * VGA port, supporting a maximum resolution of 1920x1200@60Hz

2 * HDMI 1.4 ports, supporting a maximum resolution of 3840x2160@24Hz

1 * dual-channel 24-bit LVDS interface

1 * EDP interface; either LVDS or EDP can be selected via a jumper

Supports four independent displays via VGA, HDMI, LVDS or EDP

Network

2 * I210AT 1GbE network cards, supporting Wake-on-LAN and PXE functionality

Note: The network ports support PoE functionality when used with the YH112-L2 expansion board

Storage

1 * 7-pin SATA 3.0 hard drive interface, with transfer speeds up to 6 Gbps

1 * M.2 slot, supporting M.2 Key M 2280 NVMe PCIe 4.0 x4 standard SSDs

Audio

Integrated ALC897 7.1+2-channel high-fidelity audio controller, supporting MIC, Line Out and power amplifier

Supports 4Ω 3W speakers via the power amplifier

Expansion Slots

1 * M.2 slot, supporting M.2 Key E 2230 Wi-Fi/Bluetooth modules

1 * 120-pin high-speed header, including 4 * TTL, 2 * PCIe, 1 * SATA, 1 * DisplayPort (for use with VG390 series and YH112-L2 mini-boards)

1 * PCIe 3.0 x4 slot (actual signal is x1)

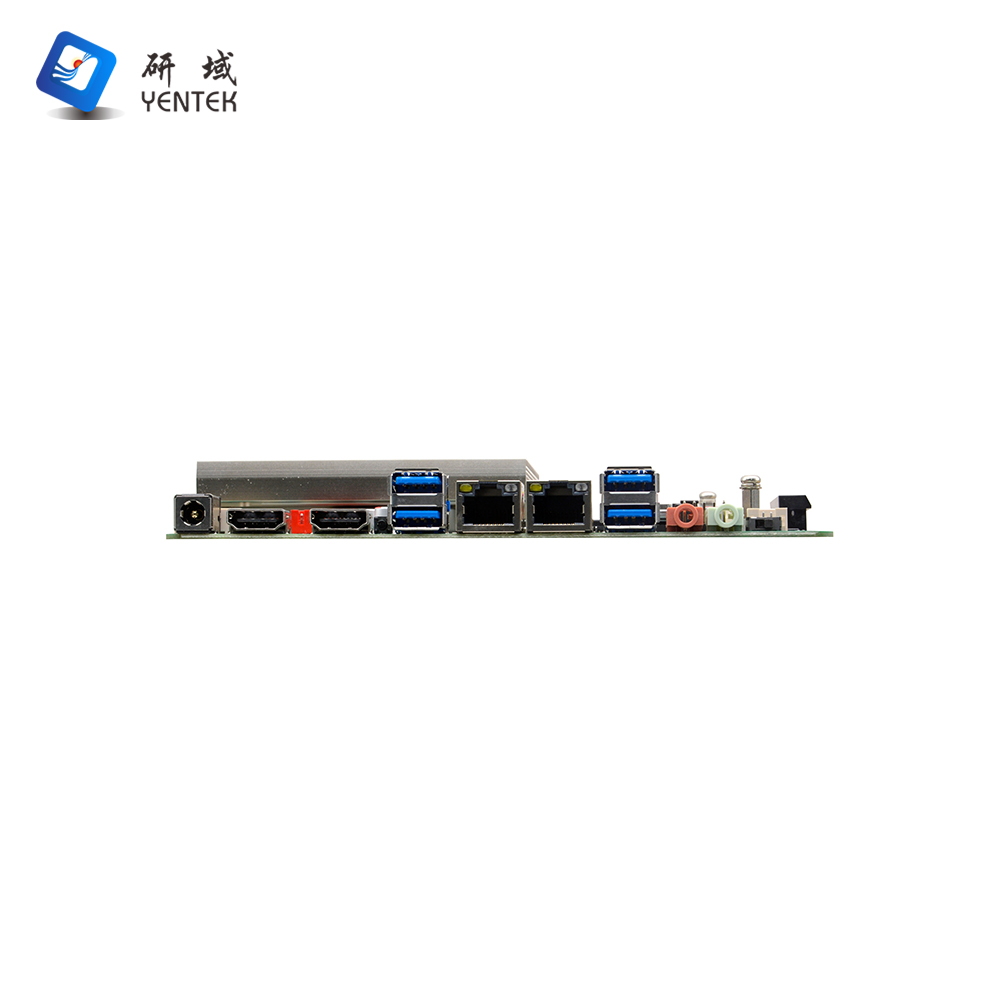

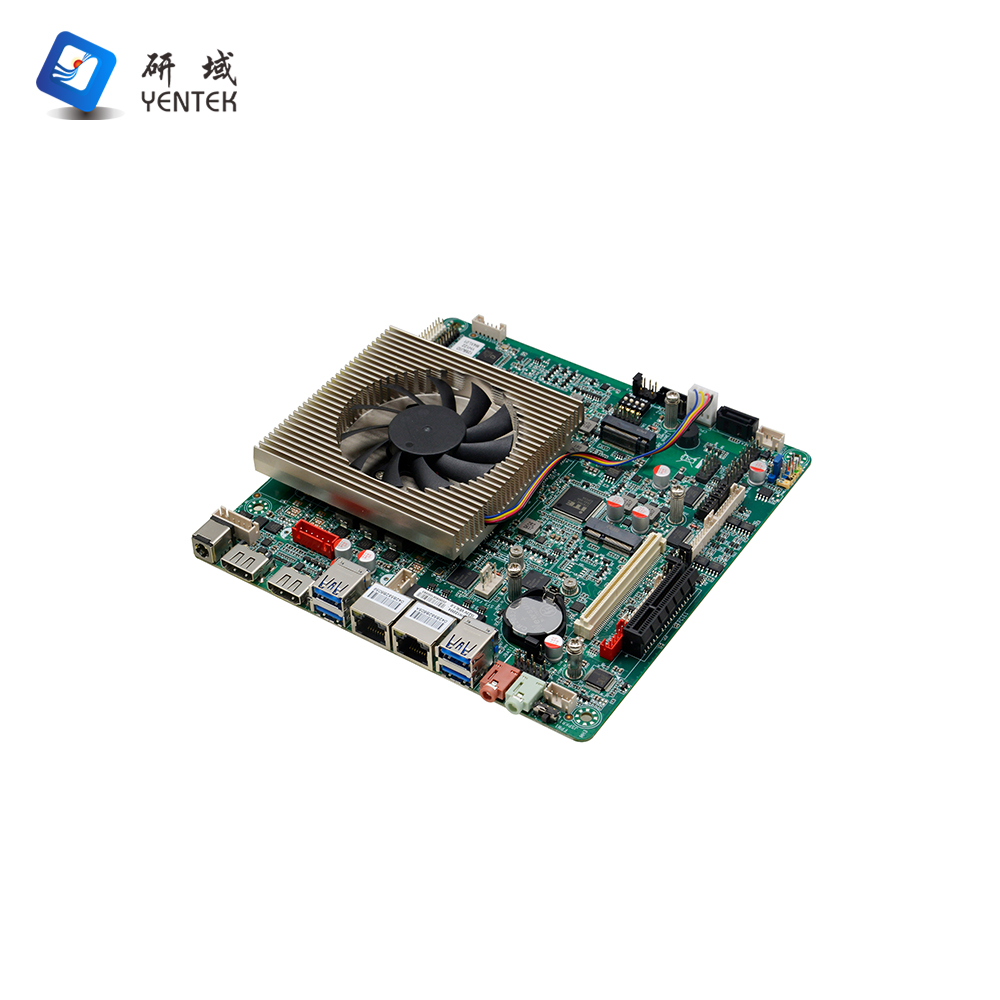

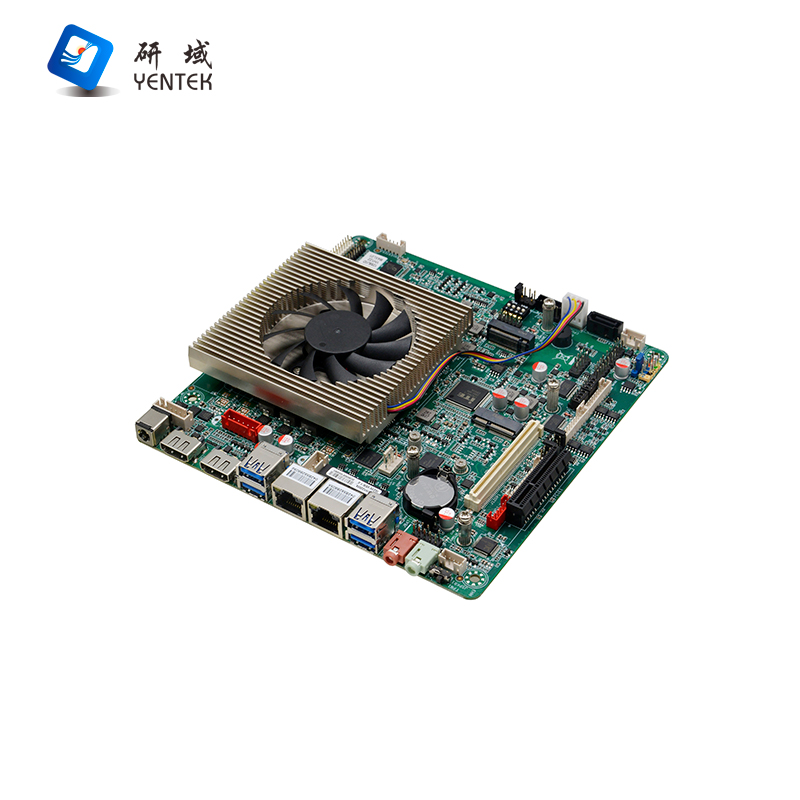

Rear Panel I/O Ports

4 * Type-A USB 3.0 ports (5 Gbps)

2 * HDMI 1.4 ports

2 * RJ45 Gigabit Ethernet ports

1 * Line-out (green), 1 * MIC (red)

1 * DC power connector, supports 12 V power supply

1 * Clear CMOS button

1 * Power-on DIP switch

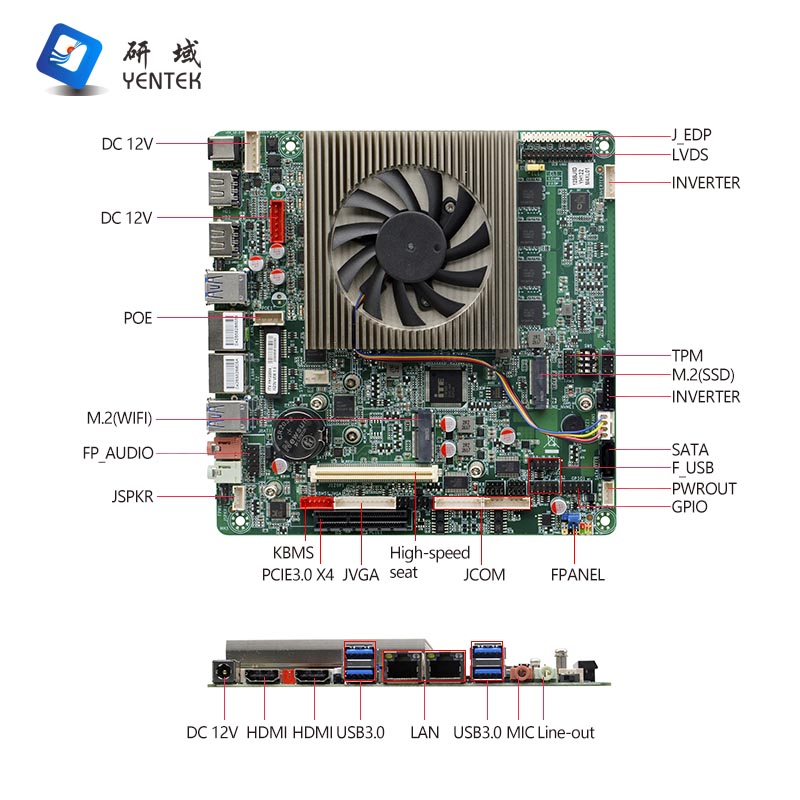

On-board I/O Ports

1 * LVDS interface (black), 2 * 15-pin, PH = 2.0 mm, supports dual-channel 24-bit

1 * LVDS backlight power supply interface (black), 1 * 6-pin, PH = 2.0 mm

1 * EDP interface (white), 2 * 15-pin, PH = 2.0 mm; either this or the LVDS interface can be selected via a jumper

1 * EDP display backlight power supply interface (white), 1 * 6-pin, pitch = 2.0 mm

1 * JVGA header, 1 * 12-pin, pitch = 2.0 mm

2 * RS232 serial interfaces, 1 * 9-pin, pitch = 2.0 mm, supporting RS485/422 functionality, configurable via jumper settings

1 * PS/2 keyboard and mouse interface (red), 1 * 6-pin, pitch = 2.0 mm

4 * USB 2.0 ports, 2 * 5-pin, pitch = 2.54 mm

1 * front audio interface, 2 * 5-pin, pitch = 2.54 mm

1 * front panel switch and indicator interface, 2 * 5-pin, pitch = 2.54 mm

1 * Hard drive power connector: 1 * 4-pin, pitch = 2.0 mm

1 * Amplifier connector: 1 * 4-pin, pitch = 2.0 mm

1 * DC power connector: 1 * 6-pin, pitch = 2.54 mm (white); either this or the 2 * 2-pin ATX power connector may be used; supports 12–24 V DC power supply (requires a wide-voltage board)

1 * DC power connector: 1 * 6-pin, pitch = 2.54 mm (red), supports 12V input and output

1 * TPM connector: 2 * 6-pin ESPI specification, pitch = 2.0 mm

1 * Ethernet POE power connector: 1 * 4-pin, pitch = 2.5 mm

Fan Connectors

1 * 4-pin CPU smart fan connector, 1 * 4-pin system fan connector

GPIO

Supports 4-channel GPIO input/output functionality

BIOS

128 Mb Flash ROM

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Power Supply Type

Powered by 12 V DC

Operating System

Windows 10 / 11 / Linux

Operating Temperature

–10 ℃ to 60 ℃

Storage Temperature

–20 ℃ to 70 ℃

Operating Humidity

5%–95% relative humidity, non-condensing

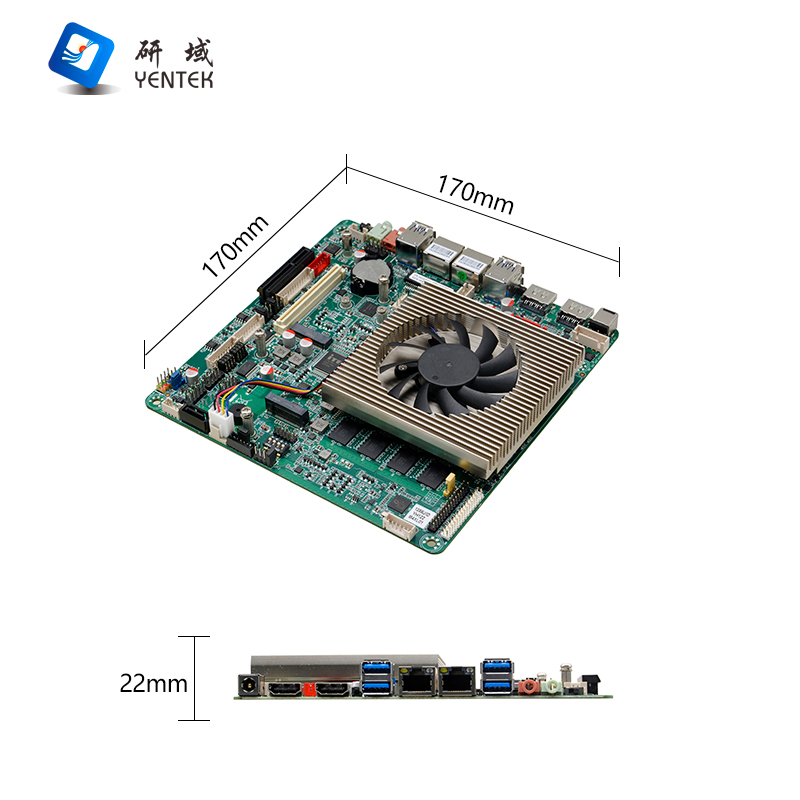

Dimensions

170mm x 170mm
