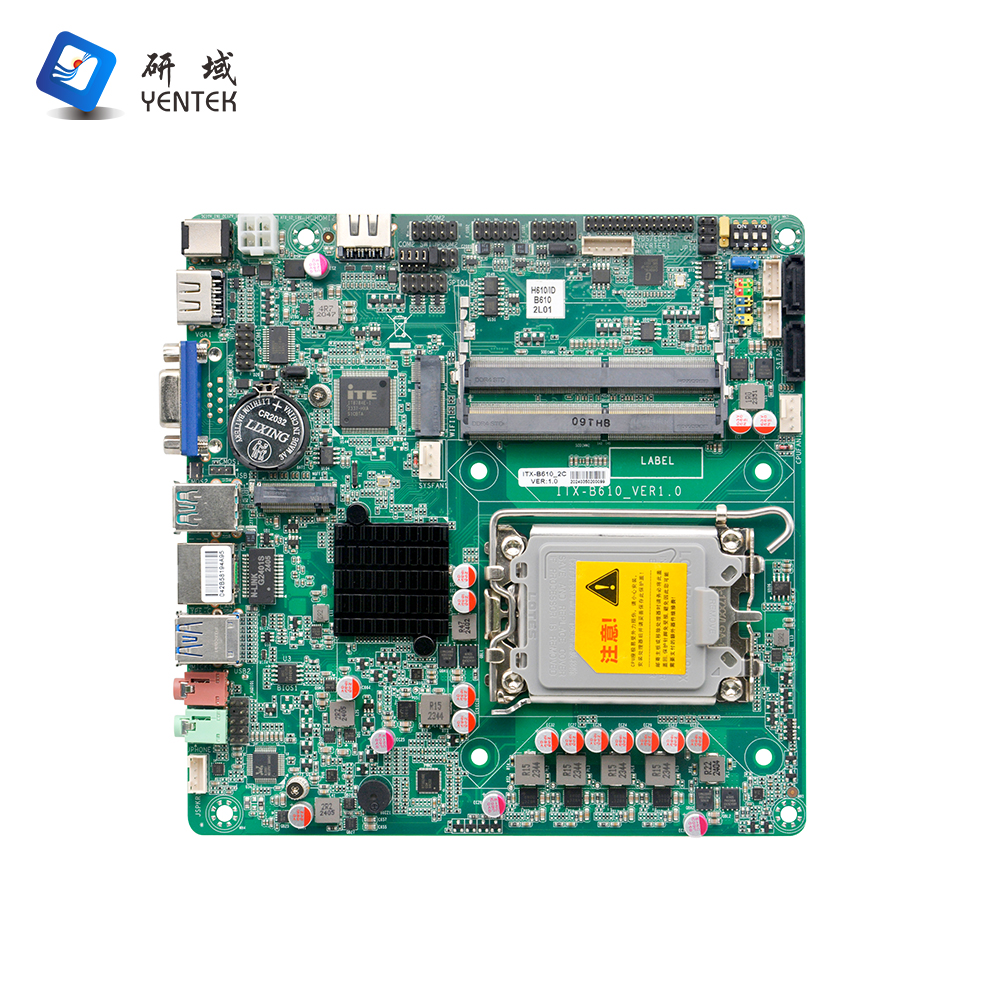

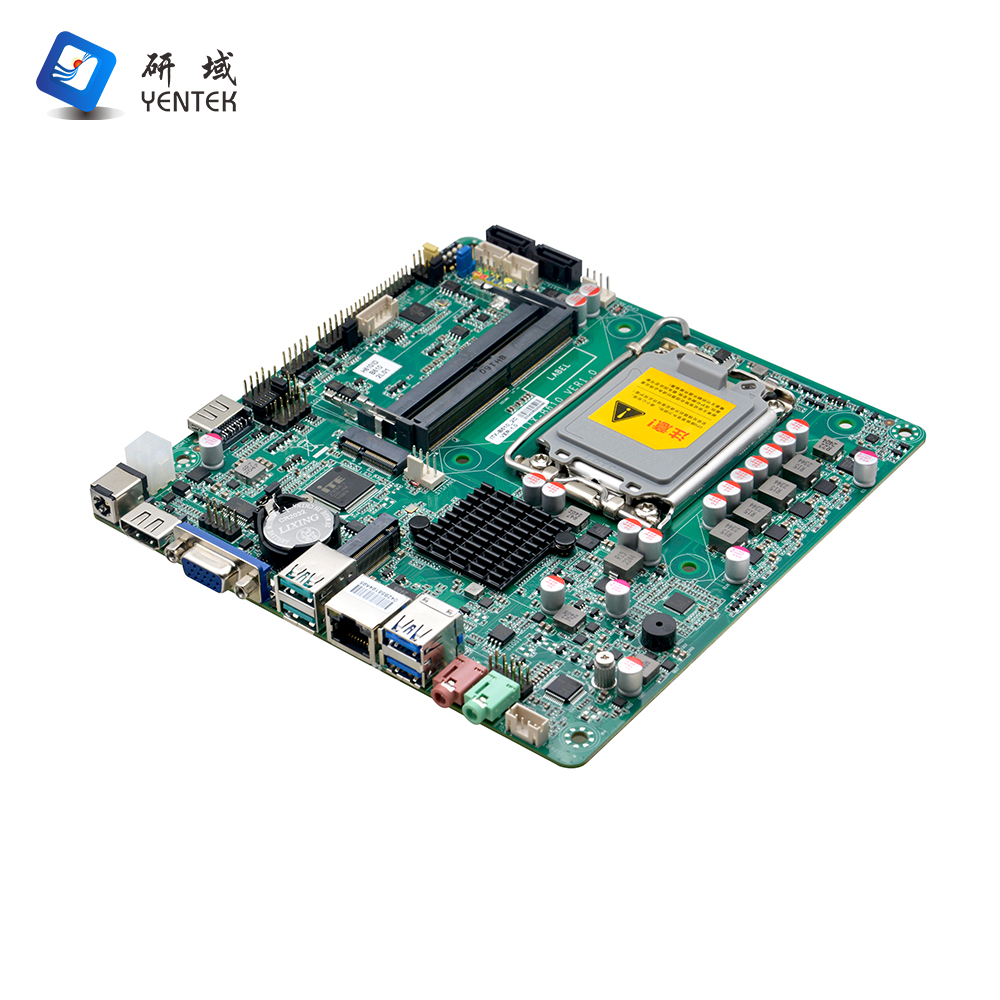

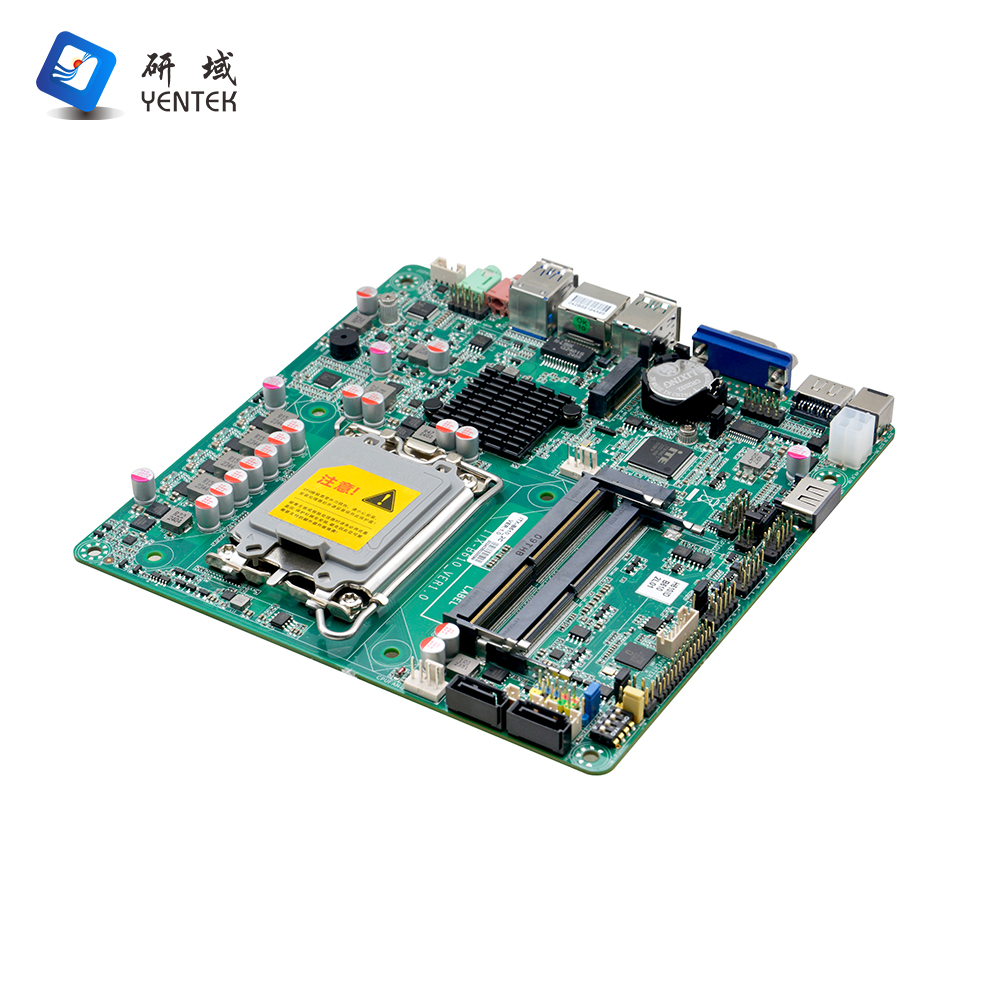

ITX-B610_2C

Processor

Support LGA1700 12th/13th/14th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors.

Note: Supports CPUs below 65W, and disables the RWD by default.

Chipset

Adopts Intel® H610 chipset.

Memory

2* DDR4 SODIMM memory slots, support dual-channel memory up to 3200MHz,   support up to 128GB

Display

Integrated Intel®   HD Graphics core graphics card support DirectX12.1, OpenGL4.5，support   for 4K display

1* VGA interface,   support for the highest resolution of 1920X1200@60Hz

2* HDMI1.4 interface,   support for the highest resolution of 4096x2304 @24Hz

1* LVDS interface,   support for dual-channel 24BIT

Network

1* RTL8111H Gigabit NIC chip, support for Wake-on-LAN / PXE function

Storage

2* SATA3.0 hard drive interface, transfer speed up to 6Gbps

1* M.2 slot, support M.2 Key M 2260/2280 NVME PCIE3.0 X4/SATA adaptive   SSD

Audio

Onboard ALC897 7.1+2-channel hi-fi audio controller,   support MIC/Line-out

Expansion Slots

1* M.2,   support M.2 Key E 2230 WIFI/BT module

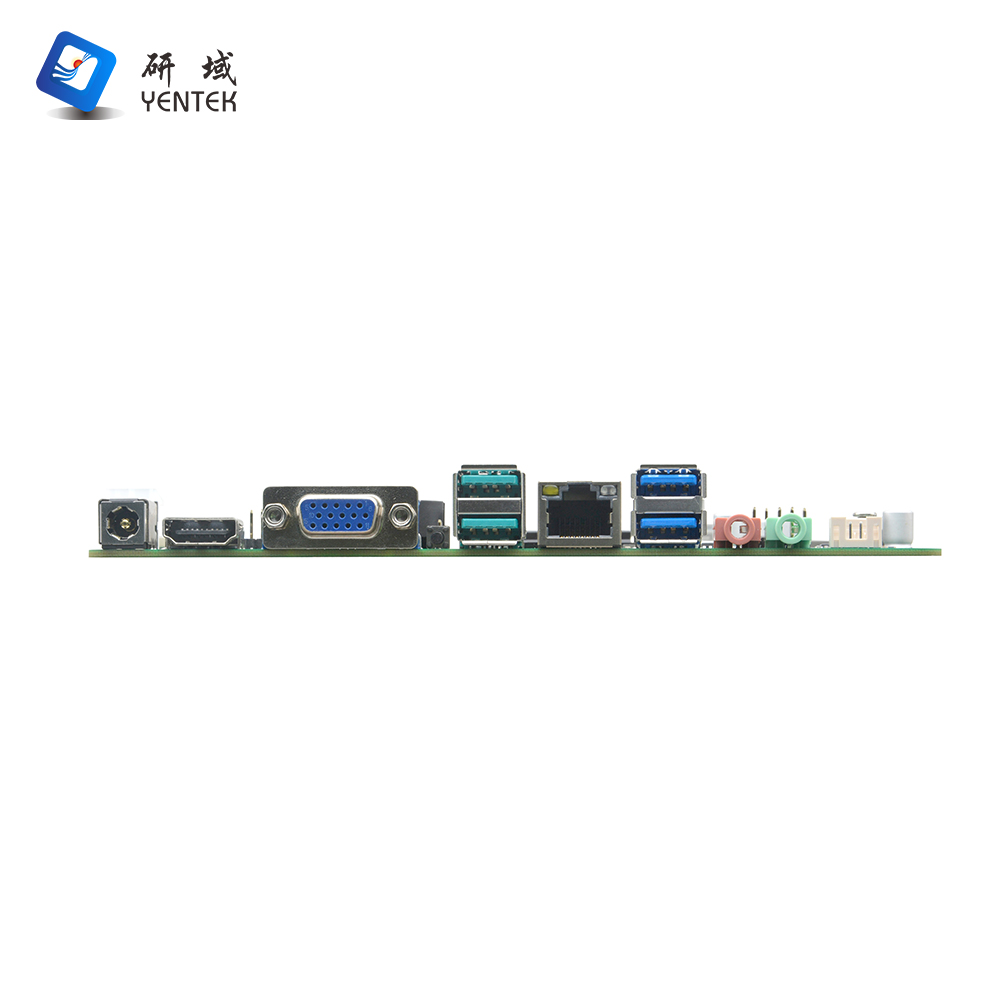

Backplane I/O Ports

1* DC power supply   interface, support DC19V power supply

1* HDMI1.4 interface

1* VGA interface

2* USB3.0 interface   (5Gbps) (co-located with Type-C)

1* RJ45 Gigabit network   interface

2* USB3.2 port (10Gbps)   Green,

1* MICK (Red), 1*   Line-out (Green)

1* HDMI1.4 port (side)

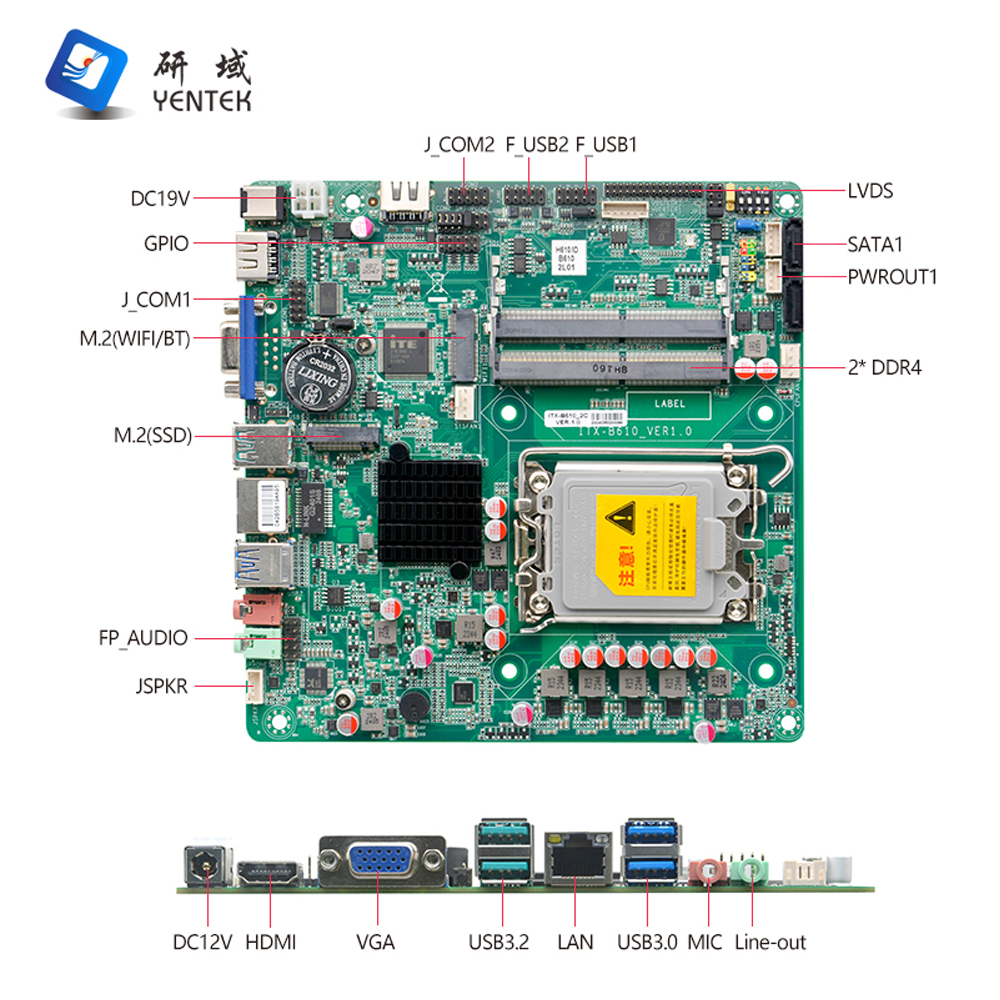

Built-in I/O Ports

2* RS232 serial port,   of which COM1 and DB9 two choose one, COM2 support RS485/422.

4* USB2.0 interface 2*5pin

1* LVDS interface,   support dual-channel 24BIT

2* HDD power supply   interface 1*4pin

1* Screen backlight   power supply interface 1*6pin

1* 4pin DC power   connector, support 19V power input and output

1* Front Audio Interface   2*5pin

1* Amplifier connector   1*4pin (NS4251)

1* Front Panel Function   Button and Indicator Connector 2*5pin

Fan Ports

1*4pin CPU fan connector; 1*4pin system fan   connector

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255   seconds)

Operating System

Windows 10/Windows 11/Linux

Power Supply Type

Powered by   DC19V power supply

Operating Temperature

0℃～60℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95% relative humidity, non-condensing

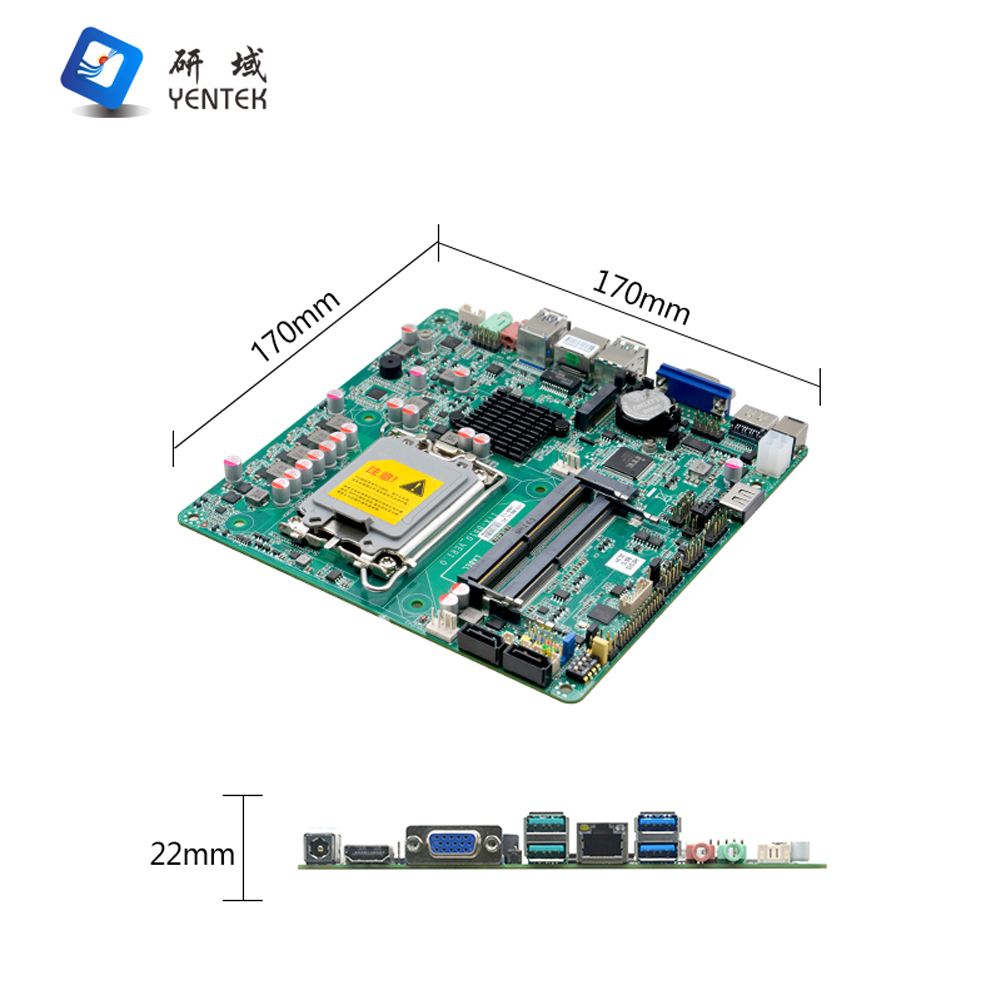

Dimension

170mm x 170mm

1

ITX-B610_2C VER:1.0

LGA1700

H610

2*SODDR4

1

2

2ch/24BIT

/

1*RTL8111H

8

2

COM2

DC/19V
