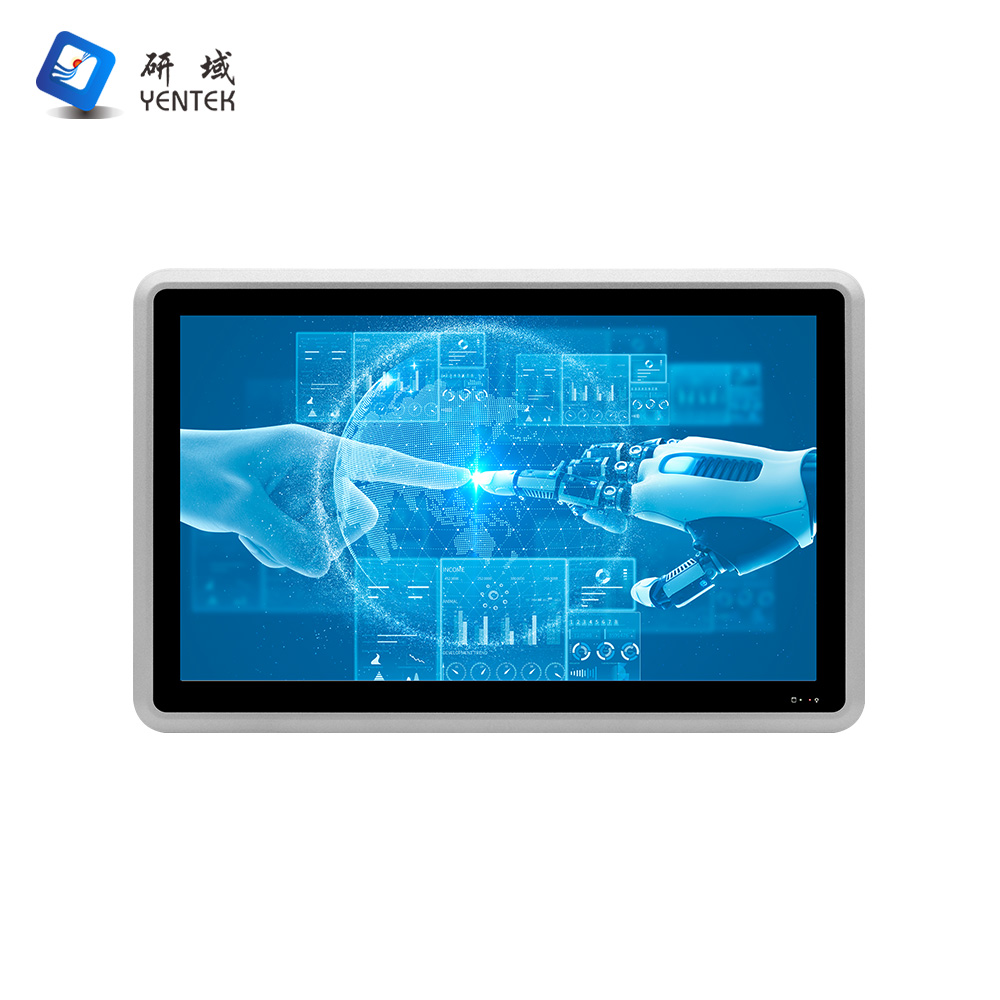

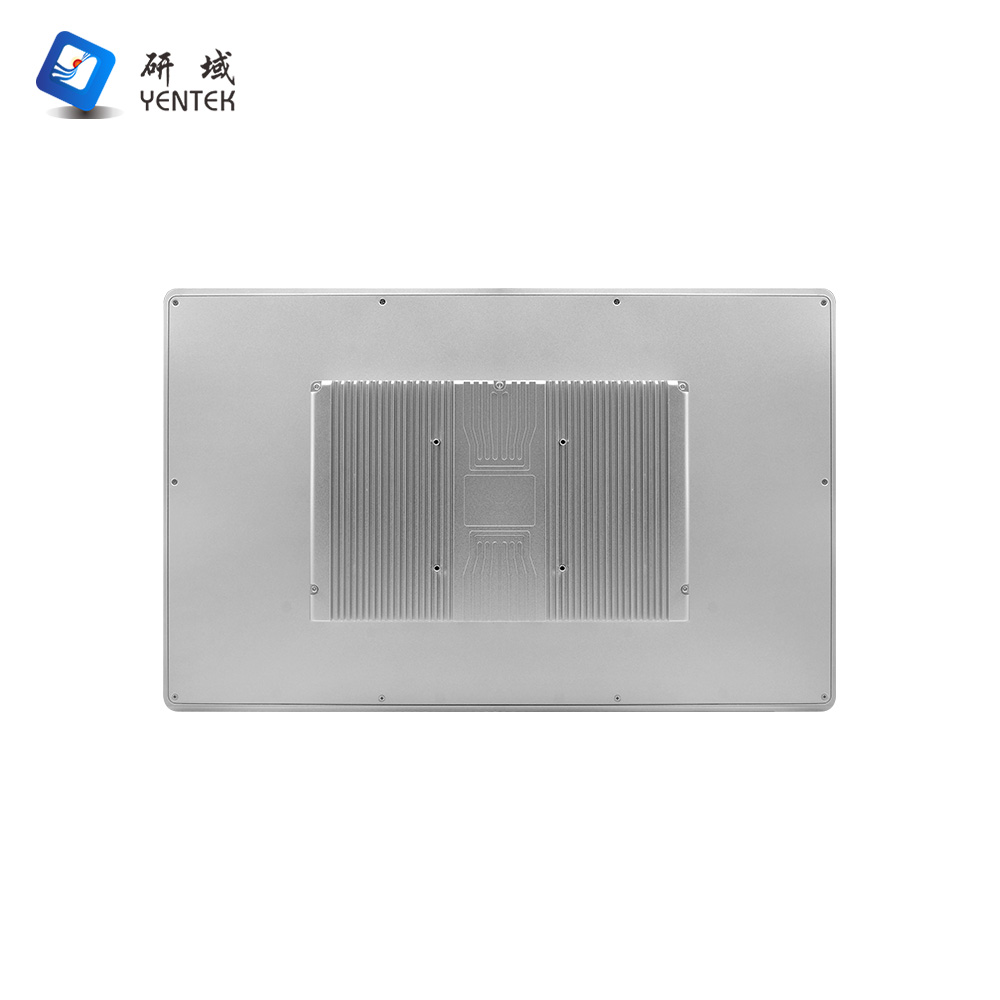

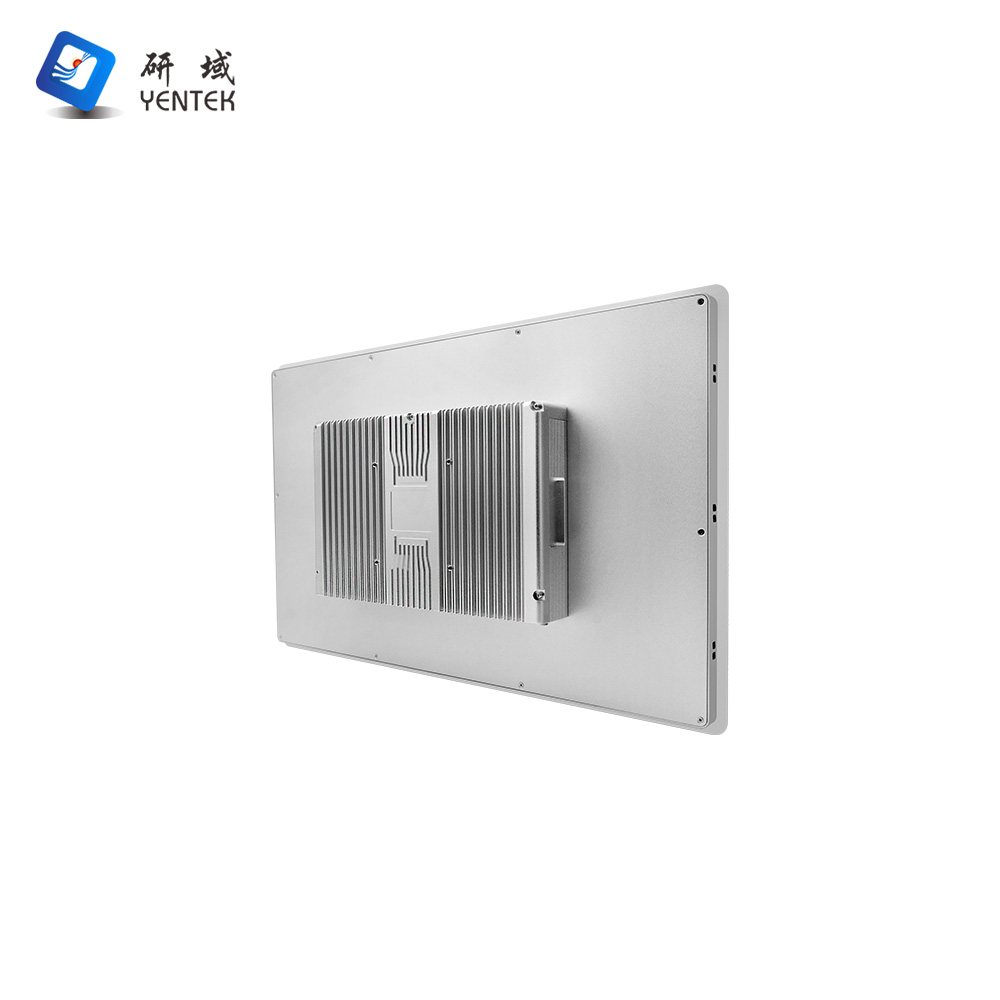

P2381Y-C6 V2.0 (Embedded)

Chassis

Material/Construction

Aluminium alloy construction, fanless cooling design

Colour

Silver

Dimensions (L W H)

L537 × W365 × H65 mm

Weight

8.6 kg

Installation

Supports VESA and embedded panel mounting

LCD screen

Type

23.8-inch LCD, 16:9 widescreen

Resolution

1920 × 1080

Brightness

300 cd/m²

Touchscreen

Type

Capacitive touchscreen, 10-point touch

Light transmittance

Over 86%

Motherboard

CPU

Integrated 12th Gen Intel® Alder Lake i5-1235U processor (10 cores, 12 threads), TDP 15W

Memory

2 × DDR4 SODIMM memory slots, supporting 3200 MHz memory, up to 64 GB

Display

Integrated Intel® Iris® Xe Graphics, supporting DirectX 12.1 and OpenGL 4.6, with 4K support

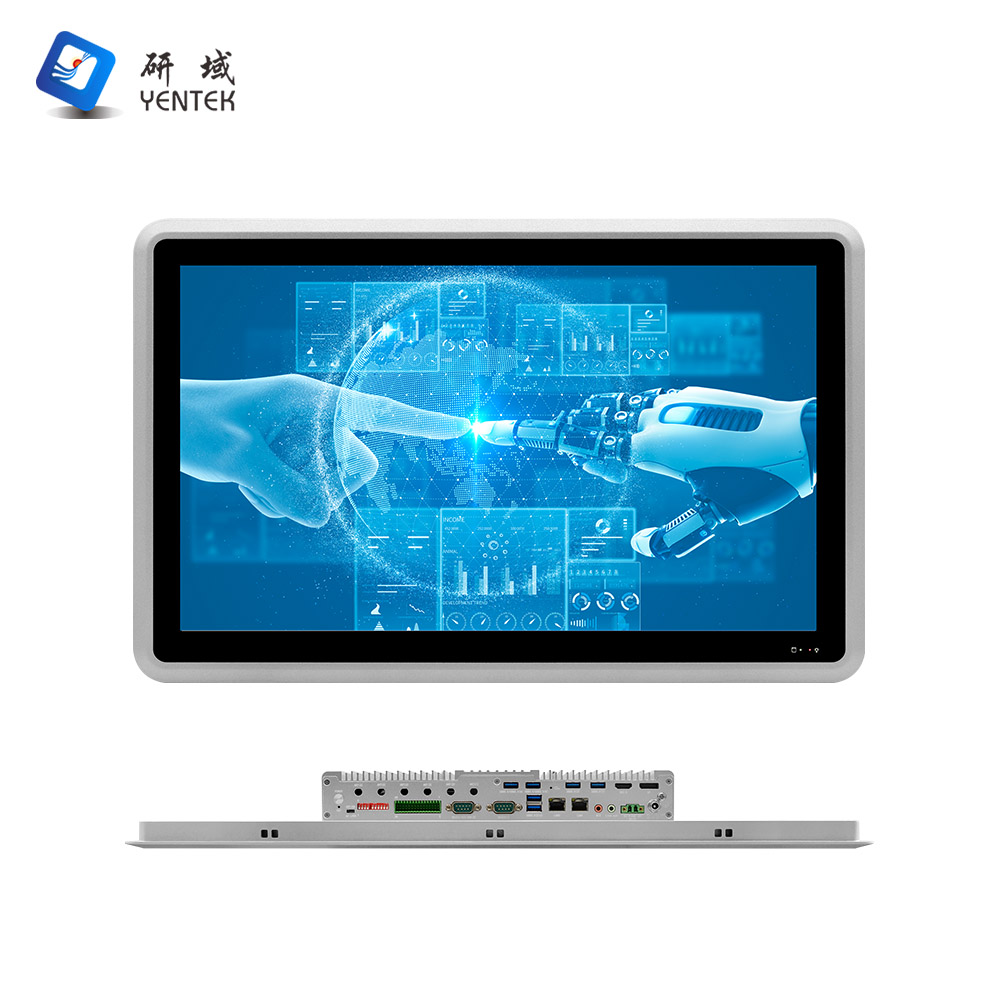

I/O ports

Power switch

1 × power button, 1 × one-touch restore button, 1 × ACLOSS (power-on DIP switch), 1 × CMOS reset button

LED

1 × Power indicator, 1 × Hard drive indicator

Display interface

1 × HDMI 2.0, 1 × DisplayPort

LAN

2 × Intel I210 Gigabit Ethernet controllers, supporting Wake-on-LAN and PXE

USB

6 × USB 3.0 (the number of USB 3.0 and 2.0 ports depends on the motherboard)

COM

6 × RS232 serial ports: COM1 – RS232 DB9 serial port; COM2 – RS232/485/422 DB9 serial port; COM3–6 – RS232 on 2 × 15-pin Phoenix connectors, where COM3 supports RS485 and COM1–2 support pin 9 power-on functionality

Phoenix connector

2 × 15-pin (4 inputs, 4 outputs: GPO / power switch signal / COM3–COM6 / 5V VCC / GND)

DIP switch

10-position DIP switch: COM2–3 RS232/485 selection; COM2 RS422 enabled via the COM2_SW1 jumper cap

Audio

1 × Line out, 1 × MIC

Power supply

1 × DC (5.5 × 2.5) aviation connector or 1 × 2-pin Phoenix connector (P = 5.08 mm), supporting 9 V to 36 V input

Storage

SATA

1 × 2.5-inch hard drive bay

M.2

1 × M.2 slot, supporting M.2 2280 NVMe PCIe 4.0 x4 standard SSDs (M.2 transfer rates depend on the motherboard)

mSATA

1× mSATA, supports SSDs compliant with the Intel protocol

Expansion

M.2

1× M.2 slot, supports M.2 Key E 2230 Wi-Fi modules

1 × M.2 slot, supporting M.2 Key B 2242/2252 5G modules

Power requirements

Power Supply Type

External power supply adapter

Input Voltage

9V–36V wide voltage range

Output Power

AC to DC, 60W or above

Environmental

Operating Temperature

–10°C to 50°C

Storage Temperature

–20°C to 70°C

Relative Humidity

5%–95% relative humidity, non-condensing

Operating Vibration

0.5g rms/5-500HZ/random/operating
