| Model number | P2381Y-P4 V1.0(J6412) | |
| Case | Material/Structure | Aluminum alloy material, fanless cooling structure |
| Color | Bright Silver | |

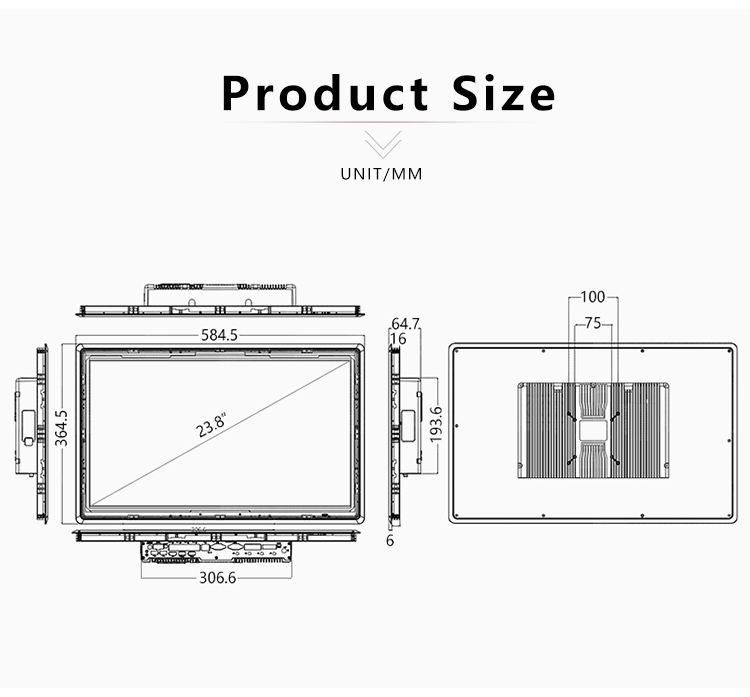

| Dimension(L*W*H) | W364.5*L584.5 * H64.7 mm | |
| Weight | 8.6KG | |
| Install | Wall Mount /VESA | |

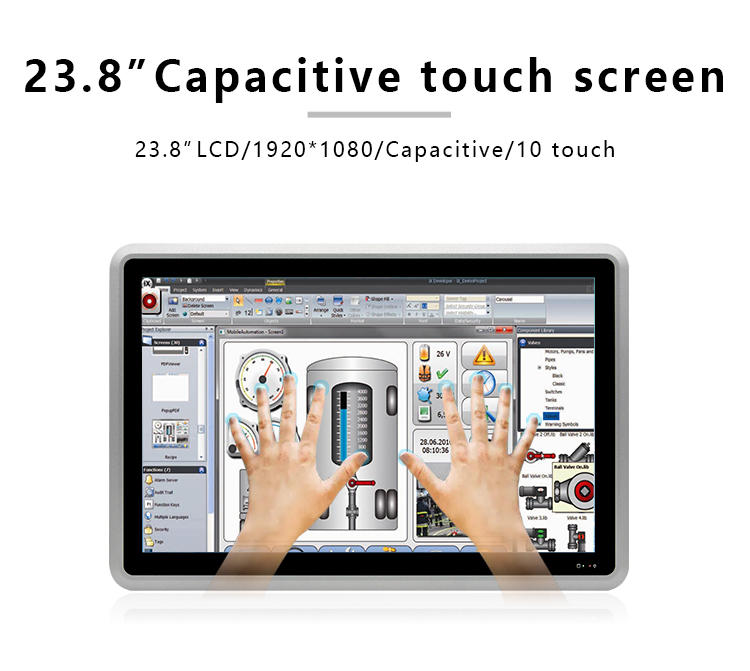

LCD scree | Type | 23.8” LCD, 16:9 wide screen |
| Resolution | 1920 * 1080 | |
| luminance | 300 cd/m2 | |
Touch scree | Type | Capacitive，10 point touch(resistive screen optional) |
| Light transmittance | More than 85% | |
IO interface | POWER | 1* Power key, 1* one key restore (and reset key to choose one), 1*CMOS reset key, 1*ACLOSS (power on DIP switch) |
| USB | 2*USB3.0，2*USB2.0 | |
| LAN | 5*Intel I210 Gigabit network cards, four of which support POE | |
| Display | 1*HD OUTPUT | |
| COM | 4*RS232 serial port, COM1~2 RS232 DB9 serial port, in which COM2 supports RS485/422, COM3~4 RS232 on the 2*12pin Phoenix terminal, in which COM3 supports RS485, COM1-2 supports the 9pin live function | |
| Phoenix Connector | 2*12Pin(4 in 4 out GPIO, switching signal, COM3~COM4, 5V VCC and GND) | |
| Dip switch | 10-bit dip switch, COM2 to 3 RS232/485 switch, COM2 RS422 through the COM2_SW1 jumper | |
| Audio | 1*AUDIO, Line out and MIC in one | |
| Power source | 1*DC (5.5*2.5) air port or 1*2P P=5.08mm Phoenix terminal, support 9V~36V input | |
| Storage | SATA | 1 x 2.5-inch hard disk |
| MSATA | 1*MSATA | |
| M.2 | 1*M.2/SSD: Key-M, 2280, NVME PCIEx4 SSD | |
| Expansion | M.2 | 1*M.2/WiFi，Key-E，2230，support WiFi module |
| 1*M.2/5G，Key-B，2242/52，support 5G module | ||
| Power | Power supply type | External power adaptor |
| Voltage input | 9V~36V | |
| Rate Consumption | 60W~120W | |
| Environment | Operating temperature | 0℃～50℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |
Order Information
| No. | Model | CPU | Motherboard | Memory | IO Board | GPIO | LAN | COM | HDMI | USB2.0 | USB3.0 | Power-input |
| 1 | P2381Y-P4 V1.0(J6412) | I5-7300U/2.6G | P68 | 2*SODDR4 | P1082-C6/P1071-IO/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 2 | P2381Y-P4 V1.0(8260U) | I5-8260U/1.6G | P81 | 2*SODDR4 | P1082-C6/P1071-IO/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 3 | P2381Y-P4 V1.0(7300U) | I5-10210U/1.6G | P102 | 2*SODDR4 | P1082-C6/P1071-IO/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 4 | P2381Y-P4 V1.0(1135G7) | I5-1135G7/2.4G | P112 | 2*SODDR4 | P1082-C6/P1071-IO/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 5 | P2381Y-P4 V1.0(1135G7) | I5-1235U/1.3G | P122 | 2*SODDR4 | P1082-C6/P1071-IO/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 6 | P2381Y-C6 V1.0(1165G7) | I5-7300U/2.6G | P68 | 2*SODDR4 | P1082-C6/P1071-IO/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 7 | P2381Y-C6 V1.0(J6412) | I5-8260U/1.6G | P81 | 2*SODDR4 | P1082-C6/P1071-IO/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 8 | P2381Y-C6 V1.0(8260U) | I5-10210U/1.6G | P102 | 2*SODDR4 | P1082-C6/P1071-IO/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 9 | P2381Y-C6 V1.0(7300U) | I5-1135G7/2.4G | P112 | 2*SODDR4 | P1082-C6/P1071-IO/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 10 | P2381Y-C6 V1.0(10210U) | I5-1235U/1.3G | P122 | 2*SODDR4 | P1082-C6/P1071-IO/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
