P2341Y-C2 V1.0 (VESA)

Chassis

Material/Construction

Aluminium alloy construction, fan-cooled design

Colour

Silver

Dimensions

L584.5 × W364.5 × H68.7 mm

Weight

7.5 kg

Installation

Supports VESA (100 × 100) / flush-mounted panel installation

LCD screen

Type

23.8-inch LCD, 16:9, widescreen

Resolution

1920 × 1080

Brightness

300 cd/m²

Touchscreen

Type

Capacitive touchscreen, 10-point touch

Light transmittance

Over 86 per cent

Motherboard

CPU

Supports Intel LGA1151/8th–9th generation processors; supports only those rated at 65 W or below; Turbo Boost is disabled by default.

Memory

2 × SODDR4, supports up to 64 GB

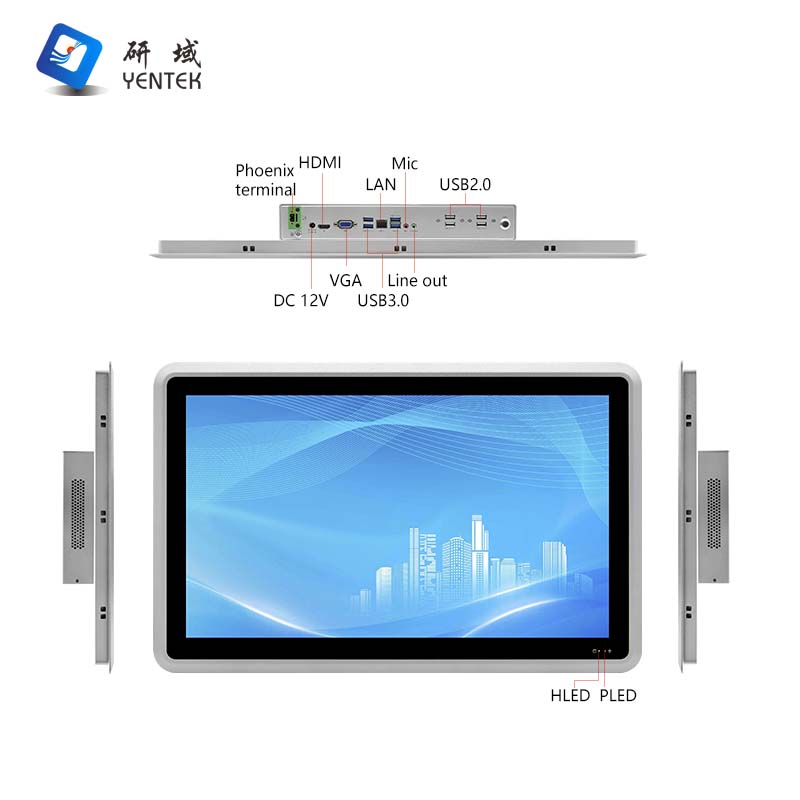

I/O ports

POWER

1 × Power button

LED

1 × Power indicator light, 1 × Hard drive indicator light (located on the front panel)

Display interfaces

1 × HDMI, 1 × VGA

LAN

1 × RTL8111H Gigabit Ethernet card, supports Wake-on-LAN and PXE

USB

4 × USB 3.0, 2 × USB 2.0 (USB 3.0/2.0 specifications depend on the motherboard)

COM

2 × RS232 DB9 serial ports

Remote switch

1 × Power switch (located on 1 × 2-pin Phoenix connector)

Audio

1 × Line out, 1 × Mic

Speakers

2 x built-in 8-ohm 2W speakers

Power supply

1 × DC 19V (5.5 × 2.5)

Storage

SSD

1 × M.2, supporting Key-M, 2280, NVMe PCIe x4/SATA adaptive SSD

Expansion

Wi-Fi

1 × M.2, supporting Key-E, 2230, Wi-Fi + Bluetooth

System compatibility

Windows

Windows 10/11

Linux

Ubuntu

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Power requirements

Power supply type

DC 19V

Power output

AC to DC 120W or above (depending on the specific device)

Environmental

Operating temperature

–10°C to 50°C

Storage temperature

–20°C to 70°C

Relative humidity

5%–95% relative humidity, non-condensing

Vibration

0.5g rms/5-500HZ/random
