| Model number | P2381Y-C6 V1.0(J6412) | |

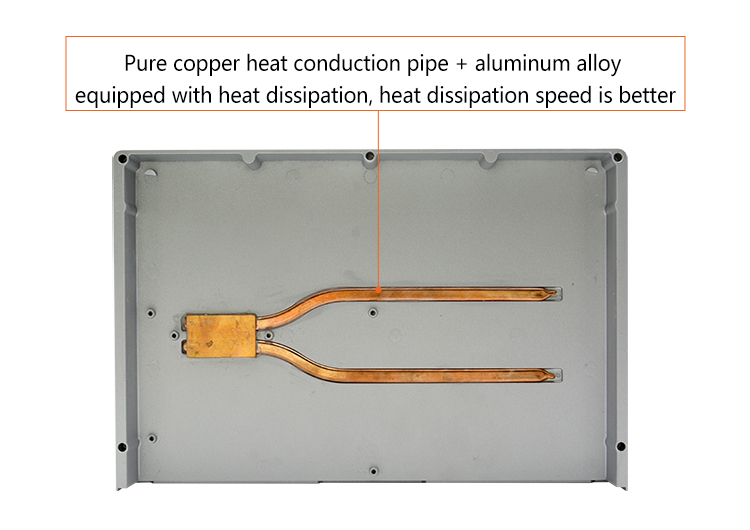

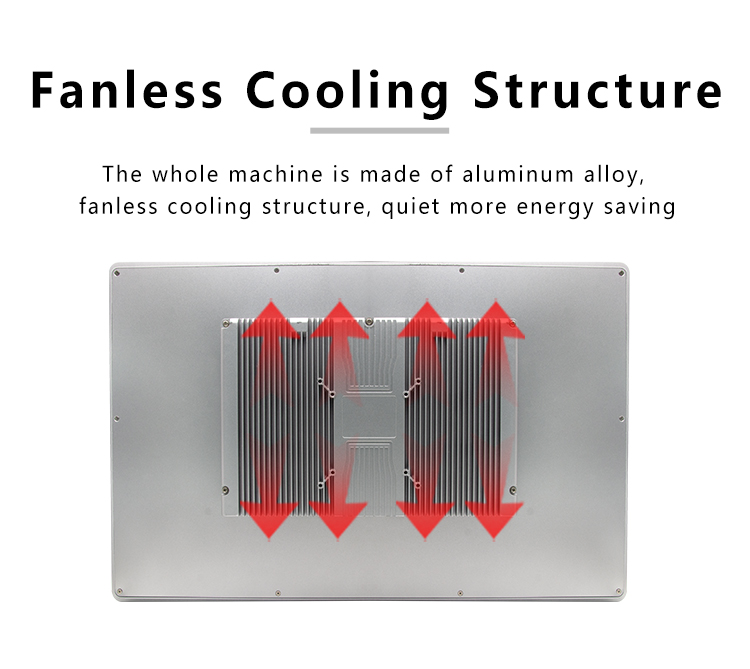

| Case | Material/Structure | Aluminum case, fanless design |
| Color | Silver | |

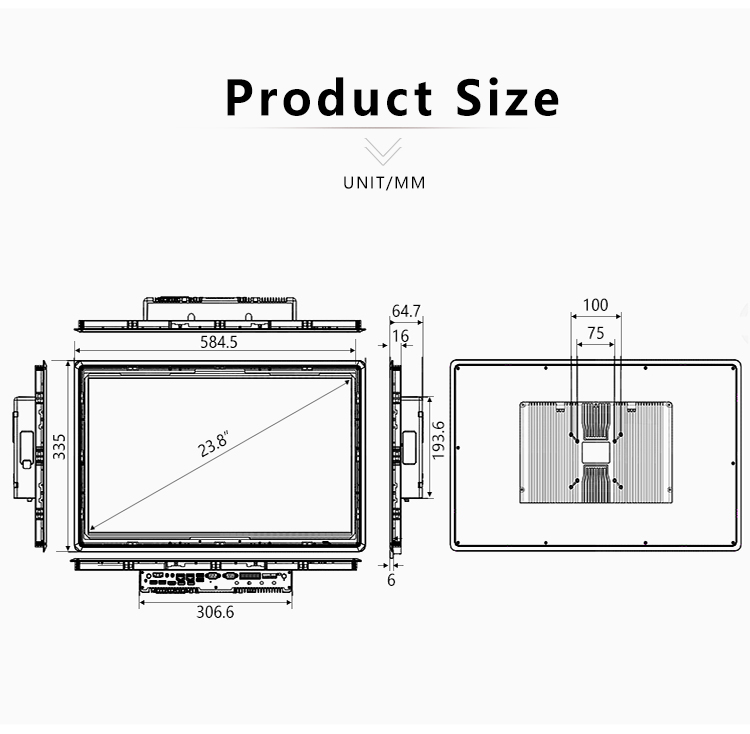

| Dimension(L*W*H) | L537*W365*H65mm | |
| Weight | 8.5KG | |
| Install | VESA mount / embedded | |

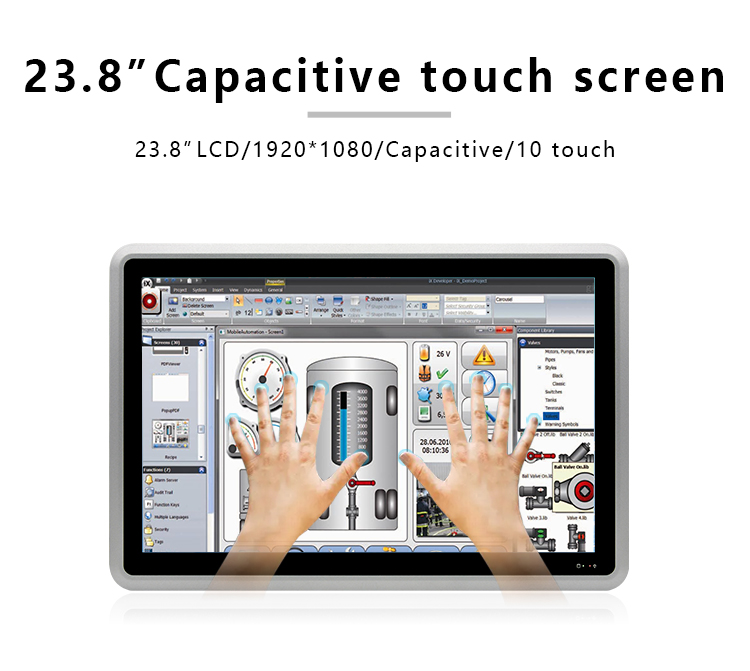

LCD scree | Type | 23.8” LCD, 16:9 wide screen |
| Resolution | 1920 * 1080 | |
| luminance | 300 cd/m2 | |
Touch scree | Type | Capacitive，10 point touch(resistive screen optional) |
| Light transmittance | >86% | |

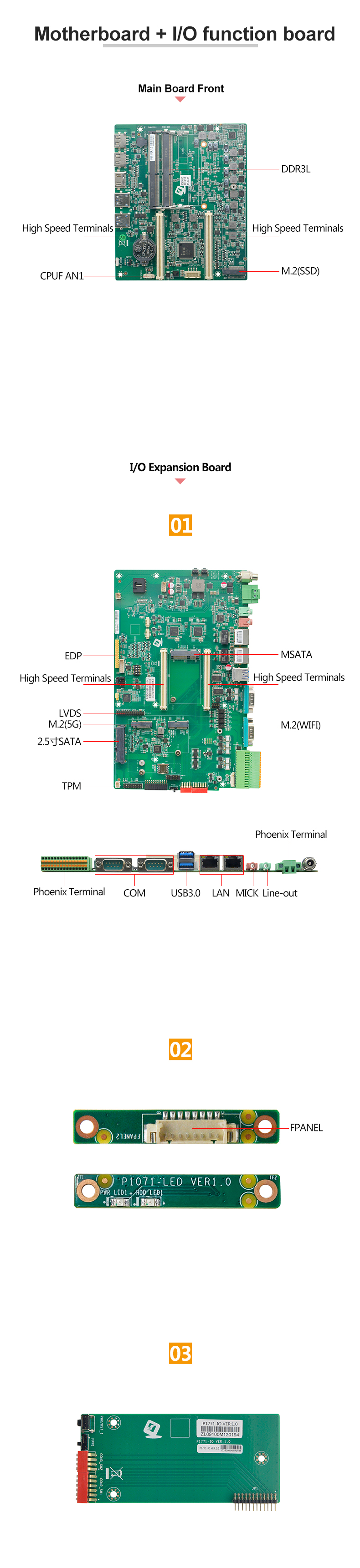

| Mainboard | CPU | Onboard Intel J6412/7300U/8260U/10210U/1135G7/1235U quad core 4-thread processor, TDP 10W |
| Memory | 2*DDR4-2400 SODIMM RAM slot，up to 32GB | |

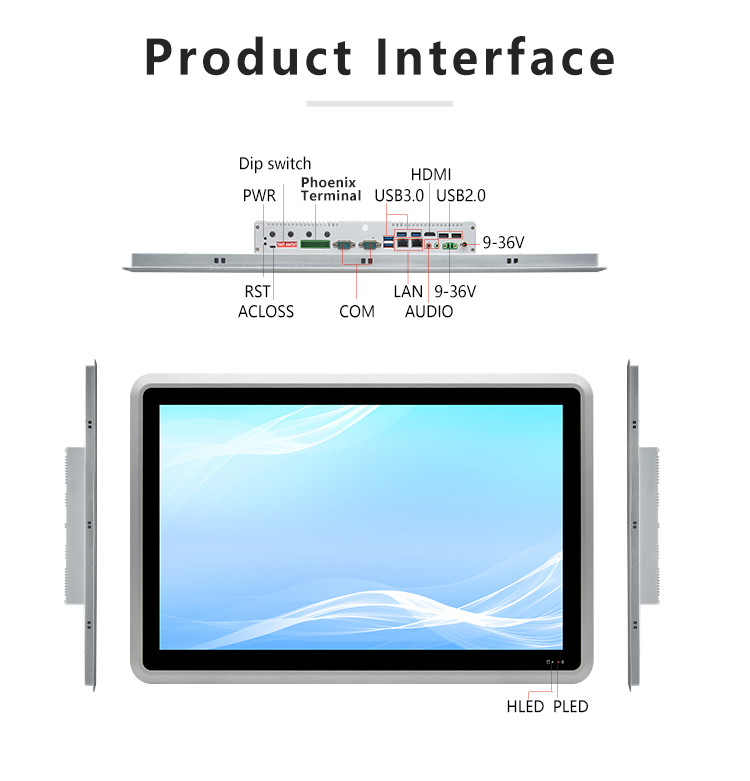

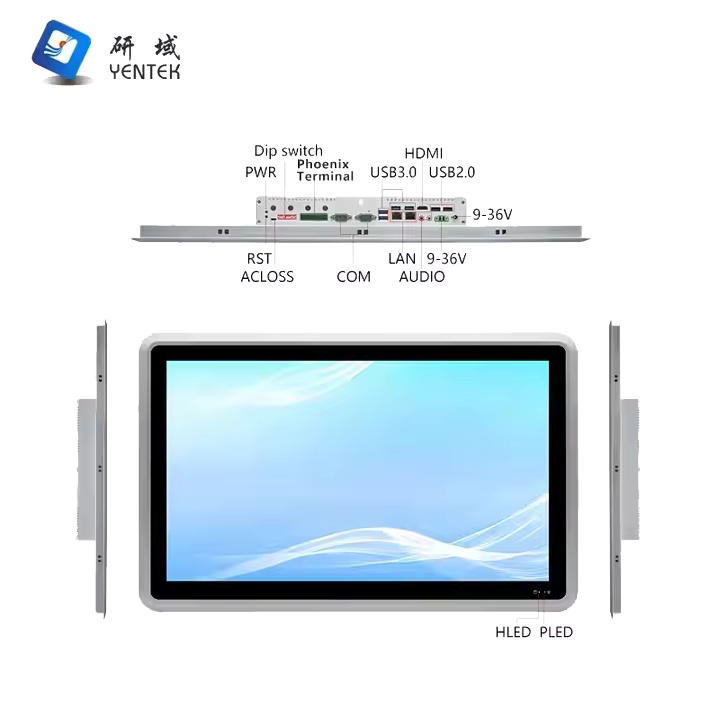

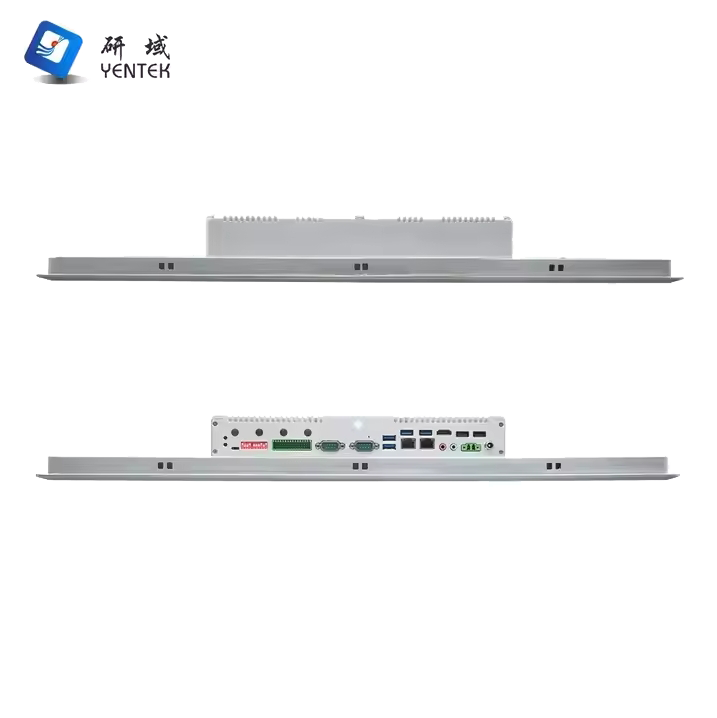

IO interface | POWER | 1*Power button，1* One-key restore (reset key optional)，1*AC LOSS（auto power ON/OFF） |
| USB | 4*USB3.0，2*USB2.0 | |
| LED | 1*Power LED, 1* HDD LED | |
| LAN | 2*Intel I210 Gigabit Ethernet, support Wake On LAN、PXE | |
| Display | 1*HD OUTPUT | |
| COM | 6*RS232，COM1~2 DB9 RS232，COM2 RS485/422 selectable，COM3-6 RS232 on 2*15pin Phoenix connector，COM3 RS485 selectable，COM1-2 support pin9 charging function | |
| Phoenix Connector | 2*15Pin( 4-in 4-out GPIO，1*power signal/ 4*COM(RS232, 1*RS485)，VCC, GND) | |
| Dip switch | 10-digit DIP switch for COM2~3 RS232/485 selection | |
| Audio | 1*Line out，1*MIC | |
| Power | 1*DC aviation port, 1*2Pin Phoenix connector, support DC9~36V voltage input | |

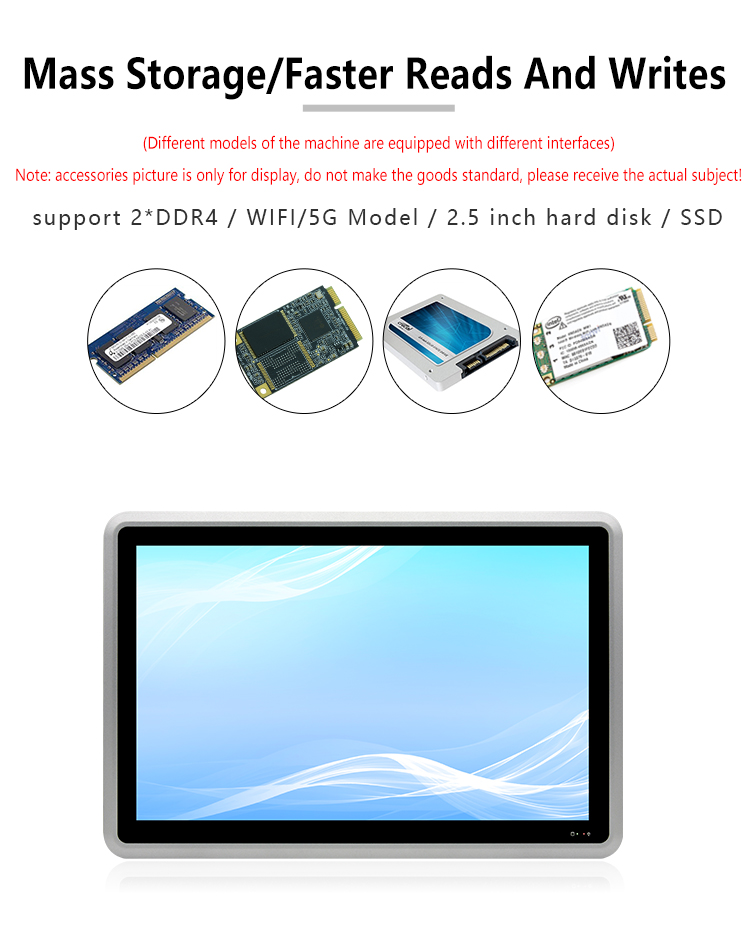

| Storage | SATA | 1*2.5” SATA disk port |
| MSATA | 1*MSATA | |
| M.2 | 1*M.2 SSD port，support Key-M，2280，NVME PCIEx4 SSD | |
| Expansion | M.2 | 1*M.2/WiFi，Key-E，2230，support WiFi module |
| 1*M.2/5G，Key-B，2242/52，support 5G module | ||
| OS Support | Windows | Windows 10 |
| Linux | Ubuntu | |
| Watch Dog | Support hardware reset function (L256, 0~255 seconds) | |
| Power | Power supply type | External power adaptor |
| Voltage input | 9V~36V | |
| Rate Consumption | 60W~180W | |
| Environment | Operating temperature | -10℃～50℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |

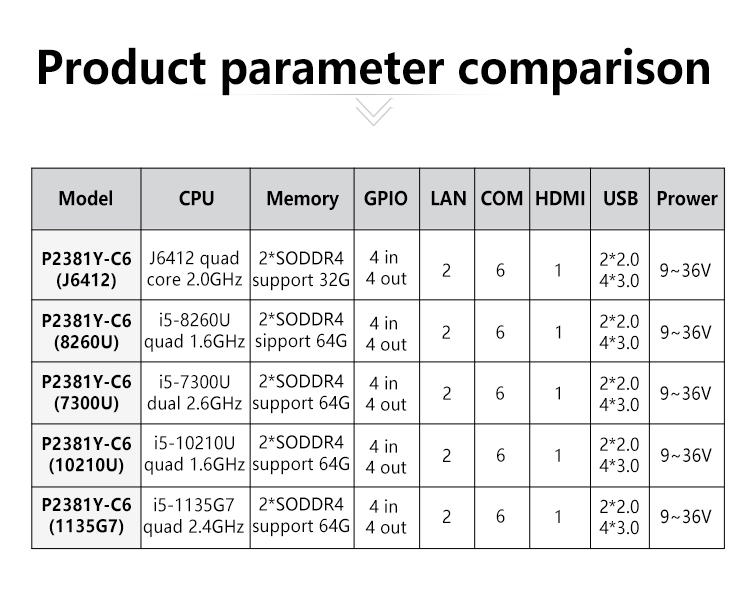

Order Information
| No. | Model | CPU | Motherboard | Memory | IO Board | GPIO | LAN | COM | HDMI | USB2.0 | USB3.0 | Power-input |
| 1 | P2381Y-C6 V1.0(J6412) | J6412/2.00G | P641 | 2*SODDR4 | P1082-C6/P1071-IO/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 2 | P2381Y-C6 V1.0(8260U) | I5-8260U/1.6G | P81 | 2*SODDR4 | P1082-C6/P1071-IO/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 3 | P2381Y-C6 V1.0(7300U) | I5-7300U/2.6G | P67 | 2*SODDR4 | P1082-C6/P1071-IO/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 4 | P2381Y-C6 V1.0(1135G7 | I5-10210U/1.6G | P110 | 2*SODDR4 | P1082-C6/P1071-IO/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 5 | P2381Y-C6 V1.0(1135G7) | I5-1135G7/2.4G | P112 | 2*SODDR4 | P1082-C6/P1071-IO/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 6 | P2381Y-C6 V1.0(1165G7) | I7-1135G7/2.8G | P112 | 2*SODDR4 | P1082-C6/P1071-IO/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 7 | P2381Y-P4 V1.0(J6412) | J6412/2.00G | P641 | 2*SODDR4 | P1082-C6/P1071-IO/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 8 | P2381Y-P4 V1.0(8260U) | I5-8260U/1.6G | P81 | 2*SODDR4 | P1082-C6/P1071-IO/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 9 | P2381Y-P4 V1.0(7300U) | I5-7300U/2.6G | P67 | 2*SODDR4 | P1082-C6/P1071-IO/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 10 | P2381Y-P4 V1.0(10210U) | I5-10210U/1.6G | P110 | 2*SODDR4 | P1082-C6/P1071-IO/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 11 | P2381Y-P4 V1.0(1135G7) | I5-1135G7/2.4G | P112 | 2*SODDR4 | P1082-C6/P1071-IO/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 12 | P2381Y-P4 V1.0(1165G7) | I7-1135G7/2.8G | P112 | 2*SODDR4 | P1082-C6/P1071-IO/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
