Processor

Support LGA1155 2nd/3rd Intel®   Celeron/Pentium/Core™ i3/i5/i7 processors

Chipset

Adopting Intel B75 high-speed chipset

Memory

2* DDR3 SODIMM memory slots, support dual-channel 1600/1333/1066MHz   memory, maximum 32GB

Display

Integrated Intel® HD Graphics HD Graphics core graphics card

1* HDMI interface, 1* VGA interface

Network

6* Intel I226V Gigabit LAN card, support for Wake-on-LAN, PXE function

Storage

2* SATA2.0 hard drive interface, the transfer speed up to 3Gbps

1* MSATA3.0 slot, support for Intel protocol SSD, the transfer speed up   to 6Gbps

Audio frequency

N/ A

Expansion Slot

1* M.2 slot, support M.2 Key B 3042/3052 5G module

1* M.2 slot, support M.2 Key E 2230 WIFI module

1* PCIE X8 slot

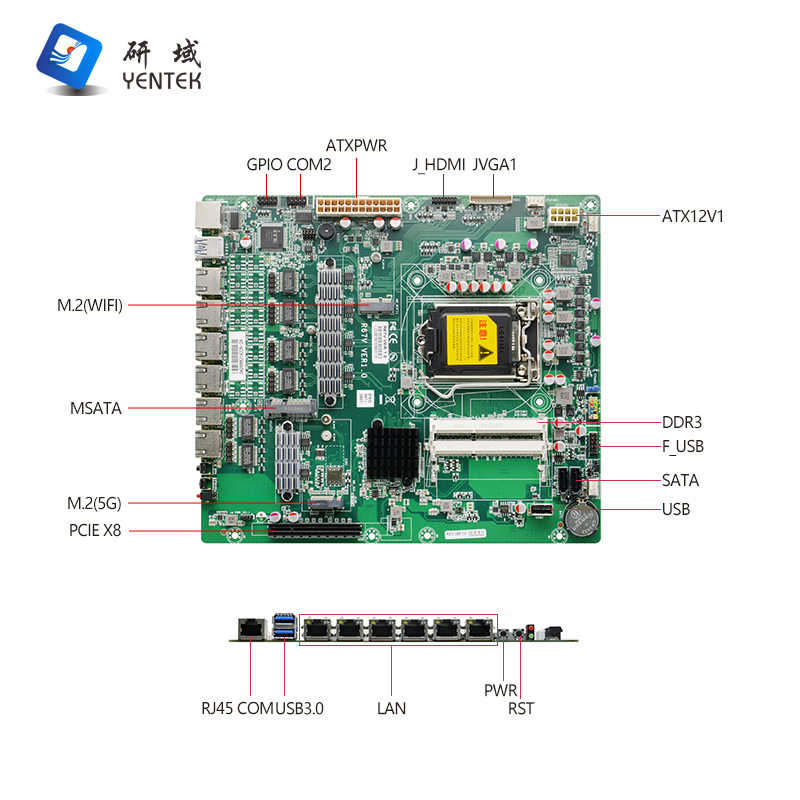

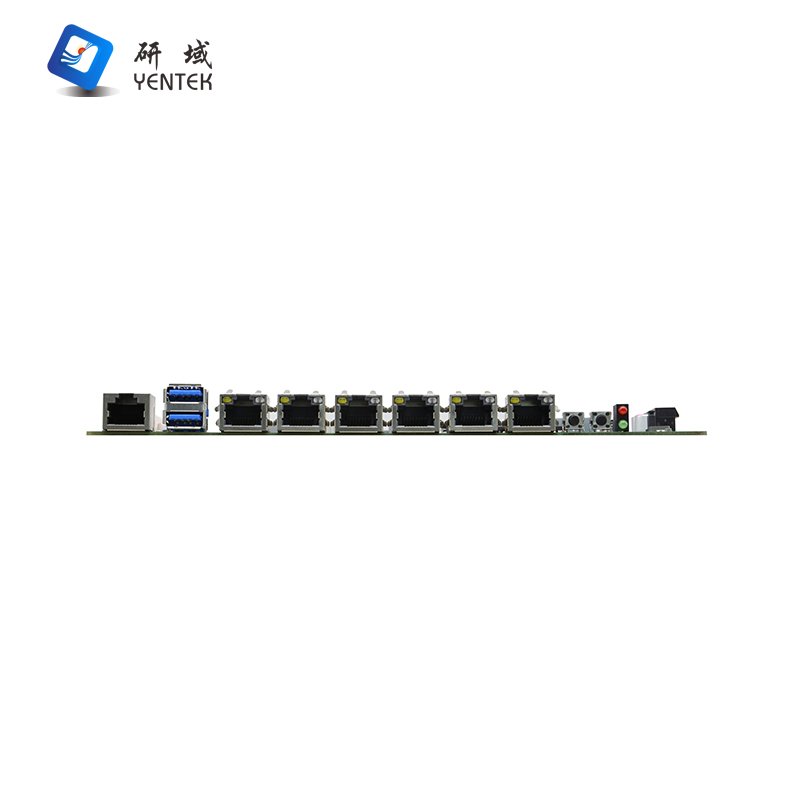

Backplane I/O Ports

1* RJ45 serial port (co-listed with the built-in serial port row of pins)

2* USB3.0 interface

6* RJ45 Gigabit network interface

1* power switch, 1* one-key restoration

1* double-decker LED light (upper red, lower green, upper HDD light,   lower power light)

Built-in I/O Interface

1* JVGA1 connector 1*12pin

1* JHDMI connector 2*8pin

2* USB2.0 connector 2*5pin

1* Vertical USB2.0 connector

1* RS232 serial port 2*5pin,support RS485

1* GPIO pin (four in four out)

1* Front panel switch buttons and indicator light interface 2*5Pin

1* 24pin ATX power connector

1* 2*4pin ATX power connector

1* SIM card holder

Fan Interface

1*4pin CPU smart fan connector, 2* 4pin system fan connector

GPIO

Support 4-way input/output GPIO function

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Power Type

Powered by ATX power supply

Operating System

Windows 10, /Linux

Operating Temperature

-10℃～60℃

Storage Temperature

-20℃～70℃

Operating Humidity

5%-95% relative humidity, non-condensing

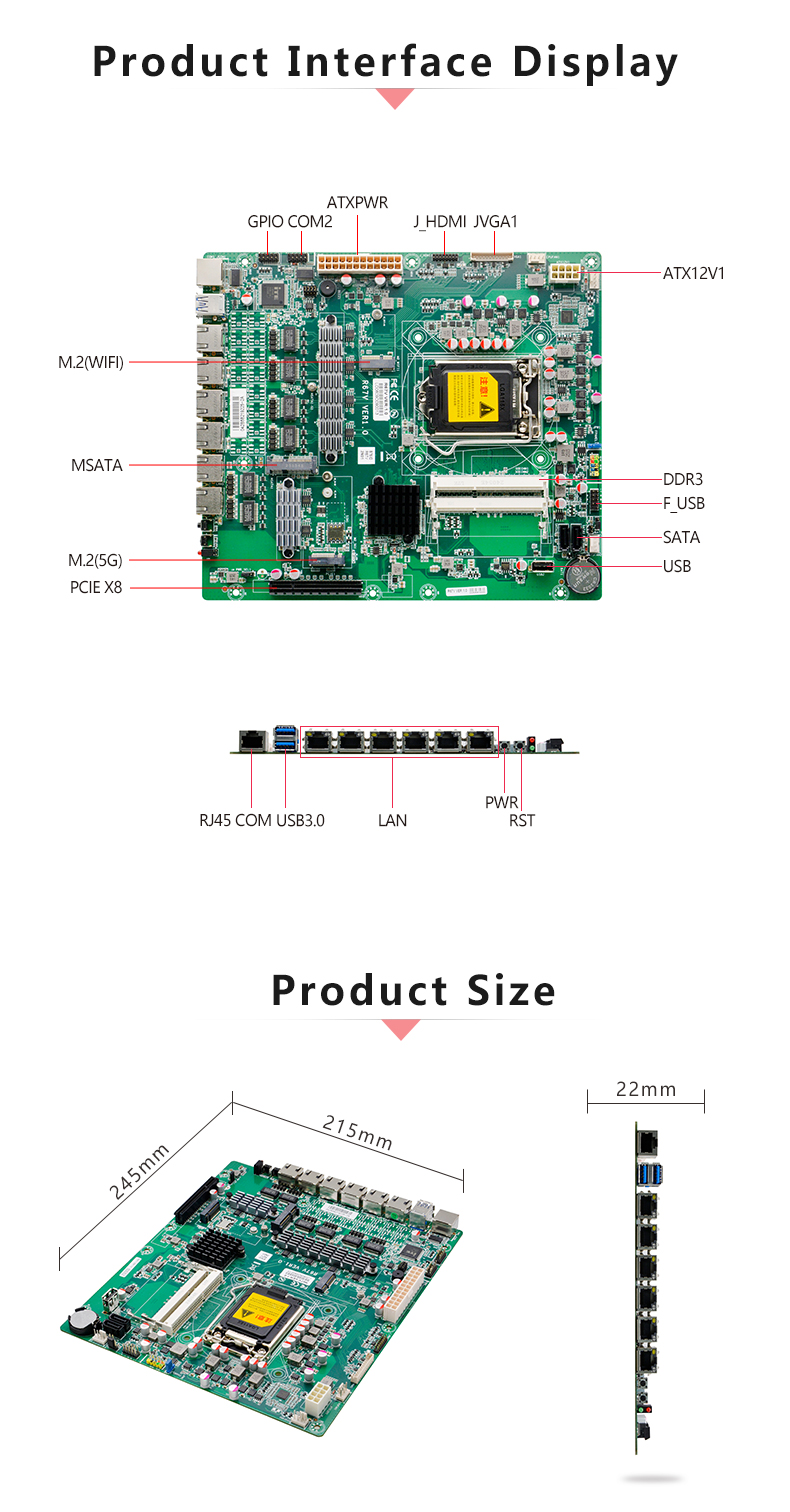

Size

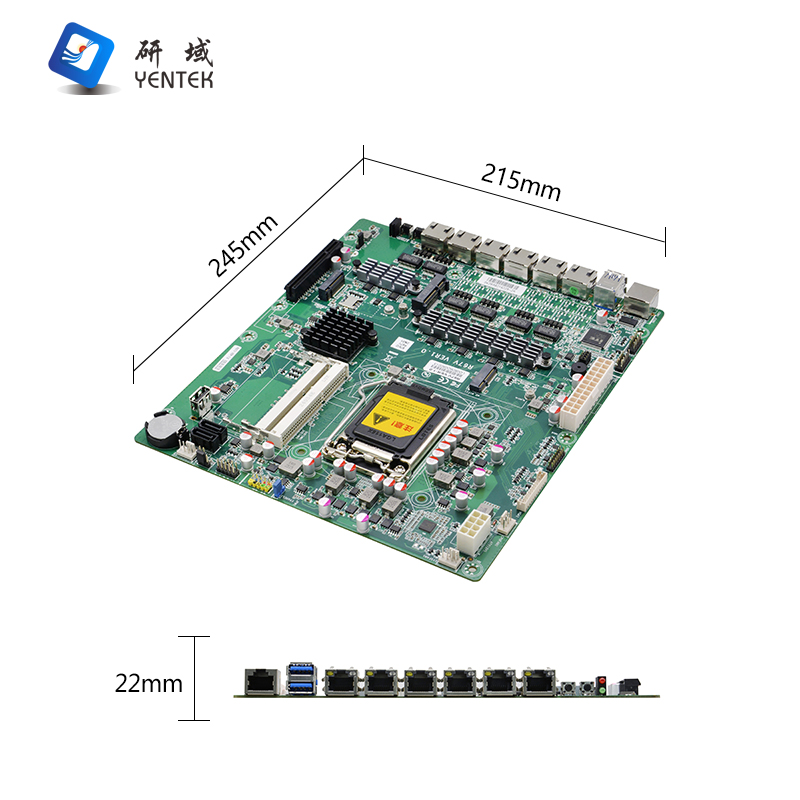

245mm x 215mm

1

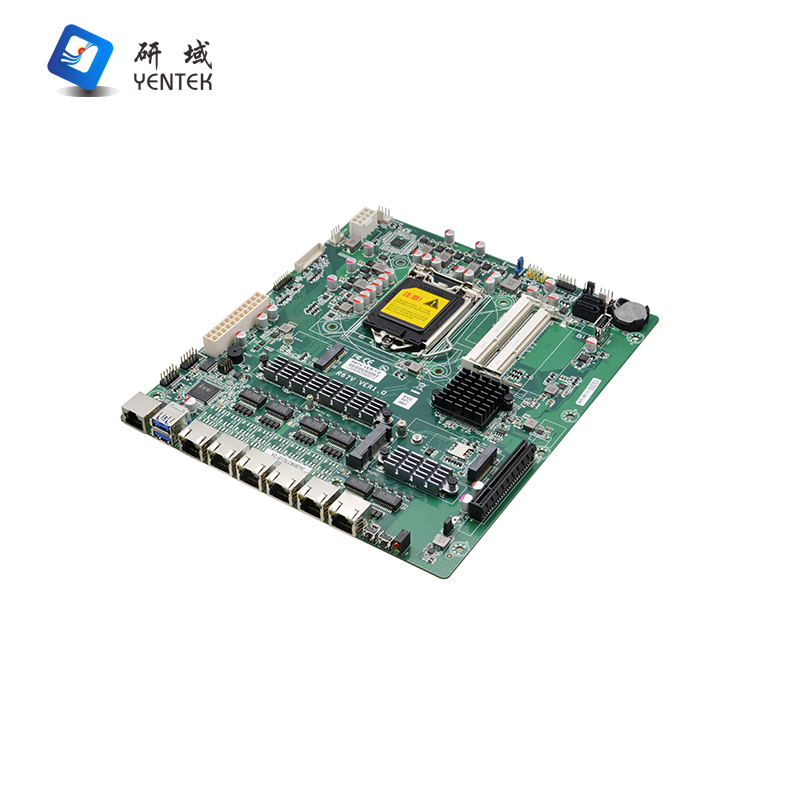

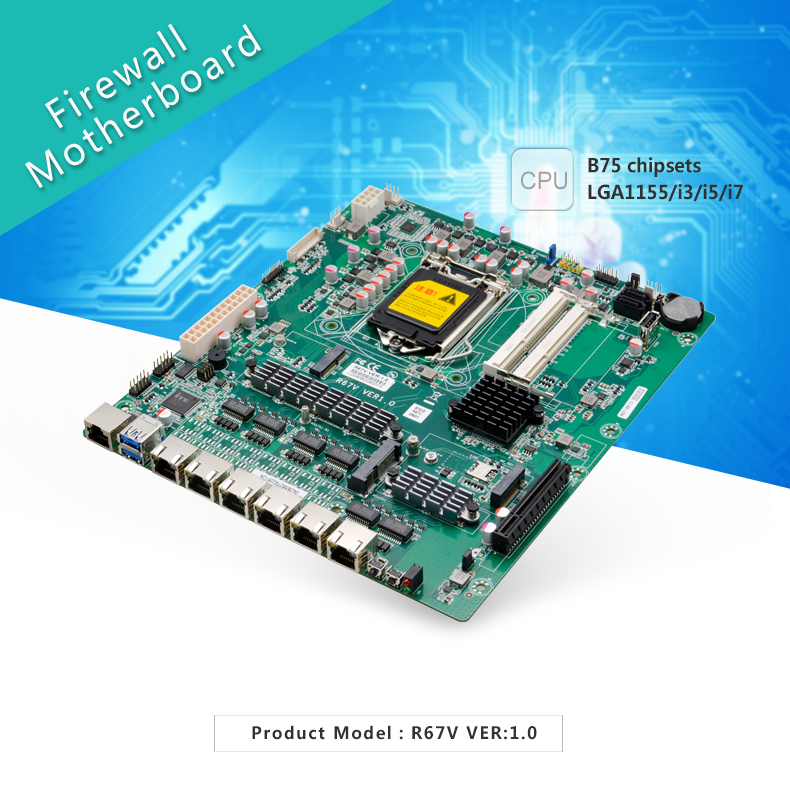

R67V VER:1.0

LGA1155

B75

2*SODDR3

1

1

/

6*I226V

5

2

1

ATX
