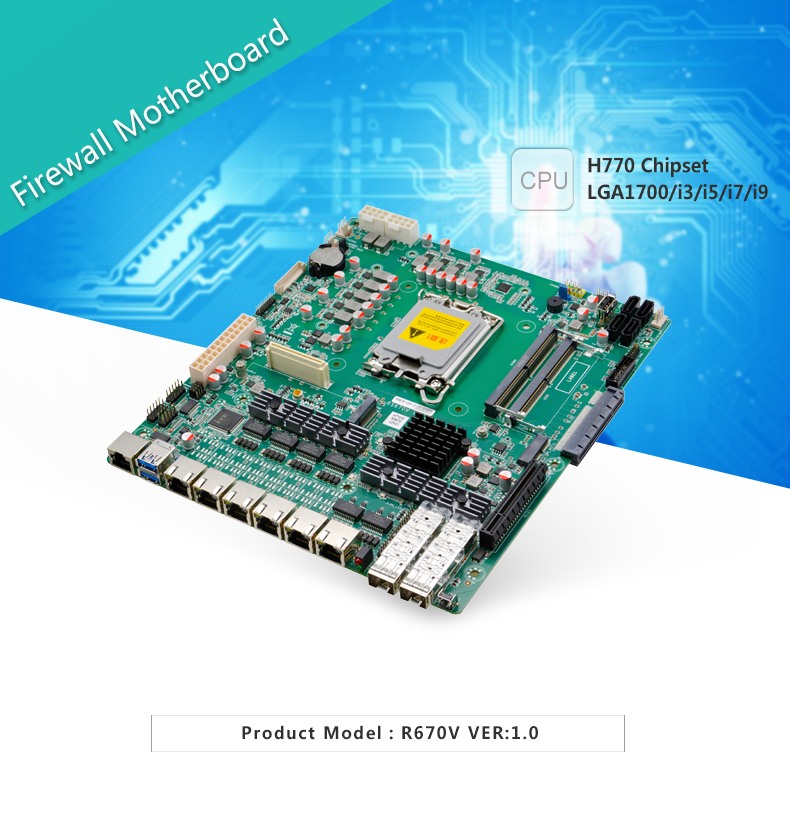

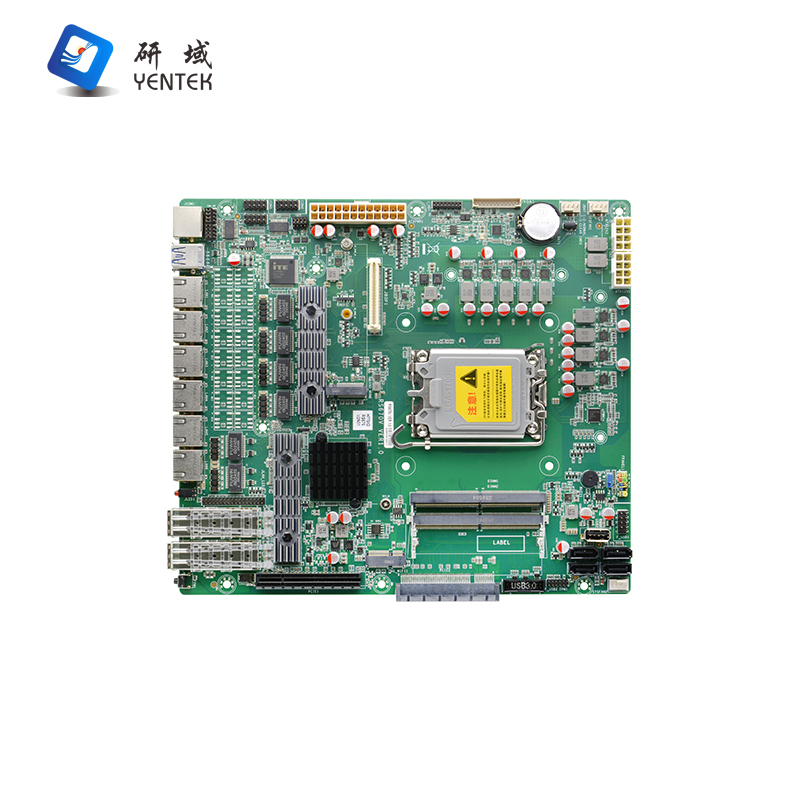

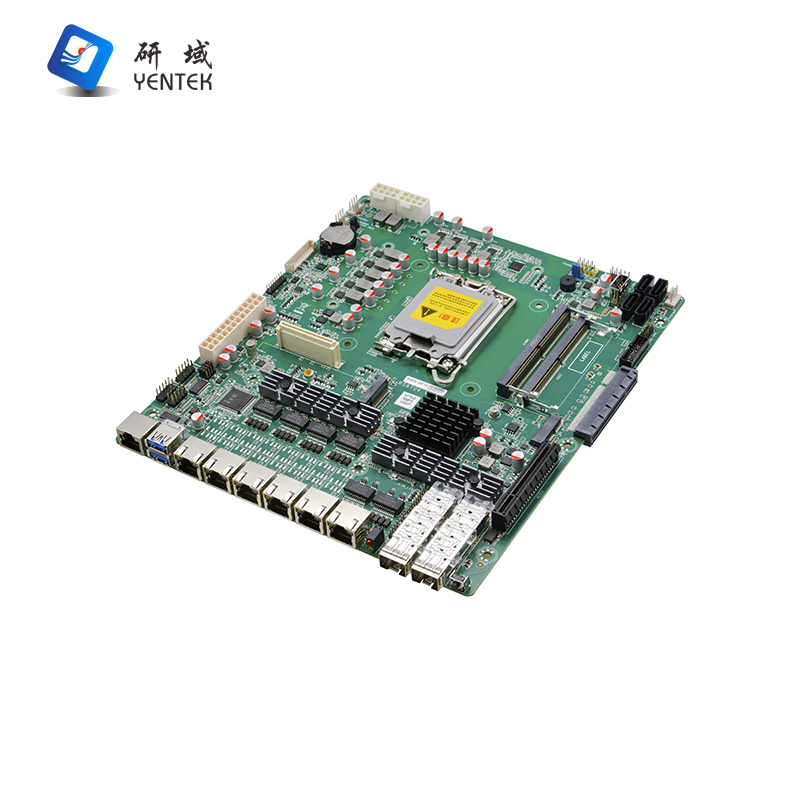

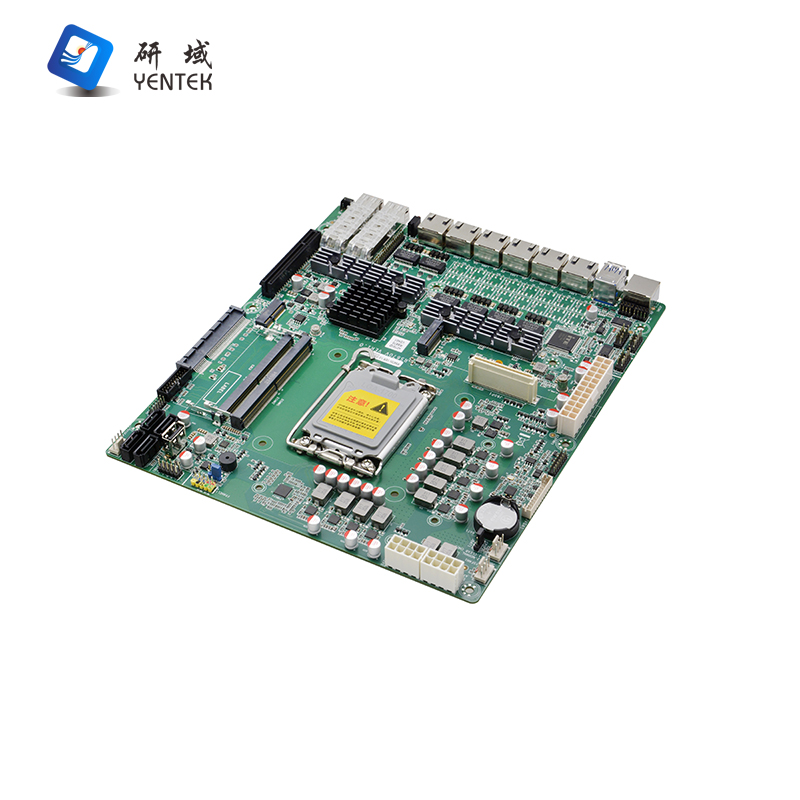

RS670V

Processor

Supports   LGA1700 12th/13th/14th generation Intel® Celeron/Pentium/Core™ i3/i5/i7/i9   processors

Chipset

Features Intel® H770 chipset

Memory

2x DDR5 SODIMM memory slots, supporting   up to 5600MHz memory with maximum capacity of 64GB

Display

Integrated Intel® HD Graphics supporting   DirectX 12.1, OpenGL 4.5, and 4K display

1x VGA port supporting maximum   resolution of 1920x1200 @ 60Hz

1x HDMI 1.4 port, supporting maximum   resolution 4096x2160 @24Hz

Network

6x Intel I226V 2.5G network interface,   supporting Wake-on-LAN and PXE functionality

2x Intel I210AS Gigabit fibre ports

Storage

4x SATA 3.0 hard drive interfaces,   transfer speeds up to 6Gbps, supporting RAID 0,1,5,10

1x M.2 slot, supporting M.2 Key M 2280   NVMe PCIe 3.0 x4/SATA auto-adaptive

Audio

N/A

Expansion Slots

1x PCIe x8 slot

1x PCIe x8 slot (side-mounted)

Note: The final signal group within the   vertical x8 signal path is configured as a single PCIe x1 signal via resistor   switching. (BOM defaults to x8 signal)

1* M.2 slot, supporting Wi-Fi and   Bluetooth modules

1* 80-pin high-speed header, containing   COM3-6 TTL full-line signals and 2*PCIe

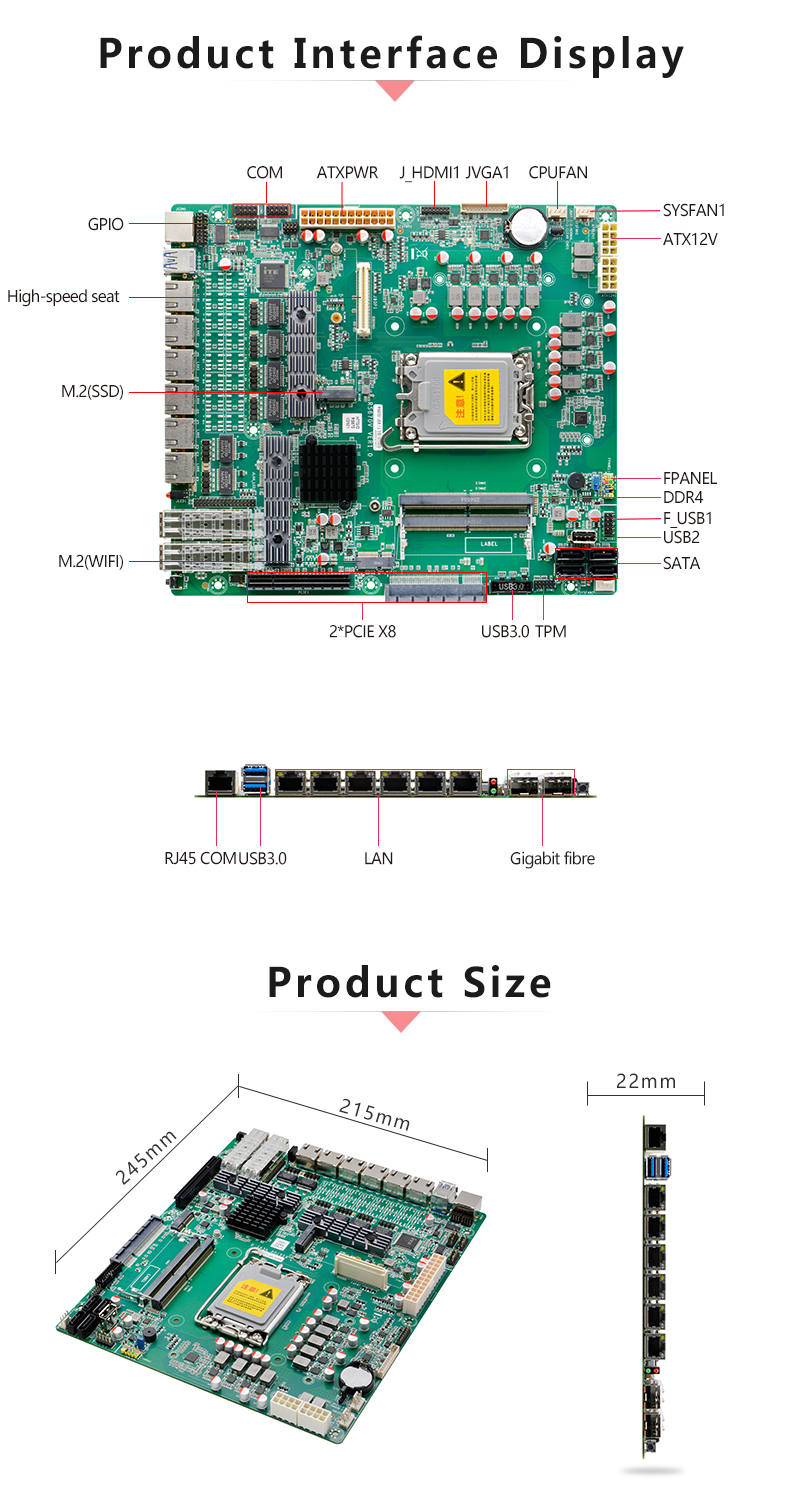

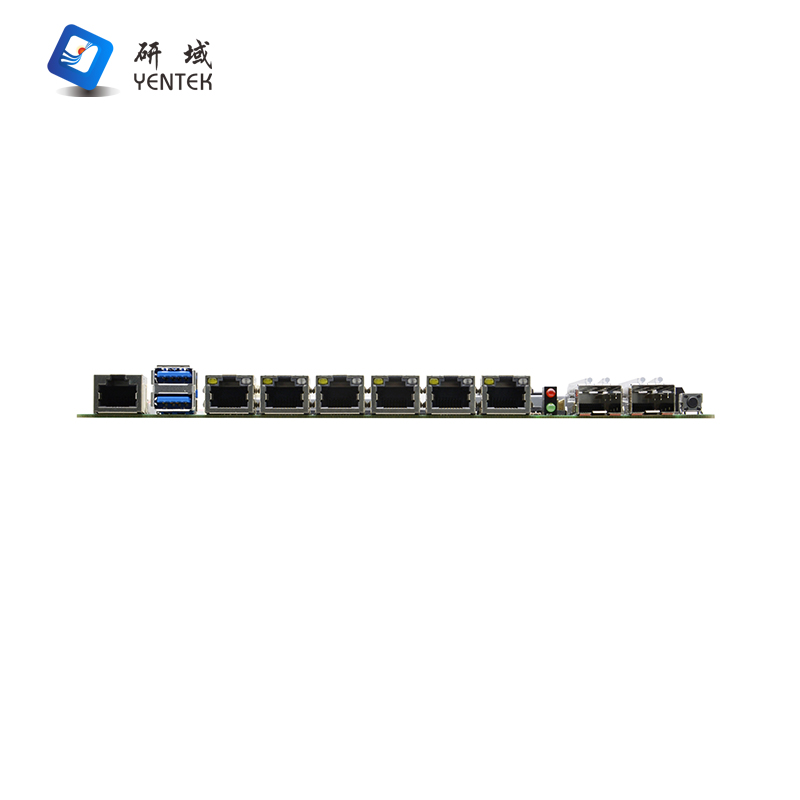

Rear Panel I/O Ports

1* RJ45 serial port, shared with 2*5-pin   serial header pins

2* USB 3.0 ports

6* RJ45 Gigabit Ethernet ports

2* Gigabit fibre optic ports

1* Power switch

1* Dual-layer LED indicator (top   red/bottom green; top indicates hard drive activity, bottom indicates power   status)

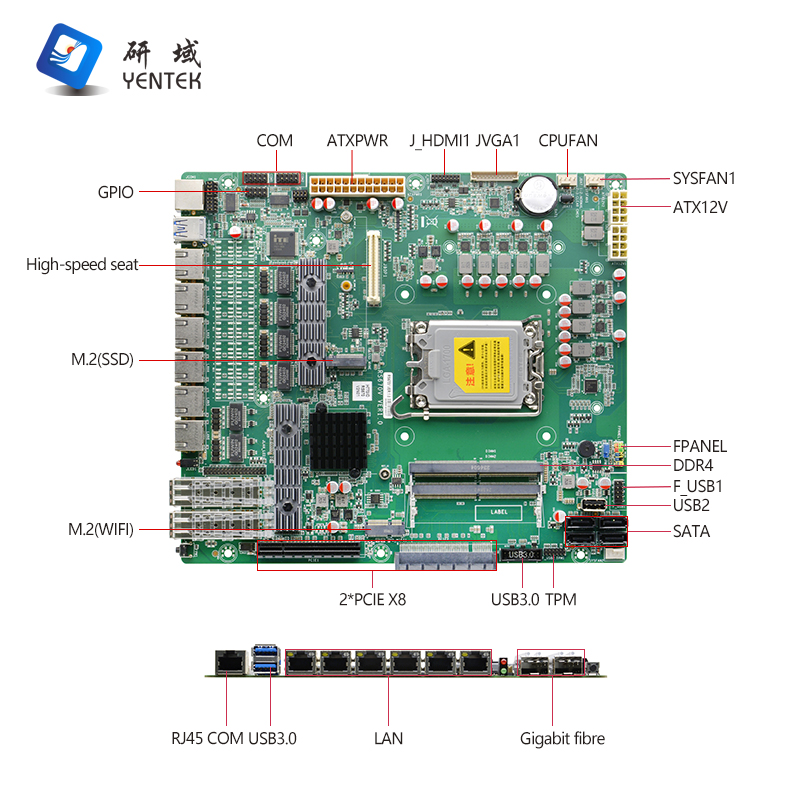

Built-in I/O Ports

2* USB 2.0 ports (2x 5-pin headers)

2* USB 3.0 ports (2x 10-pin headers)

1* Single-layer USB 2.0 port

1* JVGA header connector (1x 12-pin)

1x JHDMI header connector (2x8-pin)

2x RS232 serial ports (2x5-pin), RS485   compatible; COM1 and external RJ45 are mutually exclusive

1x Front panel switch button and   indicator connector (2x5-pin)

1x Network port indicator (2x17-pin)

1* 24-pin ATX power connector

2* 2x4-pin ATX power connectors

1* TPM header 2x6-pin

Fan Connectors

1* 4-pin CPU intelligent fan header, 2*   4-pin system fan headers

GPIO

Supports 4-channel input/output GPIO functionality

BIOS

128Mb Flash ROM

Watchdog

Supports hardware reset function (256   levels, 0–255 seconds)

Power Supply Type

Powered by ATX power supply

Operating System

Windows 10 / Linux

Operating Temperature

-10°C to 60°C

Storage Temperature

-20°C to 70°C

Operating Humidity

5%–95% relative humidity, non-condensing

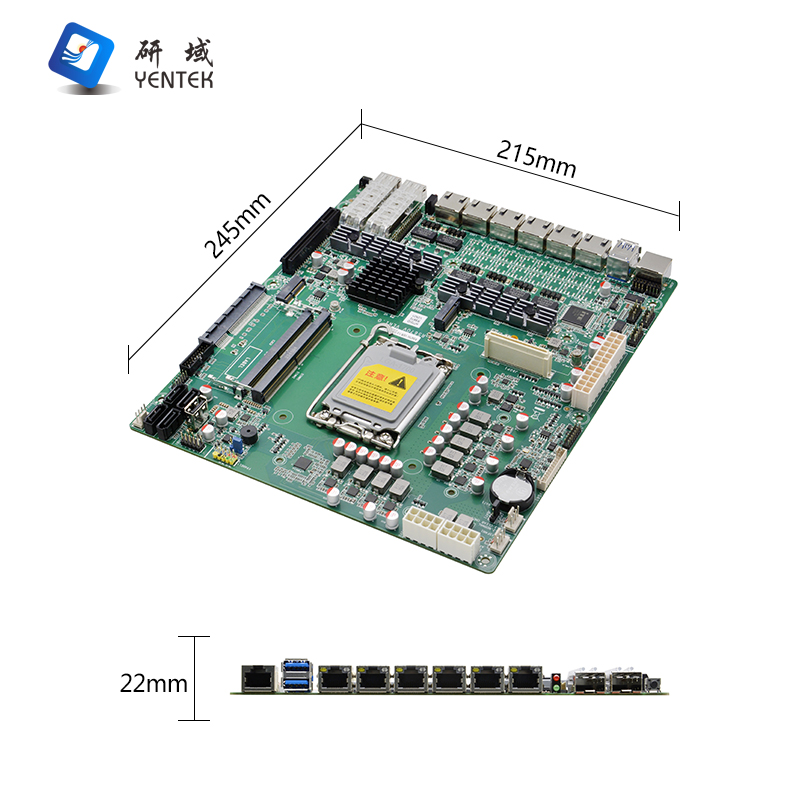

Dimensions

245mm x 215mm
