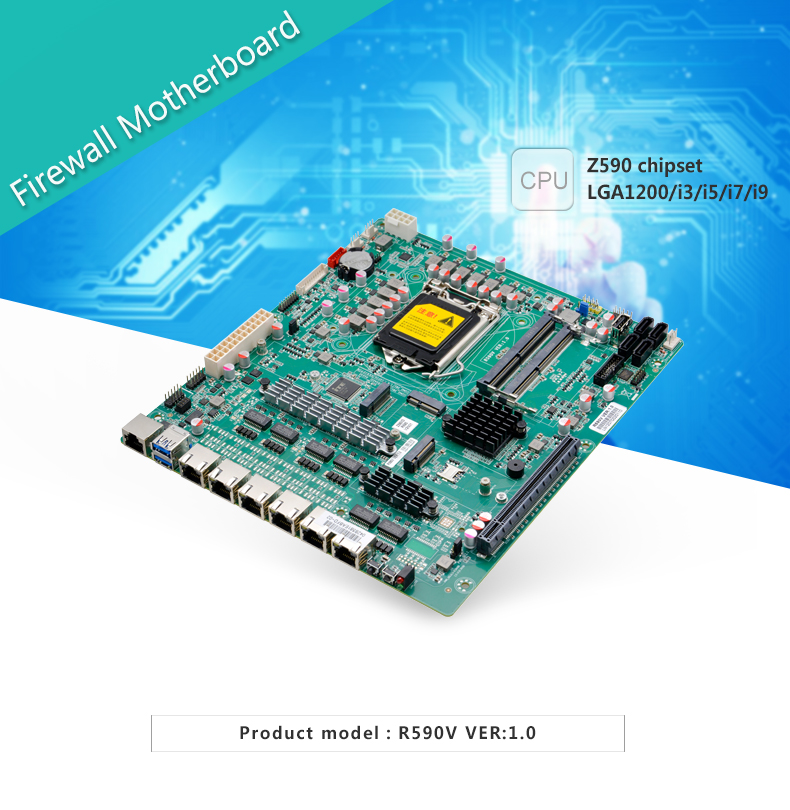

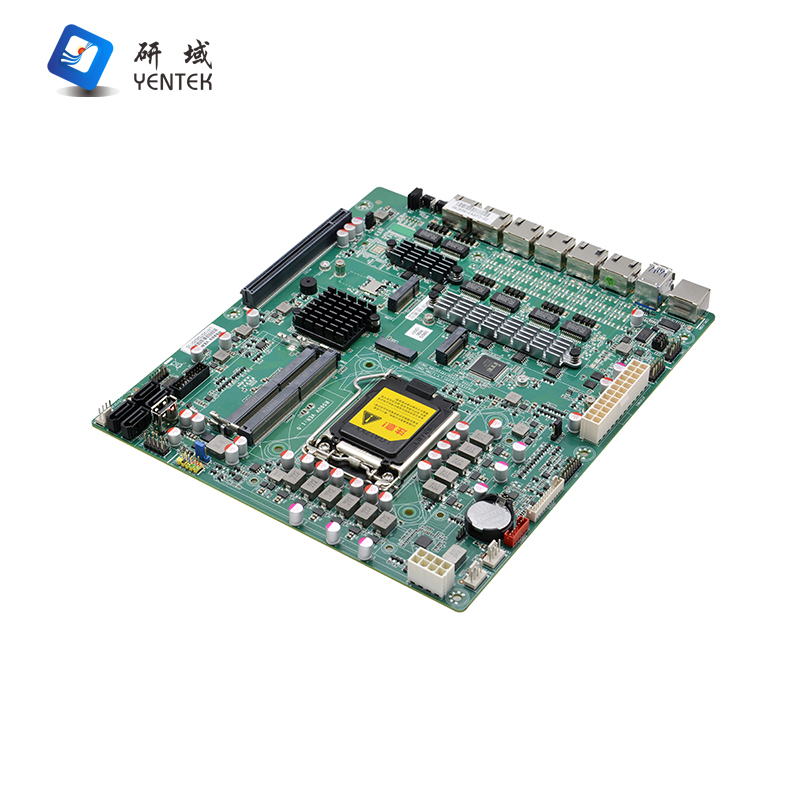

R590V

Processor

Supports LGA1200 10th/11th generation Intel®   Celeron/Pentium/Core™ i3/i5/i7/i9 processors

Chipset

Features the Intel® Z590 high-speed chipset

Memory

2x SODIMM memory slots, supporting 3200MHz DDR4 memory, with   a maximum capacity of 128GB

Display

Integrated Intel® HD Graphics core graphics card

1x HDMI port, 1x VGA port

Network

6x Intel I226V Gigabit Ethernet ports, supporting network   wake-up and PXE functionality

Storage

4x SATA 3.0 hard drive ports, with transfer speeds up to   6Gbps, supporting RAID 0, 1, 5, 10

1x M.2 slot, supporting M.2 Key M 2242/2280 PCIe x4/SATA   adaptive standard SSD

Audio

N/A

Expansion Slots

1* M.2 slot, supporting M.2 Key B 3042/3052 5G modules

1* PCIe x16 slot, supporting splitting into 2 x8 slots

1* M.2 slot, supporting M.2 Key E 2230 Wi-Fi modules

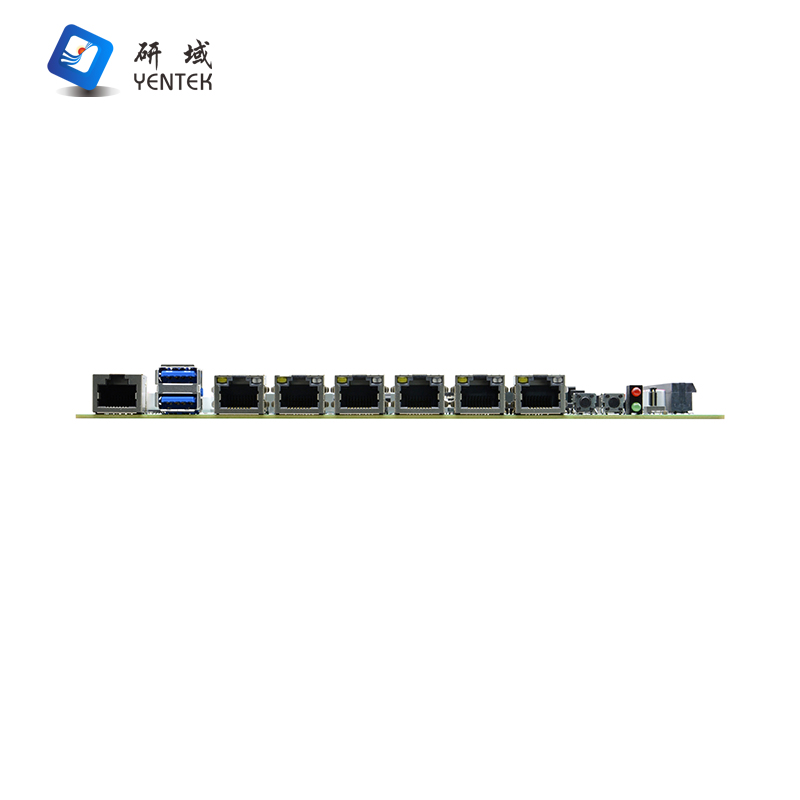

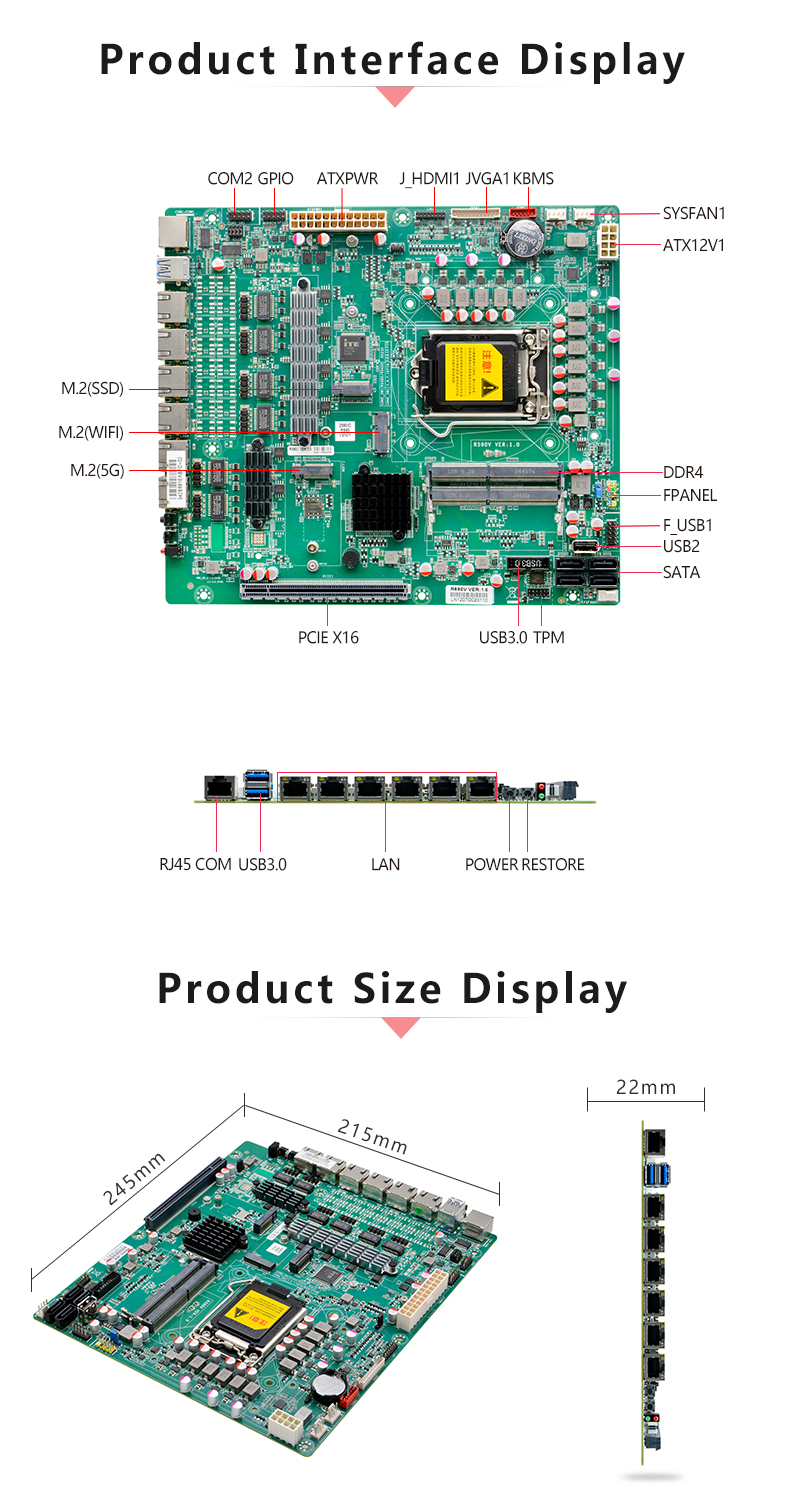

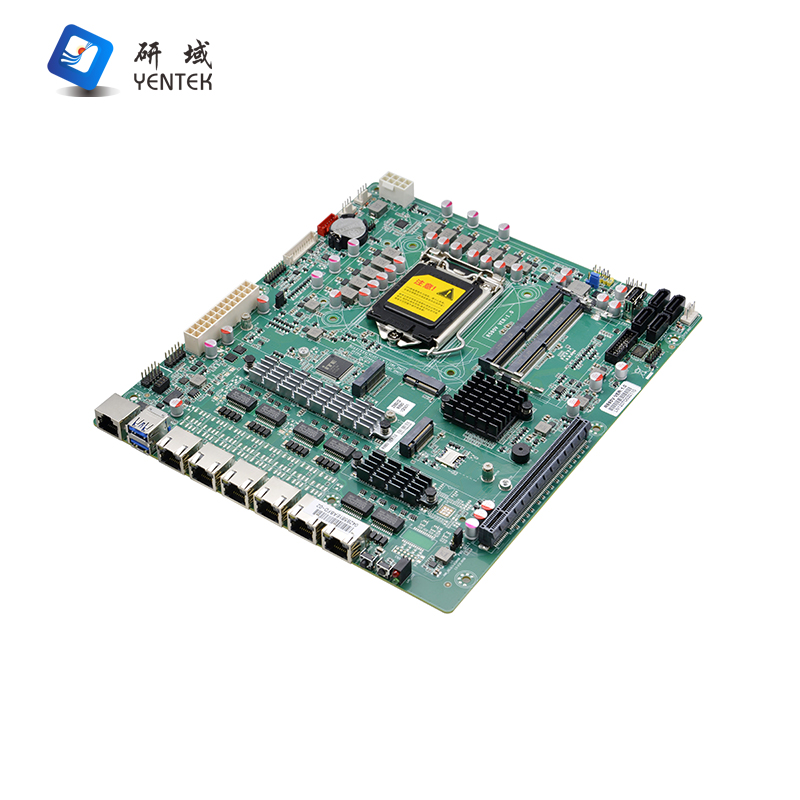

Backplane I/O Ports

1* RJ45 serial port (shared with 2*5-pin serial port headers)

2x USB 3.0 ports (5 Gbps)

6x RJ45 Gigabit Ethernet ports

1x Power switch, 1x One-button reset

1x Dual-layer LED lights (red top, green bottom; top layer   for hard drive, bottom layer for power)

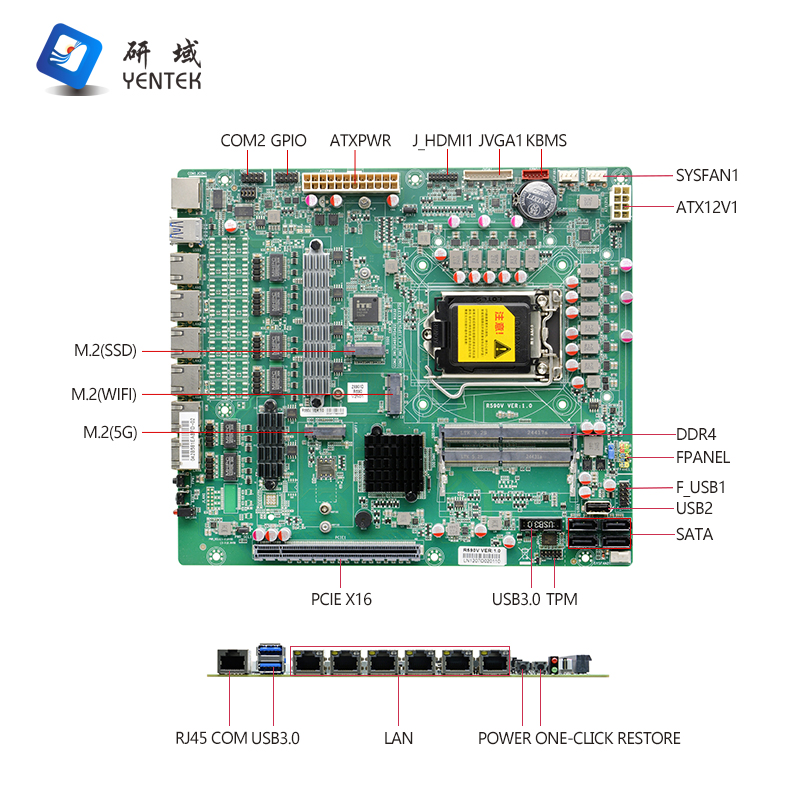

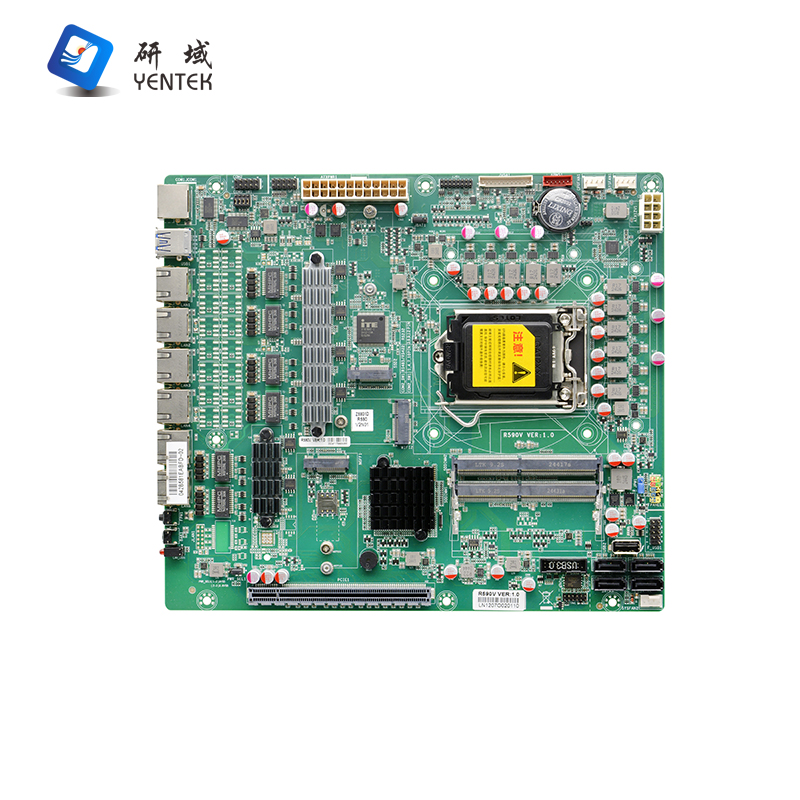

Built-in I/O Ports

1x JVGA1 port 1x 12-pin

1x JHDMI port 2x 8-pin

2x USB 2.0 ports (2x 5-pin)

2x USB 3.0 ports (2x 10-pin)

1x Single-layer USB 2.0 port

1x RS232 serial port (2x 5-pin), supports RS485

1x PS/2 keyboard/mouse port (1x 6-pin, red)

1x GPIO header (4 input/4 output)

1* Front panel switch button and indicator light interface   2*5-pin

1* 24-pin ATX power interface

1* 2*4-pin ATX power interface

1* SIM card slot

1* TPM interface 2*6-pin

Fan Ports

1*4-pin CPU smart fan interface, 2* 4-pin system fan   interface

GPIO

Supports 4-channel input/output GPIO   functionality

BIOS

128MB Flash ROM

Watchdog

Supports hardware reset function (256 levels, 0–255   seconds)

Power Type

Powered by ATX power supply

Operating System

Windows 10 / Linux

Operating Temperature

-10°C to 60°C

Storage Temperature

-20°C to 70°C

Operating Humidity

5%–95% relative humidity, no condensation

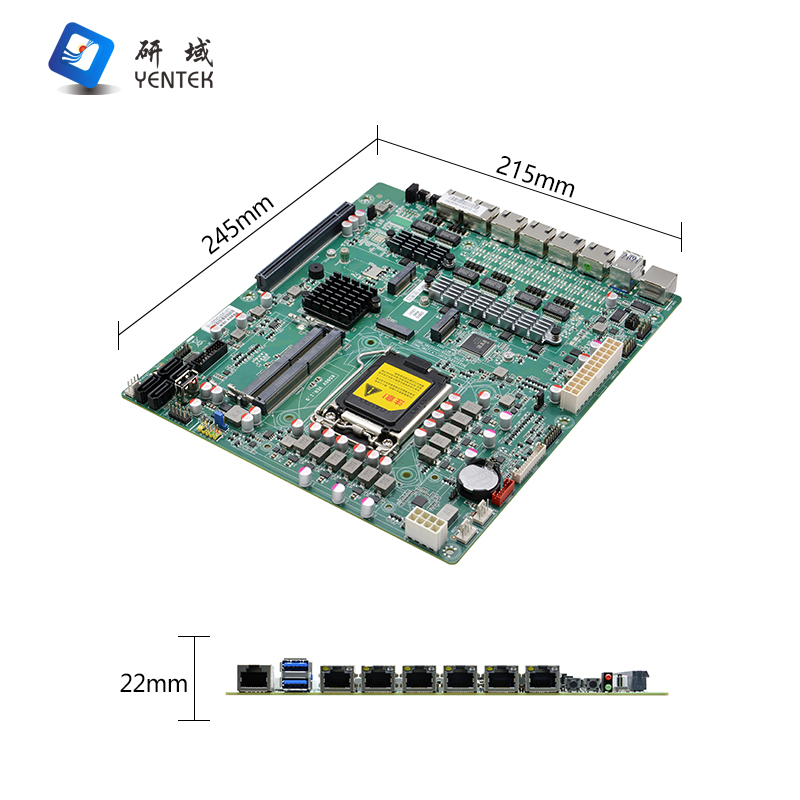

Dimensions

245mm x 215mm

1

R590V_B VER:1.0

LGA1200

Z590

2*SODDR4

1

1

/

6*I226V

7

2

1

2

ATX

2

R590V VER:1.0

LGA1200

Z590

2*SODDR4

1

1

/

6*I226V

7

2

1

/

ATX
