Processor

Integrated Intel® Alder Lake-N N97 3.6GHz quad-core processor,   TDP 12W

Compatible with the   full range of Intel® Alder Lake-N CPUs, available for customer flexibility

Chipset

SOC

Memory

1* SODIMM slot, supports single-channel 3200MHz DDR4 memory,   up to 32GB

Display

Integrated Intel® UHD Graphics core graphics card supports   DirectX12.1, OpenGL4.5, supports 4K display

1* VGA interface, support for the highest resolution:   1920X1200@60Hz

Network

6* Intel I210AT Gigabit LAN card, support for Wake-on-LAN,   PXE, support for the BYPASS function of the 2 groups

Storage

1* SATA3.0 hard drive interface, transfer speed up to 6Gbps.   1* SATA3.0 HDD interface, transfer speed up to 6Gbps

1* M.2 slot, support M.2 2280 NVME PCIE X1/SATA Adaptive SSD

Audio frequency

N/A

Expansion Slot

1* M.2 slot, support M.2 2230 WIFI module

1* M.2 slot, support M.2 Key B 2242/2252 5G module

1* PCIE X1 slot

Note: The M.2 slot of the WIFI and PCIE X1 slot/5G is triple   choice, default on PCIE X1 slot

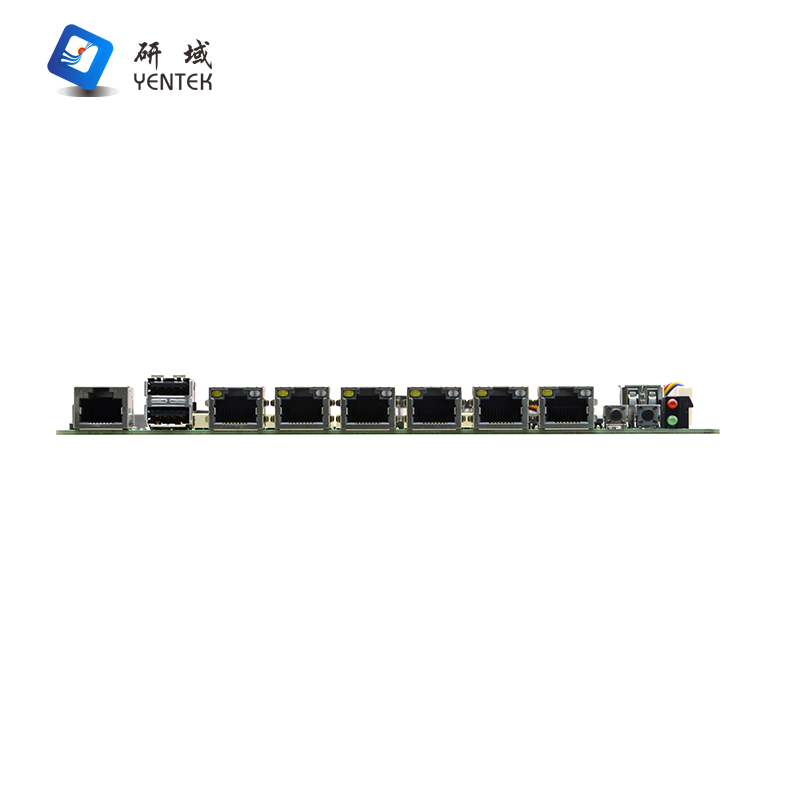

Backplane I/O Ports

1* RJ45 serial port (co-located with 2*5pin serial pins)

2* USB2.0 interface

6* RJ45 Gigabit network interface

1* Power switch, 1* One-Key Restore

1* Dual-layer LEDs, (upper red and lower green, upper HDD   light, lower power light)

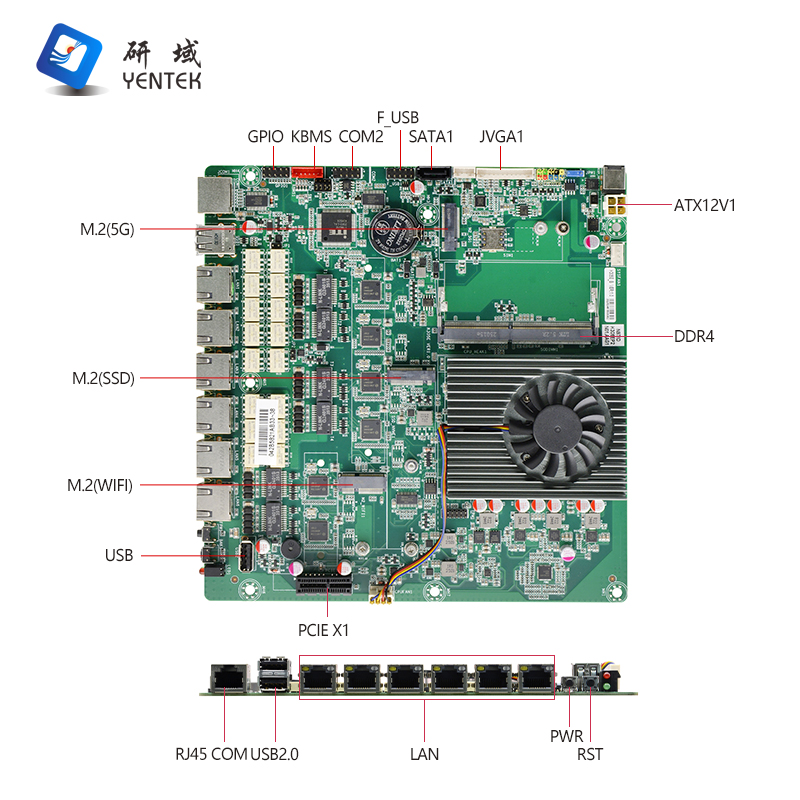

Built-in I/O Interface

1* JVGA1 connector 1* 12pin 1* RS232 serial interface 12pin

1* RS232 serial interface 2*5pin,COM2 support RS485

1* Single-layer vertical USB2.0 interface

2* USB2.0 interface 2*5pin ,

1* PS/2 keyboard and mouse interface (red) 1*6Pin

1* GPIO pin (four-in-four-out)

1* Front panel switch buttons and indicator interface 2*5Pin

1* HDD power supply interface 1*4pin

1* DC12V power supply interface, support 12V power input   (side)

1* ATX power supply interface 2*2pin (can be used as DC12V   input power supply interface)

1* SIM card holder

Fan Interface

1*4pin CPU smart fan interface, 1* 4pin system fan interface

GPIO

Support 4-way input/output GPIO function

BIOS

128Mb Flash ROM

Watchdog

Support Hardware Reset Support hardware reset function (256   levels, 0~255 seconds)

Power Type

Adopt DC 12V power supply

Operating System

Windows 10 /11/Linux

Operating Temperature

-10℃～60

Storage Temperature

-20℃～70℃

Operating Humidity

5%-95% relative humidity, non-condensing

Size

200mm x 193mm

1

K305E VER:1.0(N97)

N97

3.6G

1*SODDR4

1

/

/

6*I210AT

5

2

COM2

/

DC/12V

2

K305E_B VER:1.0(N97)

N97

3.6G

1*SODDR4

1

/

/

6*I210AT

5

2

COM2

2 groups

DC/12V

3

K305E VER:1.0(N305)

N305

3.8G

1*SODDR4

1

/

/

6*I210AT

5

2

COM2

/

DC/12V
