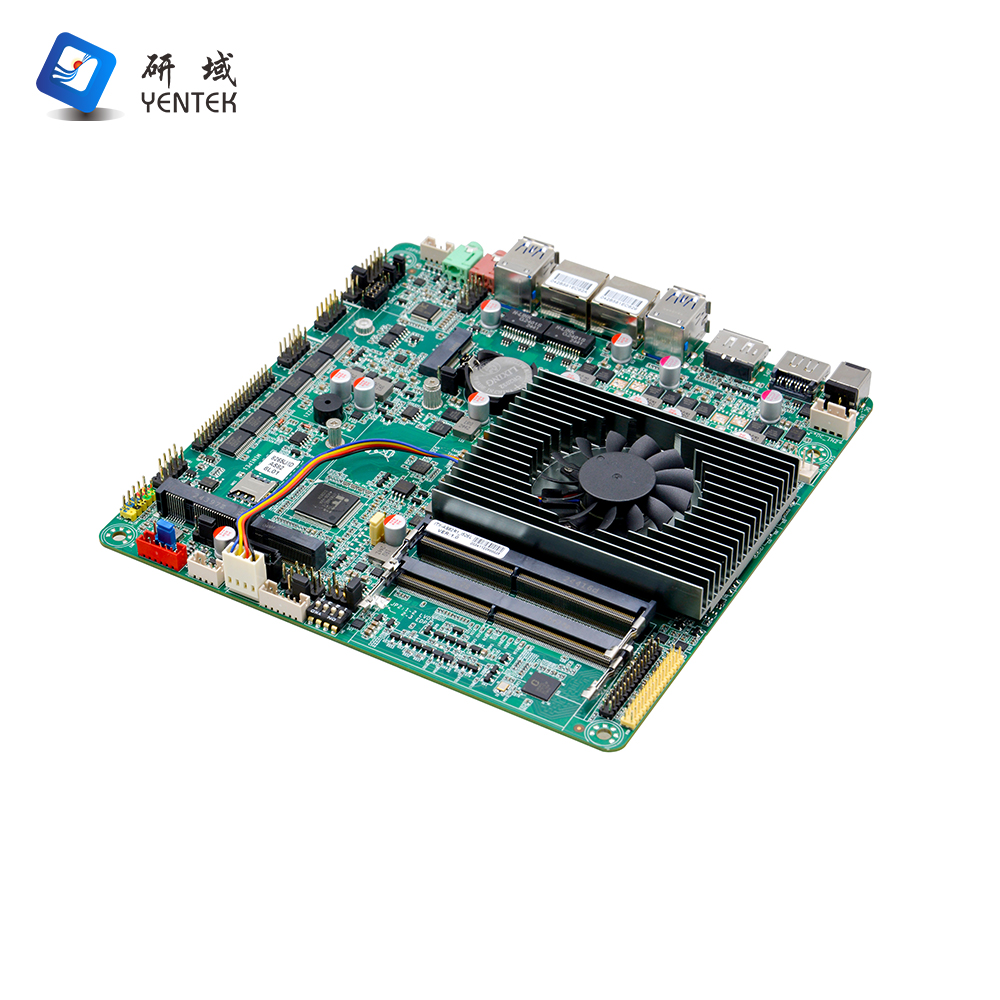

ITX-AS82R1_I526L

Processor

Integrated 8th Generation Intel® Core™ i5-8265U processor at   1.6GHz with quad-core and eight threads, TDP 15W

Compatible with Intel® Whiskey Lake-U/Comet Lake-U/Coffee   Lake-U 8th/10th Gen Celeron/Pentium/i3/i5/i7 low-power processors

Chipset

System-on-Chip (SOC)

Memory

2x DDR4 SODIMM memory slots, supporting 2400MHz memory,   maximum capacity 64GB

Display

Integrated Intel® UHD Graphics, supporting DirectX 12 and   OpenGL 4.5, 4K capable

1x HDMI 1.4 port, maximum supported resolution:   4096x2304@24Hz

1x DisplayPort interface, maximum supported resolution:   3840x2160 @ 60Hz

1x Dual-channel 24-bit LVDS interface,

1x EDP interface, shared with LVDS via jumper selection

Network

2x RTL8111H Gigabit Ethernet controllers, supporting   Wake-on-LAN and PXE functionality

Storage

1x SATA 3.0 hard drive interface, transfer speeds up to   6Gbps

1x M.2 slot, supporting M.2 2280 NVMe   PCIe x4/SATA adaptive standard SSDs

Audio

Integrated ALC897 7.1+2-channel high-fidelity audio   controller, supporting MIC, Line_out, and amplifier

Supports amplifier for 4Ω 3W speakers

Expansion Slots

1x M.2 slot supporting M.2 Key E 2230 Wi-Fi modules

1x Mini-PCIe slot supporting Wi-Fi/4G   modules

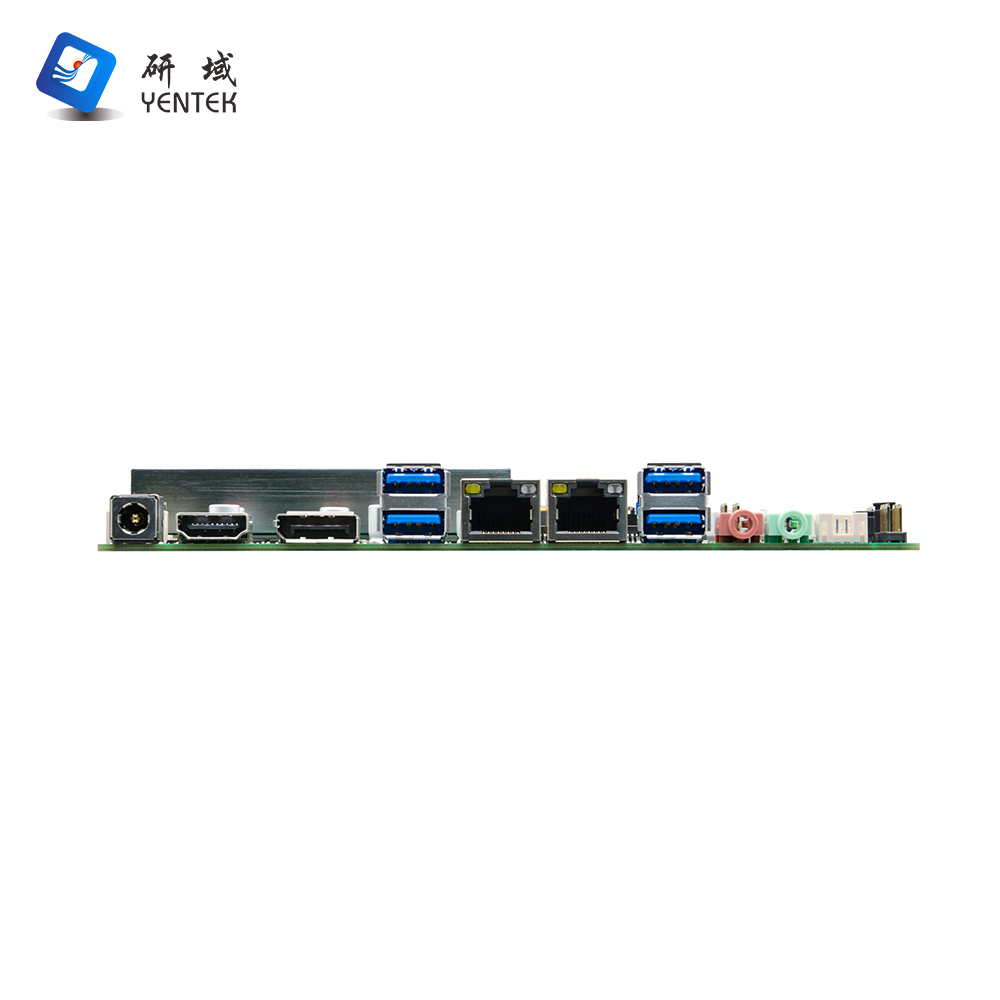

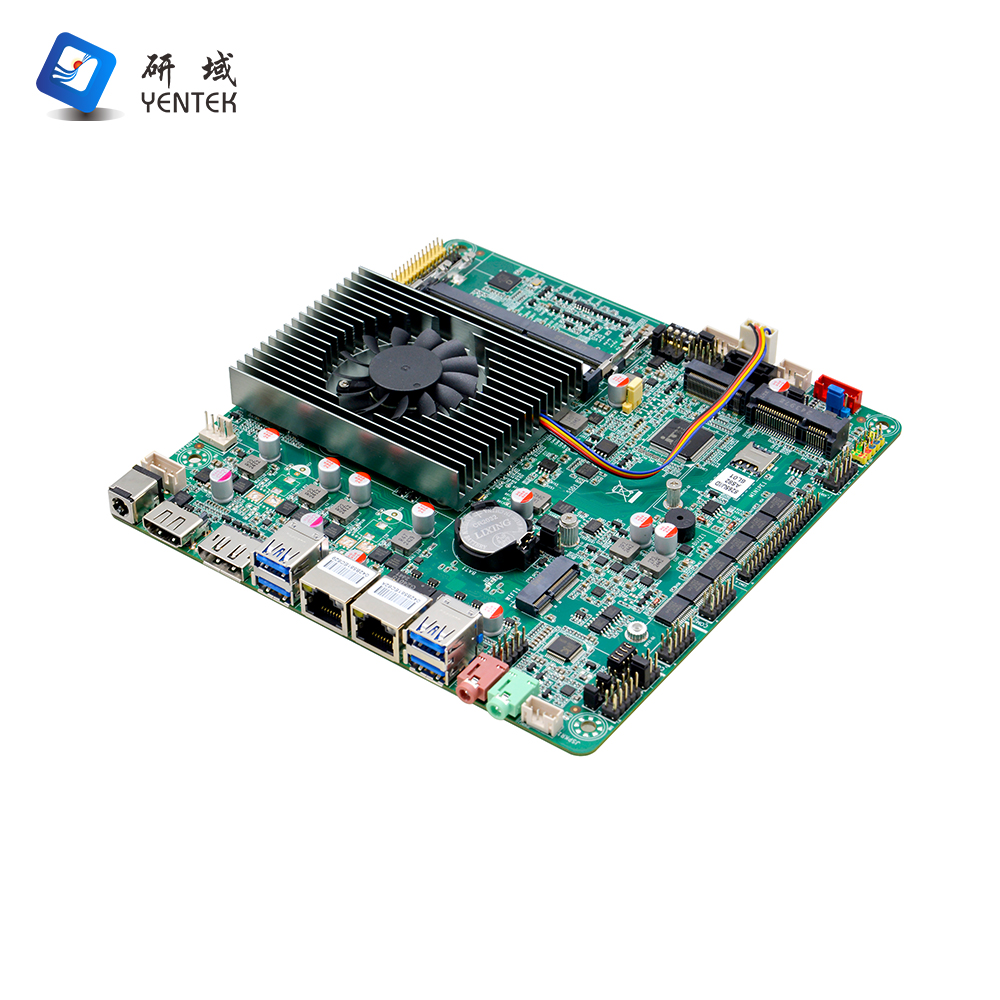

Rear Panel I/O Ports

4x USB 3.0 ports

1x HDMI 1.4 port, 1x DisplayPort

2x RJ45 Gigabit Ethernet ports

1x Line-out (green), 1x MIC (red)

1x DC12V power interface, supporting 12V power input

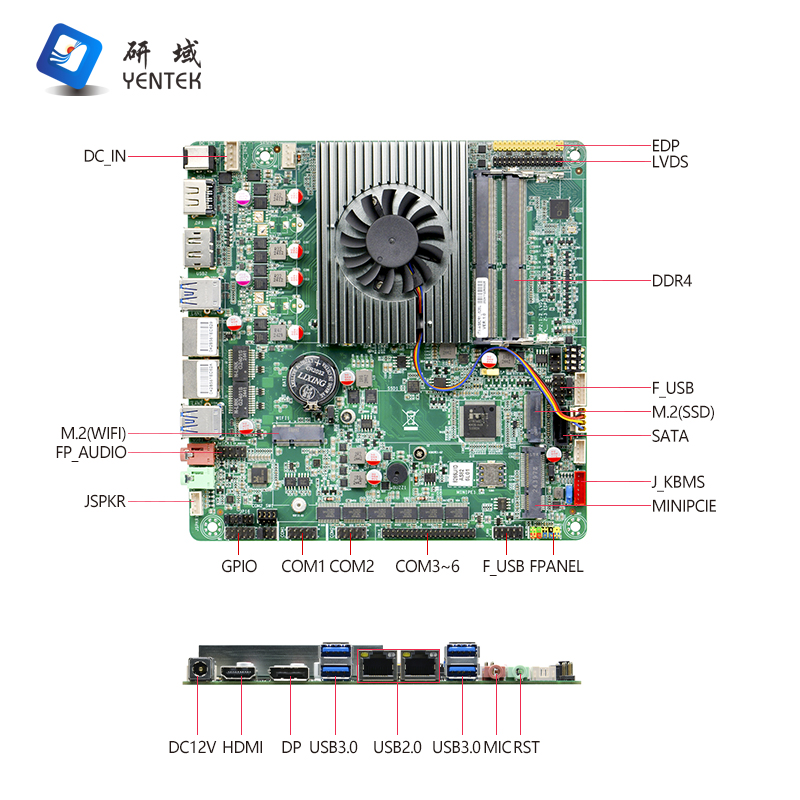

Integrated I/O Ports

1x LVDS interface (2x15-pin), supporting dual-channel 24-bit

1x LVDS backlight power supply interface (1x6-pin)

1x EDP interface (2x15-pin), selectable via jumper with LVDS

6x RS232 serial interfaces, COM1/2 support pin 9 power, COM2   supports RS485/422 functionality,

1x PS/2 keyboard/mouse interface (red) 1x 6-pin

4x USB 2.0 interfaces 2x 5-pin,

1x Front audio interface 2x 5-pin

1x Front Panel Switch Button and Indicator Interface 2x 5-pin

1x Hard Drive Power Interface 1x 4-pin

1x Amplifier Interface 1x 4-pin

1x DC Power Interface 1x 4-pin (Can function as 12V input   power interface)

1x SIM Card Slot

Fan Connectors

1x 4-pin CPU Intelligent Fan Interface, 1x 4-pin System Fan   Interface

GPIO

Supports 4-channel input/output GPIO   functionality

BIOS

128Mb Flash ROM

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Power Supply Type

Powered by DC 12V supply

Operating System

Windows 10 / Linux

Operating Temperature

-10°C to 60°C

Storage Temperature

-20°C to 70°C

Operating Humidity

5%–95% relative humidity, non-condensing

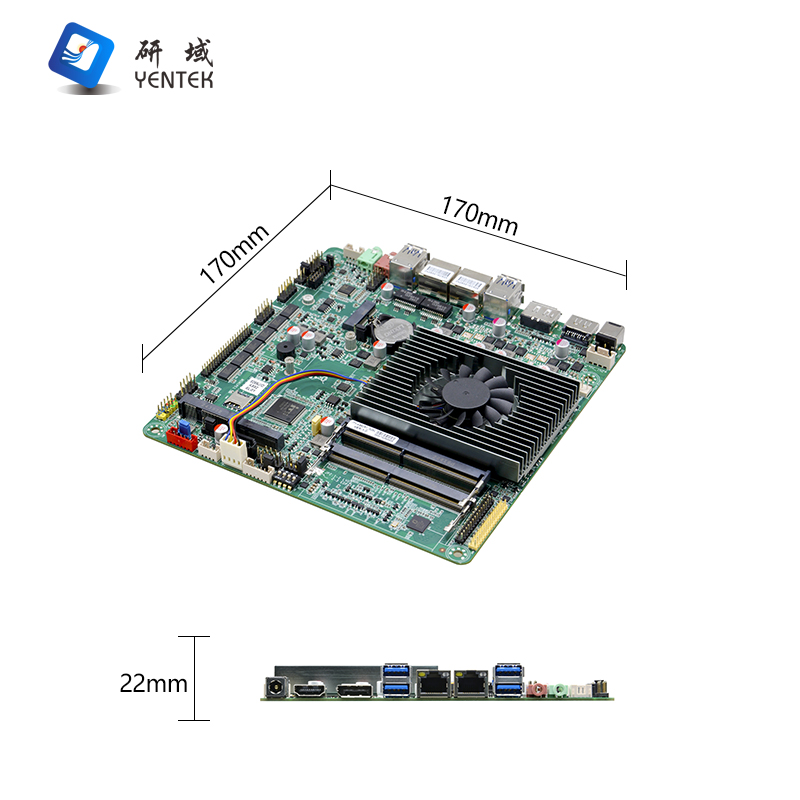

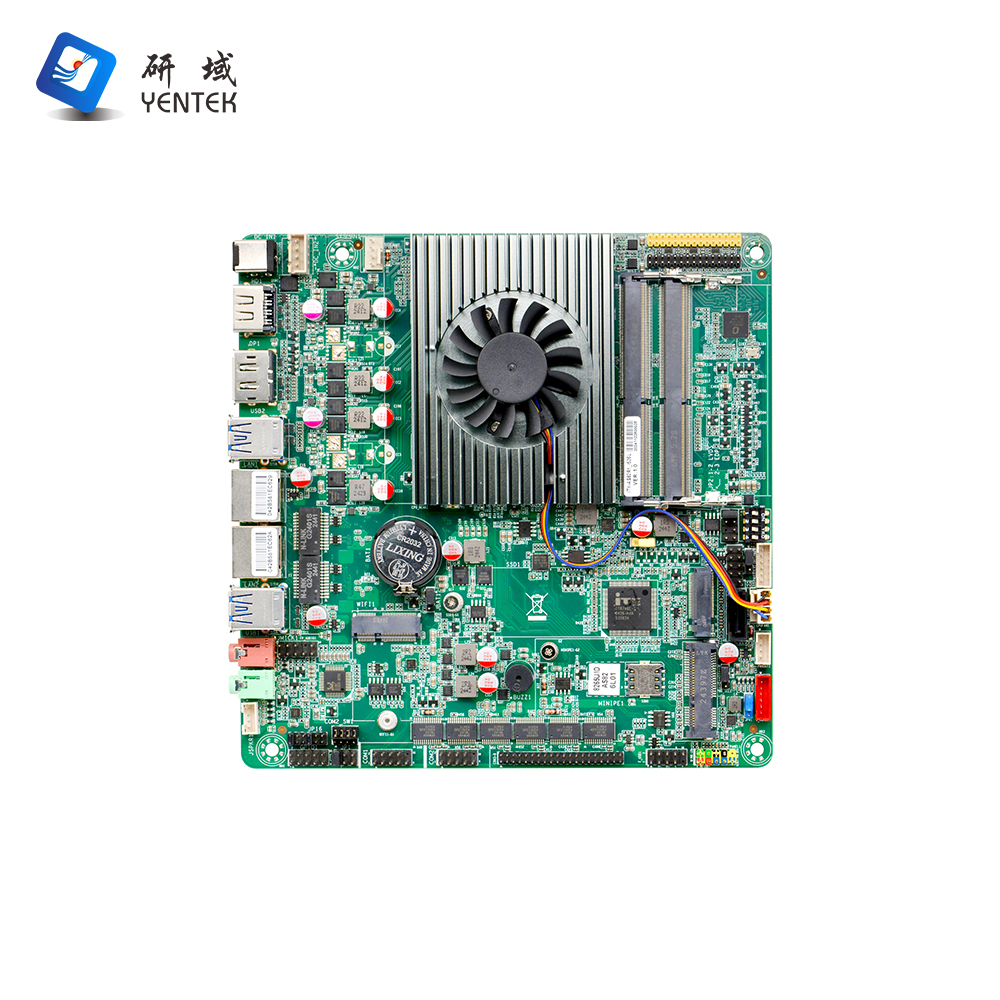

Dimensions

170mm x 170mm
