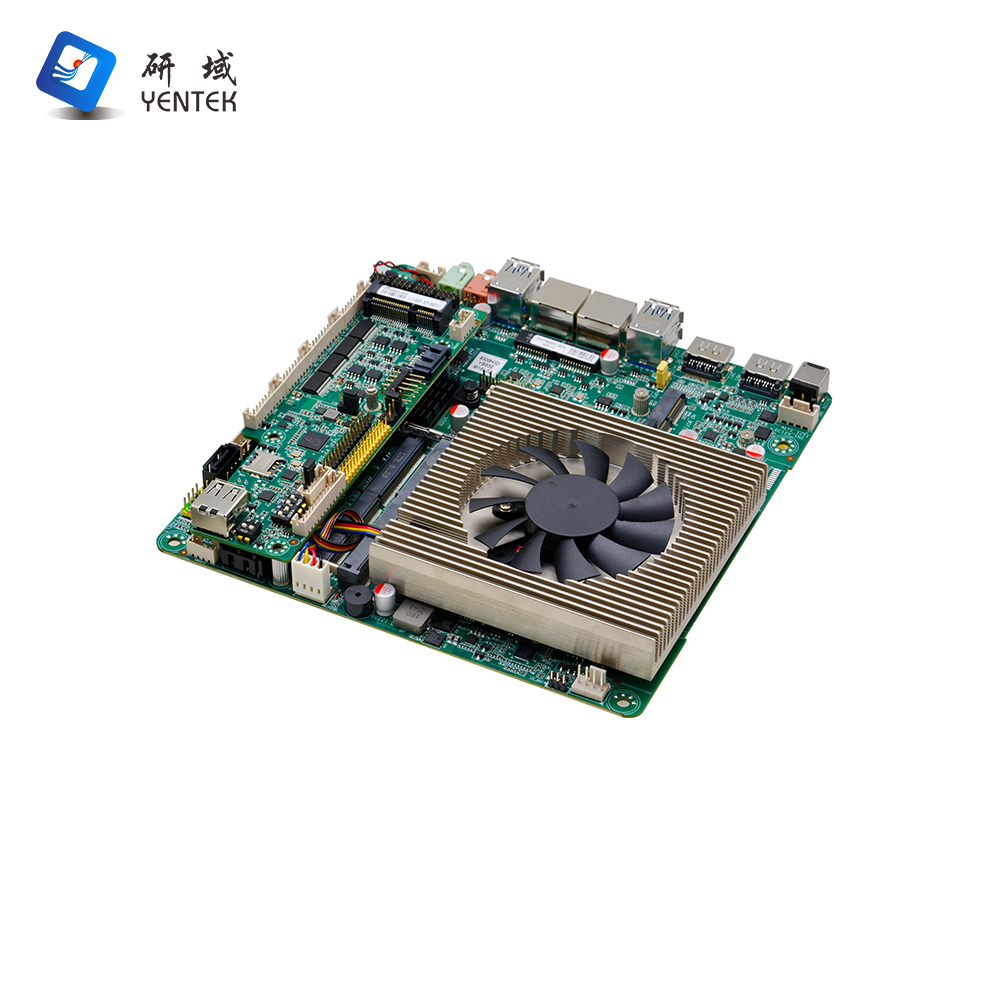

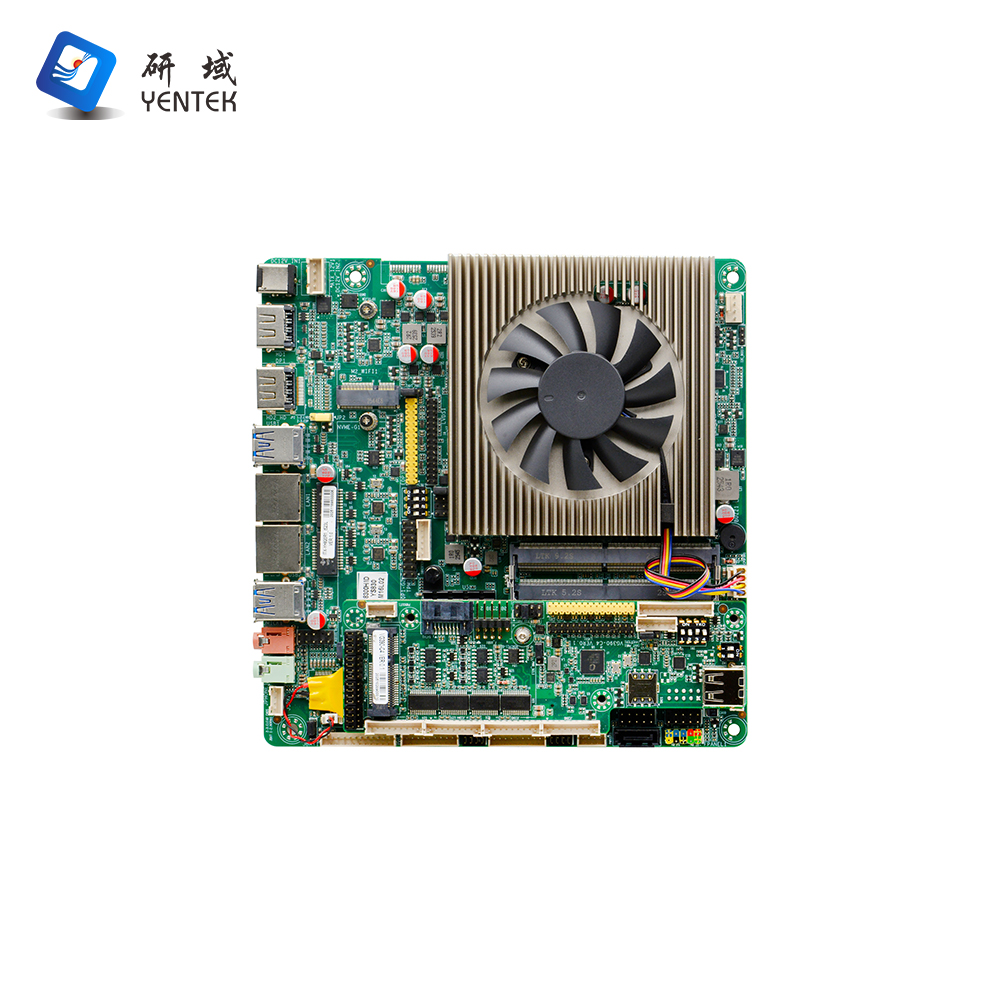

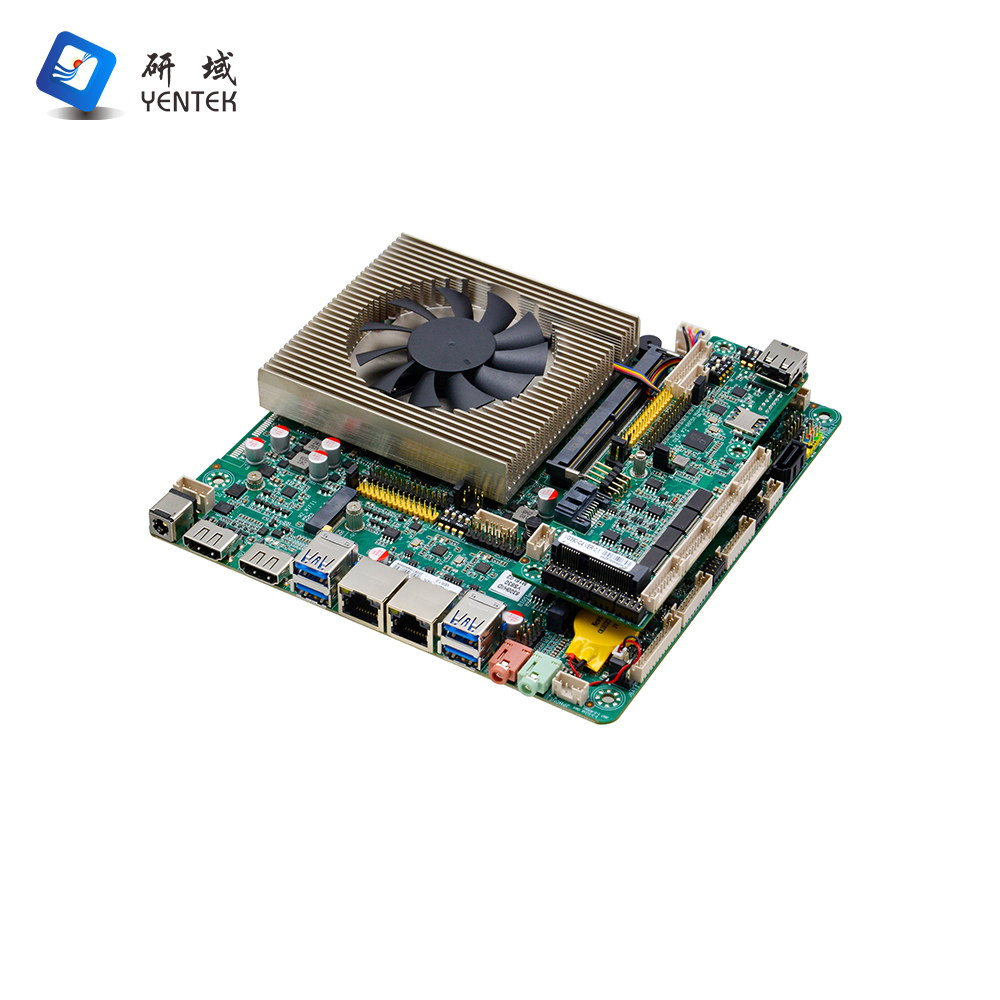

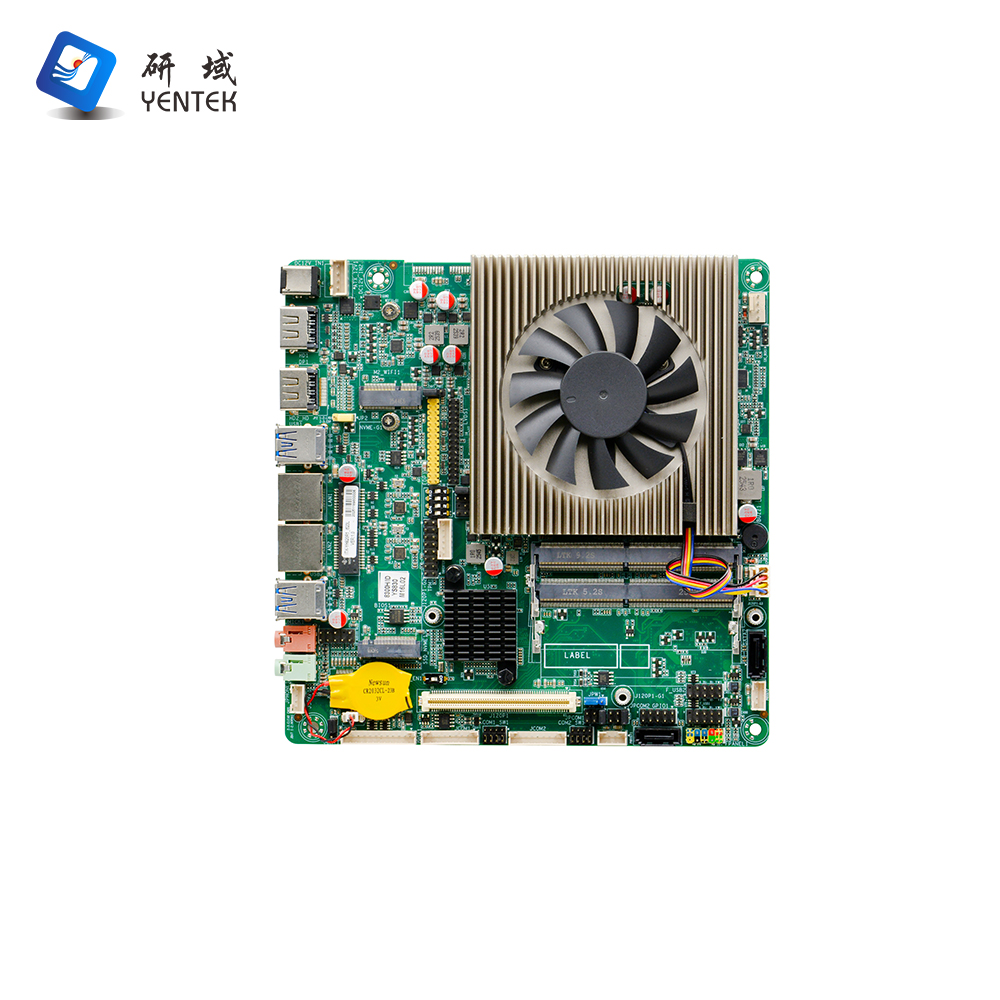

ITX-YH820R1_I523L

Processor

Features an integrated Intel®   Coffee Lake Core i5-8300H processor (2.3GHz quad-core, eight threads), TDP   35W

Compatible with Intel®   8th/9th/10th generation H-series processors

Chipset

Intel® HM370 high-speed chipset

Memory

2x DDR4 SODIMM memory slots supporting up to 2666MHz memory, maximum   capacity 64GB

Display

Integrated Intel® HD Graphics 630 core graphics, supporting DirectX 12,   OpenGL 4.5, and 4K display

1 x VGA port, supporting maximum resolution: 1920×1200@60Hz

2 x HDMI 1.4 ports, supporting maximum resolution: 4096×2304@30Hz

1x LVDS interface, 1x EDP interface (EDP and LVDS share a jumper for   selection)

Note: Supports VGA/HDMI/LVDS or EDP synchronous/asynchronous triple   display

Network

2x 8111H 1GbE network controller chips, supporting Wake-on-LAN/PXE   functionality

Storage

2x 7-pin SATA 3.0 hard drive interfaces, transfer   speeds up to 6Gbps

1x   M.2 slot supporting M.2 Key M 2280 NVMe PCIe 3.0 x4/SATA adaptive standard   SSD

Audio

Onboard ALC897 7.1+2-channel high-fidelity audio controller supporting   MIC/Line-out, amplifier

Amplifier supports 4Ω/3W dual-channel

Expansion Slots

1x M.2 slot supporting   M.2 Key E 2230 Wi-Fi/Bluetooth modules

1x 120-pin high-speed header including 4x TTL, 2x PCIe, 1x SATA, 1x   DisplayPort signal (requires VG390 series expansion board)

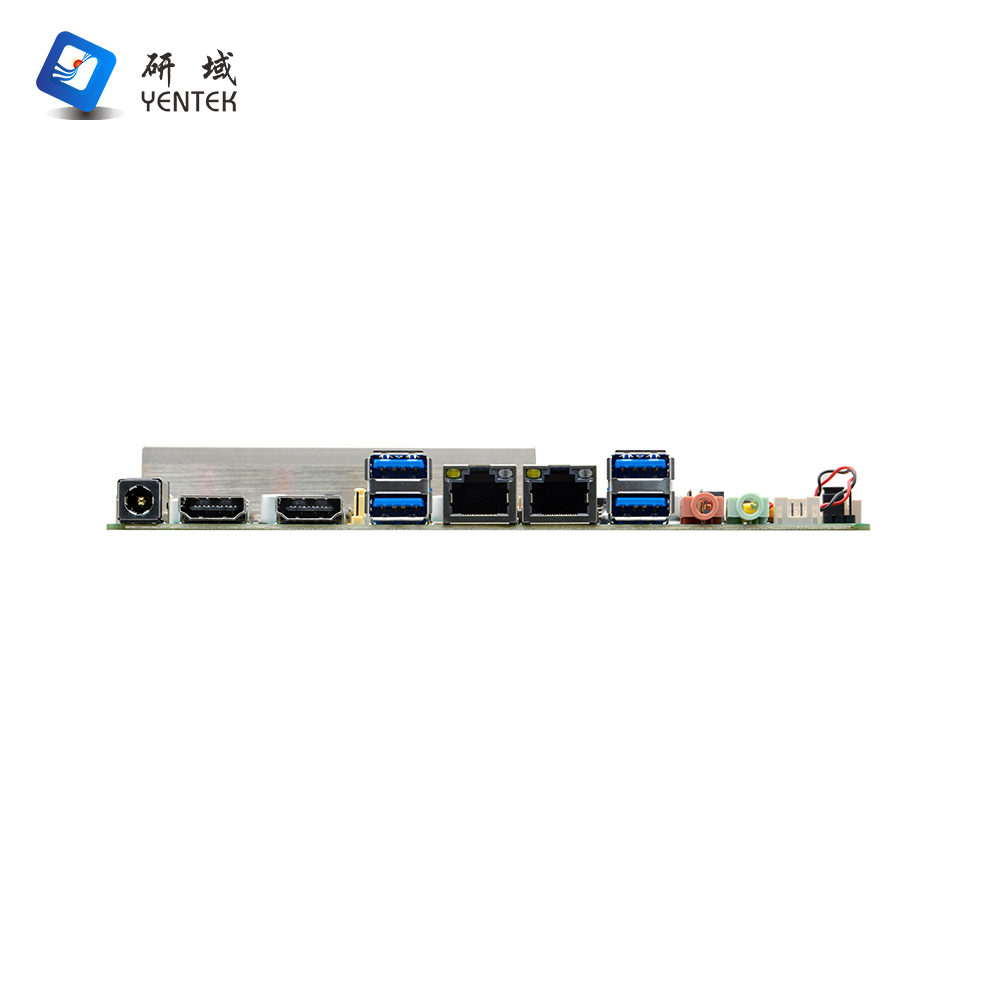

Rear Panel I/O Ports

4x Type-A USB 3.0 ports (5Gbps)

2* HDMI ports, with HD2 and DP mutually exclusive; DP interface optional

2* RJ45 Gigabit Ethernet ports

1* Line-out (green), 1* MIC (red)

1* DC12V power input port

Integrated I/O Ports

1* LVDS interface 2*15-pin, PH=2.0mm, supporting   dual-channel 24-bit

1*   EDP interface, 2*15-pin, PH=2.0mm, selectable via jumper with LVDS interface

1*   JVGA interface, 1*12-pin, PH=2.0mm, selectable via DIP switch with DP signal   from high-speed connector

1* Backlight power supply interface, 1*6-pin, PH=2.0mm

2x RS232 serial interfaces, 1x9-pin, PH=2.0mm, supporting RS485/422   functionality via jumper configuration

4x USB 2.0 interfaces, 2x5-pin, PH=2.54mm

1x Front audio interface, 2x5-pin, PH=2.54mm

1x Amplifier interface, 1x4-pin, PH=2.0mm

2x Hard Disk Power Supply Interface 1×4-pin, PH=2.0mm

1× Front Panel Function Button and Indicator Interface 2×5-pin, PH=2.54mm

1× 4-pin DC Power Interface. PH=2.5mm, supports 12V power input

1× TPM Interface LPC specification 2×8-pin, PH=2.54mm

Fan Connectors

1× 4-pin CPU Intelligent Fan Interface; 1× 4-pin system fan connector

GPIO

Supports 4-channel input/output GPIO functionality

BIOS

64Mb Flash ROM

Supported Operating Systems

Windows 10/11/Linux

Watchdog Timer

Supports hardware reset function (256 levels, 0–255 seconds)

Power Supply Type

Supports DC 12V power supply

Operating Temperature

-10°C to 60°C

Storage Temperature

-20°C to 70°C

Operating Humidity

5%–95% relative humidity, non-condensing

Size

170mm x 170mm

1

ITX-YH820R1_I523L VER:1.0(8300H)

8300H

2.3GHz

HM370

2*SODDR4

2

1

/

1

1

2*8111H

8

2

COM1/2

DC12V
