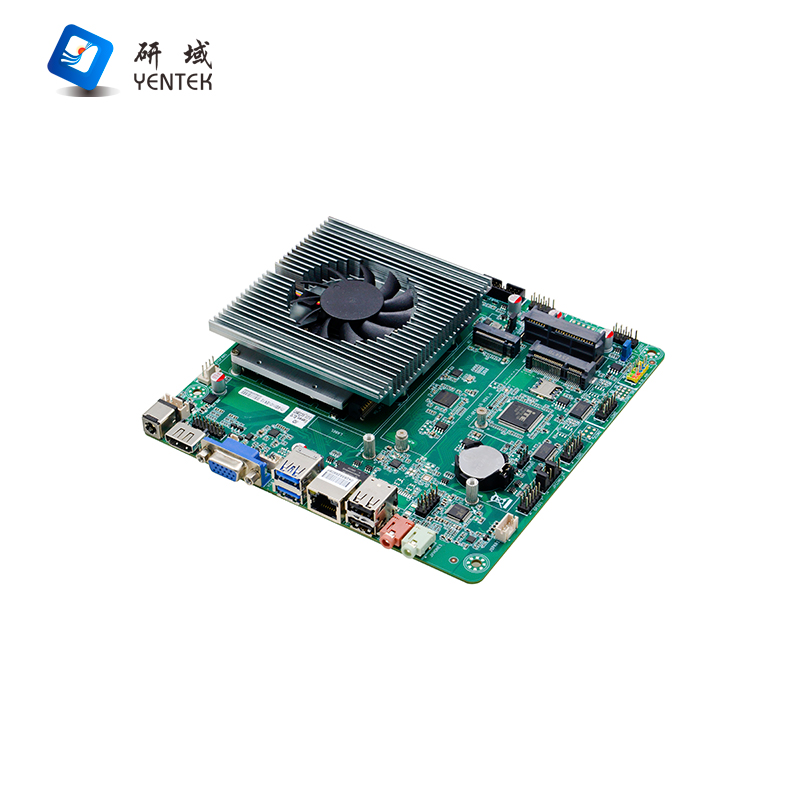

ITX-BE82_I512L

CPU

Features an 8th Gen Intel® Core i5-8265U 1.6GHz quad-core, eight-thread processor, TDP 15W

Memory

8GB LPDDR3 on-board memory

Wi-Fi

Intel® WiFi 5 AC9560 + Bluetooth 5.0

External I/O Ports

1 x 12V DC power connector

1 x HDMI port, supporting a maximum resolution of 1920x1080@60Hz

1 x VGA port, supporting a maximum resolution of 1920x1200@60Hz

2 x USB 3.0 Type-A ports (5Gbps)

2 x USB 2.0 Type-A ports

1 x 8111H 1GbE Ethernet port, supporting Wake-on-LAN and PXE

1 x Line-out (green), 1 x Mic (red) (ALC897 sound card)

Storage

1 x 2.5-inch hard drive bay, for direct hard drive installation

1 x M.2 slot, supporting M.2 Key M 2280 NVMe PCIe 3.0 x4 SSDs

Expansion Ports

1 x Mini-PCIe slot, supporting Wi-Fi/4G modules

1 x 300-pin header, for connecting the Intel module

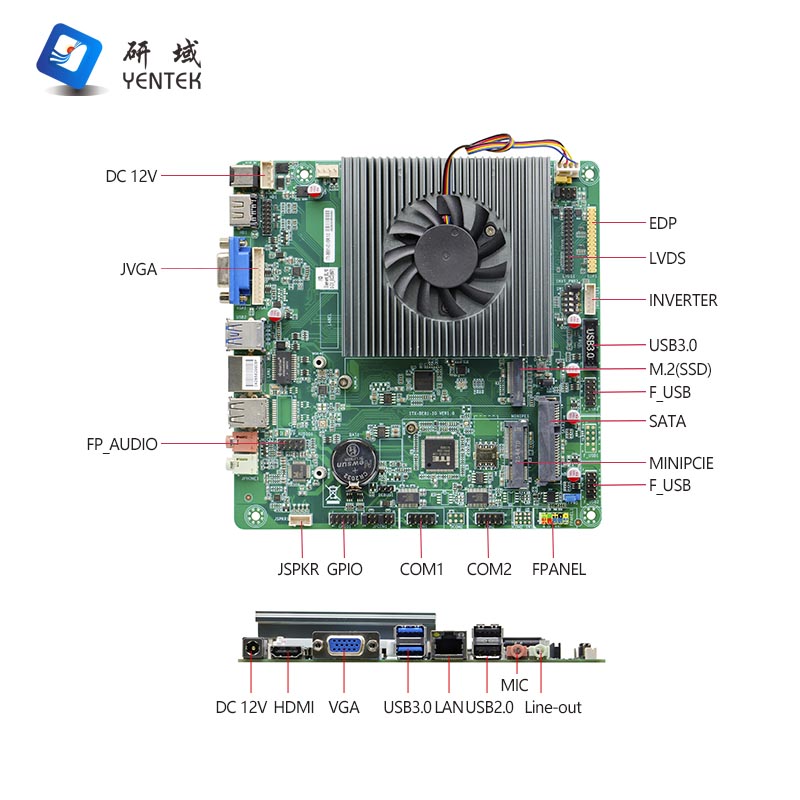

Internal I/O Ports

1 x JVGA header (1 x 12-pin, pitch = 2.0mm), same signal as external DB15

1 x JHDMI header (2 x 8-pin, pitch = 2.0mm), same signal as external HDMI

1 x LVDS interface (2 x 15-pin, pitch = 2.0mm)

1 x EDP interface (2 x 15-pin, pitch = 2.0mm), selectable via jumper with LVDS

1 x Display backlight power supply interface (1 x 6-pin, pitch = 2.0mm)

1* Front audio interface, 2×5-pin, pitch = 2.54mm

1* Amplifier interface, 1×4-pin, pitch = 2.0mm

2* USB 3.0 interfaces, 2×10-pin, pitch = 2.0mm

4* USB 2.0 interfaces, 2×5-pin, pitch = 2.54mm

Note: One of the USB3 ports on F_USB3 and the 4G port are mutually exclusive; the default is set to 4G.

The F_USB1 header and external USB1 port are mutually exclusive; the default is set to external USB1.

2* RS232 serial ports 2*5-pin, PH=2.54mm, where COM1/2 support pin 9 being live

1* DC12V power supply connector 1*4-pin, PH=2.5mm

1 x front panel function button and indicator interface (2×5-pin, pitch = 2.54 mm)

1 x GPIO interface (2×5-pin, pitch = 2.54 mm), supporting 4-input and 4-output GPIO

1 x CPU smart fan interface (4-pin, pitch = 2.54 mm), 1 x system fan interface (4-pin, pitch = 2.54 mm)

1 x SIM card slot

Operating System

Windows 10 / 11 / Linux

Supported Motherboards

Intel Core board

Operating Temperature

-10°C to 60°C

Storage Temperature

-20°C to 70°C

Relative Humidity

5%–95% relative humidity, non-condensing

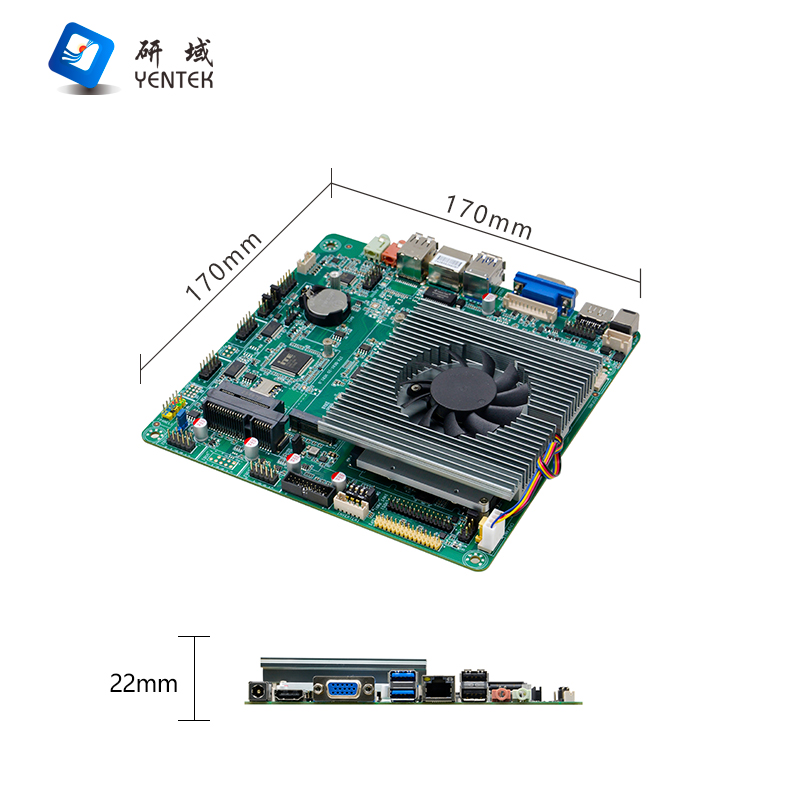

Dimensions

170mm *170mm
