C2120Z-H2

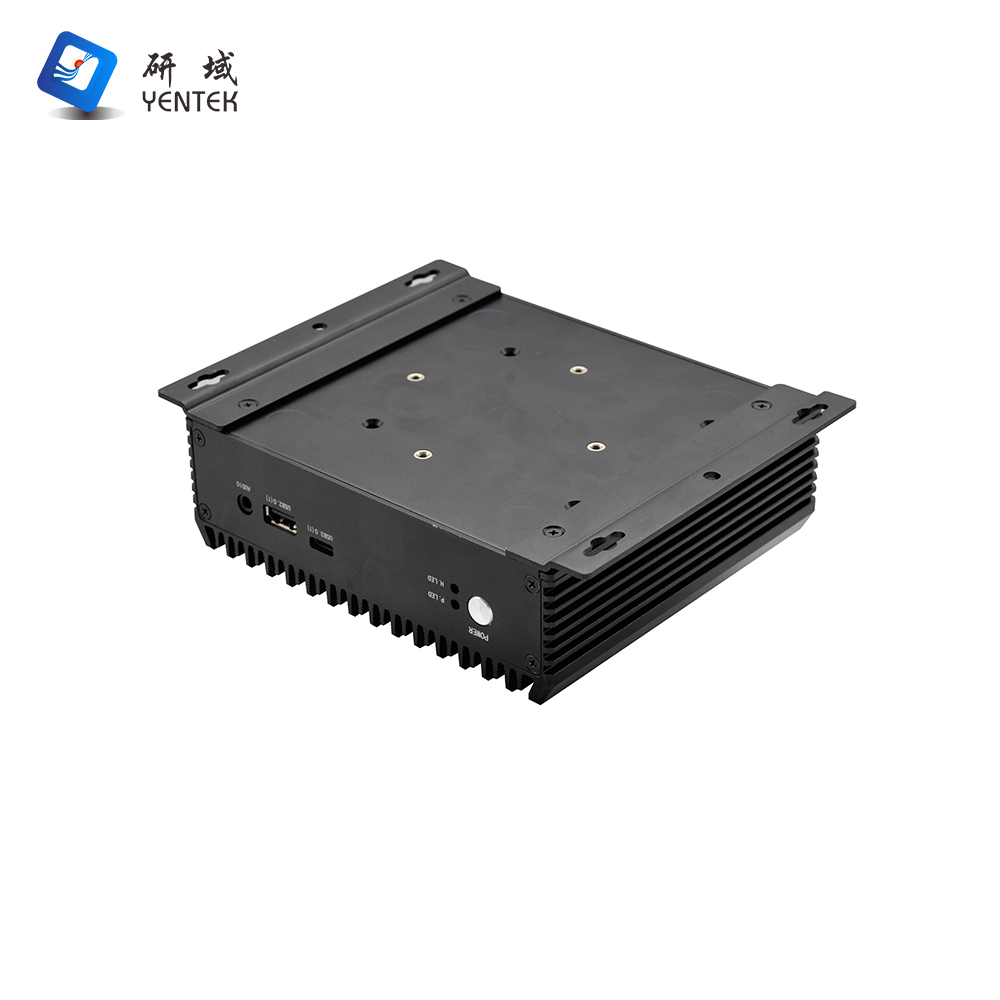

Chassis

Material/Construction

All Aluminium Alloy,Fanless   Cooling Structure

Colour

Black

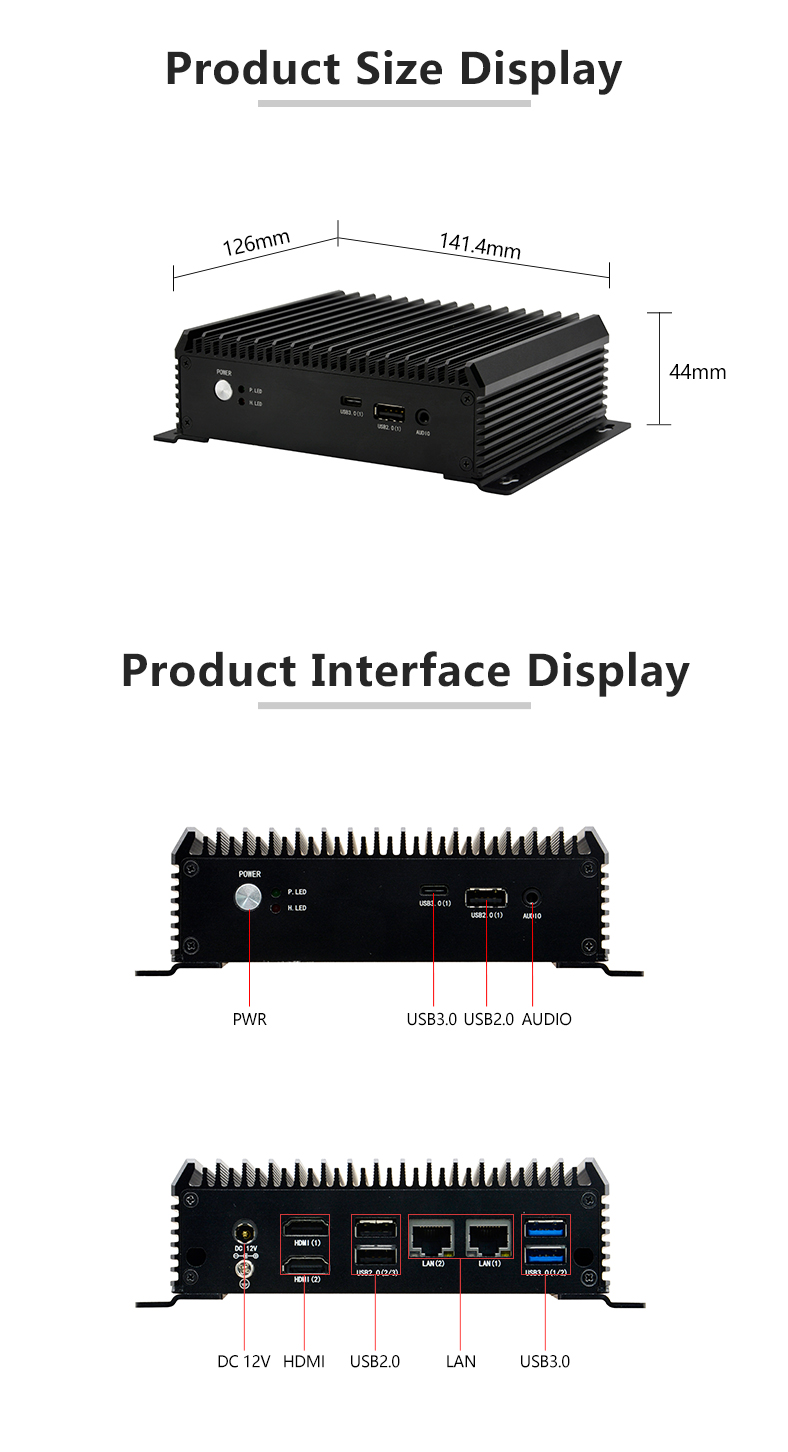

Dimensions (LWH)

L141.4*W126*H44MM

Weight

0.9KG

Installation

Support Desktop/Wall Mount   (70*70)

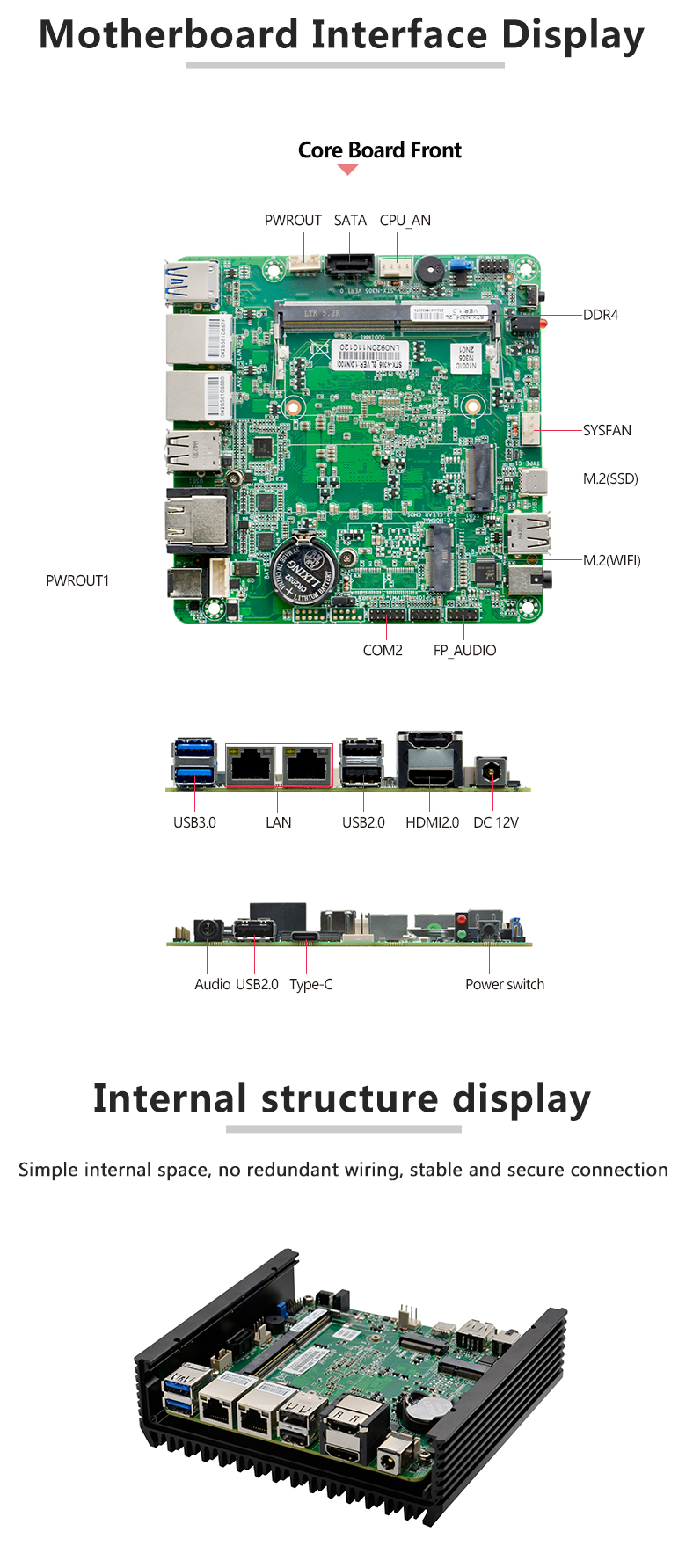

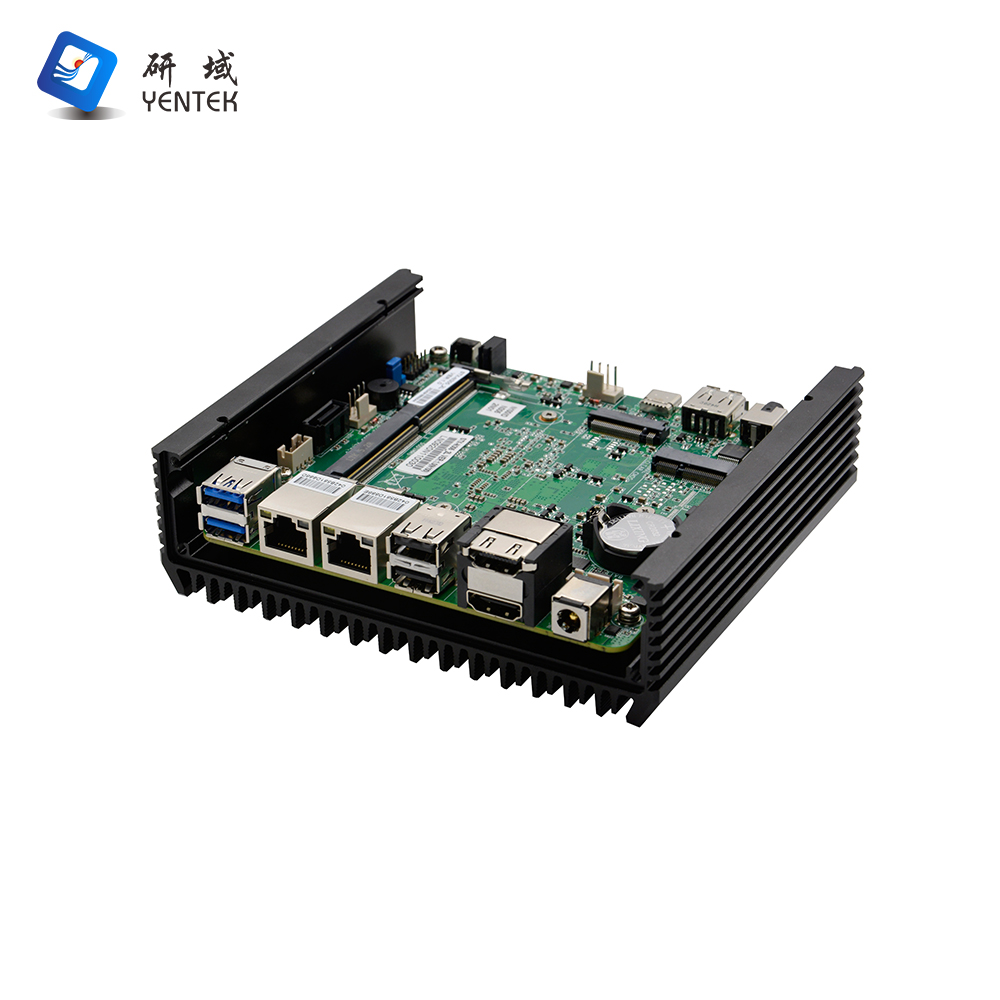

Motherboard

CPU

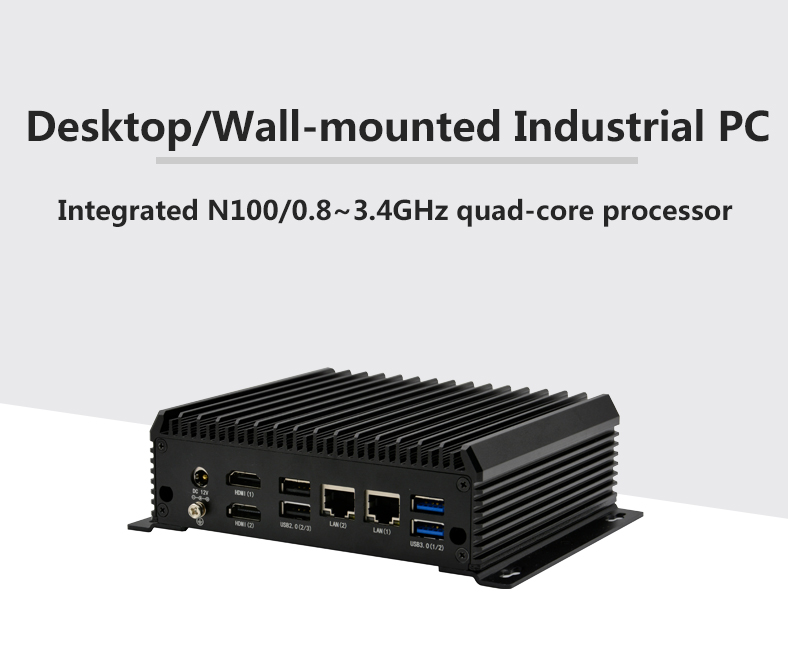

Integrated 12th Generation   Intel®Alder Lake-N N100/0.8~3.4GHz, Quad-Core, Quad-Threaded Processor, TDP   6W

Memory

1*SODDR4 3200MHz Memory, Maximum   Support 16GB

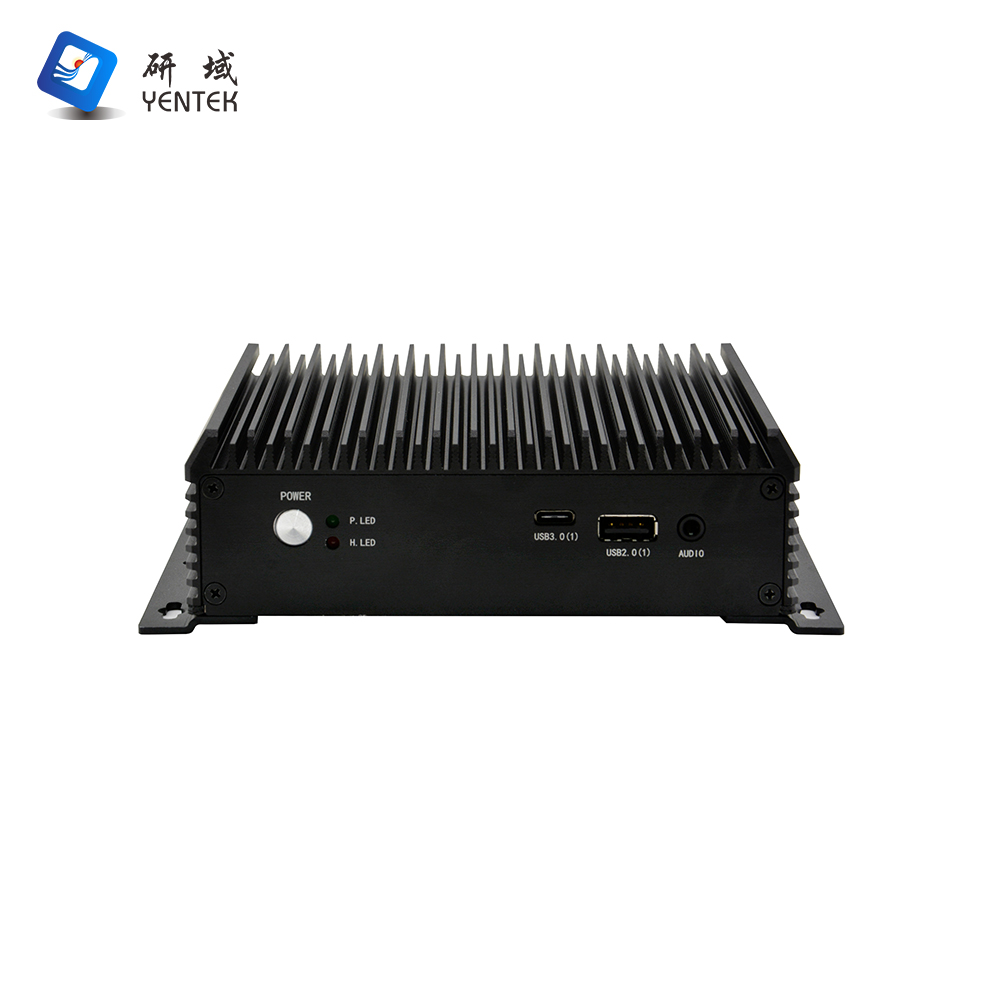

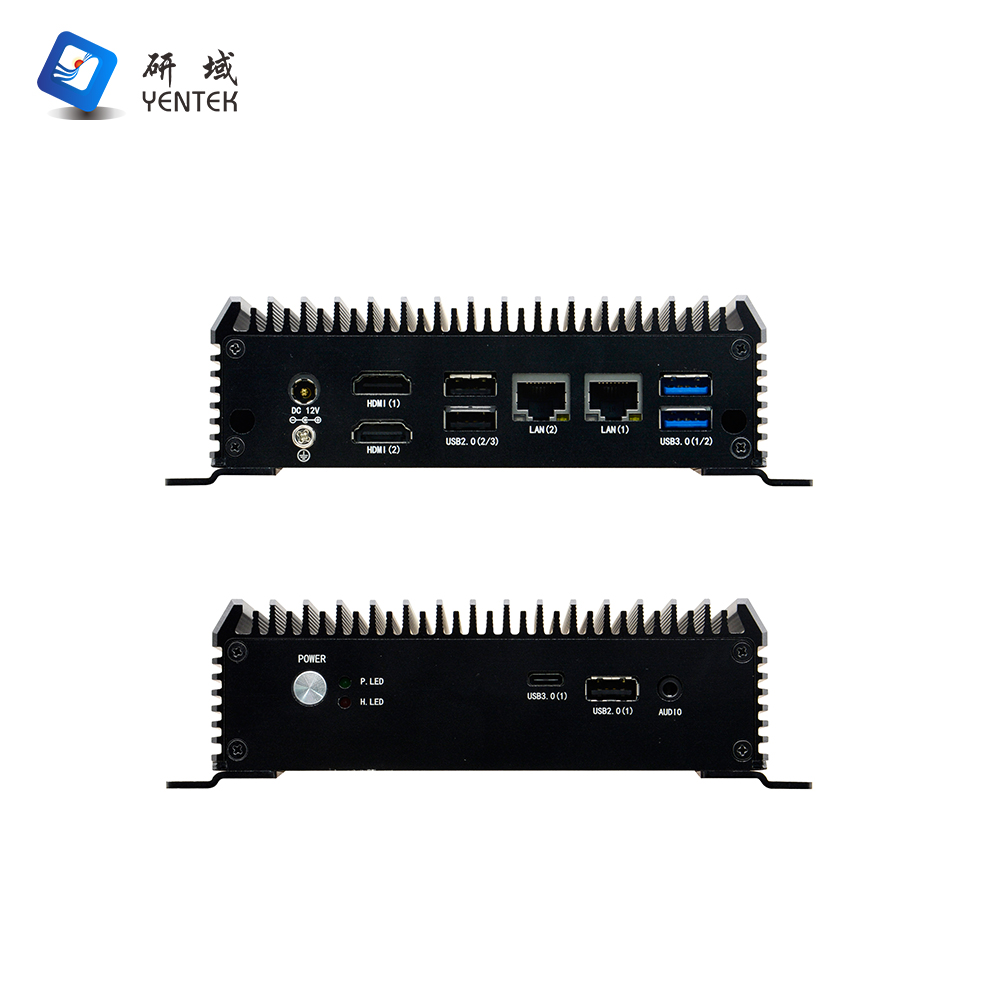

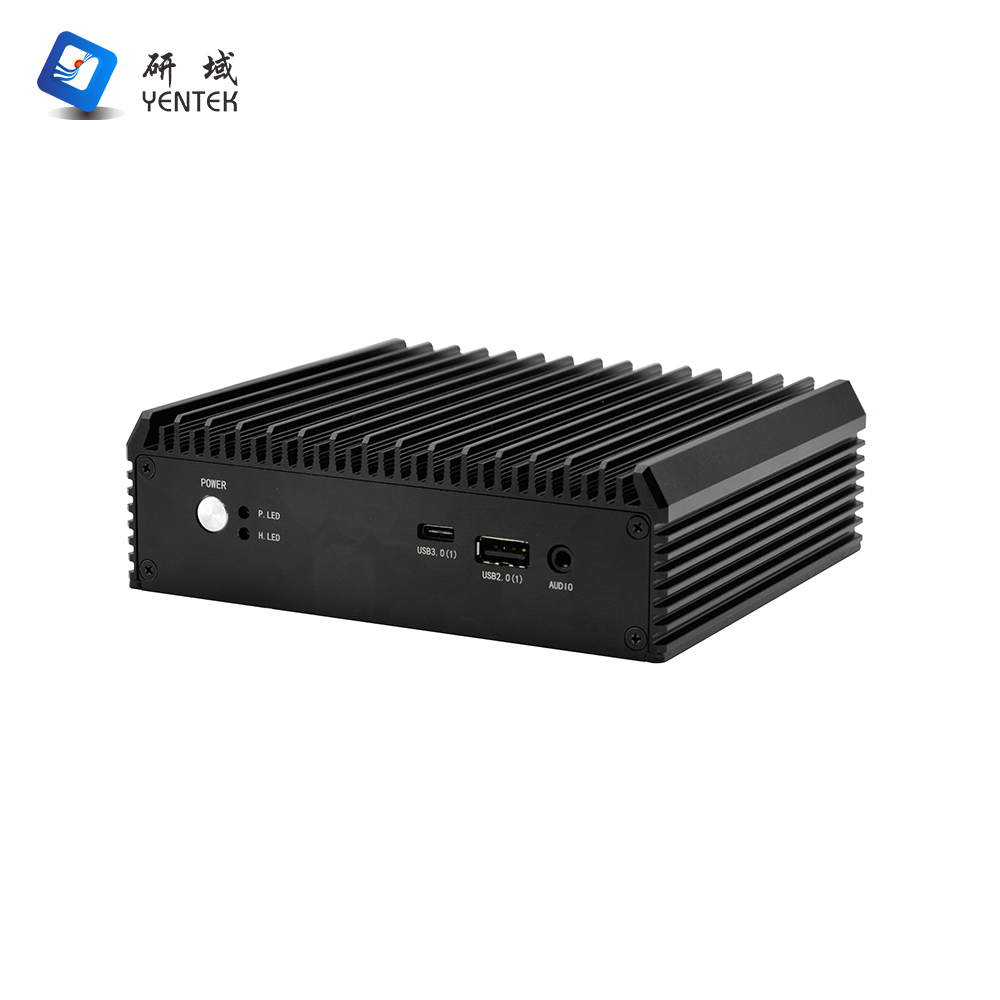

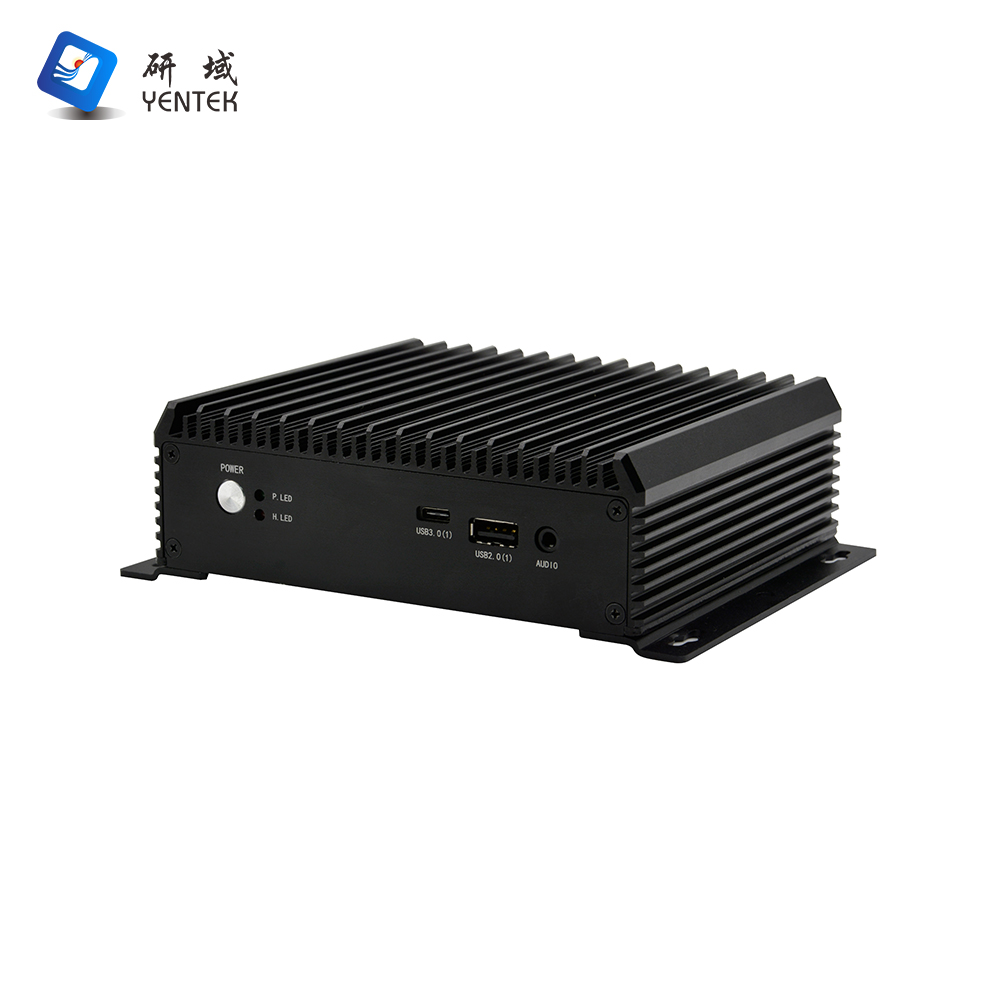

Front Panel  Interface

POWER

1*Power Switch

LED

1*Power Indicator, 1*Hard Drive   Indicator

USB

1*USB2.0, 1*Type-C (5Gbps)

Audio

1*Audio, Line out& Mic   2-in-1

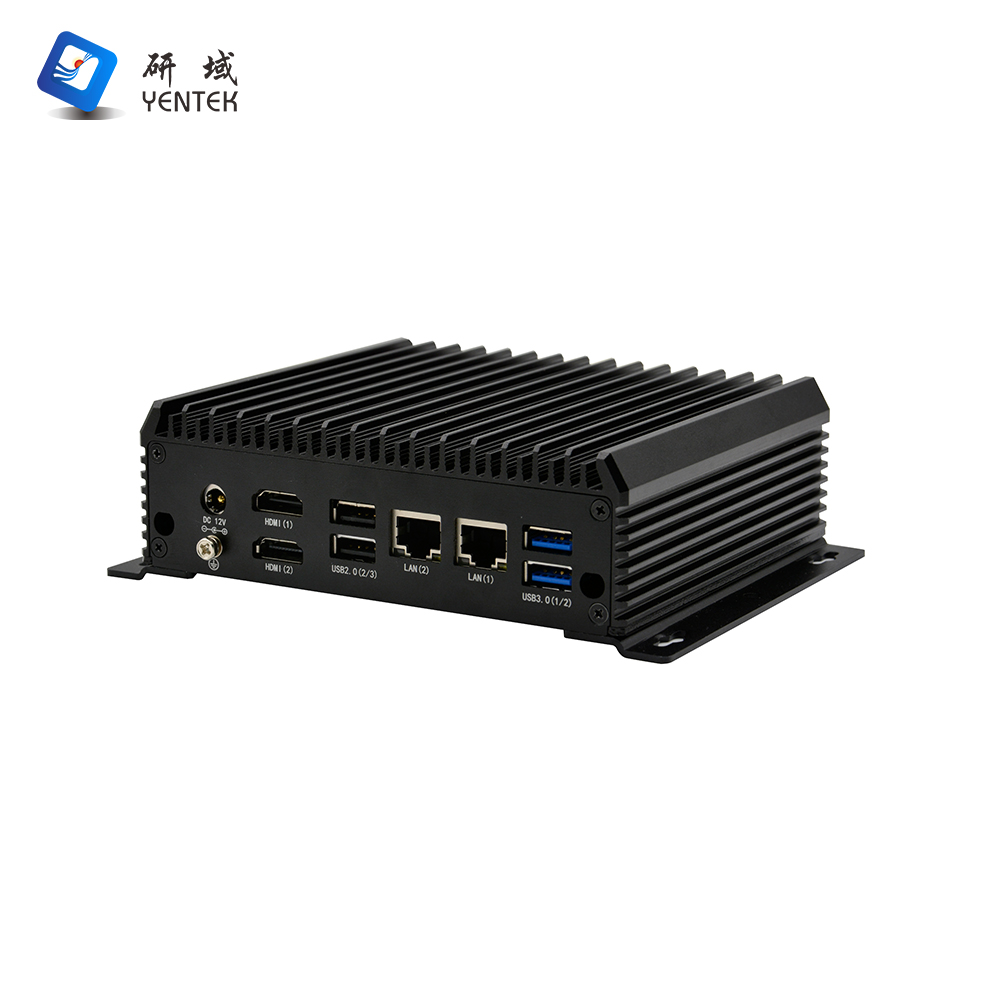

Rear Panel Interface

Display Interface

2*HDMI2.0(4096*2160@60Hz),   support Dual 4K/60Hz

LAN

2*RTL8111H Gigabit power port, support   Wake-on-Network, PXE function

USB

2*USB2.0, 2*USB3.0 (5Gbps)

Power

1*DC 12V (5.5*2.5)

Storage

SSD

1*M.2, support Key-M, 2280, NVME   PCIE x1/SATA Adaptive SSD

SATA

1*2.5-inch HDD bay (7mm   thickness)

Expansion

WiFi

1*M.2, support Key-E, 2230,   WiFi6+BT module

System Support

Windows

Windows 10

Linux

Ubuntu

Watch Dog

Support hardware reset function   (256 levels, 0~255 seconds)

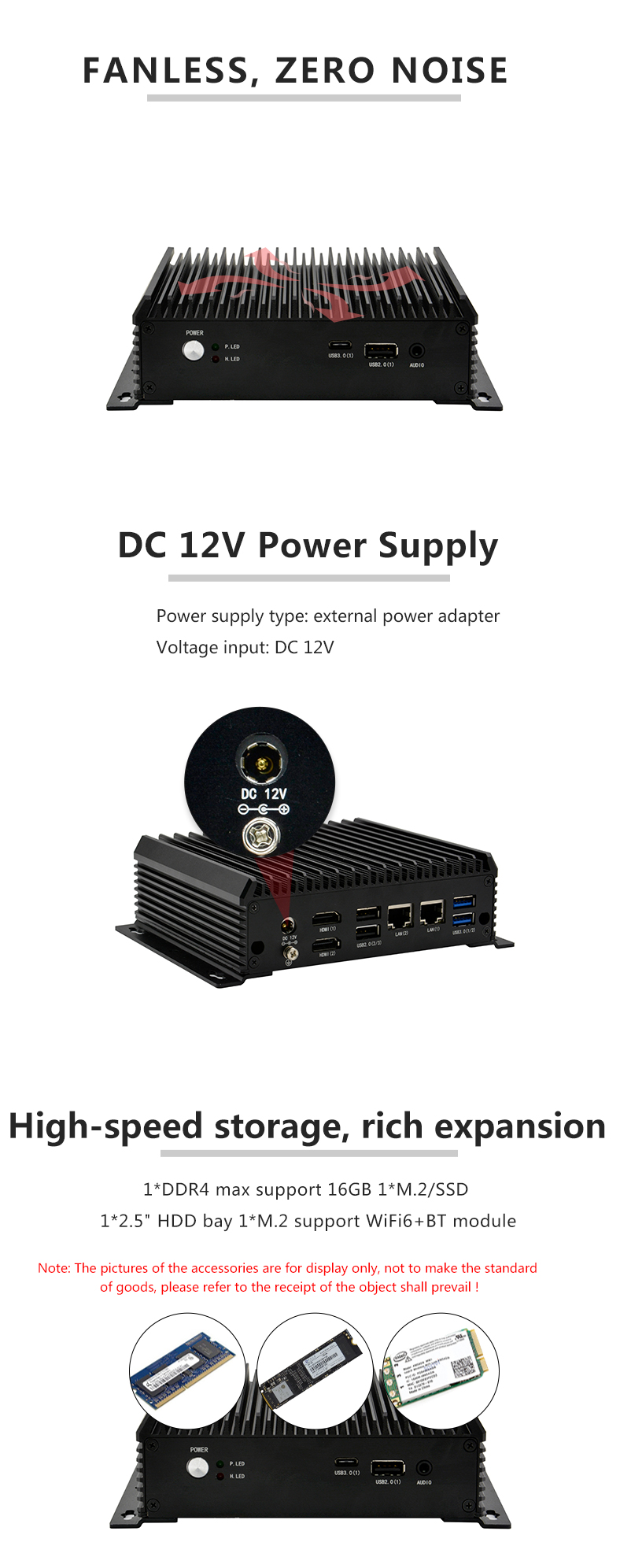

Power Requirements

Type of Power Supply

External power adapter

Voltage Input

DC 12V

Environments

Operating Temperature

-10℃～50℃

Storage Temperature

-20℃～70℃

Relative Humidity

5%-95% relative humidity,   non-condensing

Vibration

0.5g rms/5-500HZ/random

1

C2120Z-H2 V2.0(N100)

N100/0.8~3.4G

1*SODDR4

STX-N305

M.2+2.5

2*8111H

2

4

3

DC 12V
