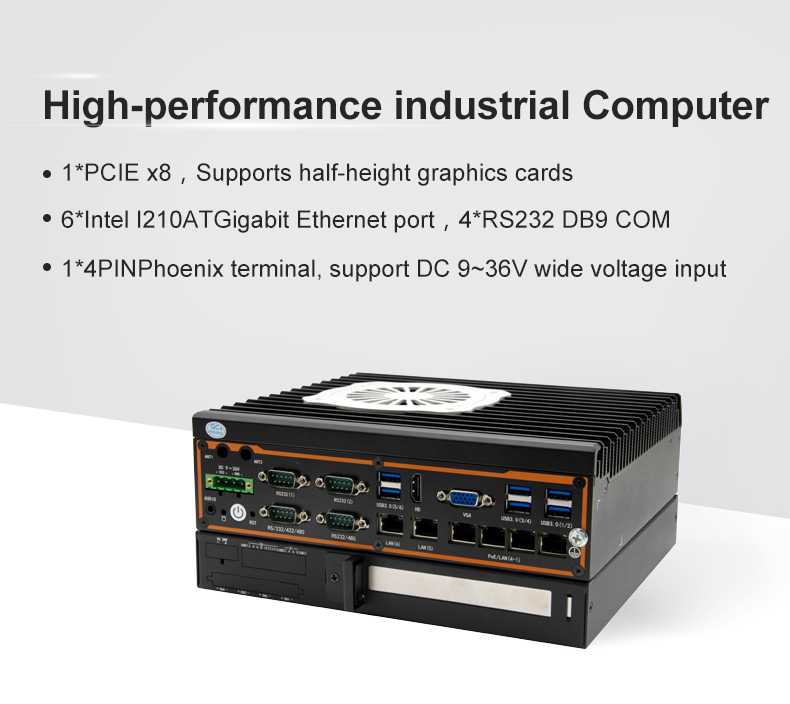

Model | G3760F-L6E1 V2.0(G250) |

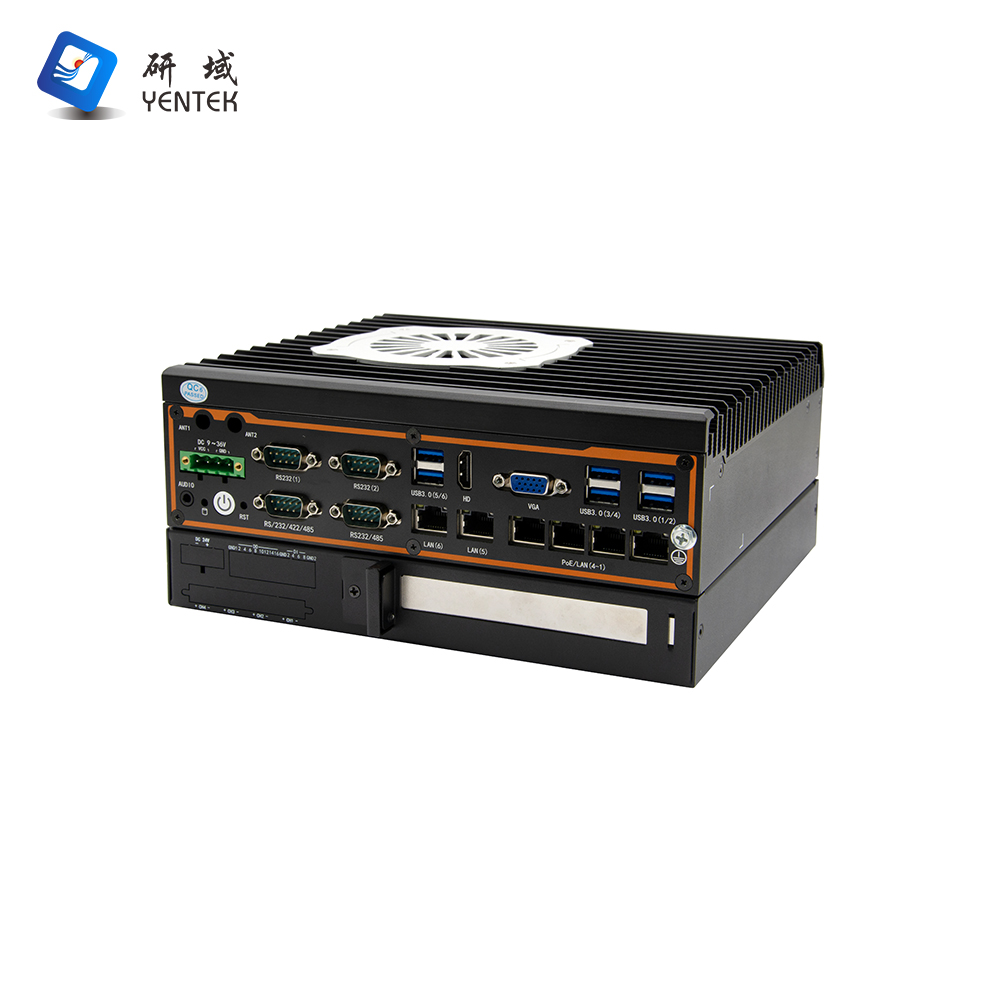

Chassis | Material/structure | Aluminium alloy + sheet metal material Fan cooling |
Colour | Black |

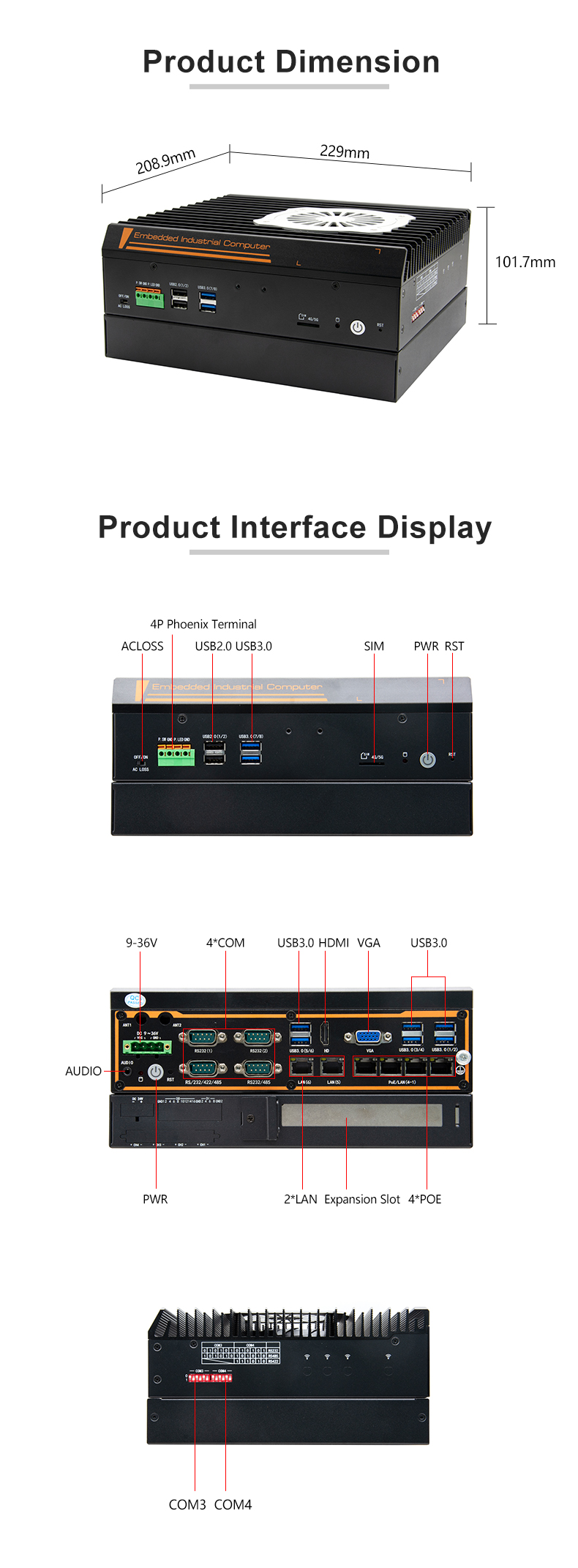

Dimensions (LWH) | 229*208.9*101.7MM |
Weight (bare net weight) | 3.7KG |
Installation | Desktop/Embedded/DIN rail(35mm) |

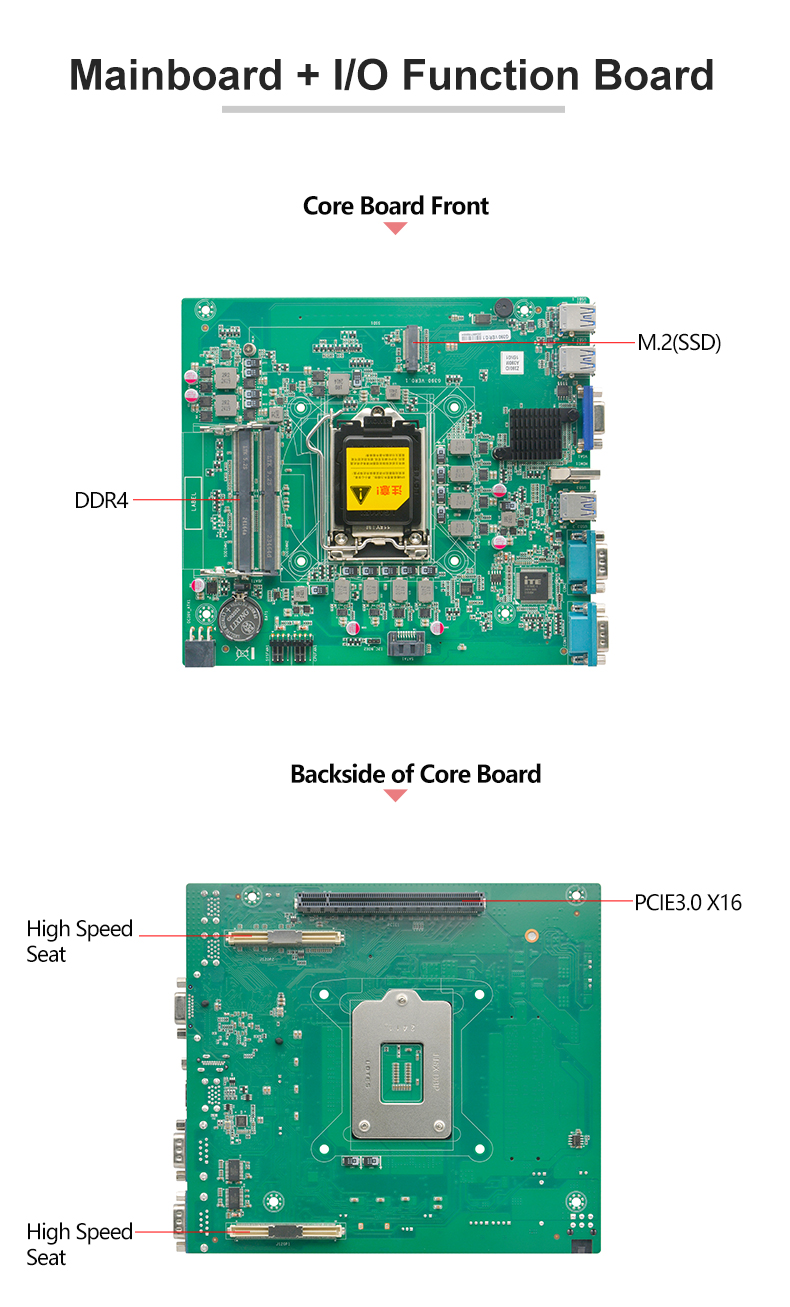

Motherboard | CPU | Intel®LGA1151 /6~9th Generation series processor |
System-on-Chip | Intel®Q250 |
Memory | 2*SODDR4, max. support 64GB |

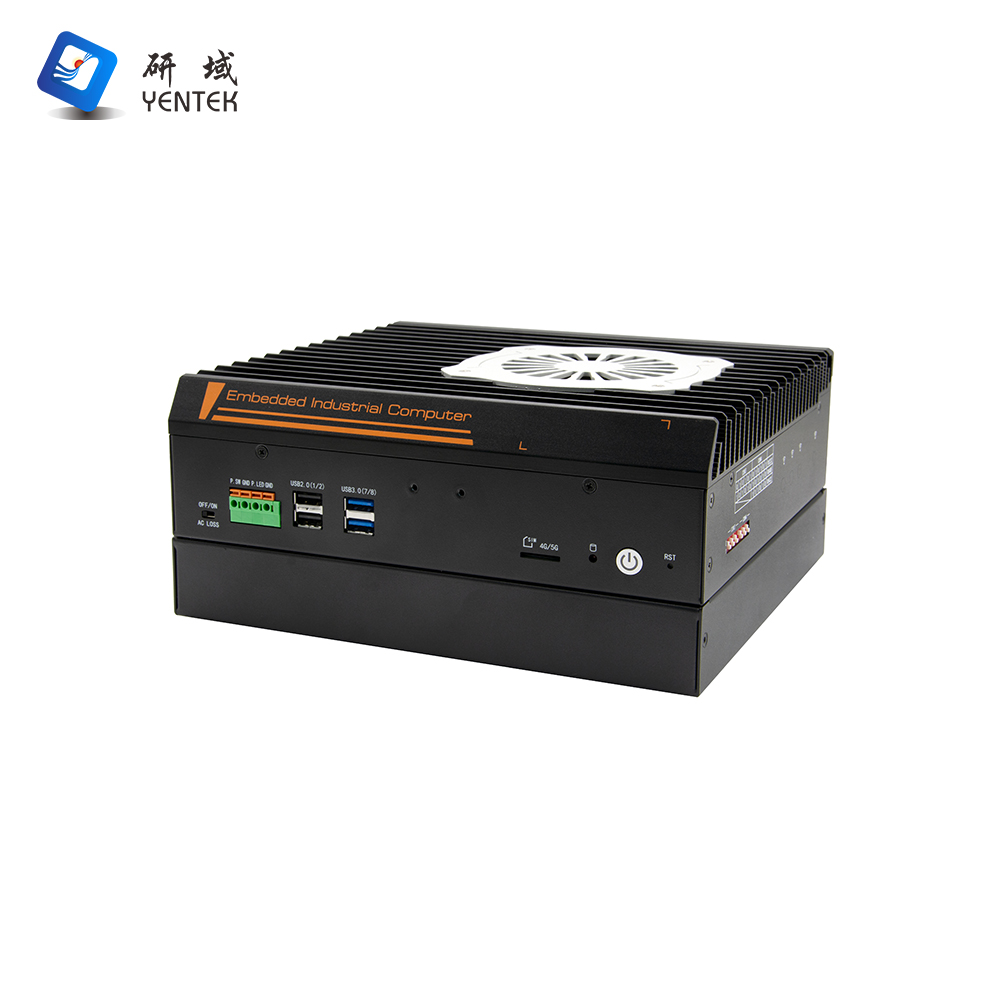

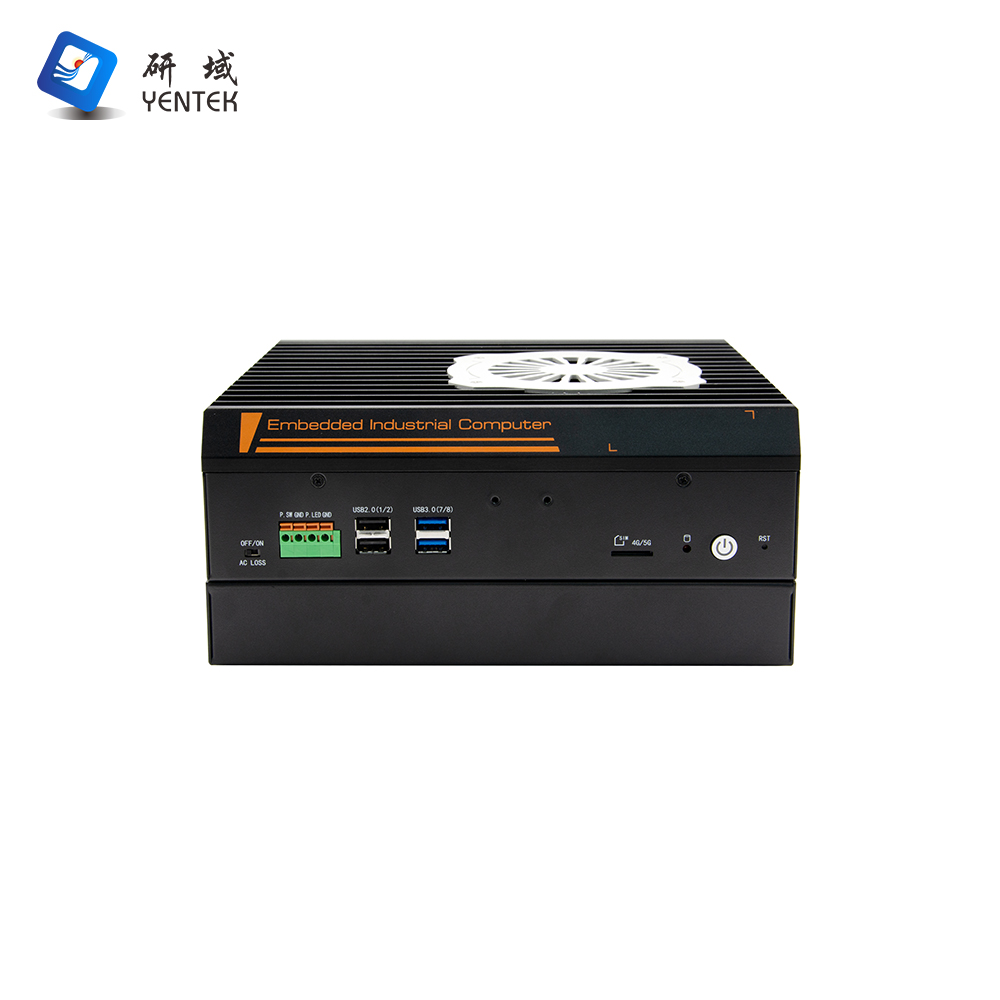

Front Panel Connectors | Switches | 1*Boot button with indicator, 1*One Key Restore, 1*ACLOSS (Power on Power on DIP switch) |
LED | 1*Hard Drive Indicator |
USB | 2*USB3.0, 2*USB2.0, Built-in 1*USB2.0 |
Phoenix Terminal | 1*4P (1*Power Indicator Signal, 1*Power On/Off Signal) |
SIM | 1*SIM Standard Card Slot (Signal Default M.2 5G) |

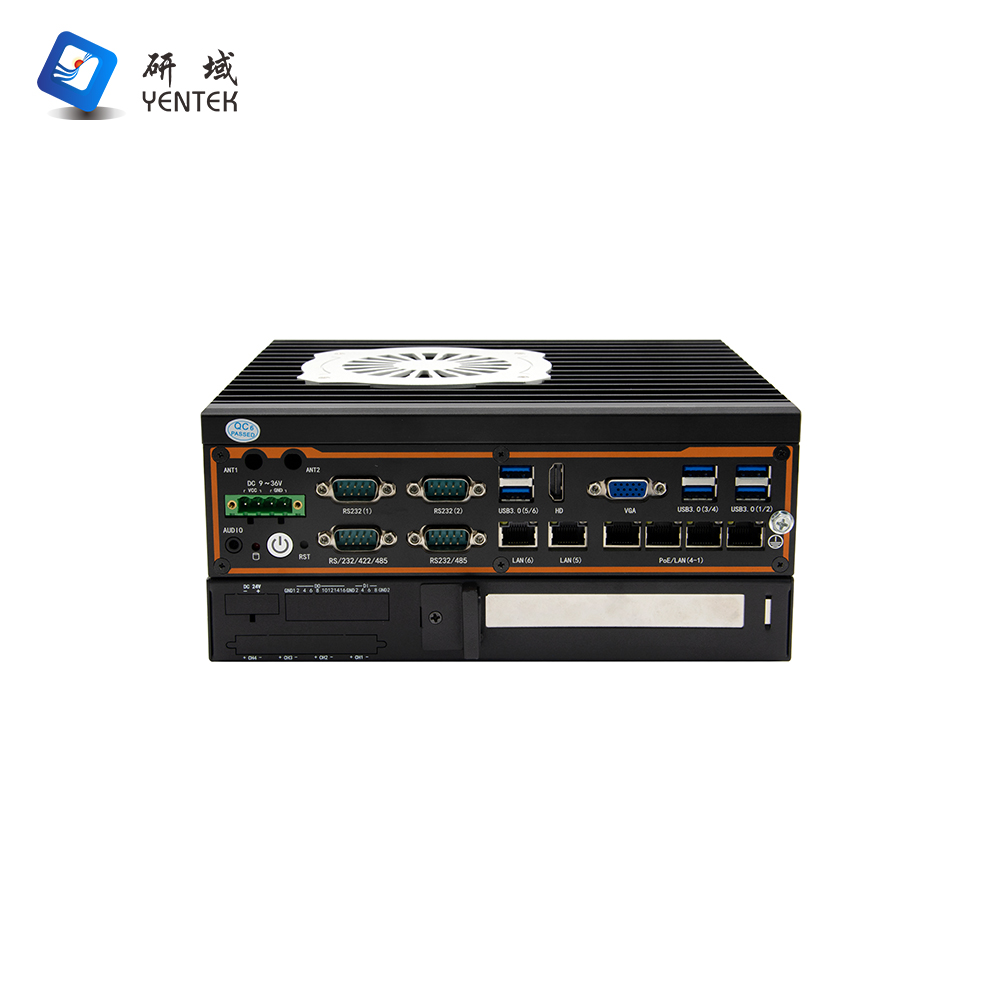

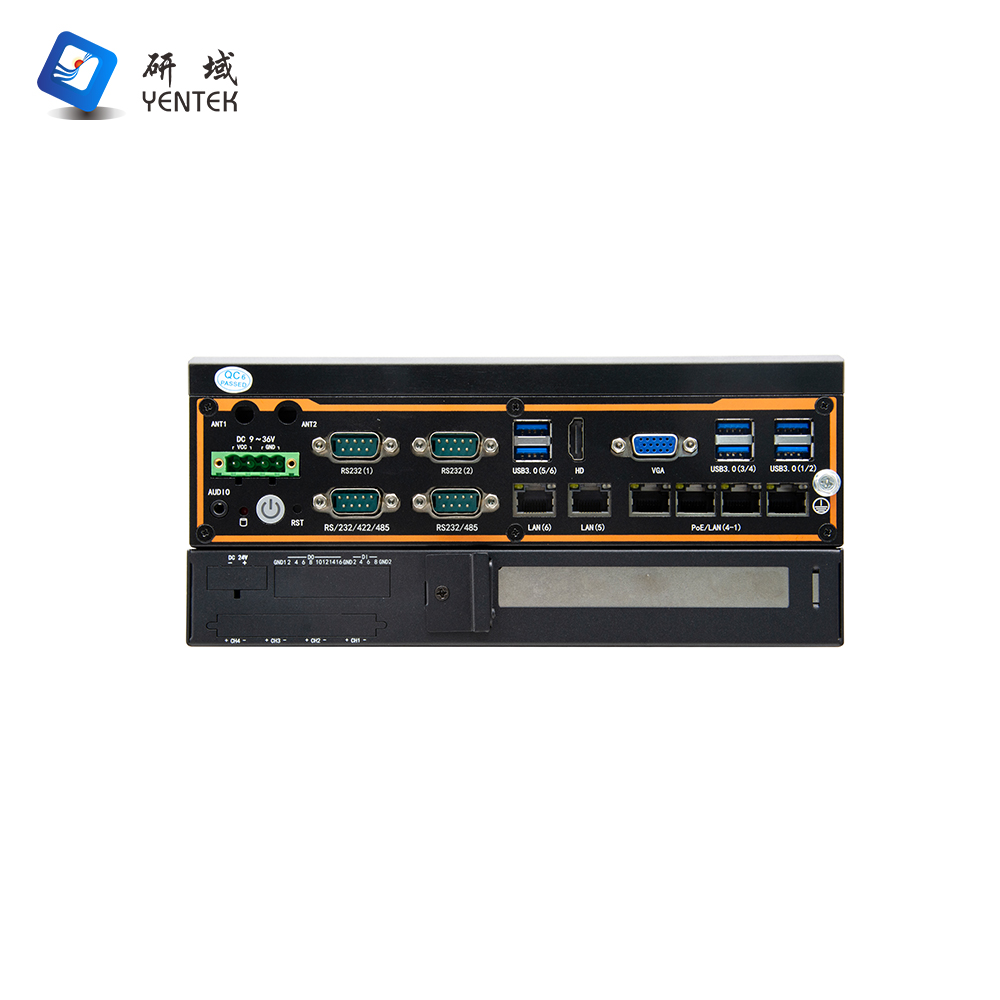

Rear Panel Interface | Display Interface | 1*VGA(1920*1200@60Hz), 1*HDMI1.4 |
Switches | 1*Power On Button with indicator. 1*One Key Restore |
LED | 1*Hard Drive Indicator |

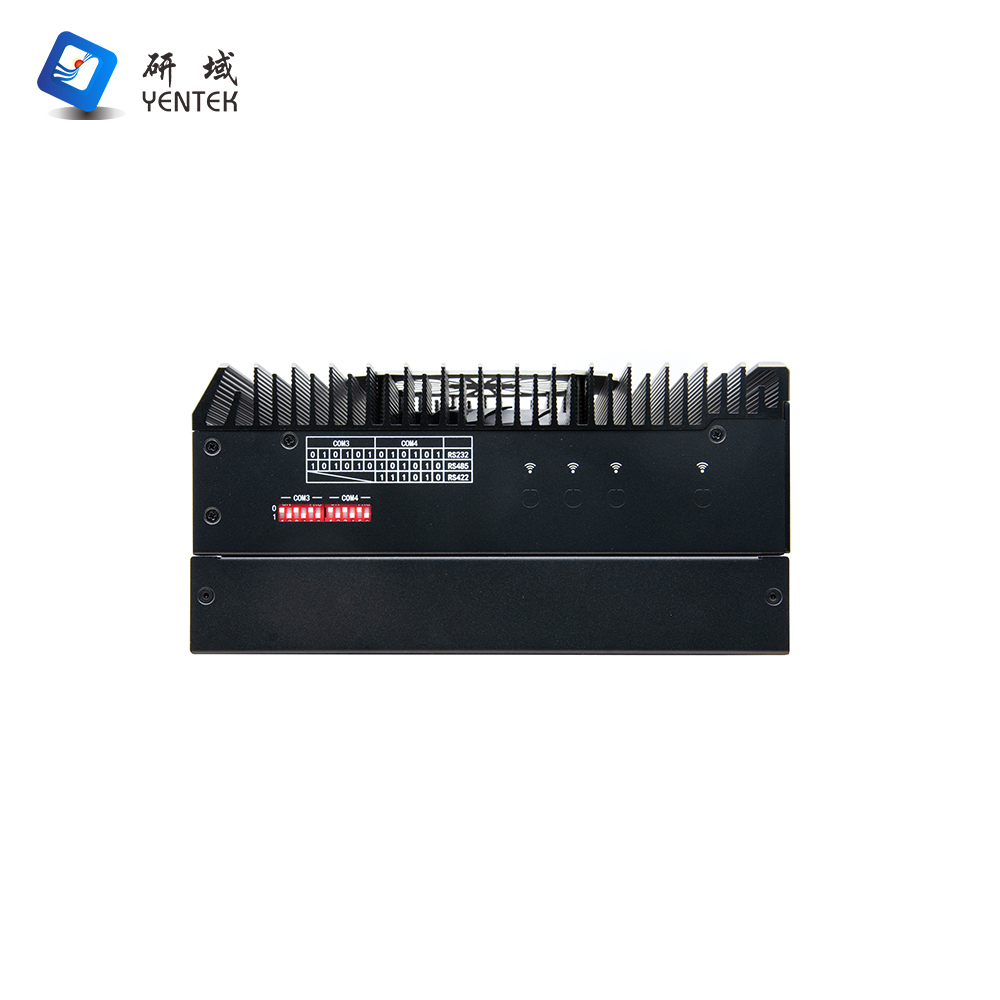

COM | 4*RS232 DB9 serial ports, of which COM3 supports RS232/485 and COM4 supports RS232/422/485 |
LAN | 6*Intel I210AT Gigabit electrical ports, of which 4 support POE (single port 15W) |
USB | 6*USB3.0 |
Audio | 1*Audio, Line out and MIC 2-in-1 |

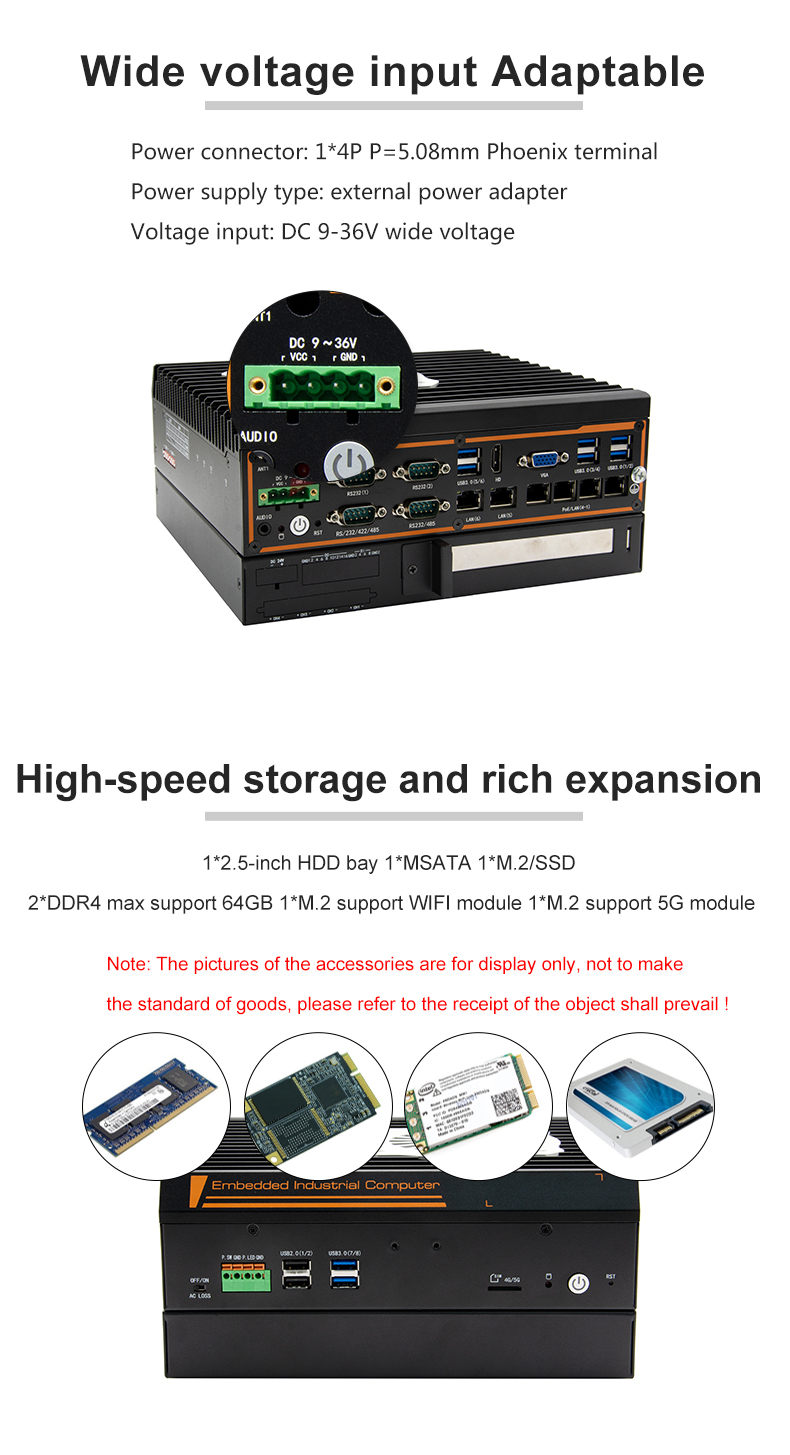

Power Interface | 1*4P (P=5.08mm) Phoenix terminal, support DC 9~36V wide voltage input |
Storage | SATA | 1*2.5-inch hard drive bay |
MSATA | 1*MSATA |
SSD | 1*M.2, support Key-M, 2280, NVME PCIEx4 SSDs |

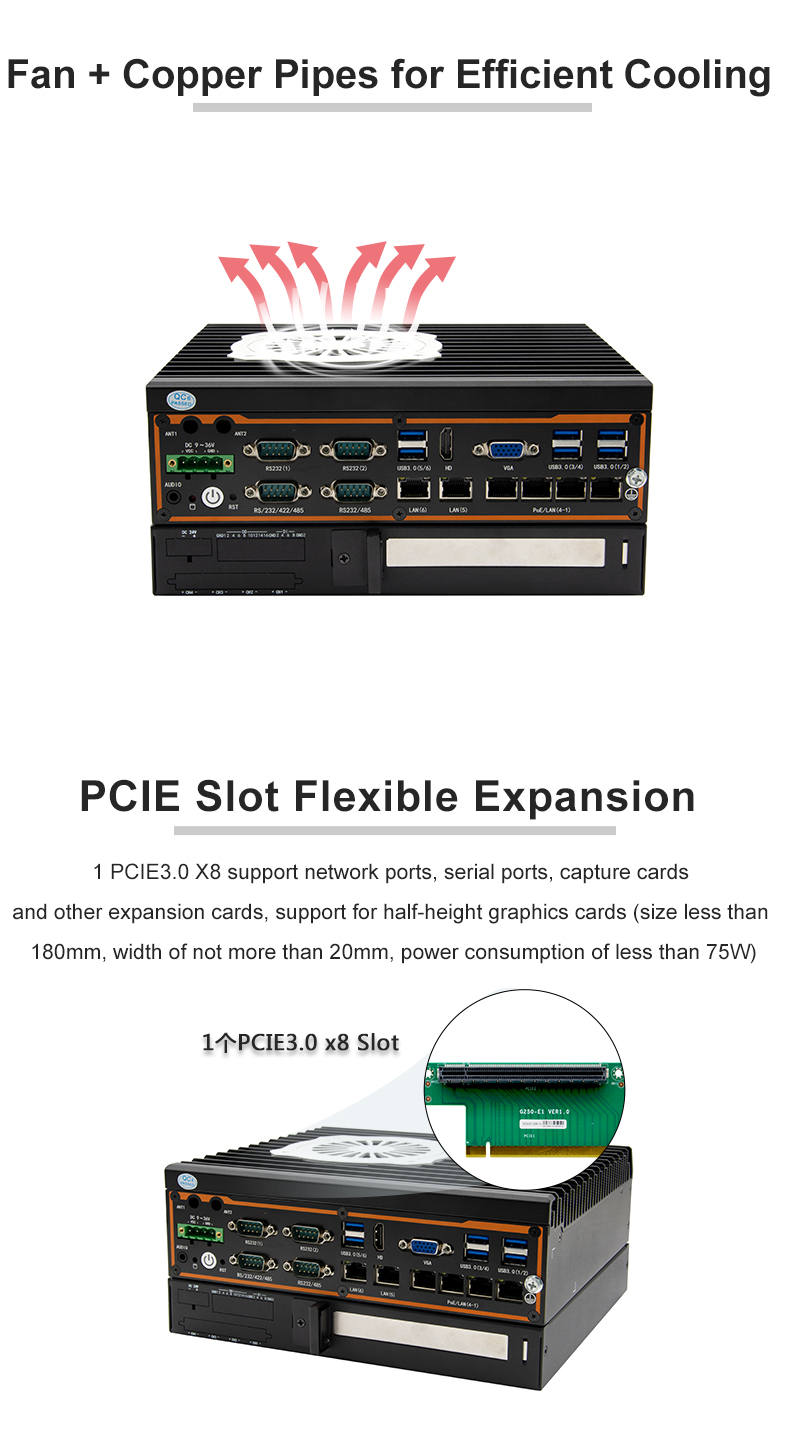

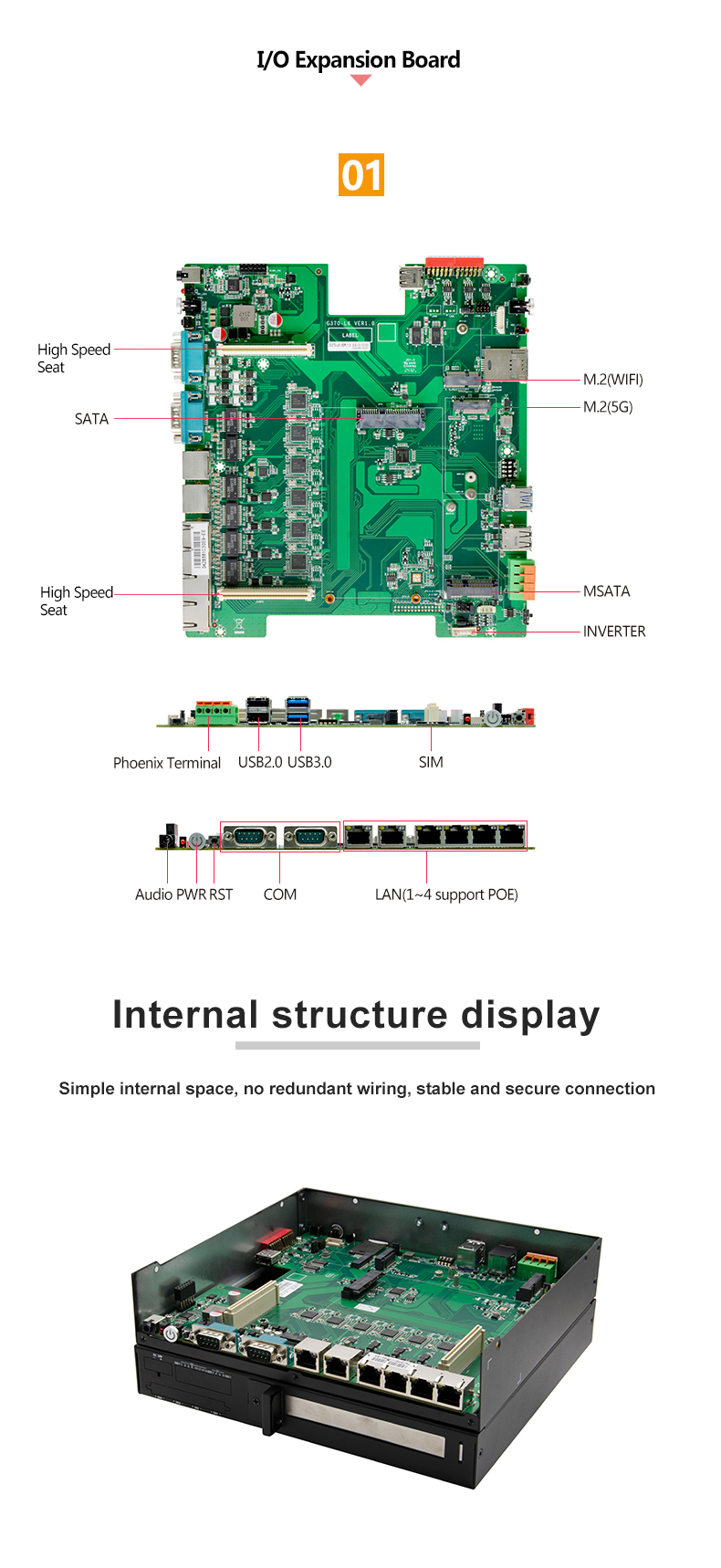

Expansion | PCIE | 1*PCIE3.0 x8 (only support half-height graphics card) |
WiFi | 1*M.2, support Key-E, 2230, WiFi module |
5G | 1*M.2, support Key-B, 3042/3052, 5G module |
System Support | Microsoft | Windows 10 |
Linux | Linux |
Power Supply Type Input | Power supply type | External power adapter |
Voltage input | DC 9-36V wide-voltage |
Power output | AC TO DC 120W or above (depending on specific device) |
Environment | Operating temperature | -10℃～50℃ |
Storage temperature | -20℃～70℃ |
Relative humidity | 5%-95% relative humidity, non-condensing |
Operating vibration | 0.5g rms/5-500HZ/random/operating |
