Mini-ITX Motherboard

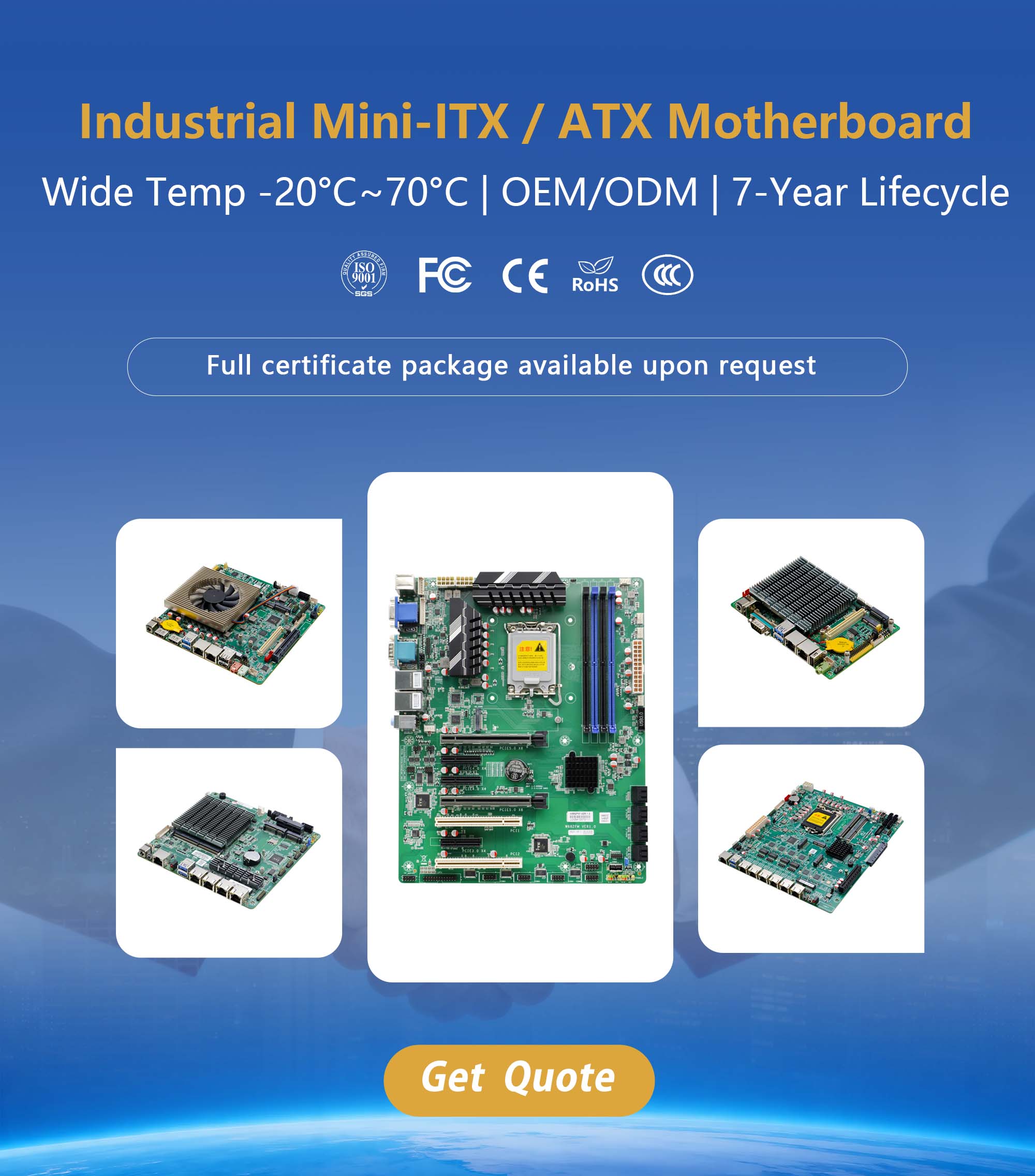

Industrial Motherboard -20°C~70°C Wide Temp | OEM/ODM - Get Factory Price & Free Technical Support

See 1 sizes

FEATURES

Product description

Motherboard Specification
Product type	Mini-ITX (170x170mm) / ATX (305x244mm) / NANO-ITX (120x120mm) 3.5 inch / 4 inch Motherboard Multi-port (4/6/8 LAN)
CPU Support	Intel® Core™ 12th/13th/14th Gen (i3/i5/i7/i9) / Celeron® / AMD Ryzen™ Embedded
Chipset	Intel® H610 / Q670 / W680 / W880 / H110 / Z390 / H570
Memory	DDR4/DDR5 SODIMM / DIMM, Max 64GB~128GB, ECC Optional
Storage	2~4 x SATA 3.0, 1~2 x M.2 (NVMe/SATA)
Operating Temp	-20°C ~ 70°C (Industrial Wide Temp)
Storage Temp	-40°C ~ 85°C
Relative Humidity	5% ~ 95% (Non-condensing)
Rear I/O	USB 3.0/2.0, RJ45 (Intel GbE), HDMI, VGA, DP, Audio
Internal I/O	4~6 x COM (RS232/422/485), GPIO, USB 2.0, LPT, 4~8 x RJ45 (Intel Gbe, POE optional)
Expansion	PCIe x16, PCIe x4, Mini-PCIe (for WiFi/4G/5G)
Power Supply	ATX / Wide Voltage DC-IN (12V~24V)
OS Support	Windows 10/11 IoT, Linux (Ubuntu, Debian, CentOS)
Certification	CE, FCC, RoHS, ISO9001
Reliability	100% Burn-in Test, ESD Level 4, 7-Year Lifecycle

Note: Specifications above represent series maximums. Actual features vary by model. Please contact us for detailed datasheets.

Legacy platforms also available: 4th-11th Gen Intel Core (LGA1150/1151/1200). Contact us for replacement solutions.

Need a quote or custom setup?

Tell us about your project. We'll reply within 24 hours. Your information is confidential.
