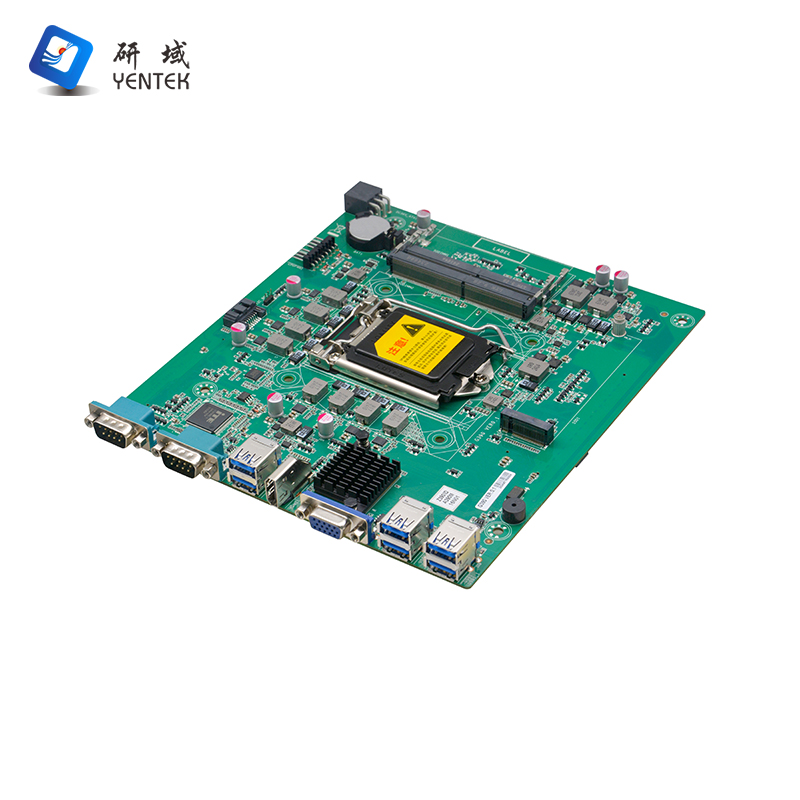

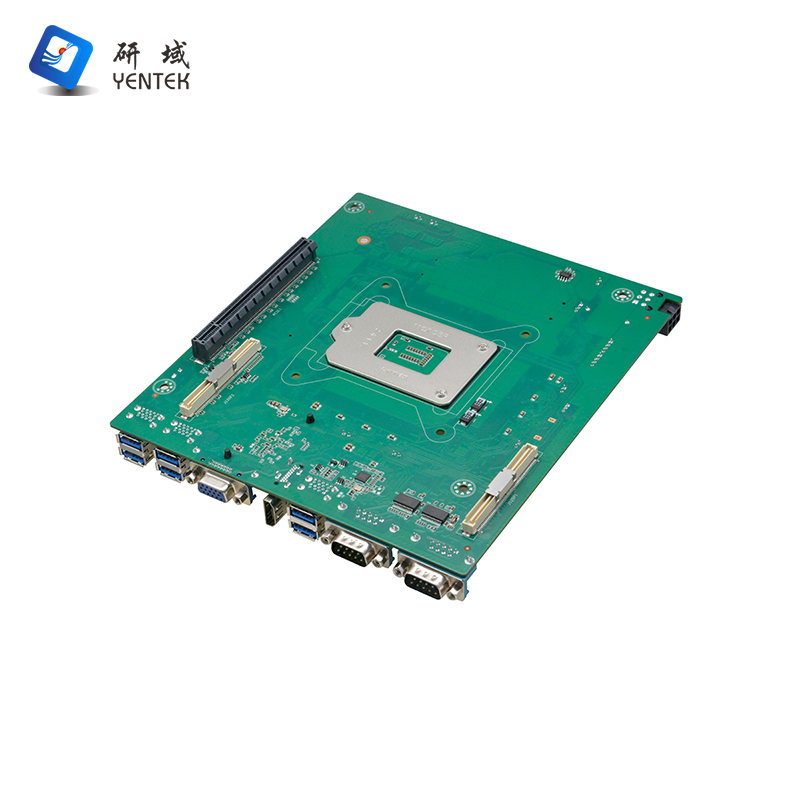

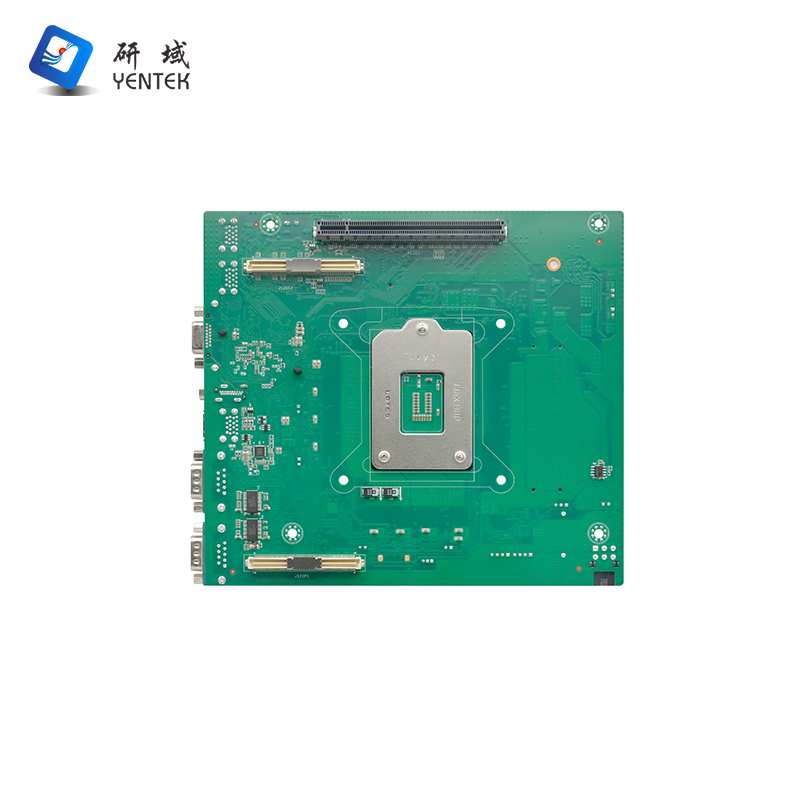

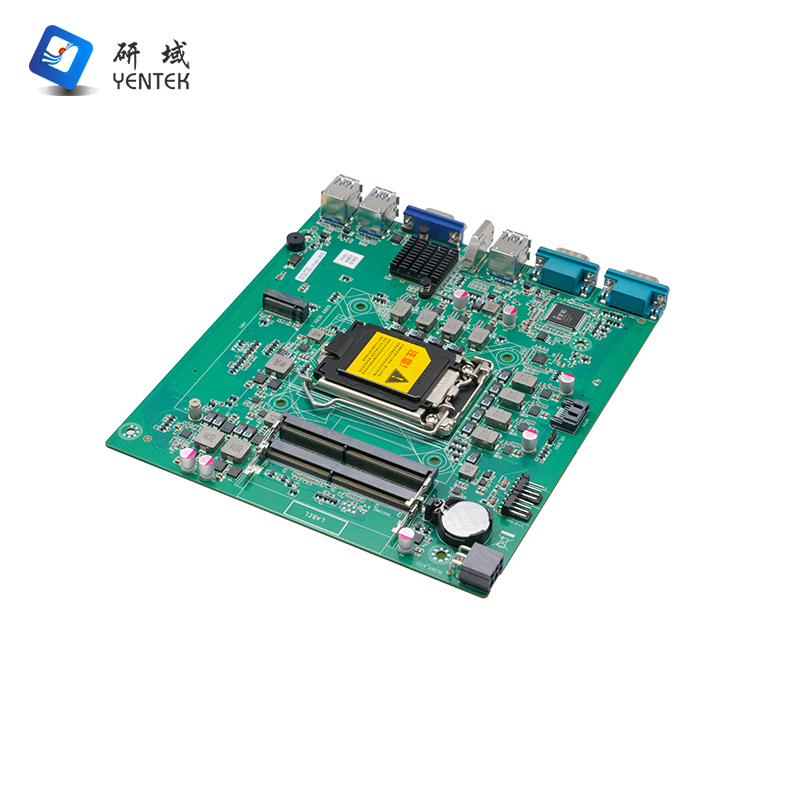

G390

Processor

Supports LGA1151 8th/9th Gen   Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors

Note: 8th/9th Gen processors are limited to 6-core CPUs with a TDP of 65W   or lower

Chipset

Intel® Z390 chipset

Memory

2 x DDR4 SODIMM memory slots, supporting dual-channel memory up to   2400MHz, with a maximum capacity of 64GB

Display

Integrated Intel® HD Graphics with support for DirectX 12.1, OpenGL 4.5,   and 4K display

1 x VGA port, supporting a maximum resolution of 1920x1080 @ 60Hz

1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2304 @24Hz

Network

Supports Gigabit Ethernet, located on the expansion board

Storage

1 x 7-pin SATA port, with a transfer rate of up to 6Gbps

1 x M.2 slot, supporting M.2 2280 NVMe PCIe x4 standard SSDs

Audio

N/A

Expansion Slots

1 x PCIe 3.0 x16 slot

2 x 120-pin   high-speed headers, including 6 TTL, 1 HD bus, 3 SATA, 1 DP, 3 USB 2.0, GPIO,   power switch, reset indicator, LPC bus, 8-lane PCIe, 1 PS/2

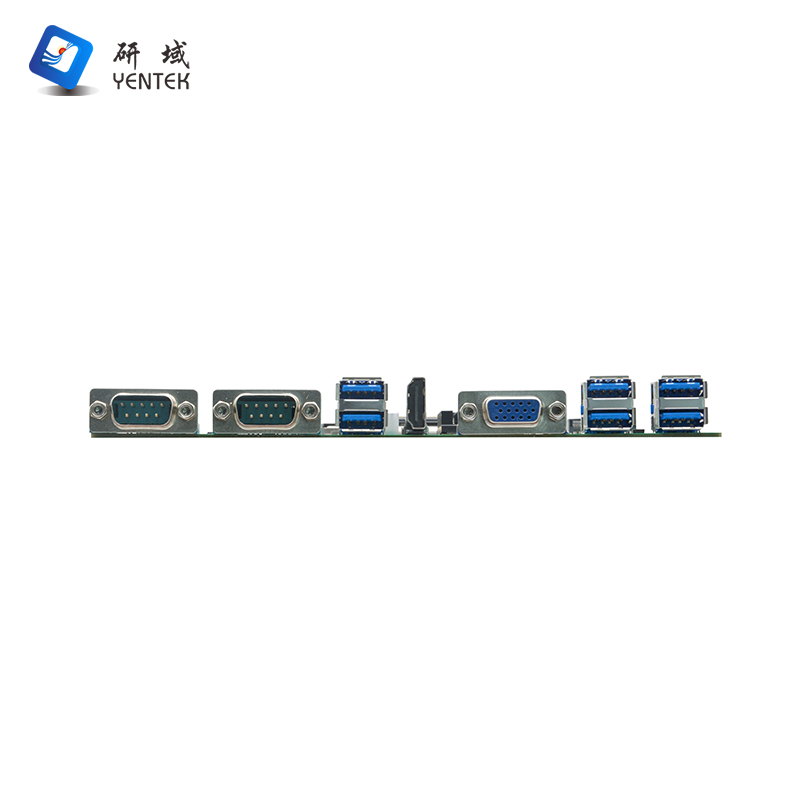

Rear Panel I/O Ports

2 x DB9 RS232 serial ports

6 x USB 3.0 ports (5 Gbps)

1 x HDMI 1.4 port

1 x VGA port

On-board I/O Ports

1 x 6-pin ATX power connector

Fan Connectors

2 x 4-pin CPU fan connectors; 1 x 4-pin system fan connector

GPIO

Supports 4-in/4-out GPIO functionality (located on the expansion board)

BIOS

64 MB Flash ROM

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Operating System

Windows 10/Windows 11/Linux

Power Supply Type

Supports 9–36 V DC wide-voltage input (via wide-voltage adapter board)

Operating Temperature

0°C to 60°C

Storage Temperature

-20°C to 70°C

Operating Humidity

5%–95% relative humidity, non-condensing

Dimensions

200mm x 180mm
