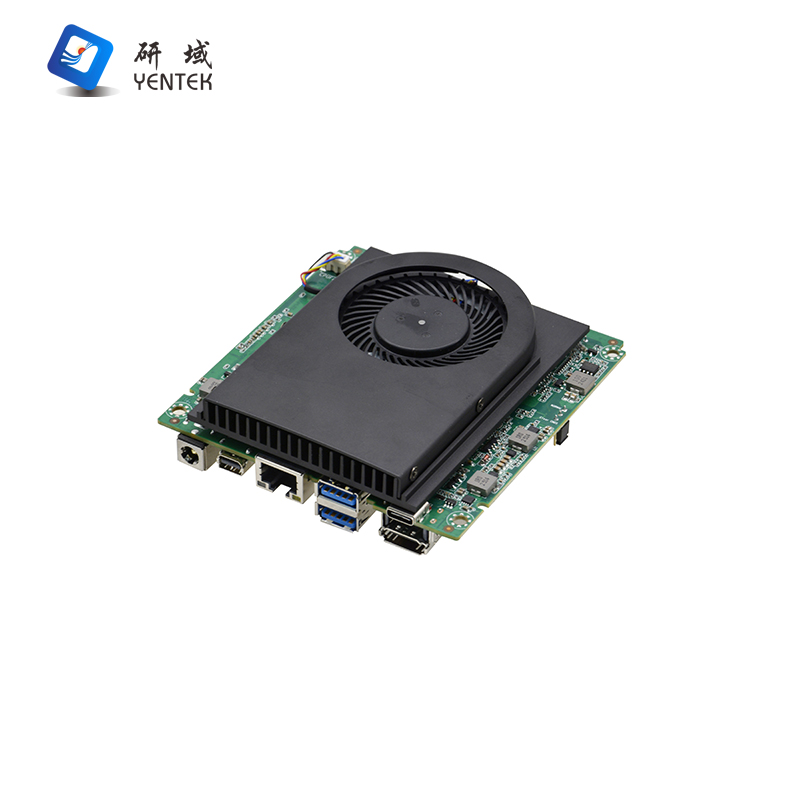

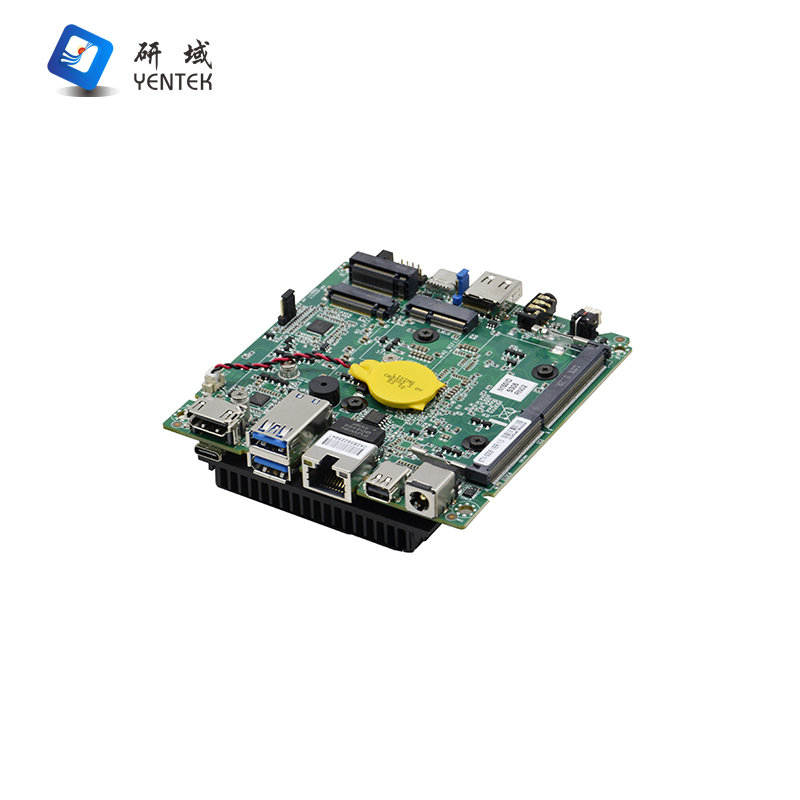

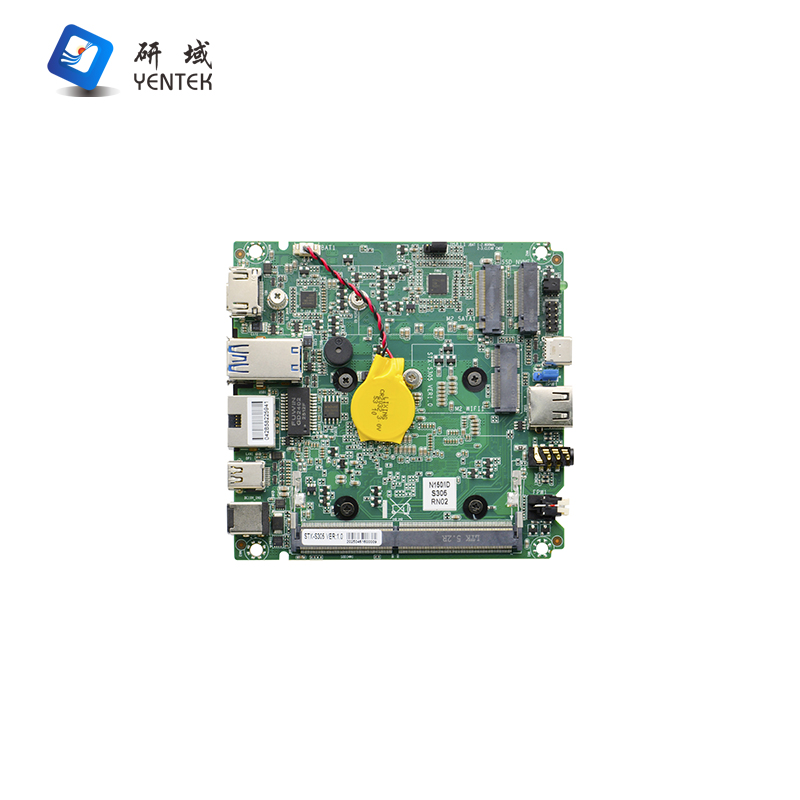

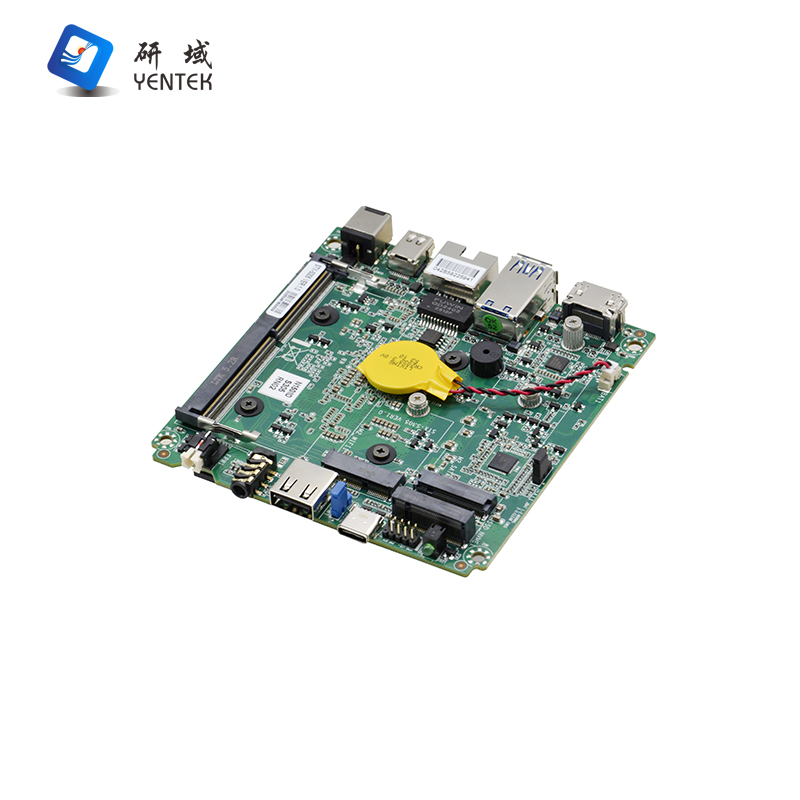

STX-S305

Processor

Integrated Intel® Twin Lake-N N150 3.6GHz   Quad-Core, Quad-Thread Processor, TDP 6W

Compatible with the full range of Intel® Alder   Lake-N CPUs for flexible customer selection

Chipset

SOC

Memory

1* DDR4 SODIMM memory slot, supports up to 3200MHz memory up   to 16GB

Display

Integrated Intel® UHD Graphics core graphics card, support DirectX12.1,   OpenGL4.6

1* HDMI2.0 interface, support for the highest resolution of   4096X2304@60Hz

1* miniDP1.4 interface, support for the highest resolution of   4096X2304@60Hz

Network

1* RTL8125B 2.5G NIC chip, support for Wake-on-LAN / PXE   function

Storage

1* M.2 slot, support 2242 SATA SSDs

1* M.2 slot, support M.2 Key M 2280 NVME   PCIE3.0 X1/SATA adaptive standard SSD

Audio

Onboard ALC897 7.1+2-channel hi-fi audio controller, support   MIC/Line-out

Expansion Slots

1* M.2   slot, support M.2 Key E 2230 WIFI module

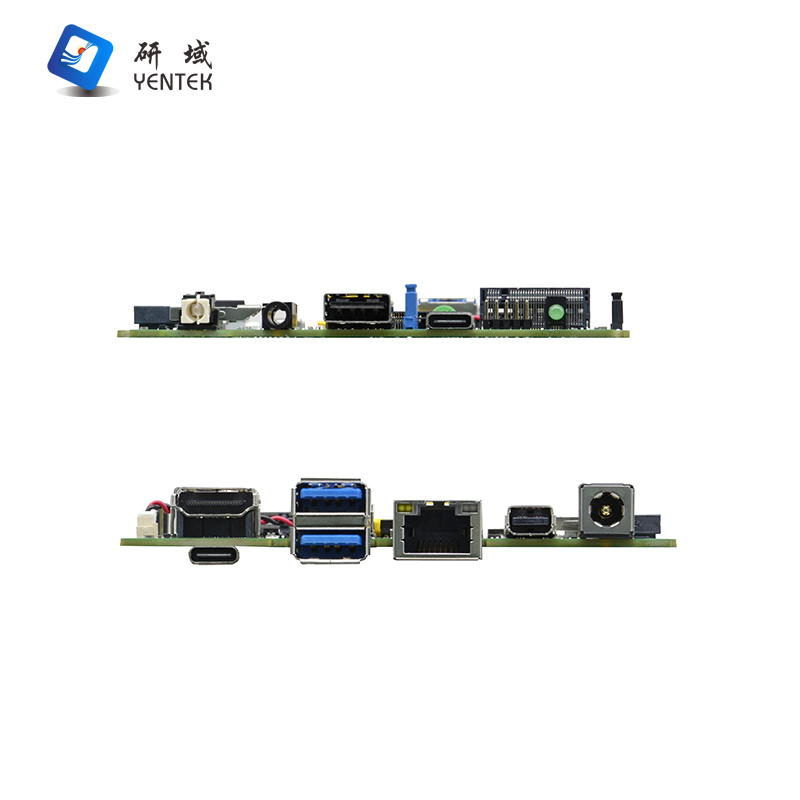

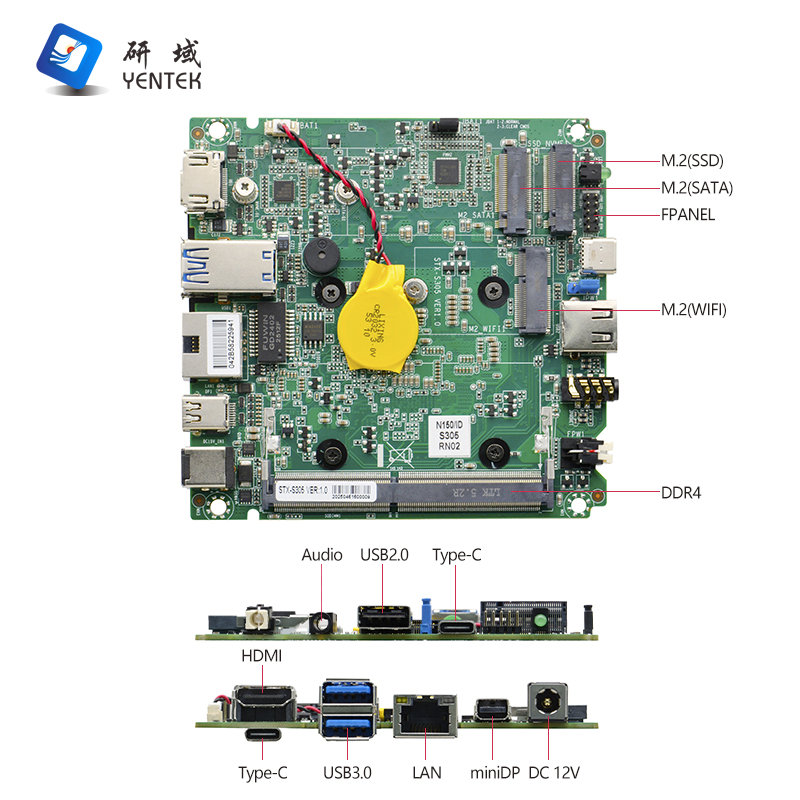

Back Panel I/O Ports

1* Type-C (USB3.0)

1* HDMI interface

2* USB3.0 interface

1* RJ45 Gigabit network interface

1* miniDP1.4 interface

1* DC12V power input port

Front I/O Interface

1* Light switch button

1* 2-in-1 audio

1* USB2.0 single layer

1* Type-C

1* Power indicator

Built-in I/O Ports

1* Front Panel Function Button and Indicator Light Connector   2*5pin

Fan Interface

1* 4pin CPU Smart Fan connector

GPIO

NA

BIOS

64Mb Flash ROM

Support System

Windows 11/Linux

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Power Supply Type

Support DC12V-19V power supply

Operating Temperature

-10℃～60℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95% relative humidity, non-condensing

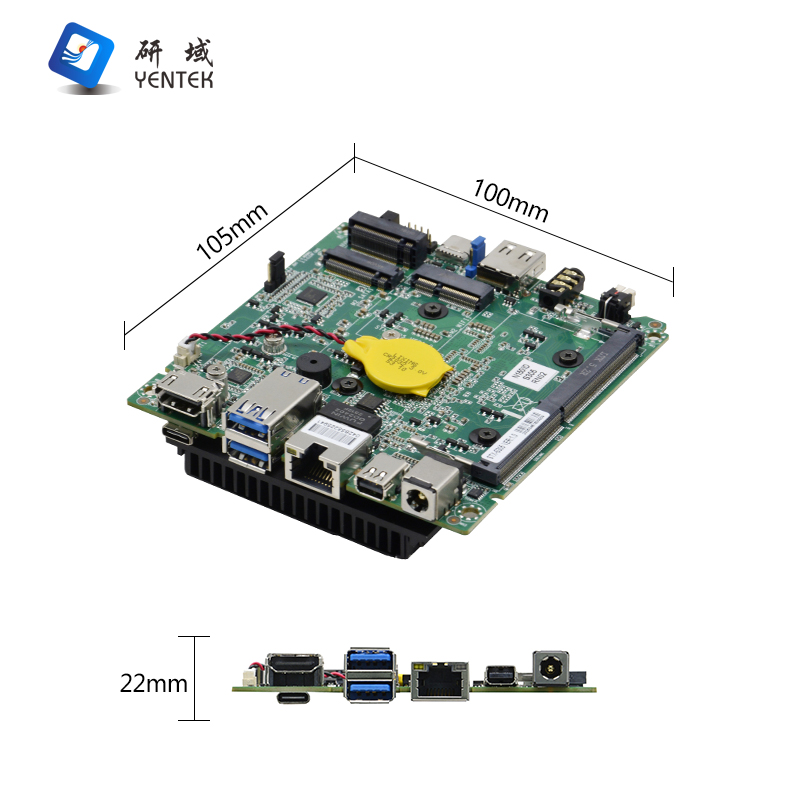

Dimension

105mm x 100mm

1

STX-S305   VER:1.0(N150)

N150

3.6G

1*SODDR4

/

1

1

/

1*RTL8125

5

/

/

DC12~19V
