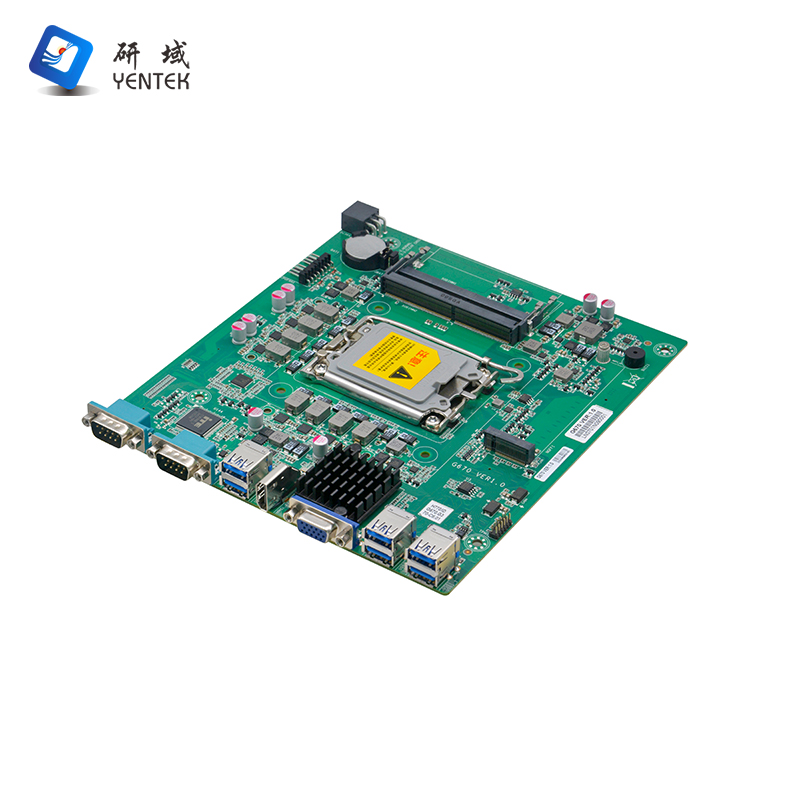

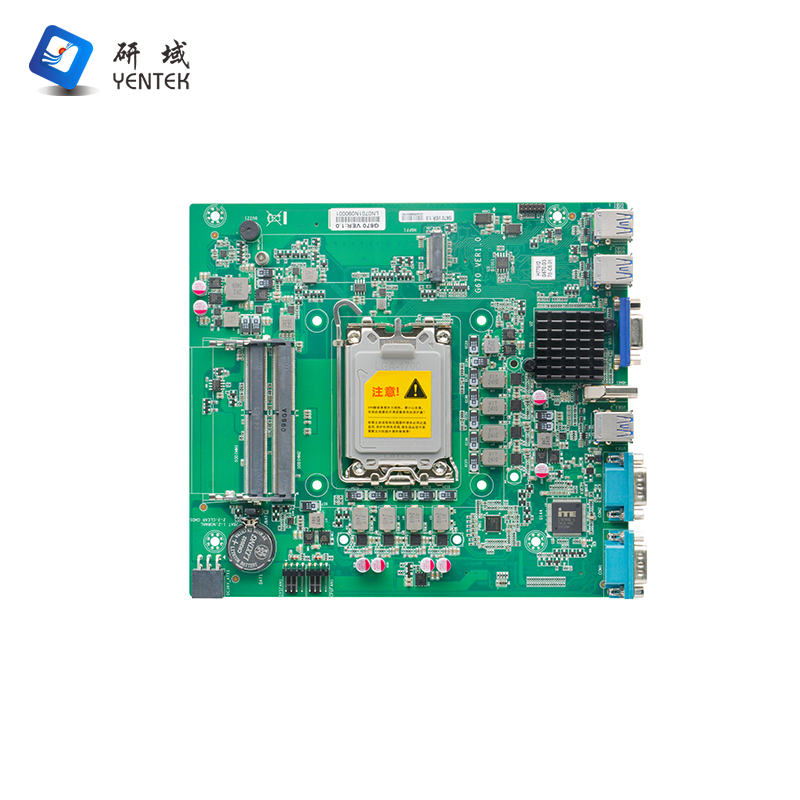

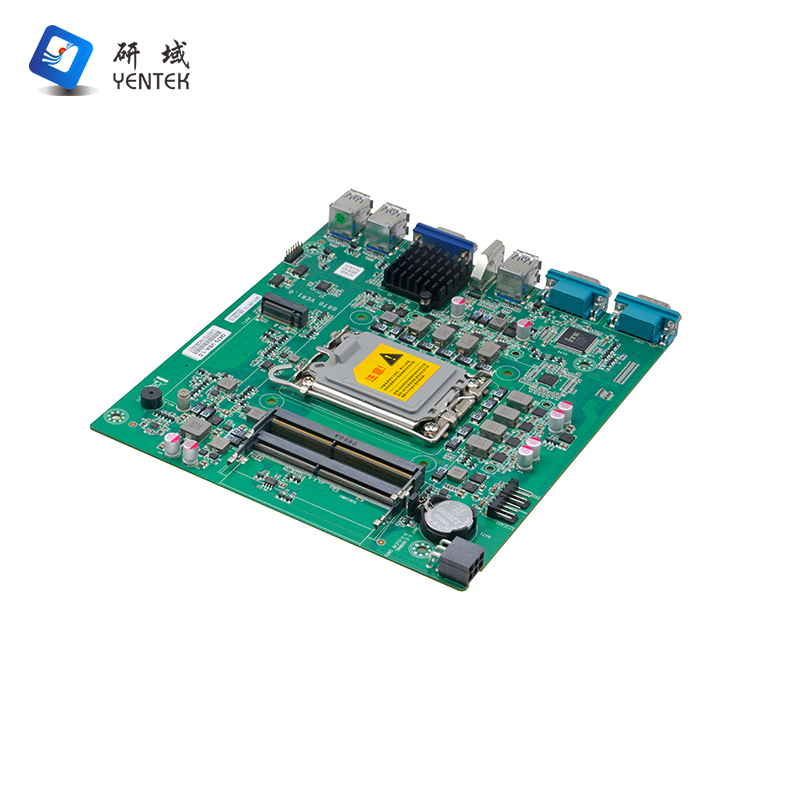

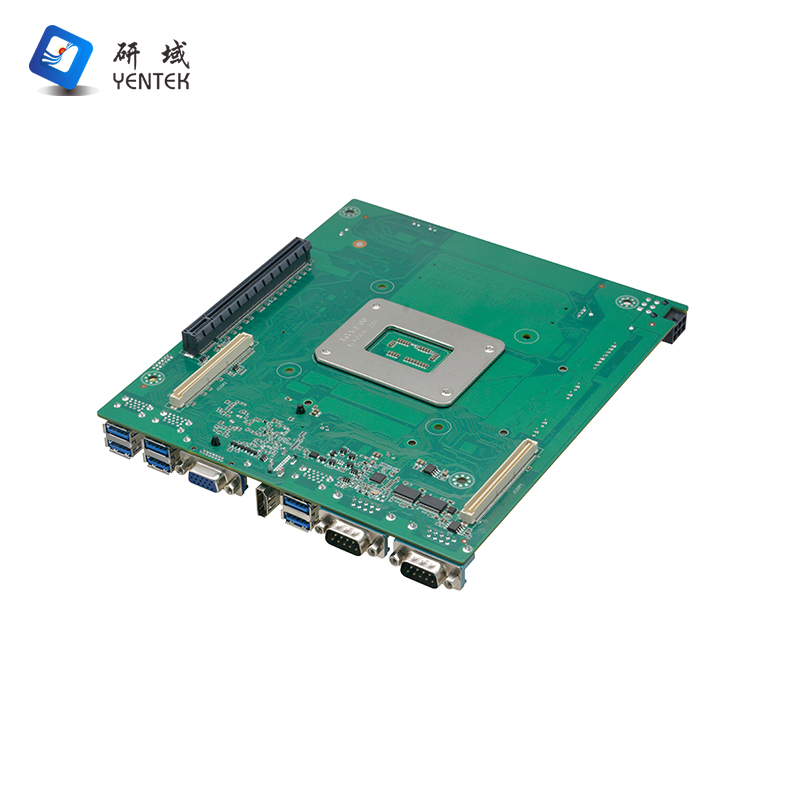

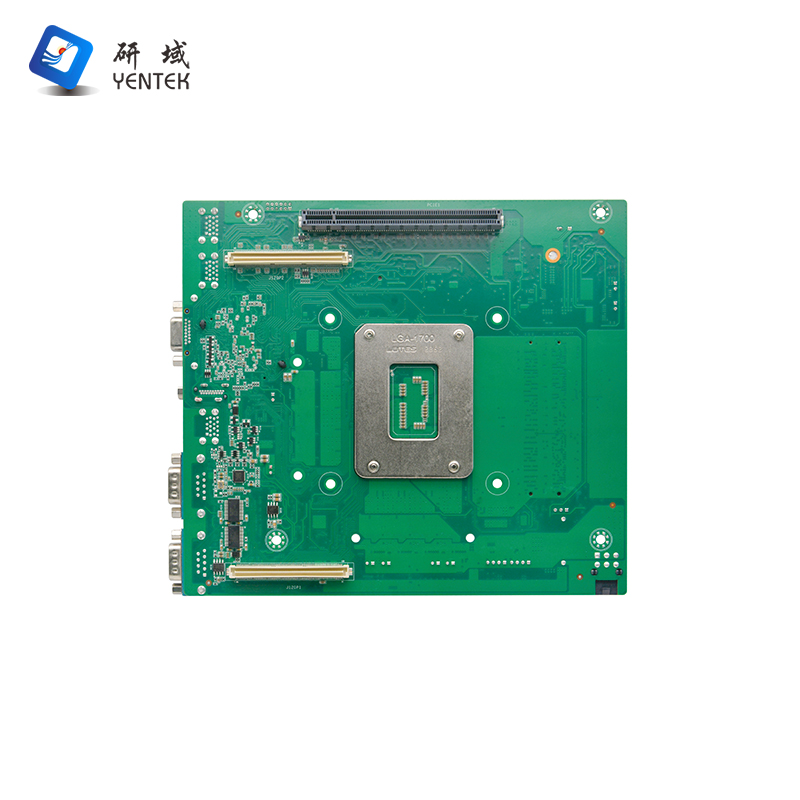

G670

Processor

Supports   12th, 13th and 14th generation Celeron, Pentium and Core™ i3, i5, i7 and i9   processors based on the LGA1700 architecture

Supports CPUs with a TDP of 65W or less

Chipset

Intel H770 high-speed chipset

Memory

2x   DDR4 SODIMM memory slots, supporting dual-channel memory up to 3200MHz, with   a maximum capacity of 128GB

Display

Integrated Intel® HD   Graphics, supporting DirectX 12, OpenGL 4.5, and 4K display

1x VGA port,   supporting a maximum resolution of 1920x1200 @ 60Hz

1 x HDMI 1.4 port, supporting a maximum   resolution of 4096 x 2160 @ 24Hz

Network

Supports Gigabit   Ethernet, located on the expansion board

Storage

1 x   M.2 slot, supporting M.2 2280 PCIe x4/SATA adaptive standard SSDs

Audio

N/A

Expansion Slots

1 x   PCIe x16 slot, capable of splitting into 2 x8 lanes

2 x 120-pin high-speed headers,   including 6 TTL, 1 HD bus, 3 SATA, 1 DP, 3 USB 2.0, GPIO, power switch, reset   indicator, LPC bus, 8-lane PCIe, 1 PS/2

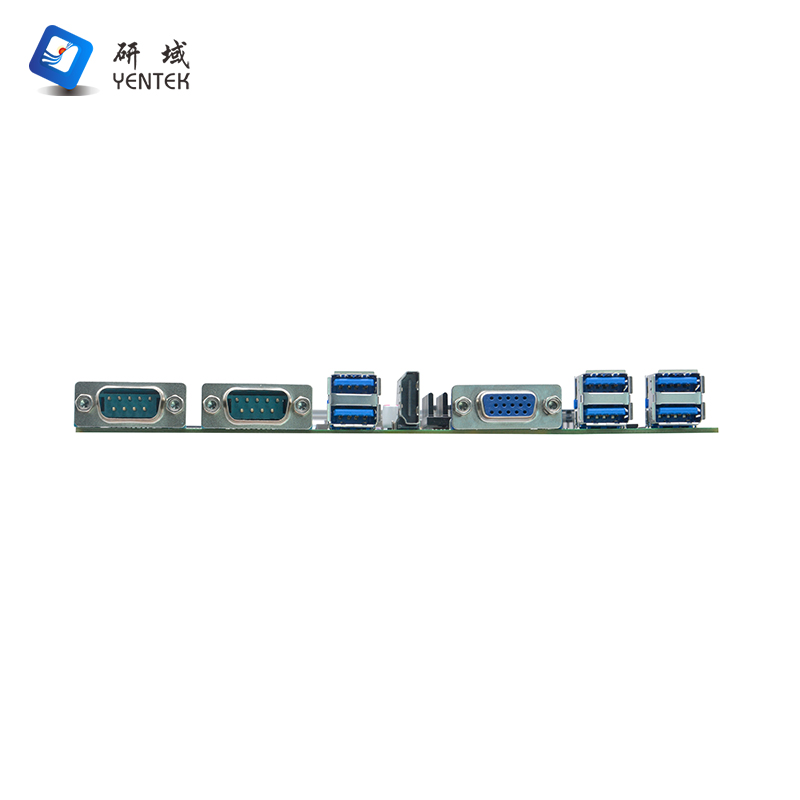

Rear I/O Ports

2 x   DB9 RS232 serial ports

6 x   USB 3.0 ports (5 Gbps)

1 x   HDMI 1.4 port

1 x   VGA port

On-board I/O Ports

1 x   6-pin ATX power connector

1 x   TPM header (2 x 6-pin)

Fan Connectors

1 x   4-pin CPU smart fan connector, 1 x 4-pin system smart fan connector

GPIO

Supports   4-channel GPIO I/O, implemented via 2 x 120-pin high-speed headers connected   to the I/O board

BIOS

64 MB Flash ROM

Operating System

Windows 10/11/Linux

Watchdog

Supports hardware   reset function (256 levels, 0–255 seconds)

Power Supply Type

Supports 9–36 V DC   wide-voltage input (via wide-voltage adapter board)

Operating Temperature

0 °C to 60 °C

Storage Temperature

–20 °C to 70 °C

Operating Humidity

5%–95% relative   humidity, non-condensing

Dimensions

200mm x 180mm

1

G670 VER:1.0

LGA1700

H770

2*SODDR4

1

1

/

/

/

6

2

/

DC8~36V
