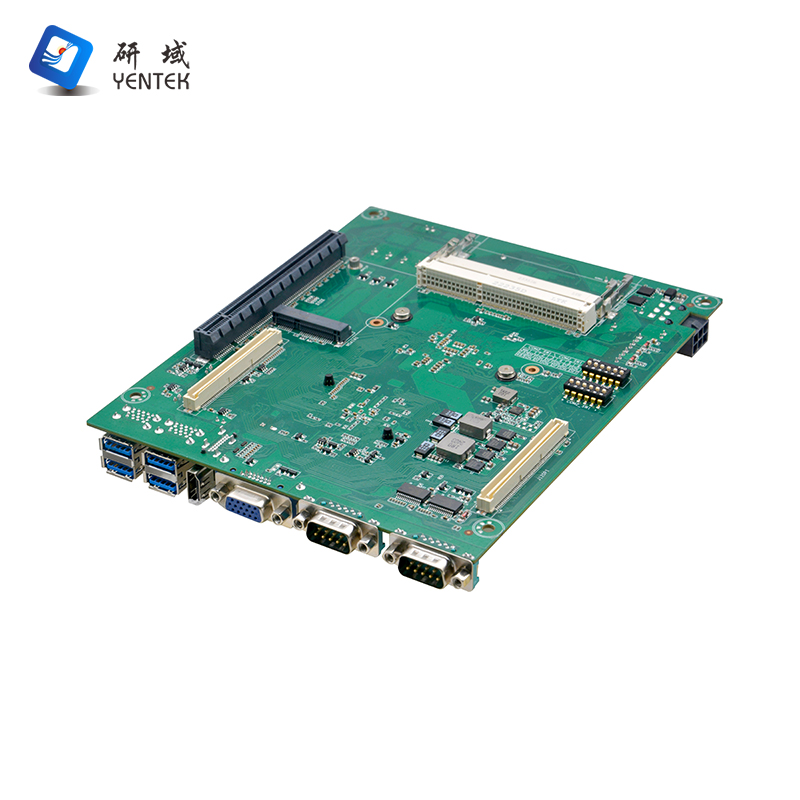

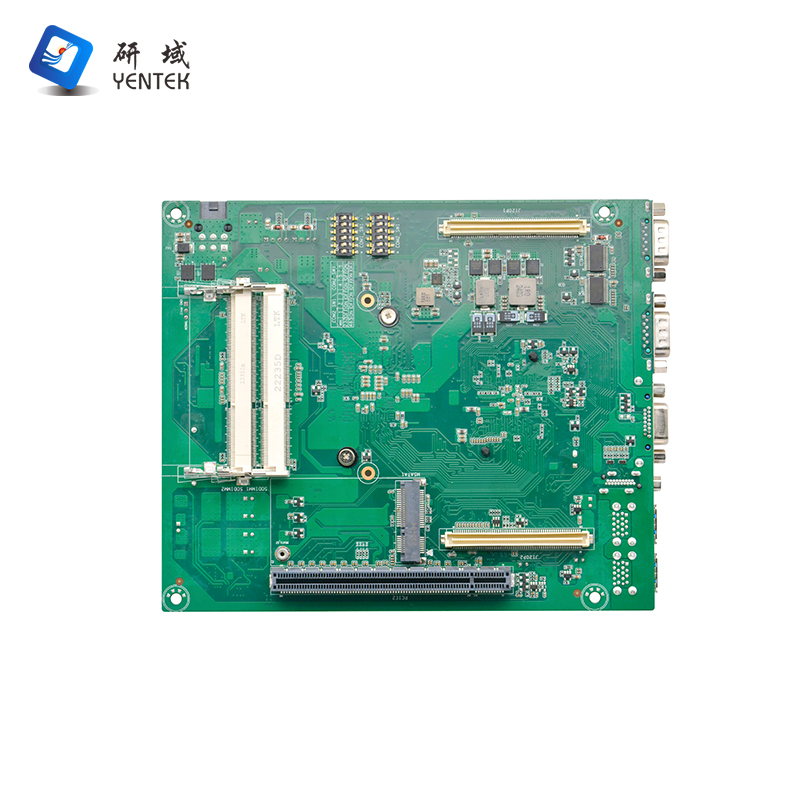

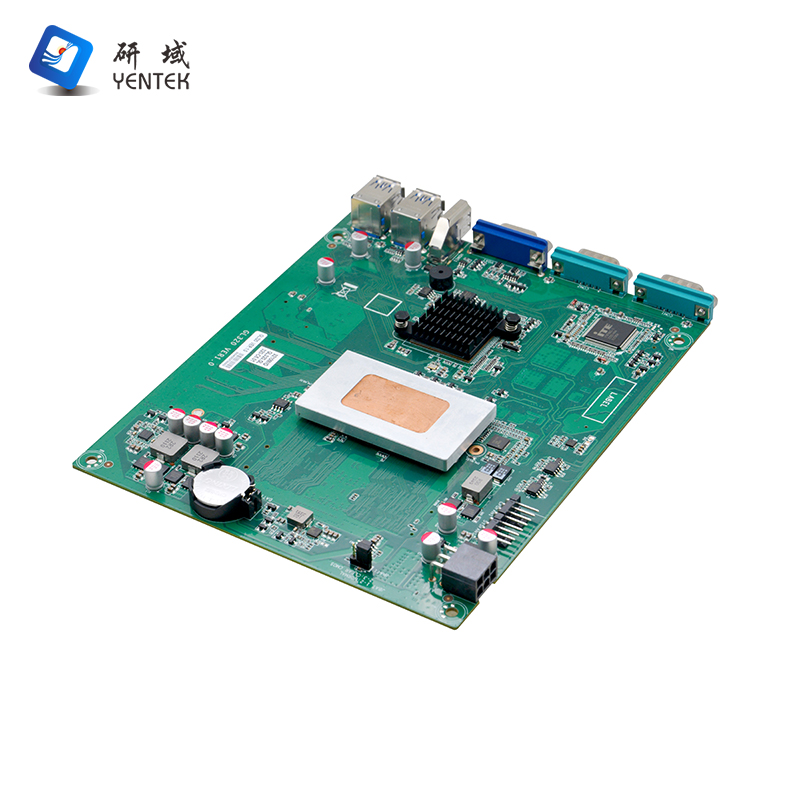

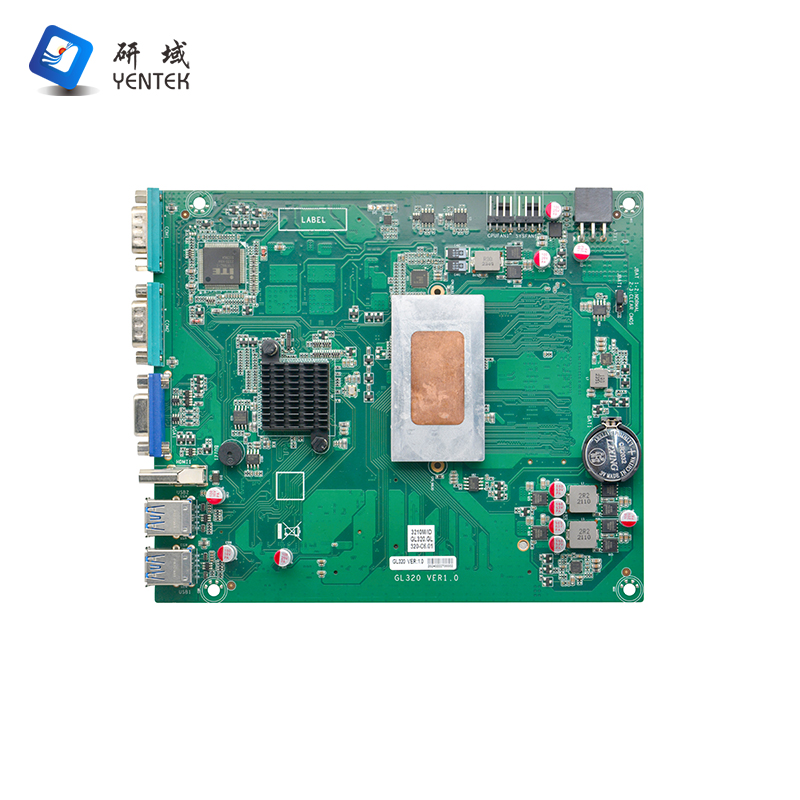

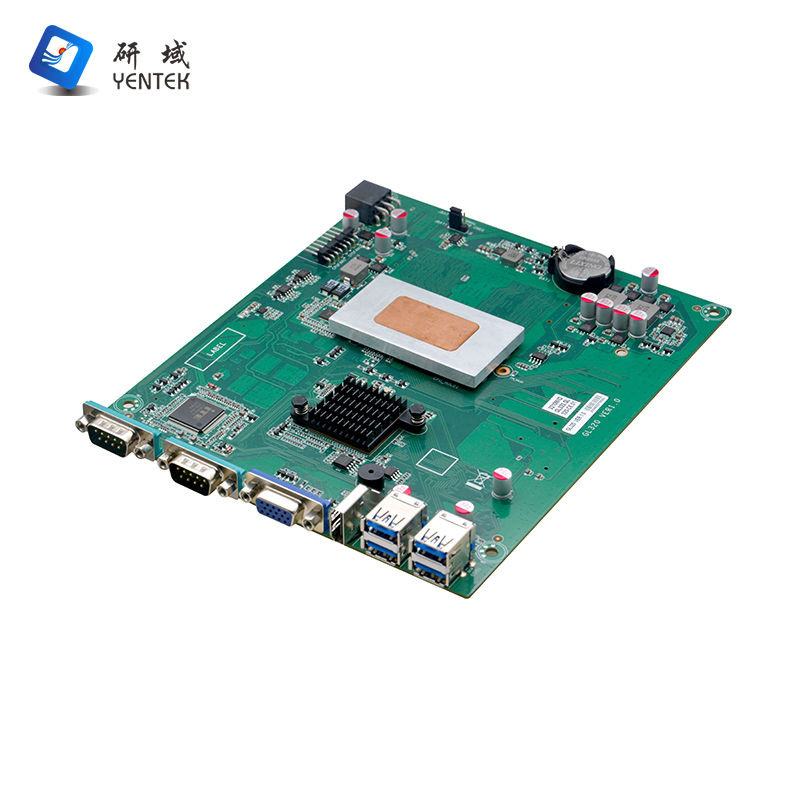

GL320

Processor

Features an integrated Intel® Core i5-3210M dual-core, quad-thread processor (2.5 GHz), TDP 35W

Compatible with Intel® Sandy   Bridge and Ivy Bridge Celeron, Pentium, i3, i5 and i7 BGA1023 low-power   processors

Chipset

Intel® HM77 chipset

Memory

2 x SODDR3 memory slots, supporting single-channel DDR3 1600/1333 memory,   with a maximum capacity of 16GB

Display

Integrated Intel® HD Graphics 4000 graphics

1 x VGA port

1 x HDMI 1.4 port

Network

Supports Gigabit Ethernet, located on the expansion board

Storage

1 x mSATA slot, supporting SSDs, with transfer speeds up to 6Gbps

Audio

N/A

Expansion slots

1 x PCIe 3.0 x16 slot   (x8 + x1 signal)

2 x 120-pin   high-speed headers, including 6 TTL, 1 HD bus, 3 SATA, 1 DP, 3 USB 2.0, GPIO,   power switch, reset indicator, LPC bus, 8-lane PCIe, 1 PS/2

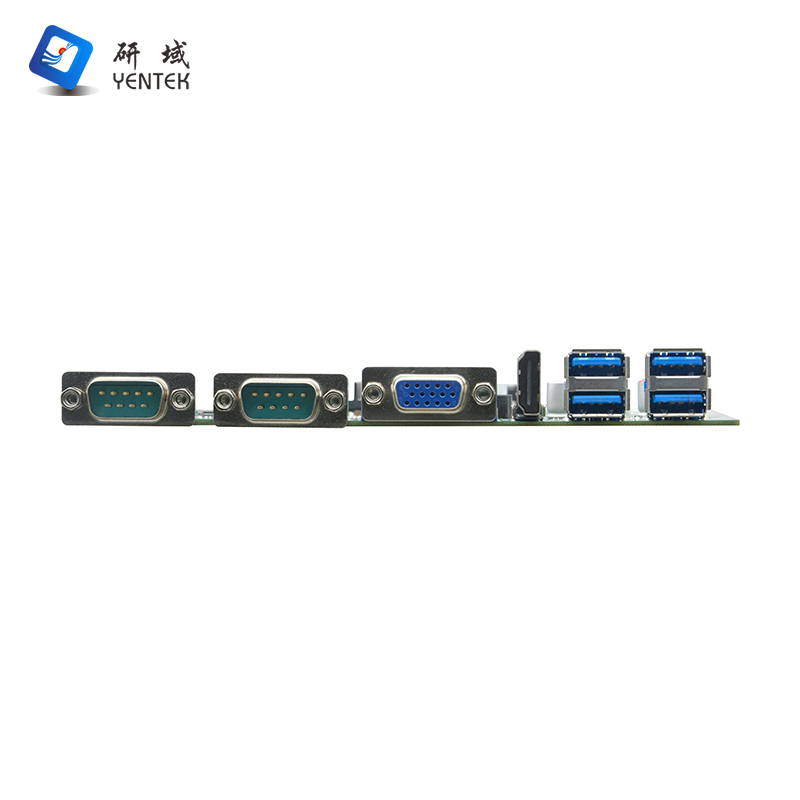

Rear panel I/O ports

2 x DB9 RS232 serial ports, supporting RS485

4 x USB 3.0 ports (5 Gbps)

1 x HDMI 1.4 port

1 x VGA port

On-board I/O ports

1 x 6-pin ATX power connector

Fan headers

2 x 4-pin CPU fan connectors; 1 x 4-pin system fan connector

GPIO

Supports 4-in/4-out GPIO functionality (located on the expansion board)

BIOS

64 MB Flash ROM

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Operating system

Windows 10/Windows 11/Linux

Power supply type

Supports 9–36 V DC wide-voltage input (via wide-voltage daughterboard)

Operating temperature

0 °C to 60 °C

Storage temperature

–20 °C to 70 °C

Operating humidity

5%–95% relative humidity, non-condensing

Dimensions

200mm x 180mm

1

GL320 VER:1.0

3210M

2.5GHz

HM77

2*SODDR3

1

1

/

/

4

2

/

DC9~36V
