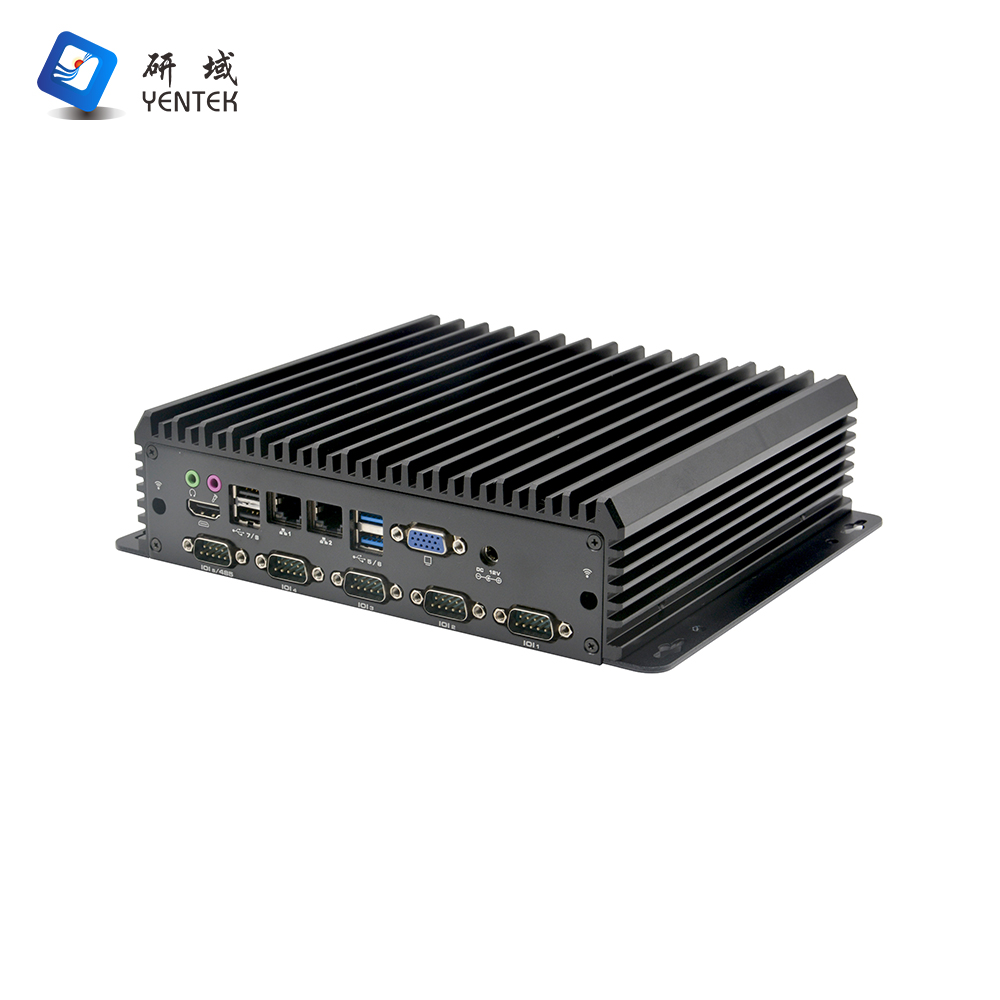

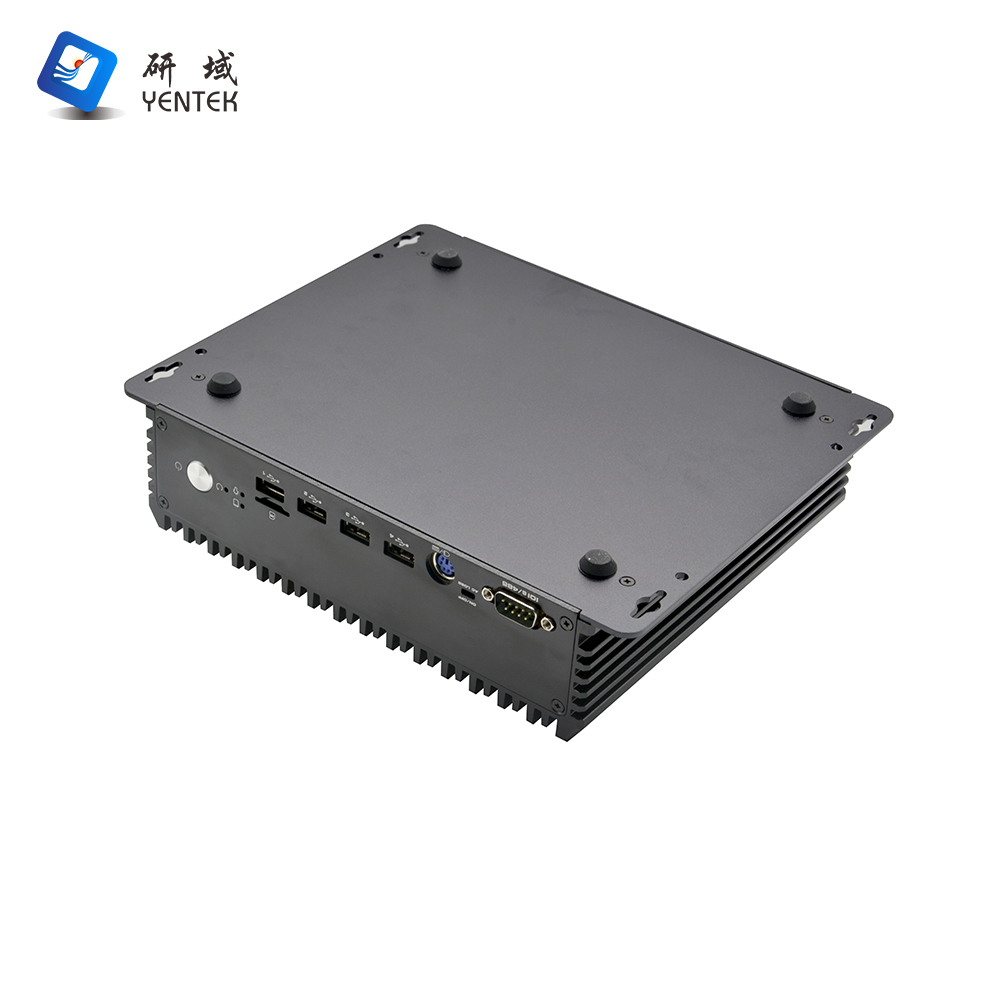

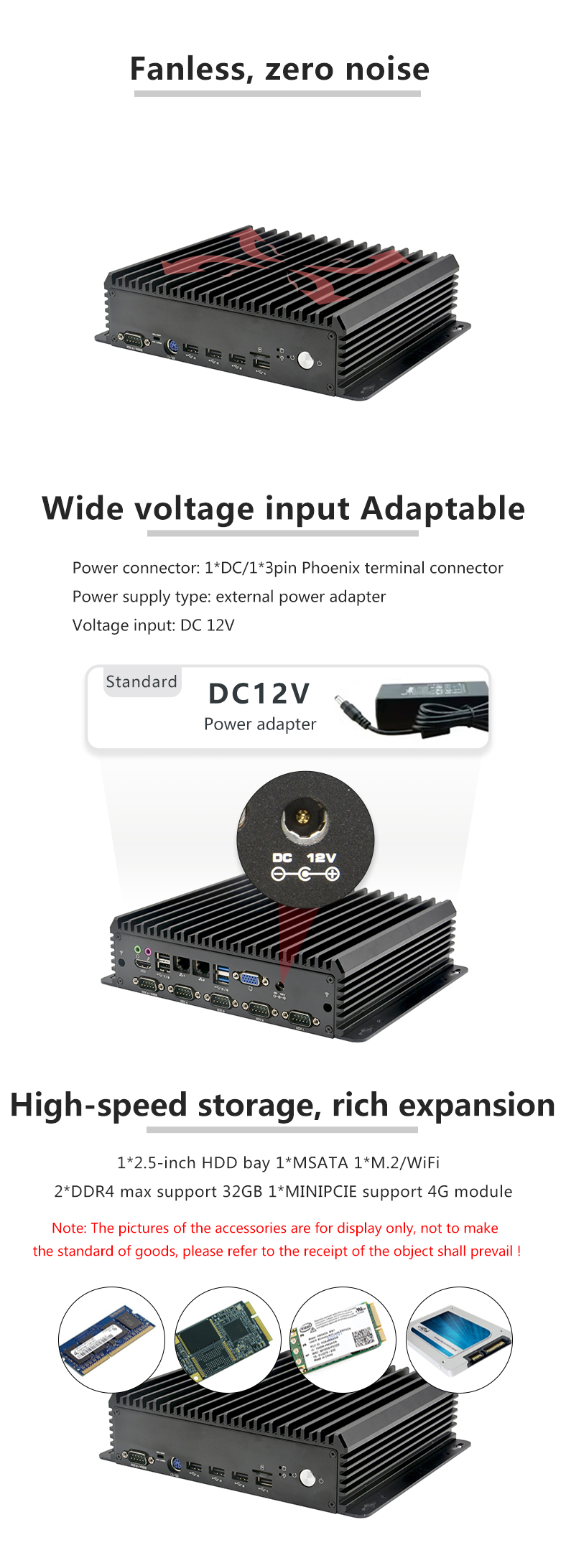

C6850Z-D6

Chassis

Material/structure

All   Aluminium Fanless

Colour

Gloss Black

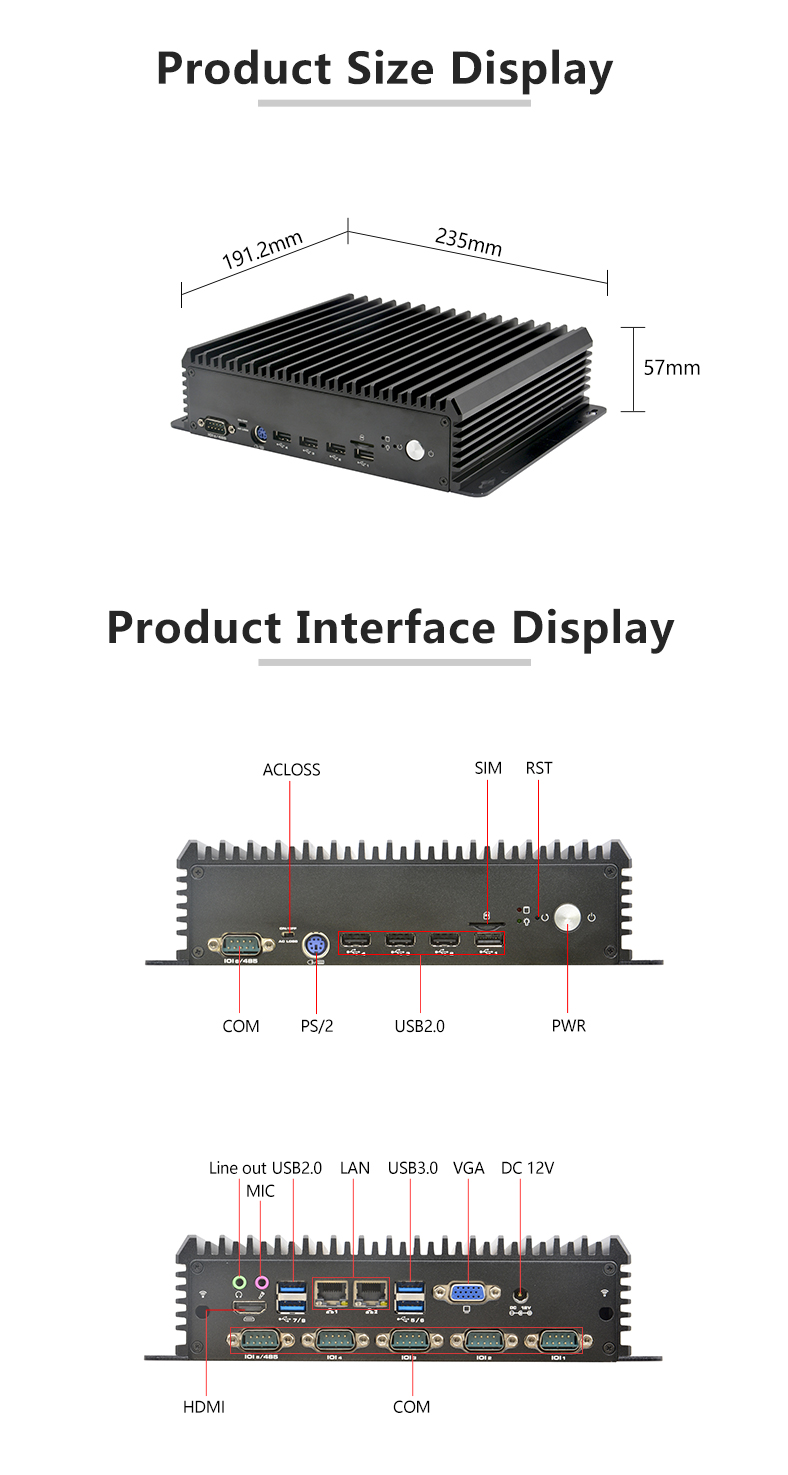

Dimensions   (LWH)

L235*W191.2*H57mm

Weight

1.9KG

Installation

Desktop/Embedded

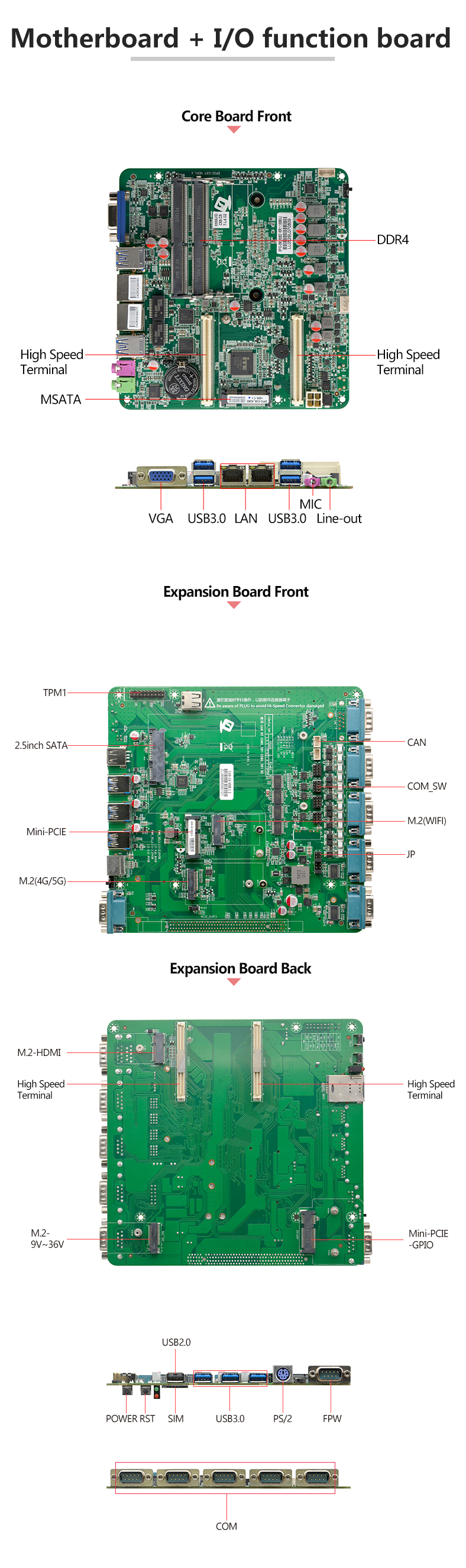

Motherboard

CPU

Integrated   Intel® i5-7360U/2.30GHz Dual-Core Quad-Threaded Processor, TDP 15W

Display

Integrated   Intel® Iris Plus Graphics 640

Memory

2*SODIMM   DDR4 2133MHz Memory, Max. 32GB supported

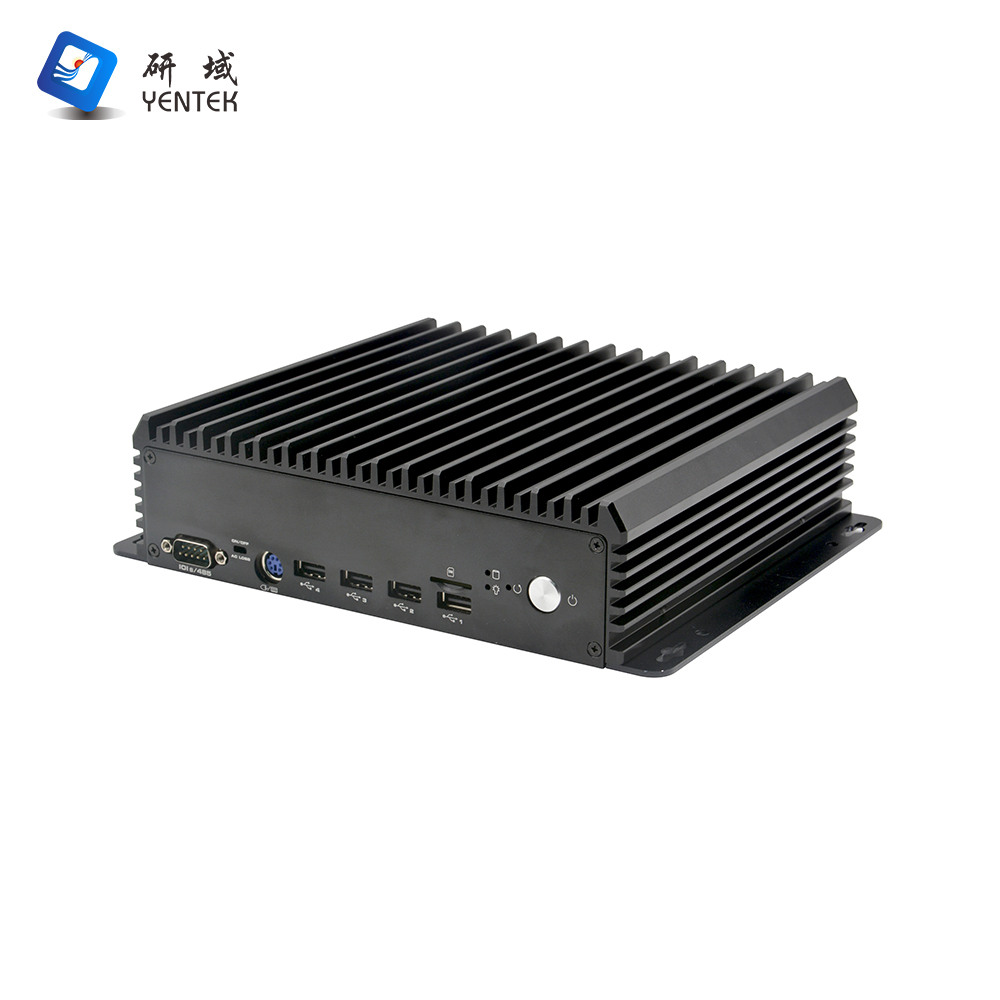

Front Panel   Connectors

POWER

1*Boot   Button, 1*One-Key Restore, 1*ACLOSS (Power On and Off DIP Switch)

LED

1*Power   Indicator, 1*Hard Drive Indicator

USB

4*USB2.0

COM

1*RS232/485   DB9 Serial Port

SIM

1*SIM   Standard Card Slot

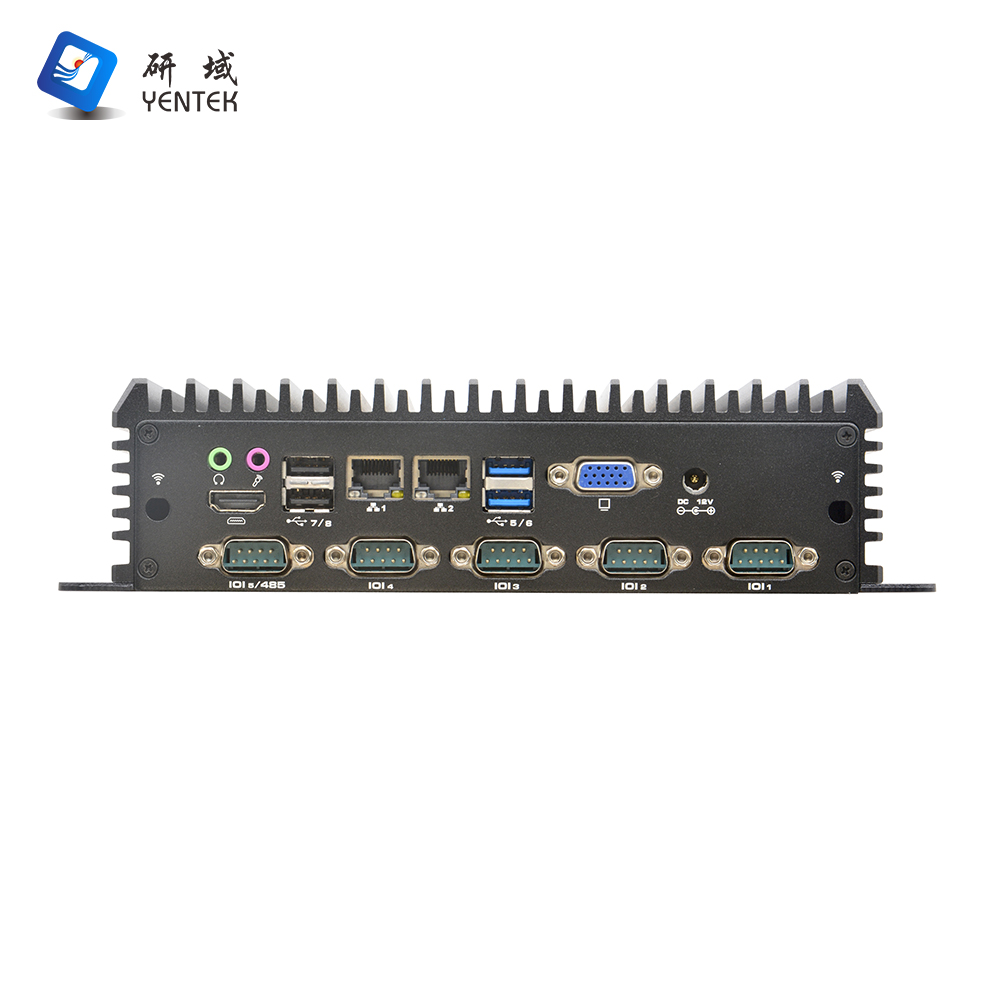

Rear Panel   Interface

Display   interface

1*VGA(1920*1200@60Hz),   1*HDMI1.4(4096*2304@ 30Hz)

LAN

2*Intel®   I210AT Gigabit power port, support Wake-on-Network, PXE function (subject to   actual shipment)

USB

4*USB3.0

COM

5*RS232 DB9   serial port, COM5 support RS232/485, COM1~2 9th pin with power function

Audio

1*Line out,   1* MIC

Power   supply

1*DC power   connector or 1*3P Phoenix terminal Power interface, support 9~36V power input

Storage

SATA

1*2.5 inch   HDD bay

MSATA

1*MSATA

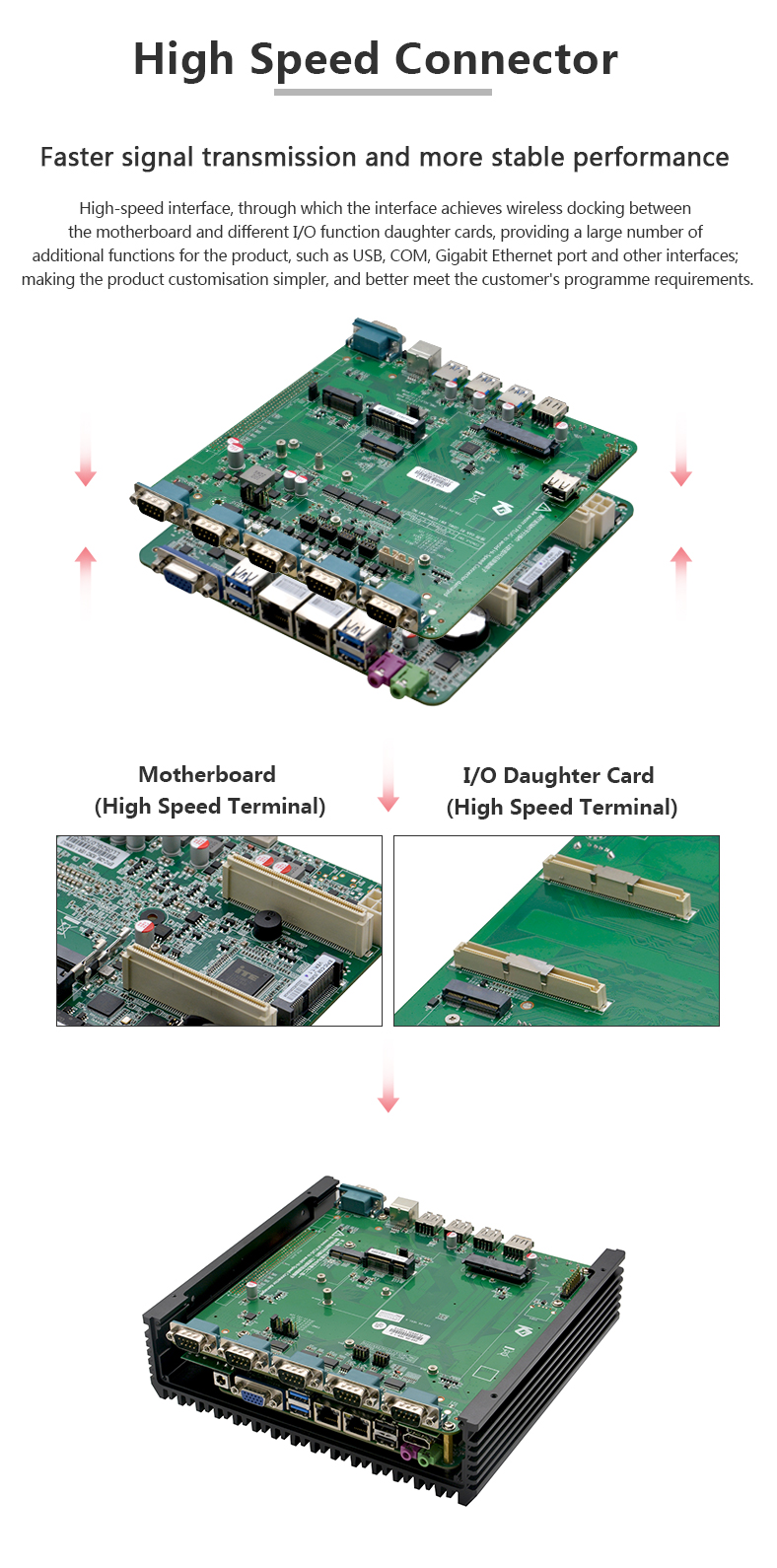

Expansion

MINIPCIE

1*MiniPCIE,   support 4G module

M.2

1*M.2/WiFi,   support Key-E, 2230, WiFi module

System   Support

Microsoft   Windows

Windows 7

Linux

Ubuntu

Watch Dog

Support   hardware reset function (256 levels, 0~255 seconds)

Power   Requirements

Power   supply type

External   power adapter

Voltage   input

DC 12V

Power   output

AC To DC   60W~90W (depends on specific equipment)

Environments

Operating   temperature

-10℃～50℃

Storage   temperature

-20℃～70℃

Relative   humidity

5%-95%   relative humidity, non-condensing

Operating   vibration

0.5g   rms/5-500HZ/random/operating

1

C6850Z-D6 V1.2(J1900)

J1900/2.0G

C19_J926D

C69-D6/C68-HM/C68-DC

MSATA+2.5

2*I210

6

1

7

DC 12V

2

C6850Z-D6 V1.2(J6412)

J6412/2.0G

C641_J126D

C69-C6/C68-PW/C68-HM/C68-G12

MSATA+2.5

2*I210

6

2

6

DC 12V

3

C6850Z-D6 V1.2(5020U)

I3-5020U/2.2G

C43_I326D

C69-C6/C68-PW/C68-HM/C68-G12

MSATA+2.5

2*I210

6

2

6

DC 12V

4

C6850Z-D6 V1.2(4310U)

I5-4310U/2.0G

C43_I526D

C69-C6/C68-PW/C68-HM/C68-G12

MSATA+2.5

2*I210

6

2

6

DC 12V

5

C6850Z-D6 V1.2(6300U)

I5-6300U/2.4G

C58_I526D

C69-C6/C68-PW/C68-HM/C68-G12

MSATA+2.5

2*I210

6

4

4

DC 12V

6

C6850Z-D6 V1.2(6650U)

i7-6650U/2.2G

C58_I726D

C69-C6/C68-PW/C68-HM/C68-G12

MSATA+2.5

2*I210

6

4

4

DC 12V

7

C6850Z-D6 V1.2(7200U)

I5-7200U/2.5G

C58_I526D

C69-C6/C68-PW/C68-HM/C68-G12

MSATA+2.5

2*I210

6

4

4

DC 12V

8

C6850Z-D6 V1.2(7360U)

I5-7360U/2.3G

C58_I526D

C69-C6/C68-PW/C68-HM/C68-G12

MSATA+2.5

2*I210

6

4

4

DC 12V

9

C6850Z-D6 V1.2(7500U)

I7-7500U/2.7G

C58_I726D

C69-C6/C68-PW/C68-HM/C68-G12

MSATA+2.5

2*I210

6

4

4

DC 12V

10

C6850Z-D6 V1.2(8145U)

I3-8145U/2.1G

C81_I326D

C69-C6/C68-PW/C68-HM/C68-G12

MSATA+2.5

2*I210

6

4

4

DC 12V

11

C6850Z-D6 V1.2(8265U)

I5-8265U/1.6G

C81_I526D

C69-C6/C68-PW/C68-HM/C68-G12

MSATA+2.5

2*I210

6

4

4

DC 12V

12

C6850Z-D6 V1.2(8565U)

I7-8565U/1.8G

C81_I726D

C69-C6/C68-PW/C68-HM/C68-G12

MSATA+2.5

2*I210

6

4

4

DC 12V

13

C6850Z-D6 V1.2(10210U)

I5-10210U/1.6G

C100_I526D

C69-C6/C68-PW/C68-HM/C68-G12

MSATA+2.5

2*I210

6

4

4

DC 12V

14

C6850Z-D6 V1.2(6305)

6305/1.8G

C110_C326D

C69-C6/C68-PW/C68-HM/C68-G12

MSATA+2.5

2*I225

6

2

6

DC 12V

15

C6850Z-D6 V1.2(1135G7)

I5-1135G7/2.4G

C110_I526D

C69-C6/C68-PW/C68-HM/C68-G12

MSATA+2.5

2*I225

6

2

6

DC 12V

16

C6850Z-D6 V1.2(1165G7)

I7-1195G7/2.8G

C110_I726D

C69-C6/C68-PW/C68-HM/C68-G12

MSATA+2.5

2*I225

6

2

6

DC 12V

17

C6850Z-D6 V1.2(1195G7)

I7-1195G7/2.9G

C110_I726D

C69-C6/C68-PW/C68-HM/C68-G12

MSATA+2.5

2*I225

6

2

6

DC 12V
